Samsung ATIV Book 4 NP470R5E - NP470R5E-K02UB

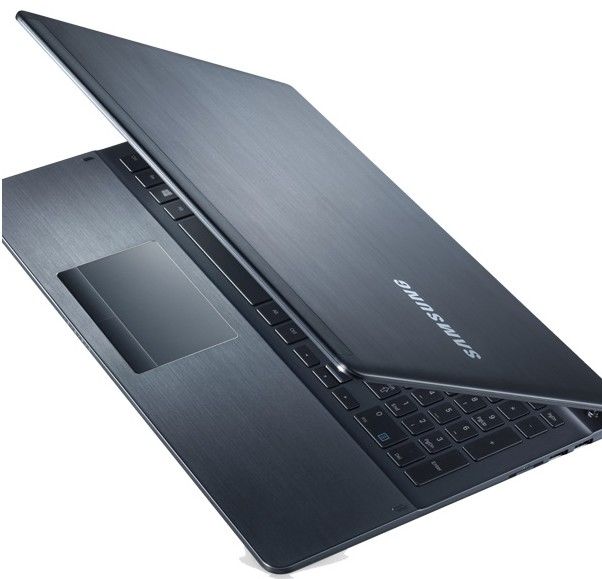

Samsung ATIV Book 4 NP470R5E
Product code: NP470R5E-K02UB
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-3537U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 4000
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 750 GB
- âī¸Weight: 2.08 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Display surface | Gloss |
| Aspect ratio | 16:9 |
| LED backlight | Y |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Brand | Samsung |
| Family | ATIV |
| Series | Book 4 |
| Model name | NP470R5E |
| Part Number | NP470R5E-K02UB |
| Release Date | 14 November 2013 |
|
|
|
| Processor | |
| Processor series | Intel Core i7-3500 Mobile series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2 GHz |
| Motherboard chipset | Intel HM76 Express |
| Processor boost frequency | 3.1 GHz |
| Processor codename | Ivy Bridge |
| Thermal Design Power (TDP) | 17 W |
| Processor model | i7-3537U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Processor lithography | 22 nm |
| Processor socket | BGA 1023 |
| Processor generation | 3rd gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR3-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
| Memory layout (slots x size) | 2 x 4 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 4000 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 4000 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card ID | 0x166 |
| Storage | |
| Total storage capacity | 750 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 750 GB |
| HDD speed | 5400 RPM |
| HDD interface | SATA II |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | HDD |
| Optical drive | |
| Optical drive type | N |
| LightScribe | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Y |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| ExpressCard slot | N |
| CardBus PCMCIA slot type | N |
| SmartCard slot | N |
| DVI port | N |
| Docking connector | N |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | HD |
| Speaker power | 1.5 W |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard number of keys | 101 |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 8 |
| Pre-installed software | SideSync, HomeSync Lite, S Apps |
| Operating system architecture | 64-bit |
| Bundled software | SideSync, HomeSync Lite, S Apps |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery life (max) | 4 h |
| Battery capacity | 3780 mAh |
| Battery capacity (Watt hours) | 43 Wh |
| Weight & dimensions | |
| Weight | 2.08 kg |
| Height | 22.9 mm |
| Depth | 247.9 mm |
| Width | 375.9 mm |
| Power | |
| AC adapter power | 60 W |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Password protection type | BIOS, HDD |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
Comments
Mohammad Obaidur Rahman REPLY21 Apr 2020 - 05:04
Dear sir
Have a nice day...! I have laptop Model No. NP470R5E-K02UB, I loss my windows 8 and i install my laptop windows 10 but my laptop function key not working he need to driver please you can give me link for driver
laptoparena REPLY22 Apr 2020 - 22:04
from Samsung troubleshooting guide:
Q: The keyboard Fn keys (hot keys) do not work.
A: Install Easy Display Manager and Samsung Control Center.
Joan Lacava REPLY02 Jan 2022 - 22:01
Battery stopped working a few years in and I have had to buy at least 3 charging cables since the original one dies. OK this is a 9 year old laptop but I am still working on a Gateway! which is on the original everything and its a really workhorse because my son is using it too.
