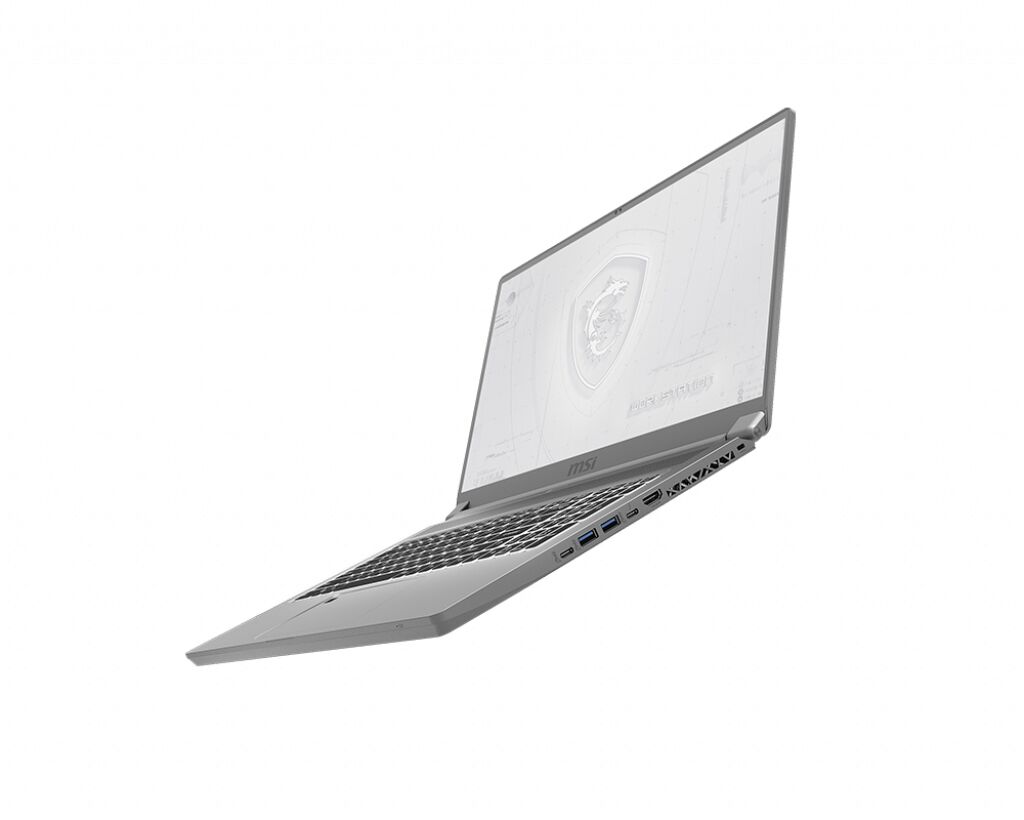

MSI Workstation WS75 10TL-1003FR - 9S7-17G312-1003
MSI Workstation WS75 10TL-1003FR
Product code: 9S7-17G312-1003
- đģDisplay diagonal: 17.3 inch
- đŗProcessor model: i7-10875H
- đĢInternal memory: 32 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics
- đŽDiscrete graphics adapter model: NVIDIA Quadro RTX 4000 Max-Q
- đŊTotal storage capacity: 1 TB
- âī¸Weight: 2.5 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Market positioning | Work |
| Original brand name | MSI |
| Display | |
| Display diagonal | 17.3 inch |
| Maximum refresh rate | 60 Hz |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Display resolution | 3840 x 2160 pixels |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 1000 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| Brand | MSI |
| Family | Workstation |
| Series | WS75 |
| Model name | 10TL-1003FR |
| Part Number | 9S7-17G312-1003 |
| Release Date | 19 December 2020 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 5.1 GHz |
| Processor model | i7-10875H |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Processor generation | 10th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| NVIDIA Max-Q | Yes |
| On-board graphics adapter 4K support | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Graphics adapter Open GL support | Y |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics |
| Discrete graphics adapter model | NVIDIA Quadro RTX 4000 Max-Q |
| Discrete graphics adapter memory | 8 GB |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro RTX 4000 Max-Q |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| Discrete graphics card memory | 8 GB |
| On-board graphics card 4K support | Yes |
| Graphics card Open GL support | Yes |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | NVMe, PCI Express |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000, 2500 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Nahimic 3D |
| Speaker power | 2 W |
| Camera | |
| Front camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit colour | White |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 82 Wh |
| Number of battery cells | 4 |
| Battery capacity | 82 Wh |
| Weight & dimensions | |
| Weight | 2.5 kg |
| Height | 20.2 mm |
| Depth | 259.4 mm |
| Width | 396.1 mm |
| Power | |
| AC adapter power | 180 W |
| Security | |
| Fingerprint reader | Yes |
| Other features | |
| Display diagonal (metric) | 43.9 cm |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
