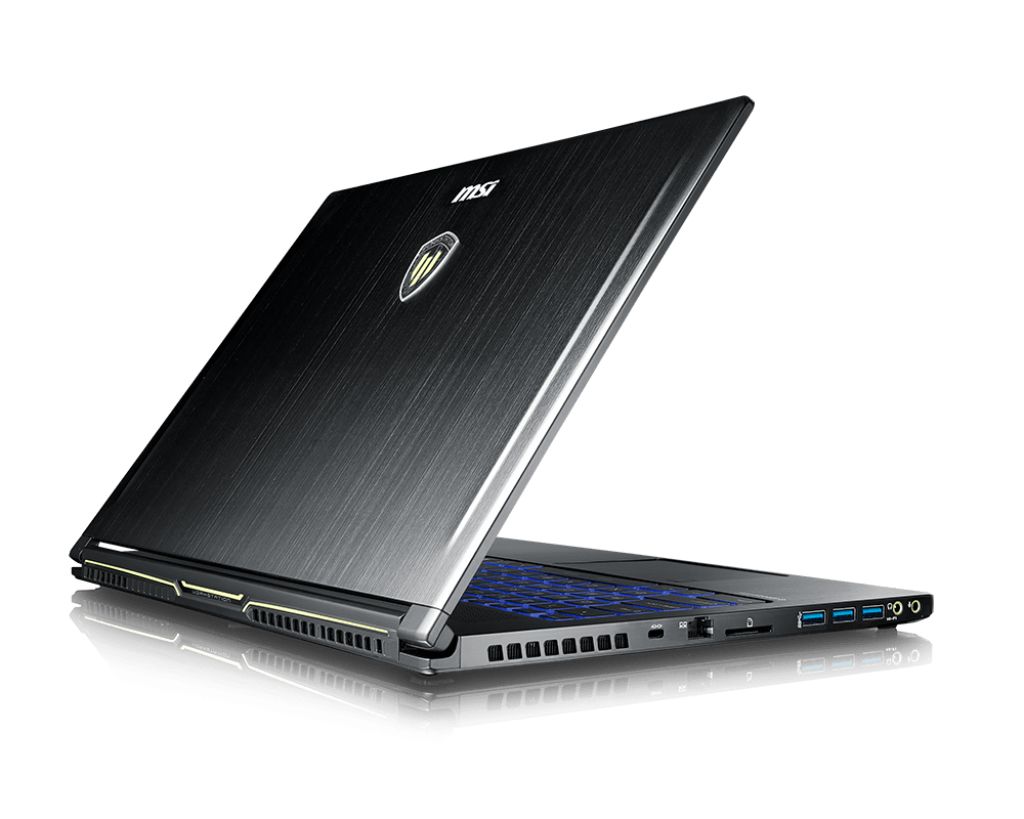

MSI Workstation WS63VR 7RL-203UK - 9S7-16K332-203
MSI Workstation WS63VR 7RL-203UK
Product code: 9S7-16K332-203
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-7700HQ
- đĢInternal memory: 32 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 630
- đŽDiscrete graphics adapter model: NVIDIA Quadro P4000
- đŊTotal storage capacity: 2256 GB
- âī¸Weight: 1.8 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | N |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | MSI |
| Family | Workstation |
| Series | WS63 |
| Model name | WS63VR 7RL-203UK |
| Part Number | 9S7-16K332-203 |
| Release Date | 24 October 2018 |
|
|
|
| Processor | |
| Processor series | Intel Core i7-7700 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.8 GHz |
| Motherboard chipset | Intel HM175 |
| Processor boost frequency | 3.8 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-7700HQ |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 7th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| NVIDIA G-SYNC | Y |
| CUDA | Y |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro P4000 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 8 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA Quadro P4000 |
| On-board graphics card model | Intel HD Graphics 630 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591B |
| Discrete graphics card memory | 8 GB |
| Storage | |
| Total storage capacity | 2256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 2000 GB |
| HDD size | 2.5" |
| SSD interface | NVMe, PCI Express 3.0 |
| HDD interface | SATA |
| Total HDDs capacity | 2000 GB |
| SSD form factor | M.2 |
| Hard drive size | 2.5" |
| Hard drive interface | SATA |
| Hard drive capacity | 2000 GB |
| Number of hard drives installed | 1 |
| Compatible memory cards | SD, SDHC, SDXC |
| Solid-state drive interface | M.2 |
| Solid-state drive capacity | 256 GB |
| Card reader integrated | Y |
| Storage media | HDD+SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Y |
| Bluetooth version | 4.2 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| Headphone outputs | 1 |
| Microphone in | Y |
| DC-in jack | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | Y |
| Full-size keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Battery | |
| Number of battery cells | 3 |
| Battery capacity | 51 Wh |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Height | 17.7 mm |
| Depth | 240 mm |
| Width | 380 mm |
| Power | |
| AC adapter power | 180 W |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
