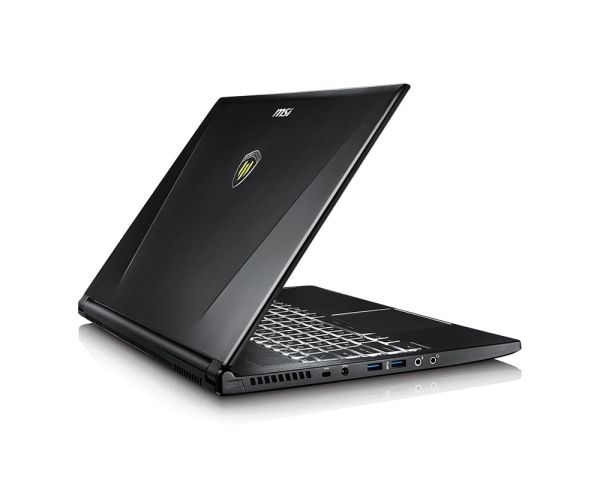

MSI Workstation WS60 6QH-414NE
MSI Workstation WS60 6QH-414NE
Product code: WS60 6QH-414NE
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-6700HQ
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 530
- đŽDiscrete graphics adapter model: NVIDIA Quadro M600M
- đŊTotal storage capacity: 1.13 TB
- âī¸Weight: 1.9 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Aluminium, Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | N |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | MSI |
| Family | Workstation |
| Series | WS60 |
| Model name | WS60 6QH-414NE |
| Part Number | WS60 6QH-414NE |
| Release Date | 02 October 2016 |
|
|
|
| Processor | |
| Processor series | Intel Core i7-6700 Mobile series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Motherboard chipset | Intel Z170 |
| Processor boost frequency | 3.5 GHz |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-6700HQ |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 6th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2133 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 530 |
| Discrete graphics adapter model | NVIDIA Quadro M600M |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics adapter memory | 1.7 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA Quadro M600M |
| On-board graphics card model | Intel HD Graphics 530 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 1.7 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x191B |
| Discrete graphics card memory | 2 GB |
| Storage | |
| Total storage capacity | 1.13 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | HDD+SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| LightScribe | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Charging port type | DC-in jack |
| Headphone outputs | 1 |
| Microphone in | Y |
| CardBus PCMCIA slot type | N |
| S/PDIF out port | N |
| SmartCard slot | N |
| DVI port | N |
| Docking connector | N |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Speakers manufacturer | Dynaudio |
| Camera | |
| Front camera | Y |
| Front camera resolution | 1920 x 1080 pixels |
| Keyboard | |
| Numeric keypad | Y |
| Full-size keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Battery | |
| Number of battery cells | 6 |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height | 19.9 mm |
| Depth | 266 mm |
| Width | 360 mm |
| Power | |
| AC adapter power | 150 W |
| AC adapter frequency | 50 - 60 Hz |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
