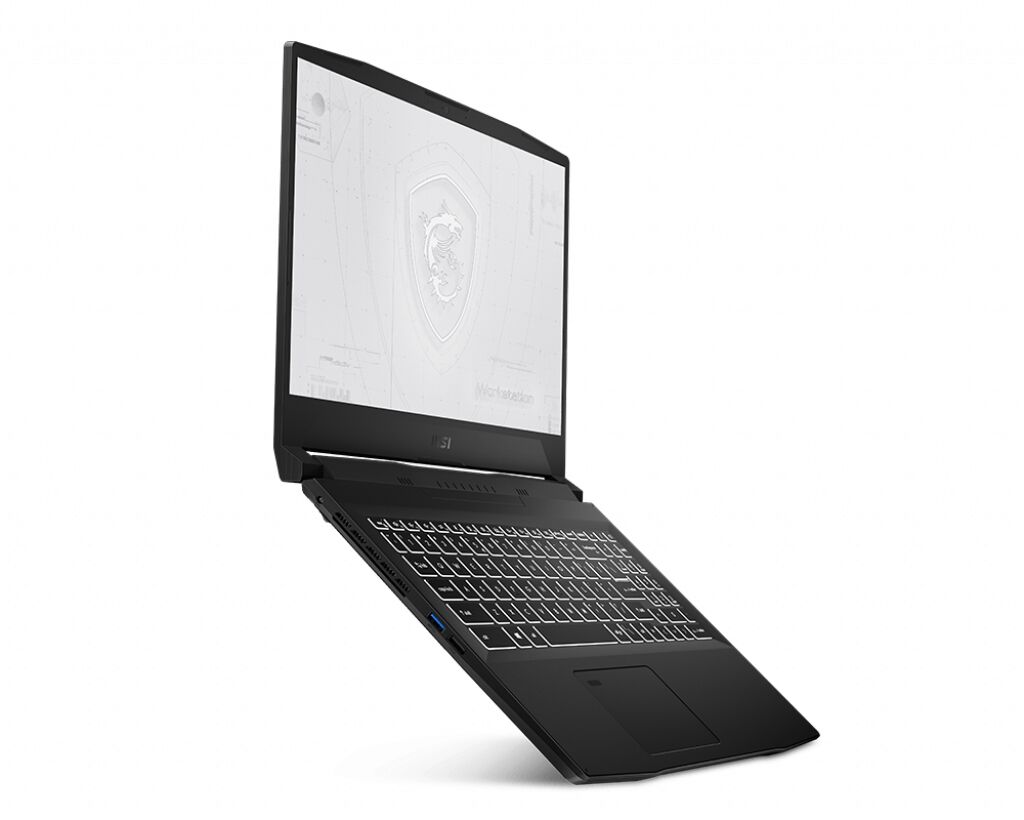

MSI Workstation WF66 11UI-257ES - 9S7-158232-257
MSI Workstation WF66 11UI-257ES
Product code: 9S7-158232-257
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-11800H
- đĢInternal memory: 32 GB
- đŽOn-board graphics adapter model:
- đŽDiscrete graphics adapter model:
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2.25 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 144 Hz |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | sRGB |
| Brand | MSI |
| Family | Workstation |
| Series | WF66 |
| Model name | WF66 11UI-257ES |
| Part Number | 9S7-158232-257 |
| Release Date | 28 August 2021 |
| EAN/UPC code | 4719072831790 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.3 GHz |
| Motherboard chipset | Intel HM570 |
| Processor boost frequency | 4.6 GHz |
| Processor model | i7-11800H |
| Processor cores | 8 |
| Processor cache | 24 MB |
| Processor generation | 11th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| CUDA | Y |
| CUDA cores | 1024 |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA T1200 |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| Discrete graphics card memory | 4 GB |
| Graphics card Open GL support | Y |
| Memory bandwidth (max) | 192 GB/s |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit colour | White |
| Keyboard backlit | Y |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | Y |
| Battery | |
| Battery capacity (Watt-hours) | 53.5 Wh |
| Number of battery cells | 3 |
| Weight & dimensions | |
| Weight | 2.25 kg |
| Height | 24.9 mm |
| Depth | 259 mm |
| Width | 359 mm |
| Power | |
| AC adapter power | 150 W |
| Security | |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
