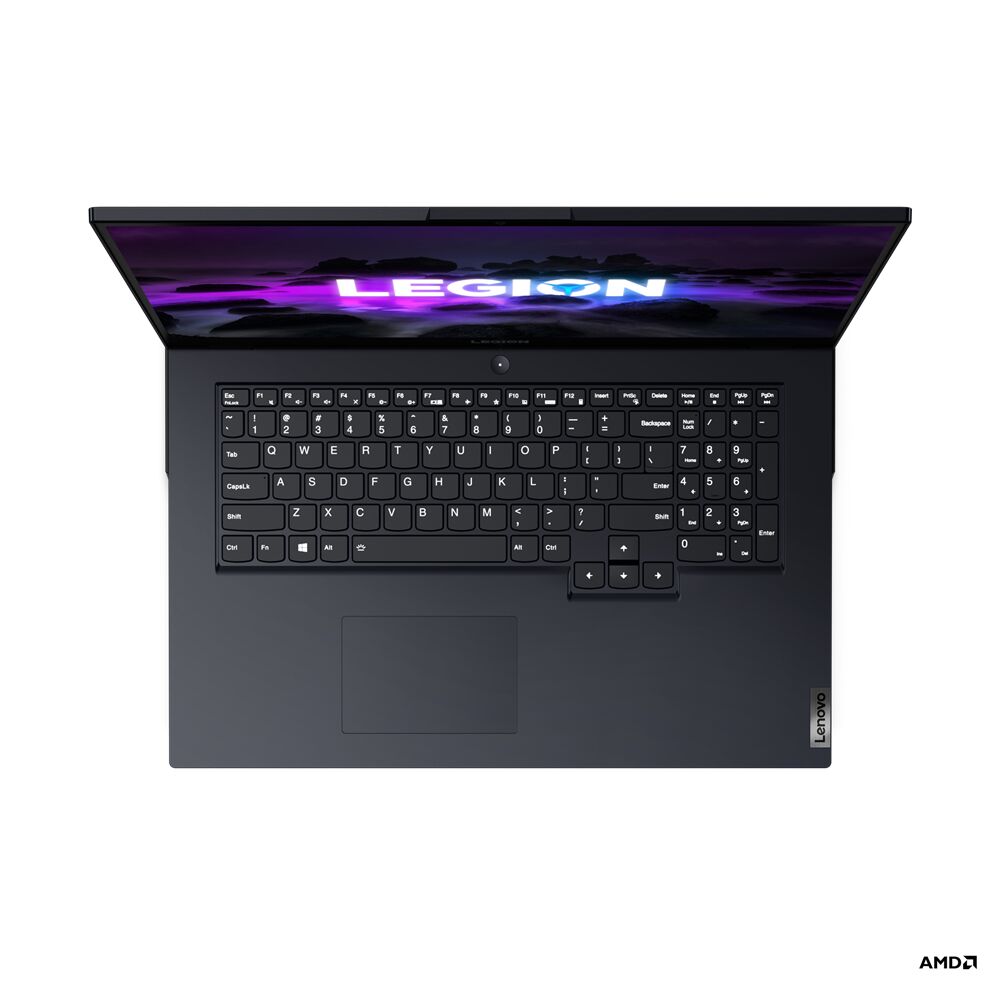

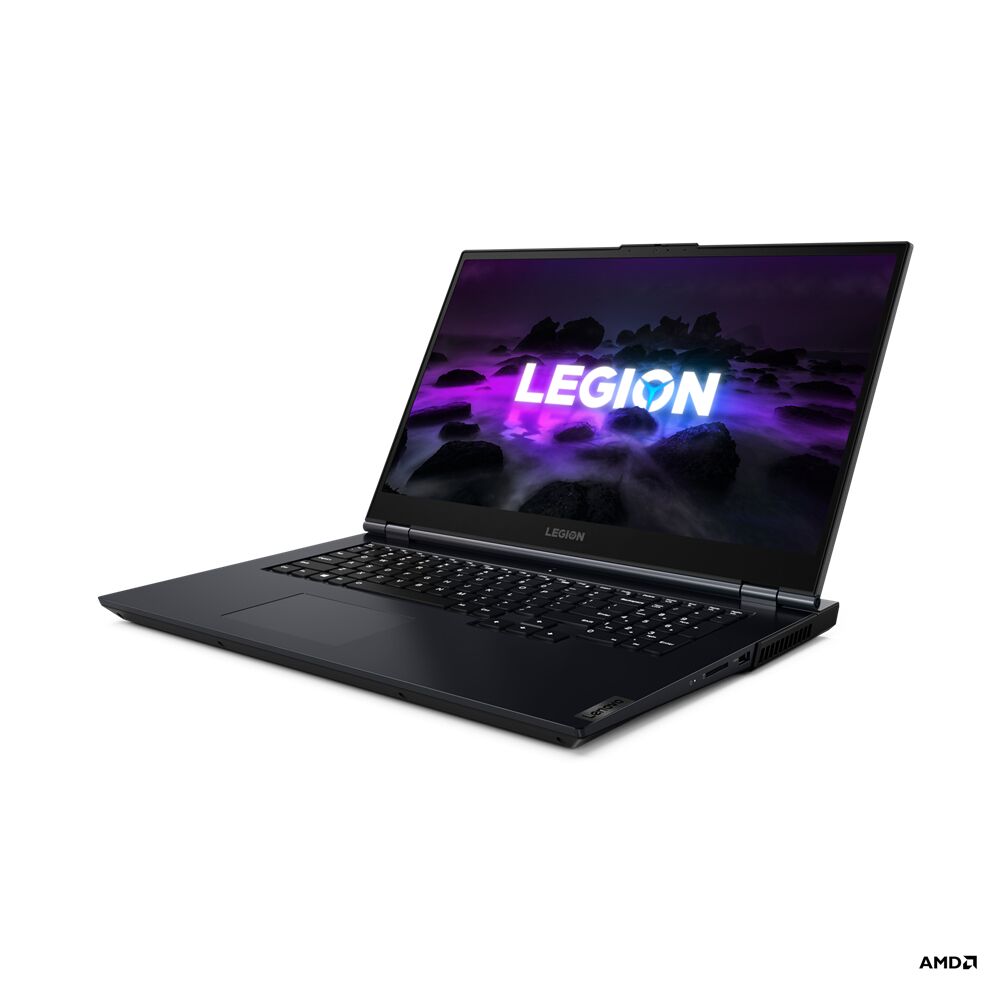

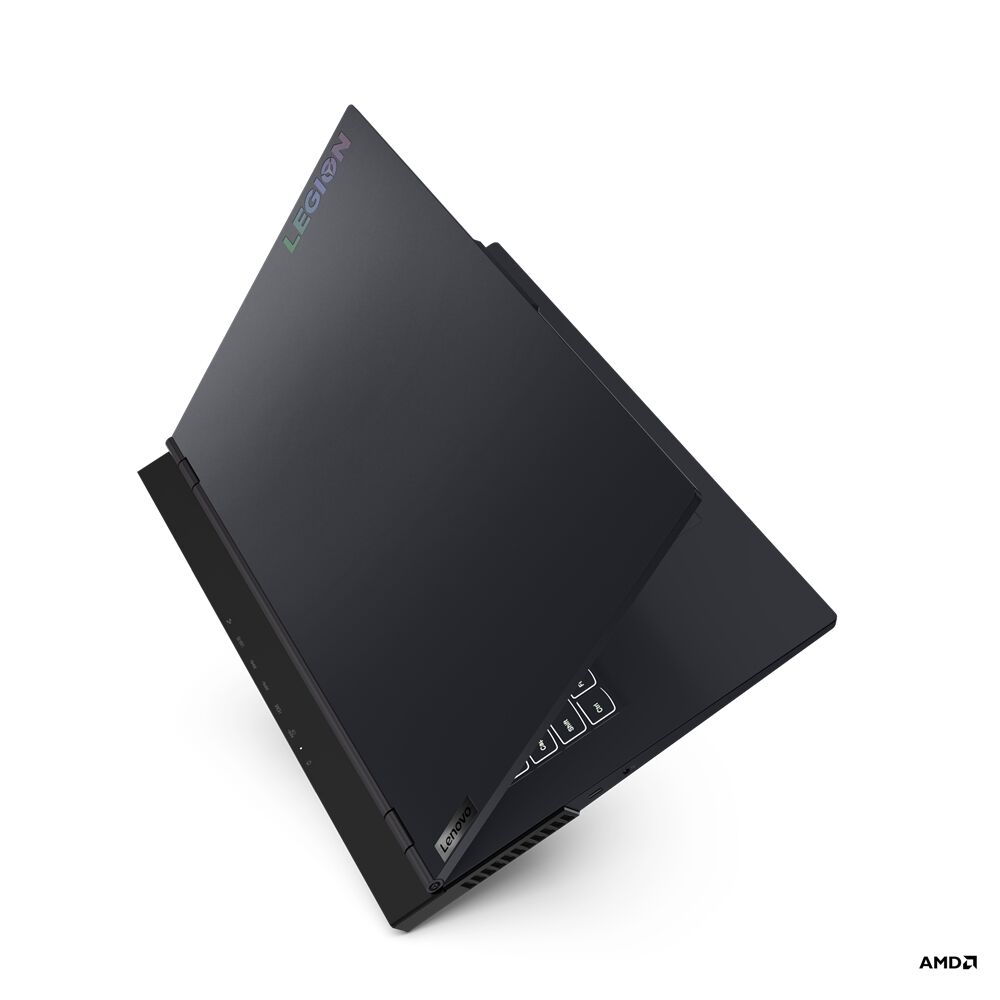

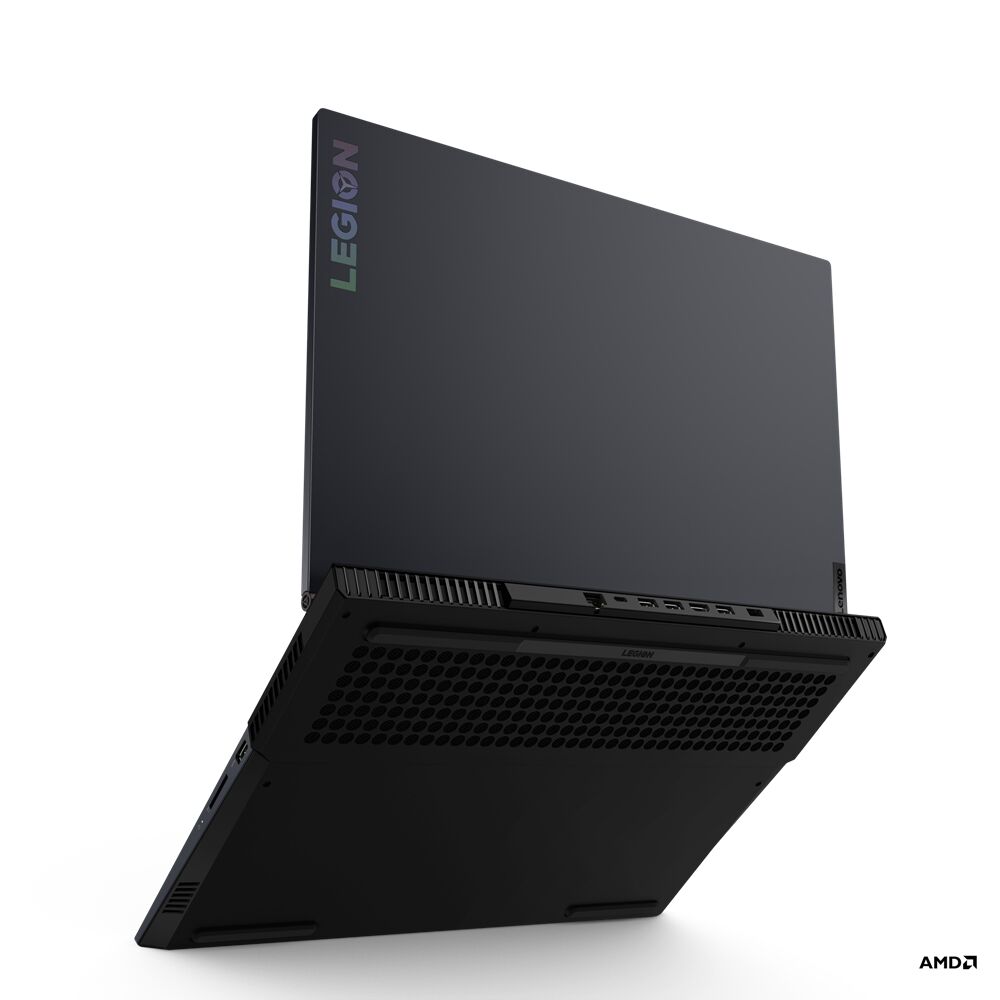

Lenovo Legion 5 17ACH6H - 82JY00A9GE
Lenovo Legion 5 17ACH6H
Product code: 82JY00A9GE
- 💻Display diagonal: 17.3 inch
- 🔳Processor model: 5600H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 2.98 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Blue |
| Product type | Notebook |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Display | |
| Display diagonal | 17.3 inch |
| Maximum refresh rate | 144 Hz |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Colour gamut | 72% |
| Brand | Lenovo |
| Family | Legion |
| Model name | 5 17ACH6H |
| Part Number | 82JY00A9GE |
| Release Date | 07 February 2022 |
| EAN/UPC code | 0196118196282, 196118196282 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 5 |
| Processor frequency | 3.3 GHz |
| Motherboard chipset | AMD SoC |
| Processor boost frequency | 4.2 GHz |
| Processor model | 5600H |
| Processor cores | 6 |
| Processor cache | 16 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory channels | Dual-channel |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | AMD Radeon Graphics |
| On-board graphics card family | AMD Radeon Graphics |
| Discrete graphics card memory | 6 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Charging port type | DC-in jack |
| Headphone outputs | 1 |
| Microphone in | Y |
| HDMI version | 2.1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | Nahimic Audio |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Y |
| Front camera resolution | 1280 x 720 pixels |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit | Y |
| Keyboard language | German |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system language | German |
| Operating system architecture | 64-bit |
| Battery | |
| Battery capacity (Watt-hours) | 80 Wh |
| Battery life (max) | 7.9 h |
| Weight & dimensions | |
| Weight | 2.98 kg |
| Height (rear) | 2.62 cm |
| Height (front) | 2.43 cm |
| Depth | 290 mm |
| Width | 398.6 mm |
| Power | |
| AC adapter power | 230 W |
| Security | |
| Fingerprint reader | N |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | User |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Y |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
Comments
Samuel Asamoah REPLY24 Sep 2022 - 09:09
hi,
why can’t the memory of the legion 5 17ACH6H, be upgraded to 32gb?
