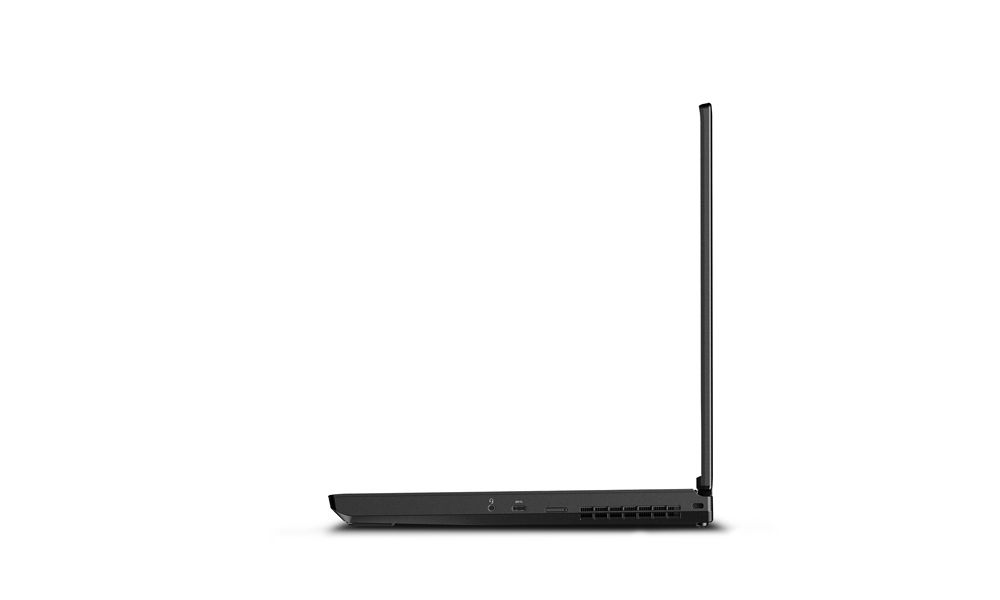

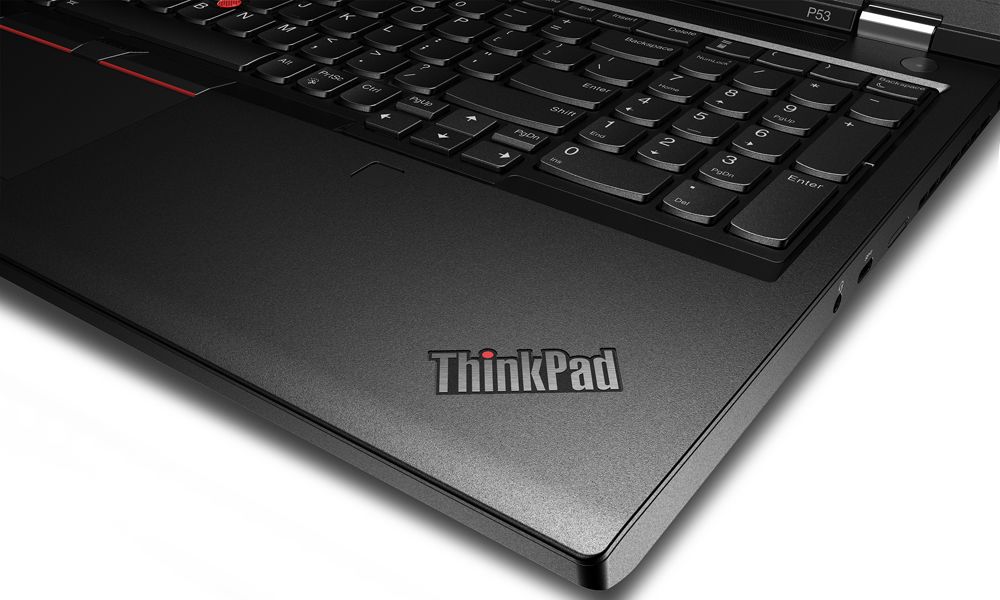

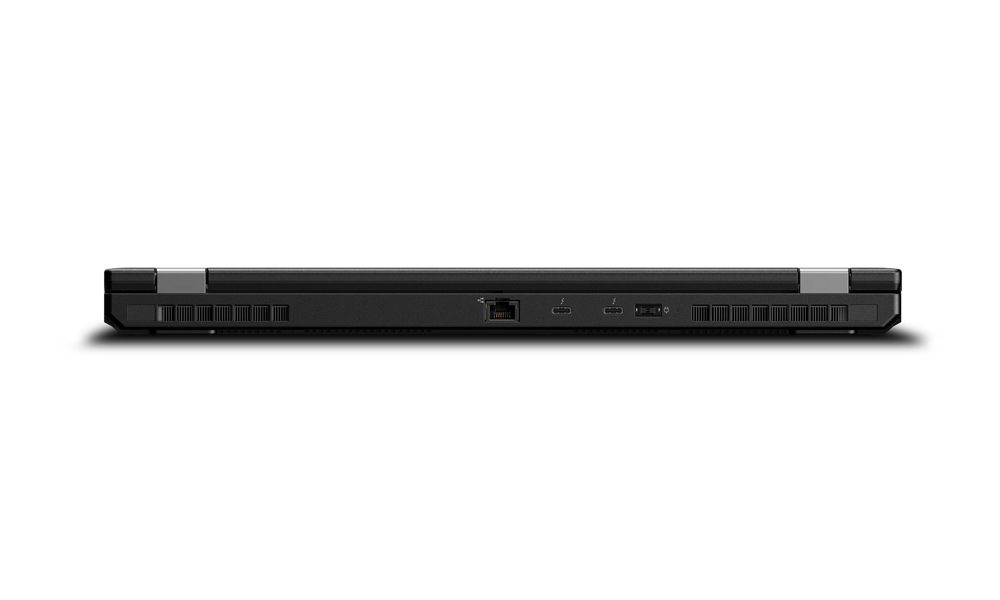

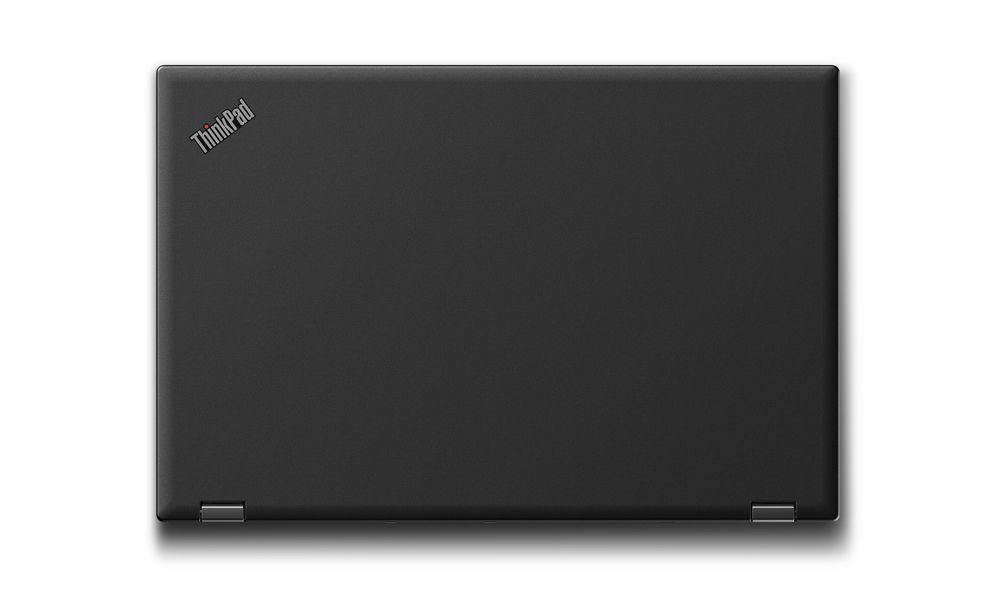

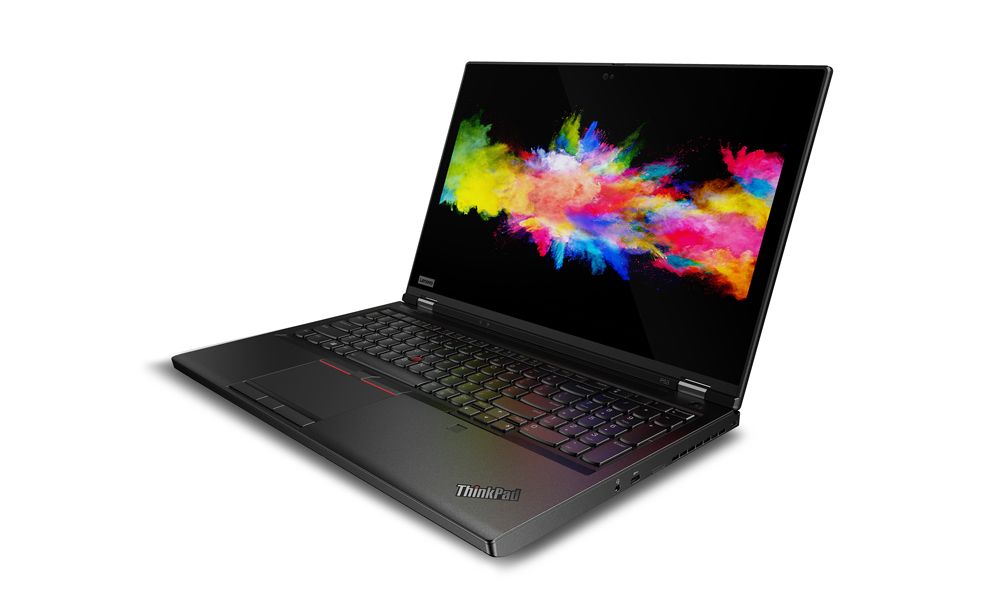

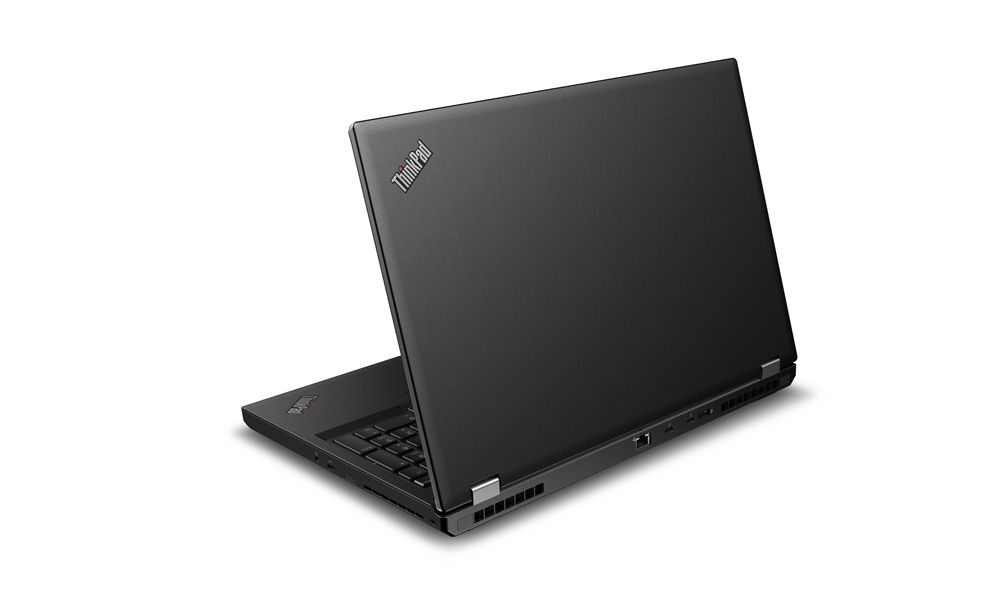

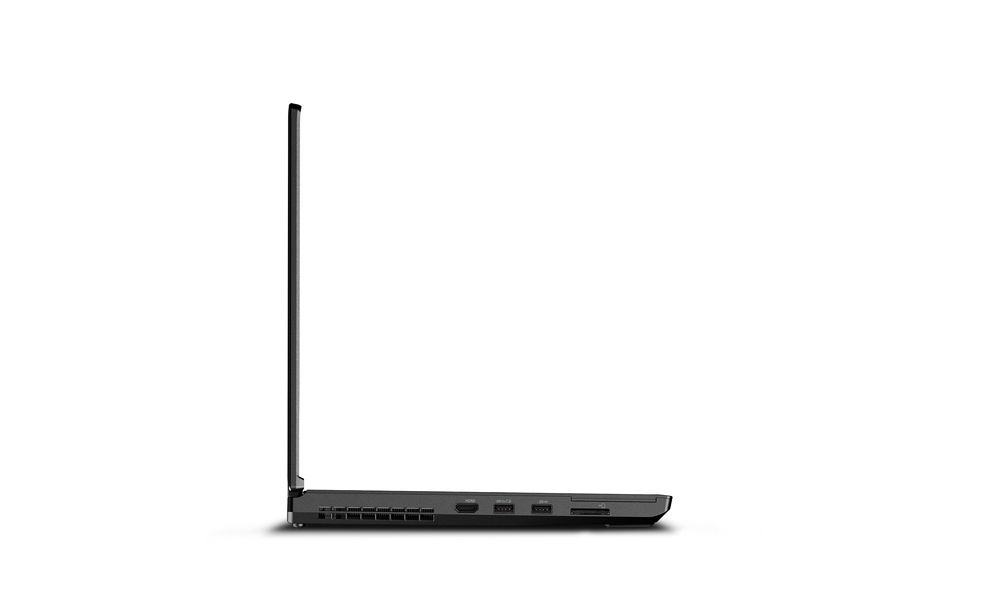

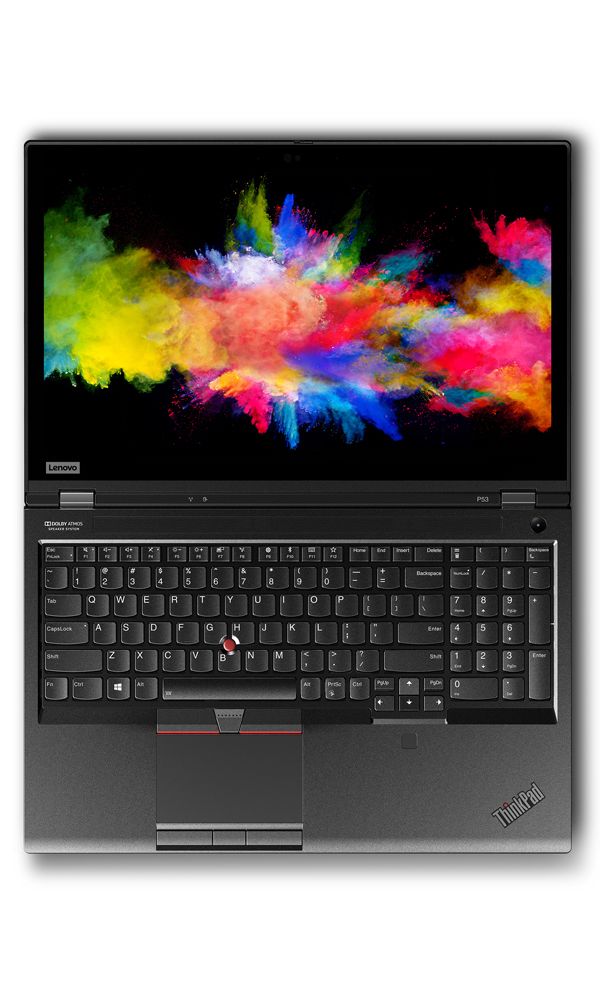

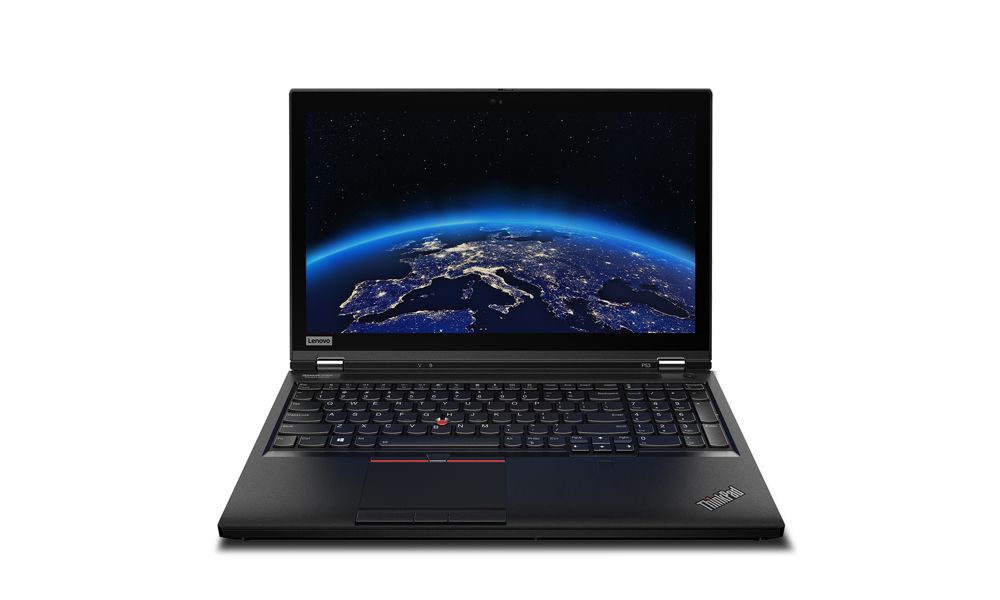

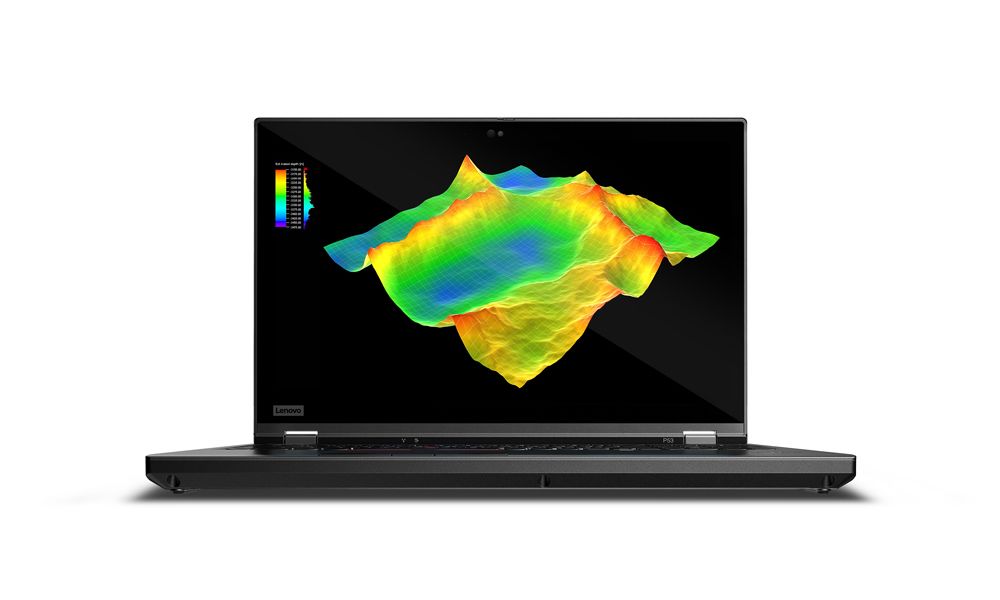

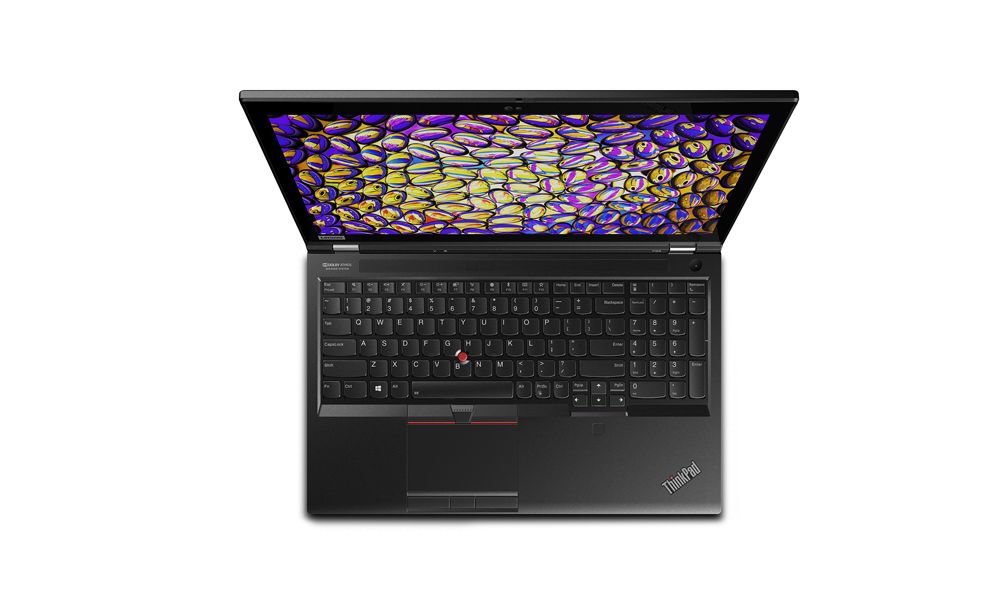

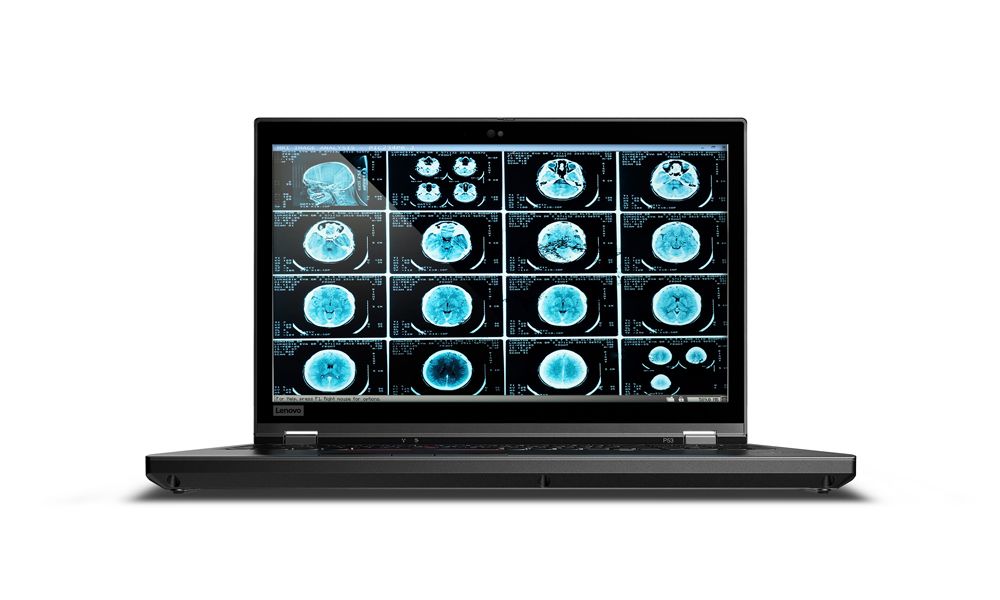

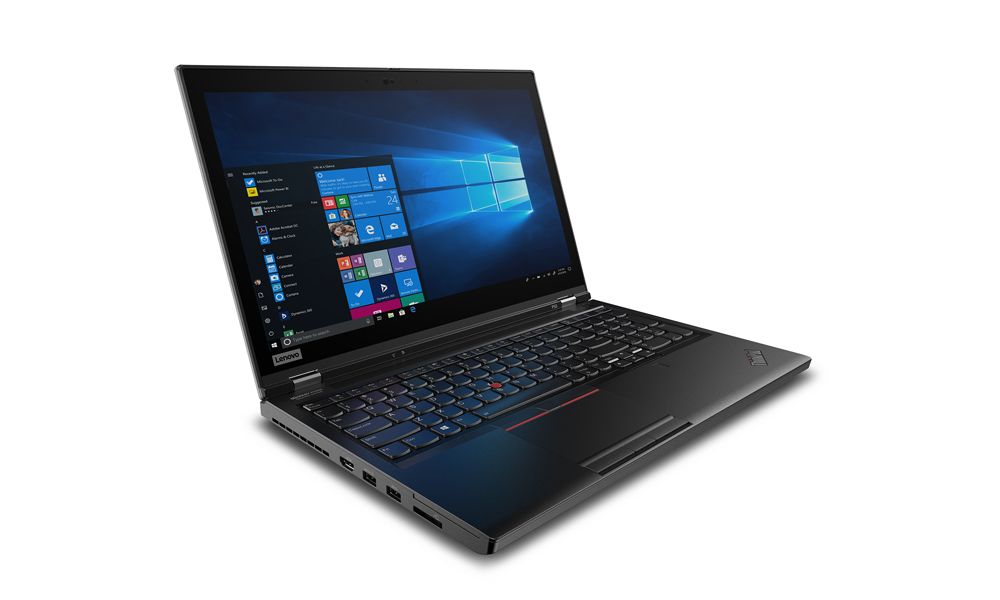

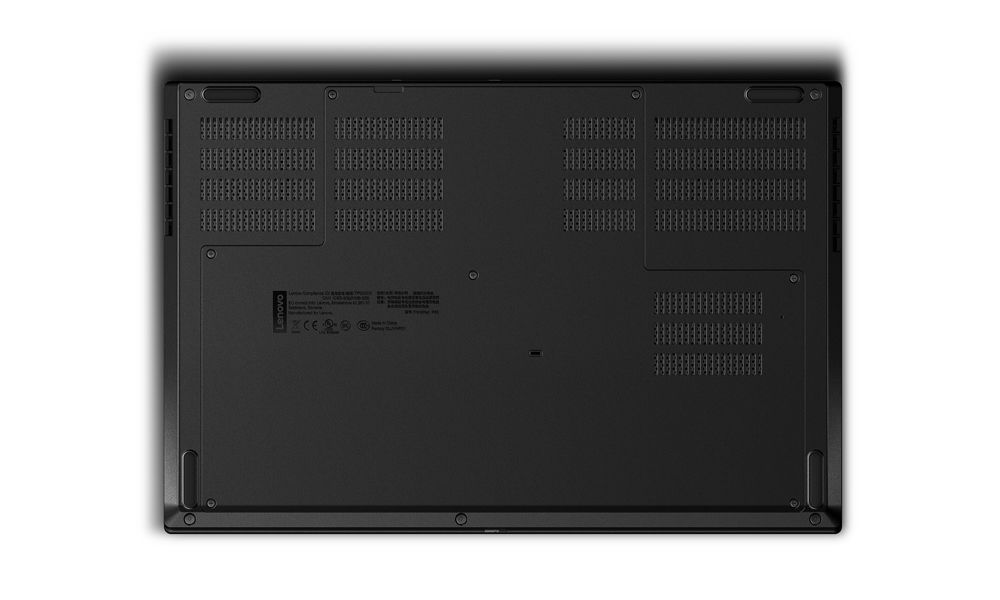

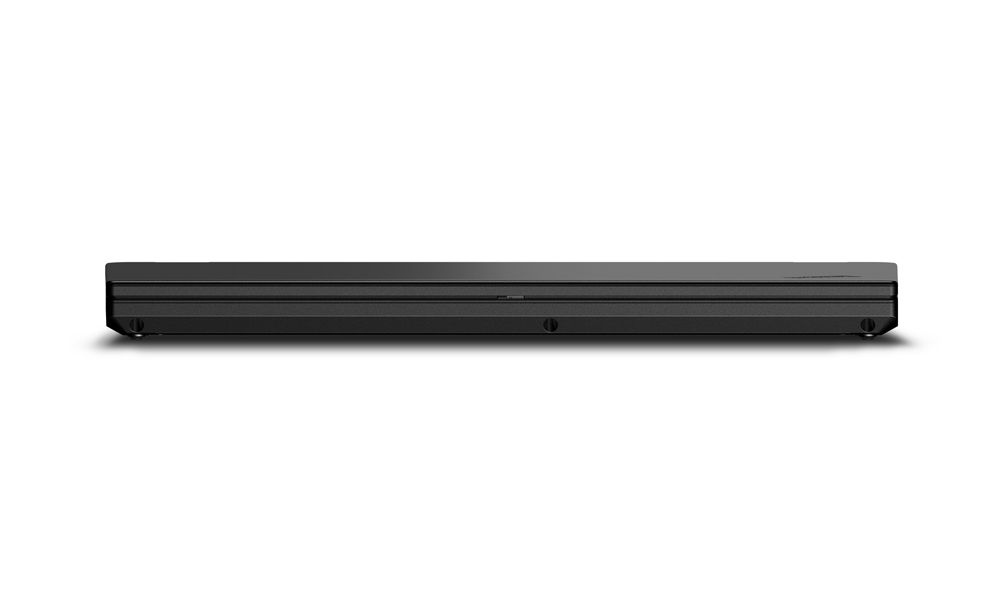

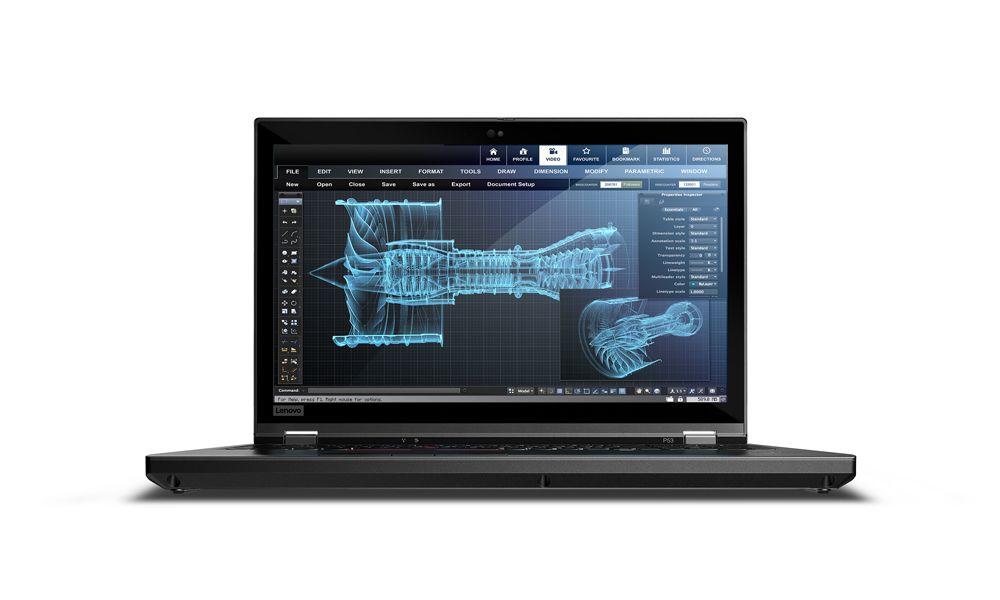

Lenovo ThinkPad P53 - 20QN001YUS
Lenovo ThinkPad P53
Product code: 20QN001YUS
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-9750H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 630
- 🎮Discrete graphics adapter model: NVIDIA Quadro T1000
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 2.5 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Housing material | Aluminium, Glass Fibre Reinforced Plastic (GFRP), Magnesium |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | N |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 500 cd/m² |
| Panel type | IPS |
| Aspect ratio | 16:9 |
| 3D | N |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | P |
| Model name | P53 |
| Part Number | 20QN001YUS |
| Release Date | 07 July 2019 |
| EAN/UPC code | 0193638132868, 193638132868 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Motherboard chipset | Intel CM246 |
| Processor boost frequency | 4.5 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-9750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 4x SO-DIMM |
| Maximum internal memory | 128 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| ECC | N |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter 4K support | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Number of discrete graphics adapters installed | 1 |
| Graphics adapter Open GL support | Y |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro T1000 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA Quadro T1000 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
| On-board graphics card 4K support | Y |
| Graphics card Open GL support | Y |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Y |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.0 |
| USB Sleep-and-Charge ports | 1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Synaptic CX11880 |
| Number of microphones | 2 |
| Audio decoders | Dolby Atmos |
| Camera | |
| Front camera | Y |
| Privacy camera | Y |
| Infrared (IR) camera | Y |
| Front camera HD type | HD |
| Privacy type | Privacy shutter |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Rear camera | N |
| Swivel webcam | N |
| Keyboard | |
| Numeric keypad | Y |
| Spill-resistant keyboard | Y |
| Full-size keyboard | Y |
| Spill resistant keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | ThinkPad UltraNav |
| Keyboard language | English |
| Performance | |
| GPS (satellite) | N |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Quick charge | Y |
| Battery life (max) | 13 h |
| Battery capacity | 90 Wh |
| Battery capacity (Watt hours) | 90 Wh |
| Fast charging | Y |
| Weight & dimensions | |
| Weight | 2.5 kg |
| Height (rear) | 2.94 cm |
| Height (front) | 2.45 cm |
| Depth | 252.3 mm |
| Width | 377.4 mm |
| Power | |
| AC adapter power | 170 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Y |
| Smart card reader | N |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | HDD, Power on, Supervisor |
