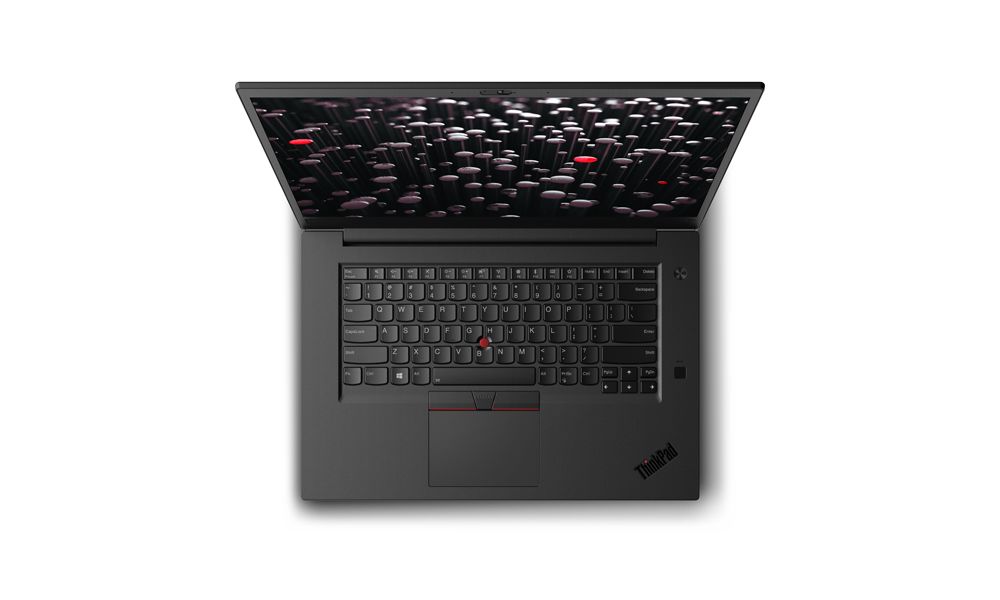

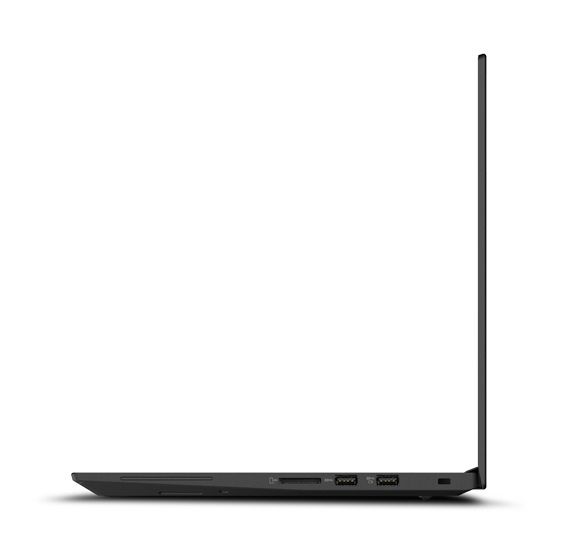

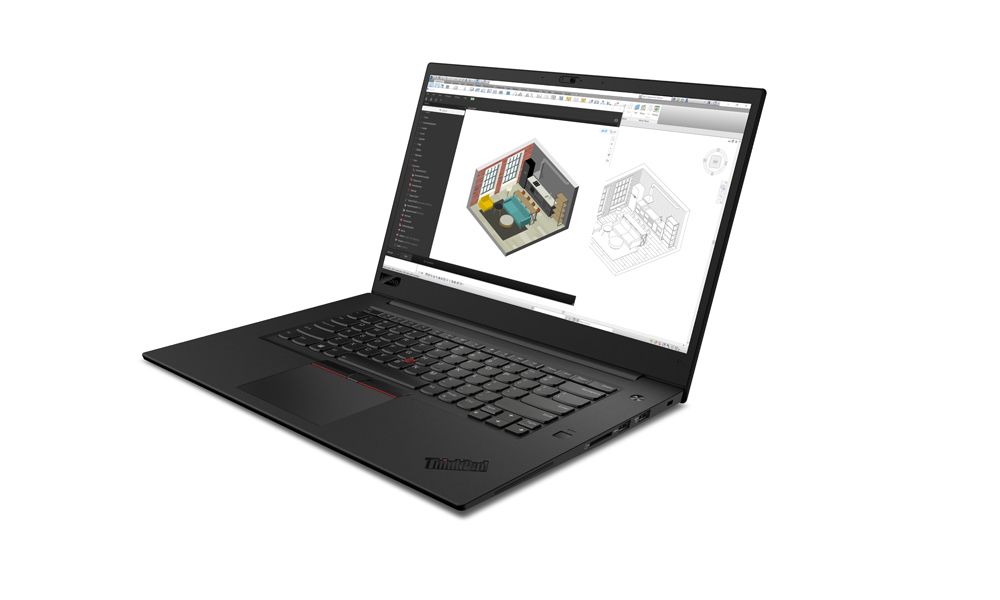

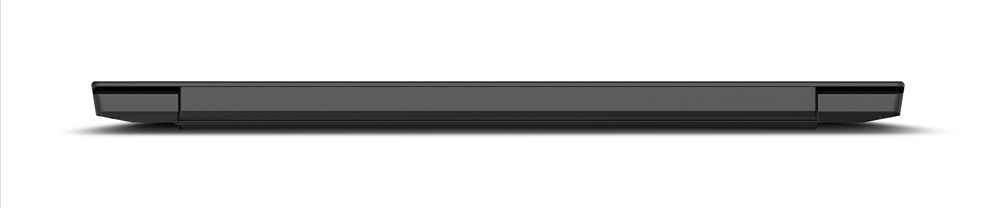

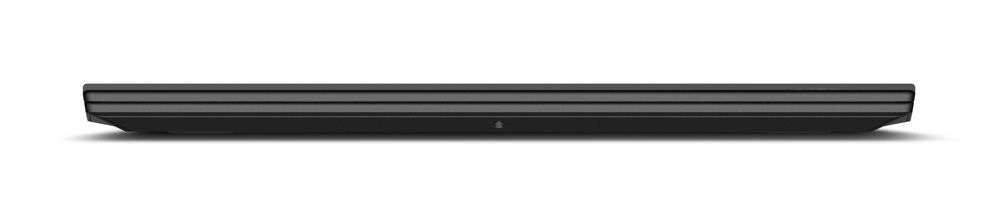

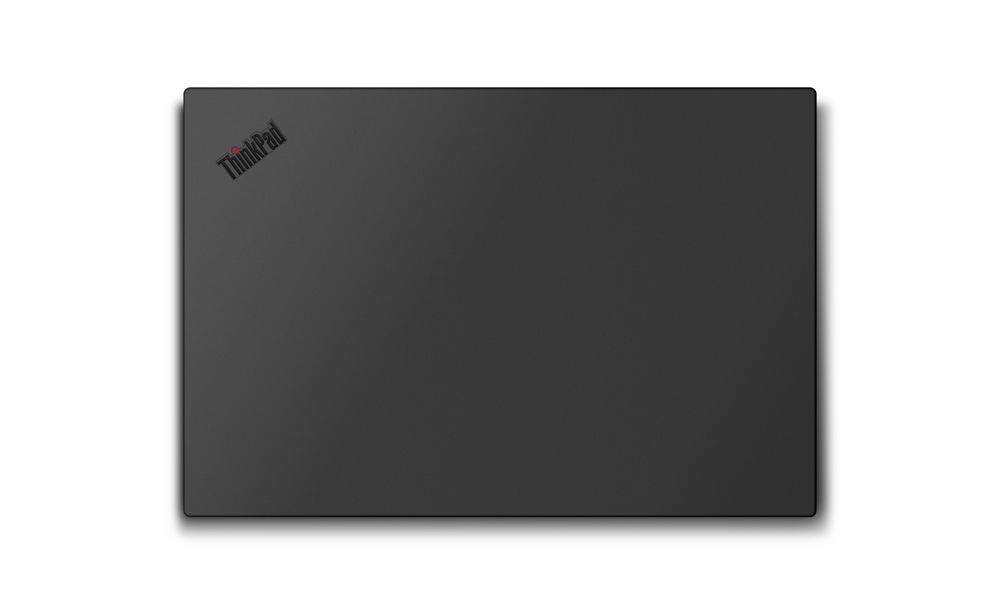

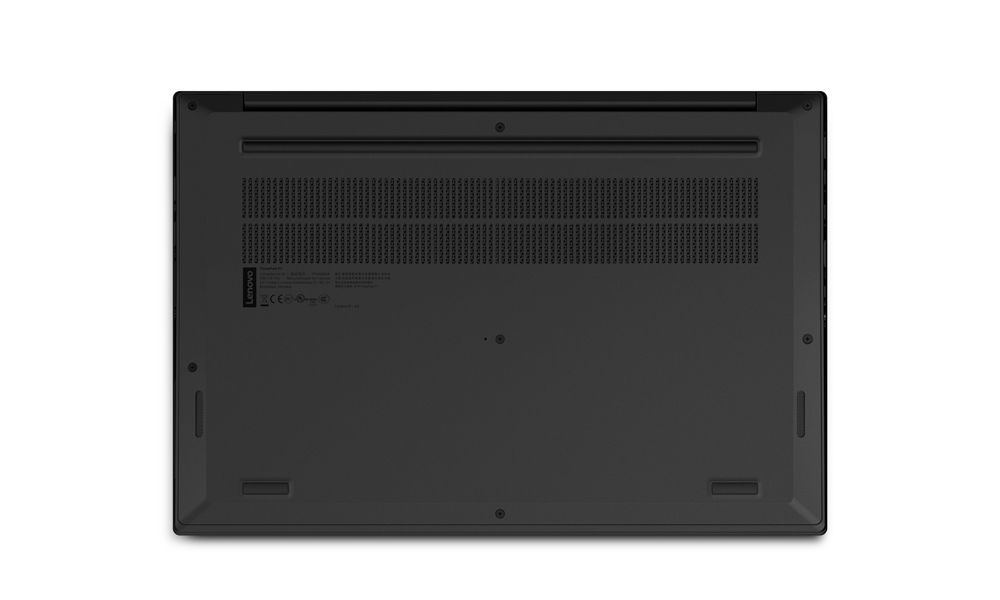

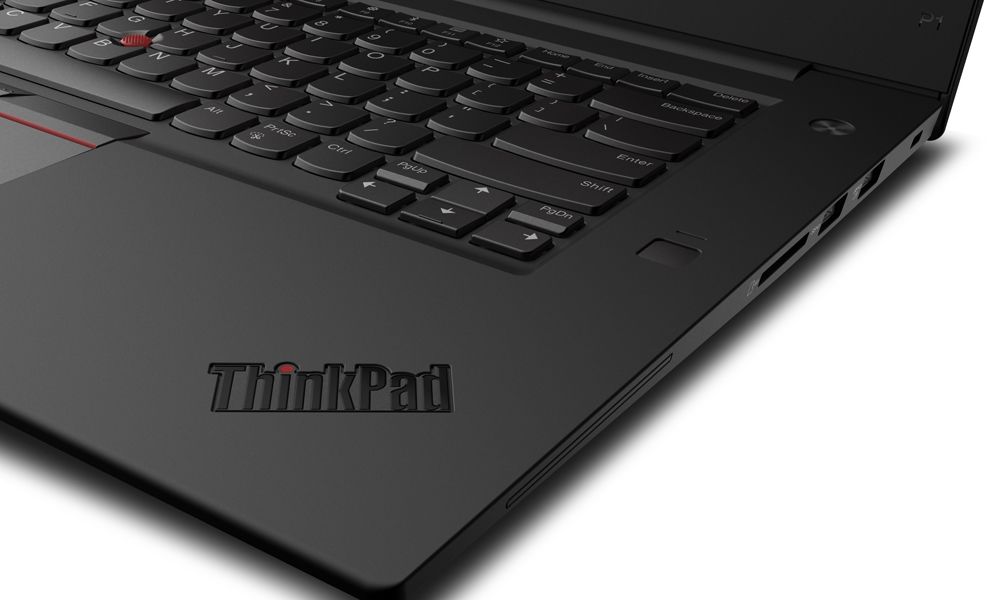

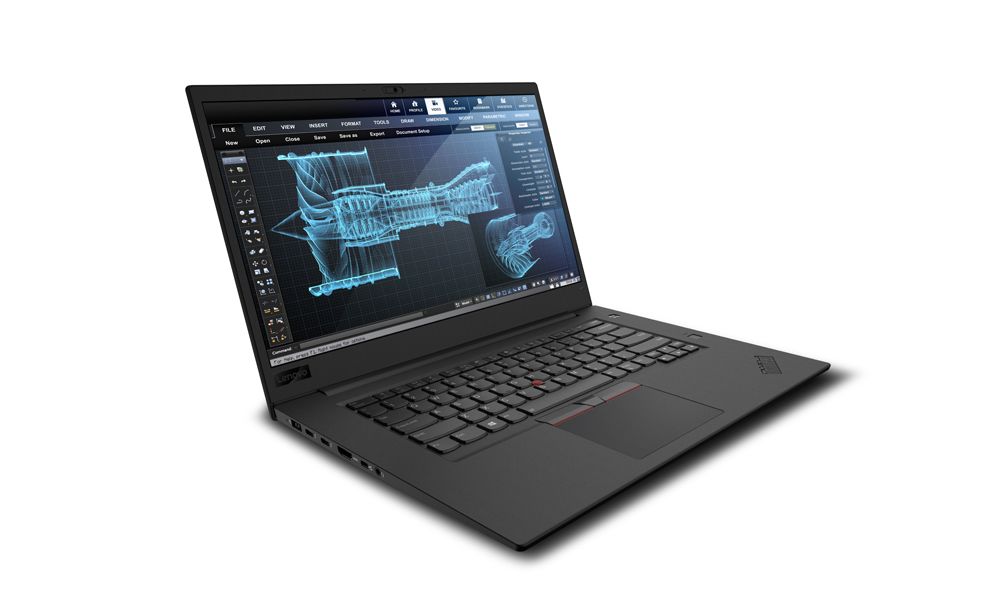

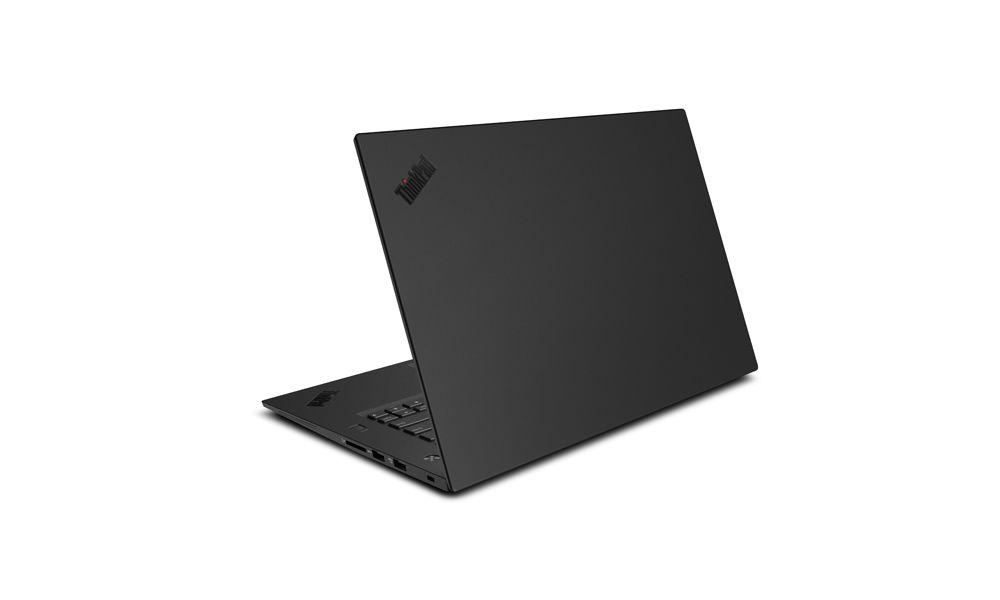

Lenovo ThinkPad P1 - 20MD000QMX
Lenovo ThinkPad P1
Product code: 20MD000QMX
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-8850H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 630
- 🎮Discrete graphics adapter model: NVIDIA Quadro P2000
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.7 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| NTSC coverage (typical) | 72% |
| Contrast ratio (typical) | 700:1 |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Aspect ratio | 16:9 |
| 3D | N |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | P |
| Model name | P1 |
| Part Number | 20MD000QMX |
| Release Date | 12 September 2018 |
| EAN/UPC code | 0193124468433, 193124468433 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Motherboard chipset | Intel CM246 |
| Processor boost frequency | 4.3 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-8850H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 9 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA1440 |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory (64-bit) | 64 GB |
| ECC | N |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro P2000 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA Quadro P2000 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Solid-state drive capacity | 512 GB |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| LightScribe | N |
| Networking | |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| SIM card support | N |
| WWAN | Not installed |
| 4G | N |
| 3G | N |

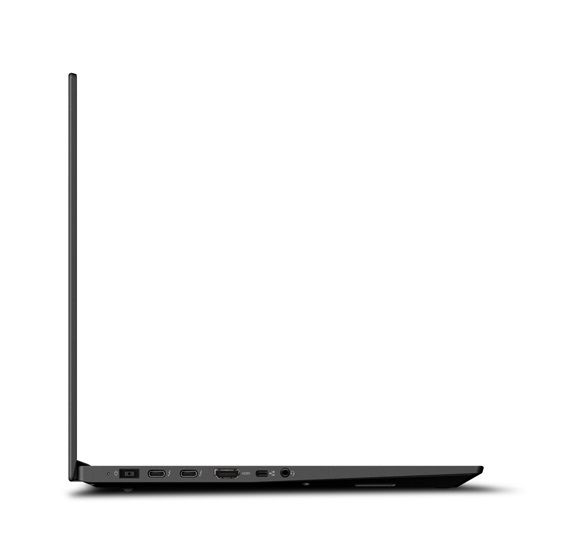

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| Headphone outputs | 1 |
| HDMI version | 2.0 |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio Premium |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3286 |
| Camera | |
| Front camera | Y |
| Infrared (IR) camera | Y |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Auto focus | N |

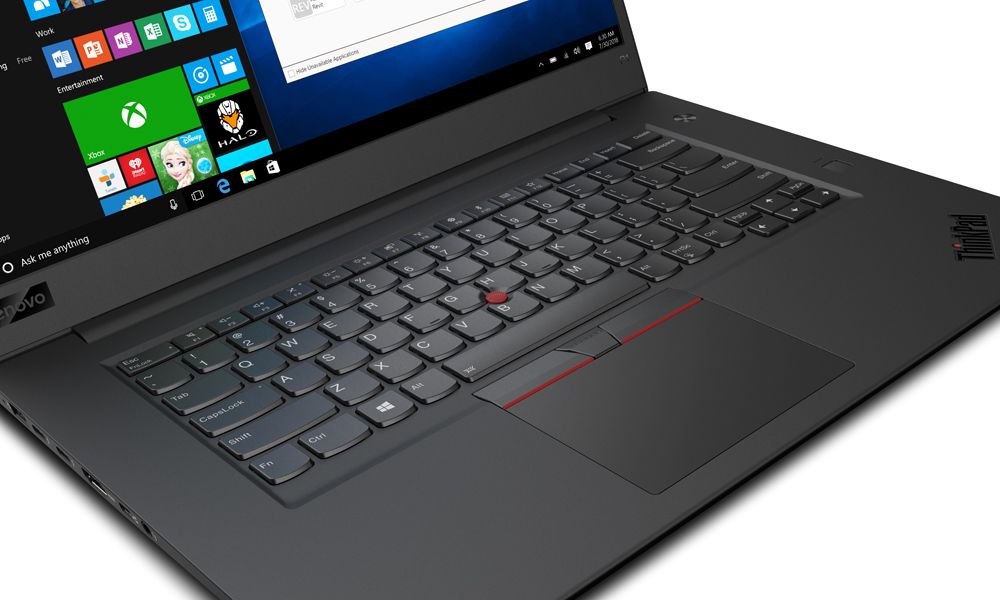

| Keyboard | |
| Numeric keypad | N |
| Spill-resistant keyboard | Y |
| Spill resistant keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | ThinkPad UltraNav |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Quick charge | Y |
| Battery capacity | 80 Wh |
| Battery capacity (Watt hours) | 80 Wh |
| Fast charging | Y |
| Weight & dimensions | |
| Weight | 1.7 kg |
| Height | 18.4 mm |
| Depth | 245.7 mm |
| Width | 361.8 mm |
| Power | |
| AC adapter power | 135 W |
| Security | |
| Cable lock slot | Y |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | HDD, SSD, Supervisor |
