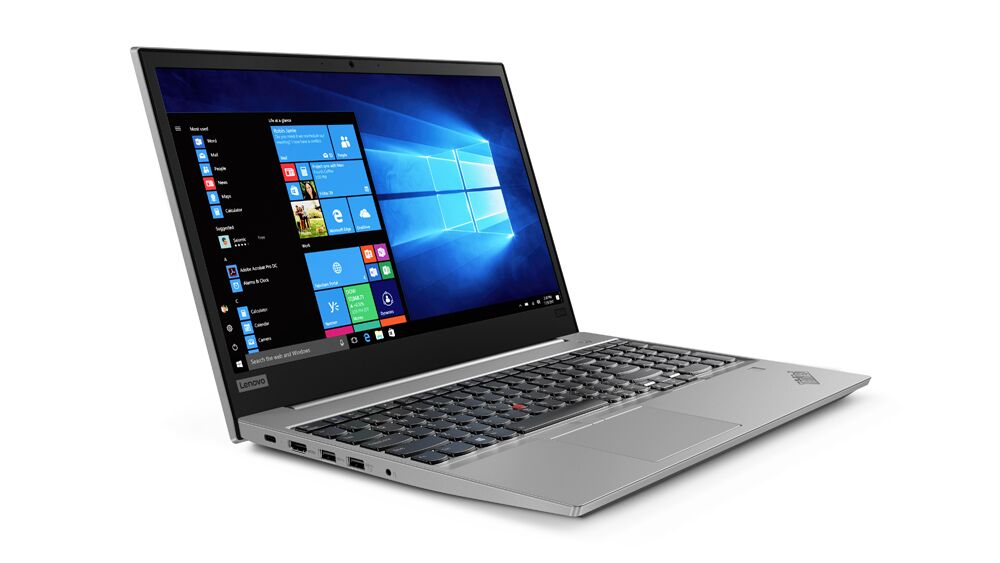

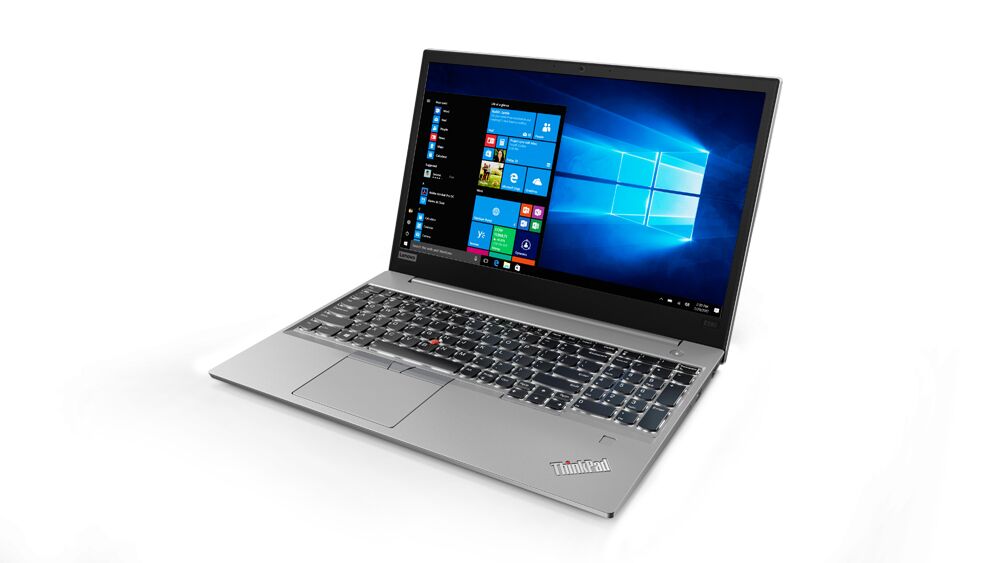

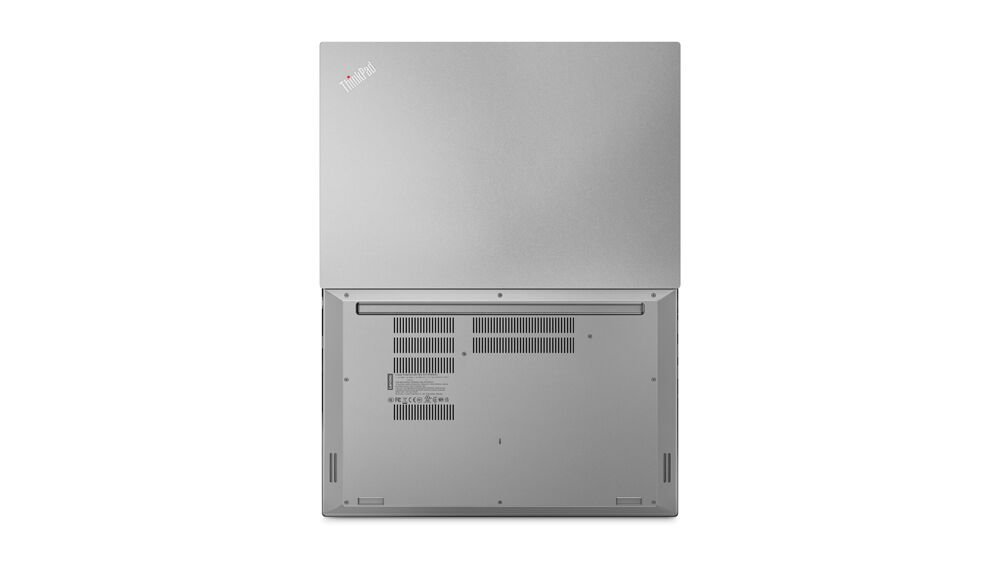

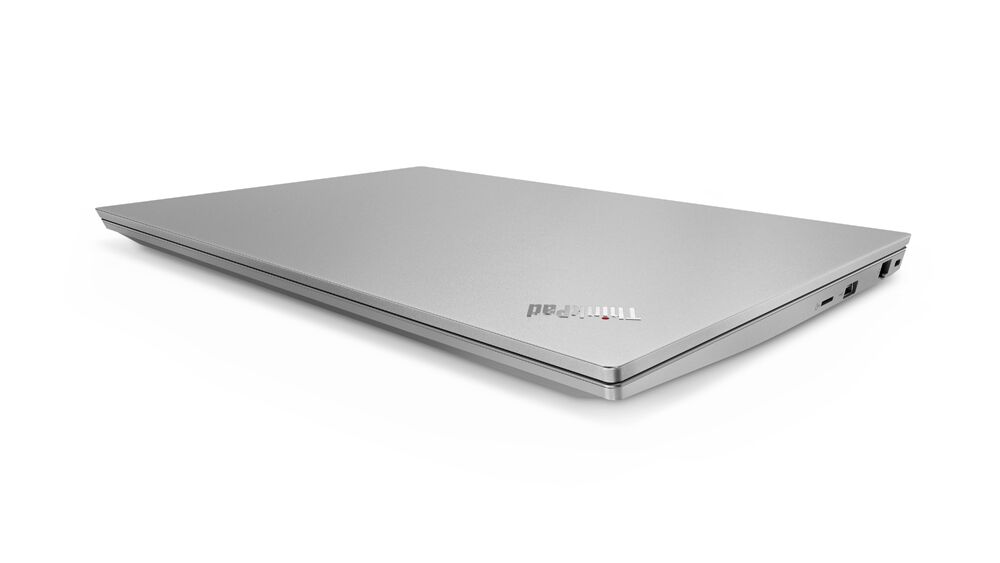

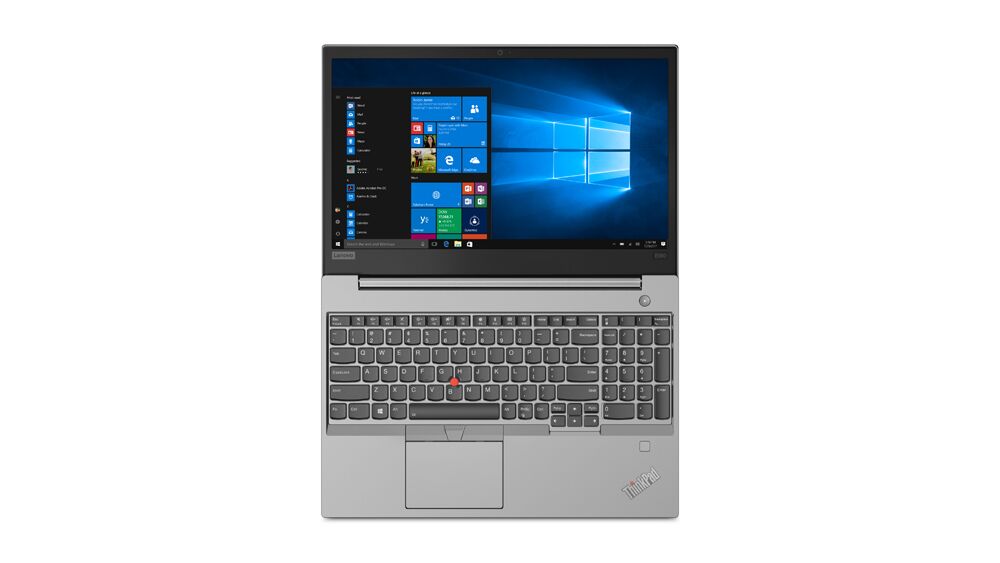

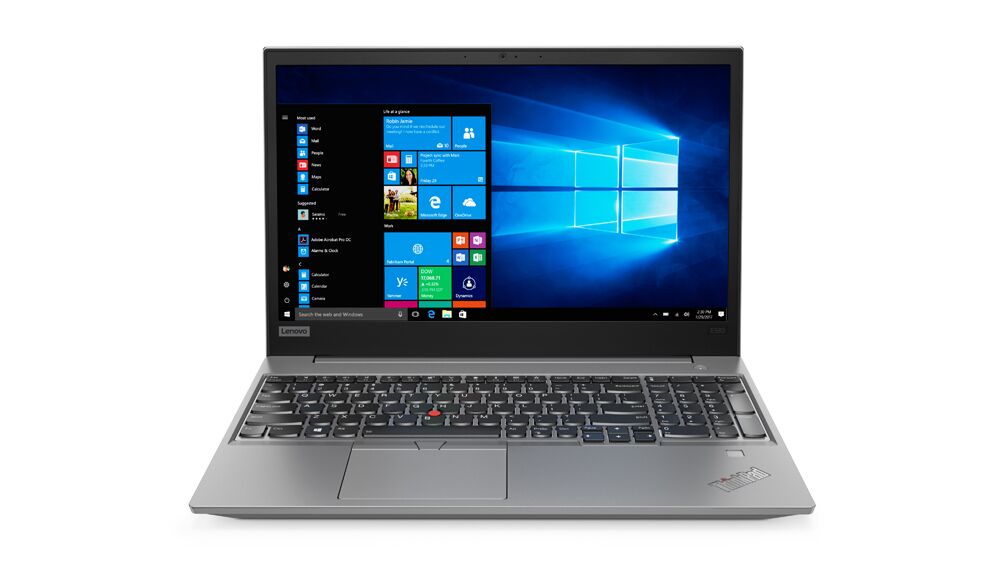

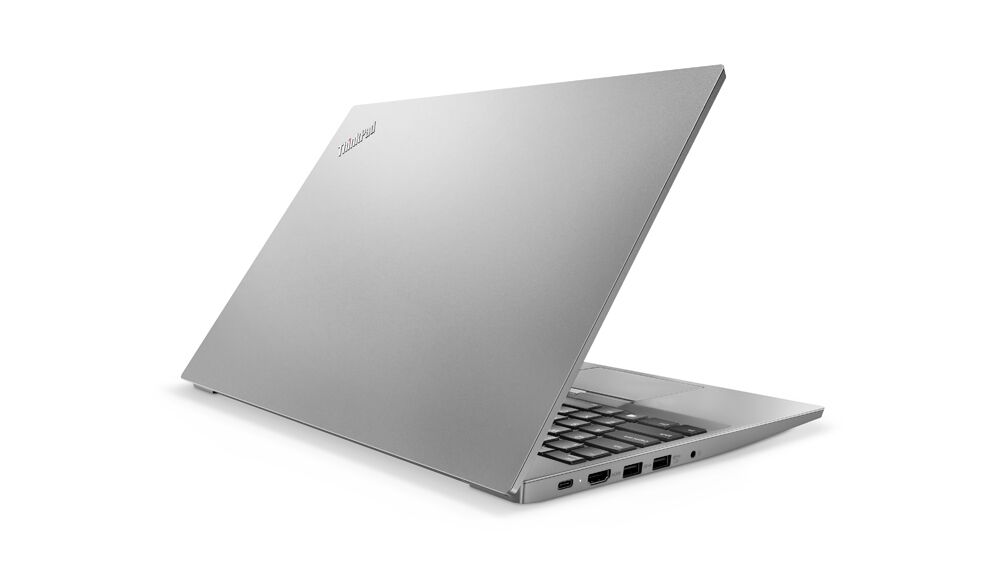

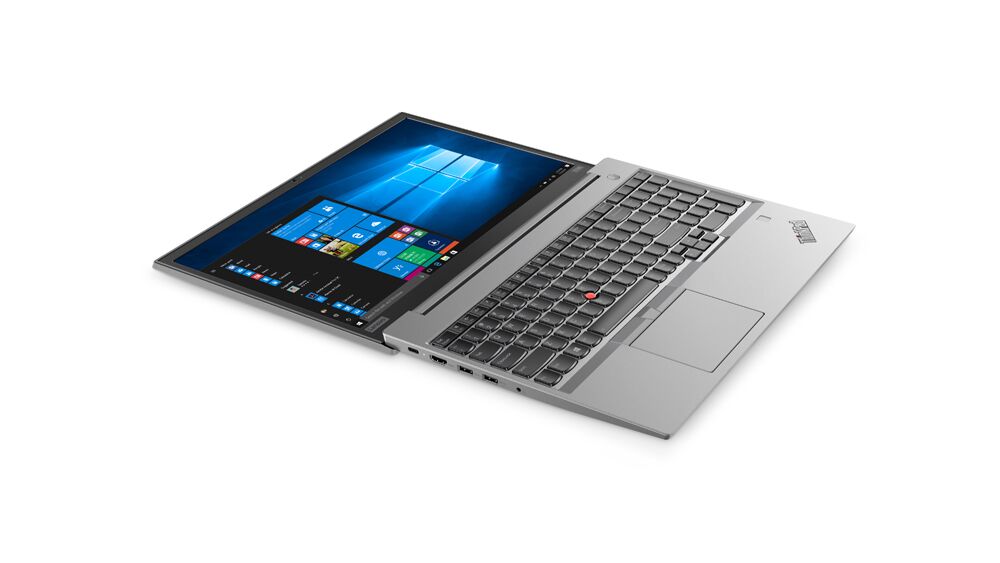

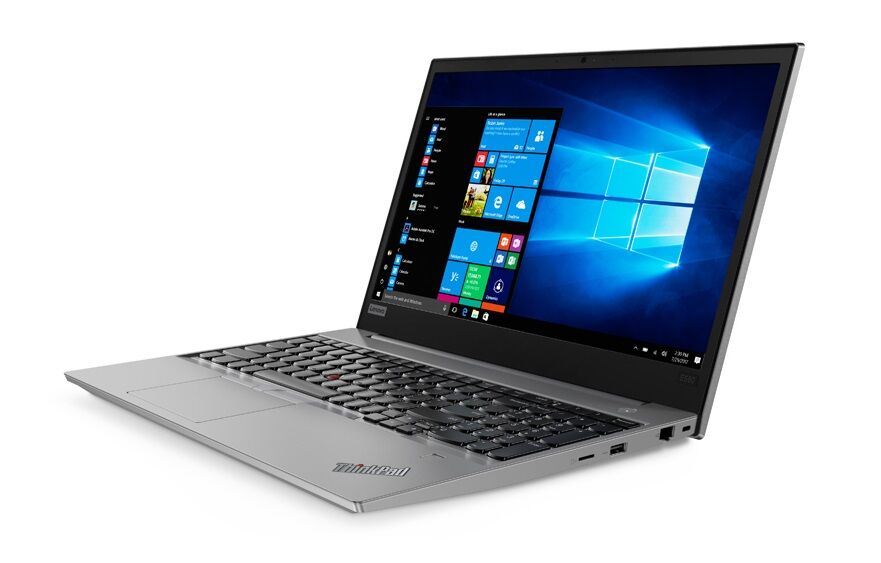

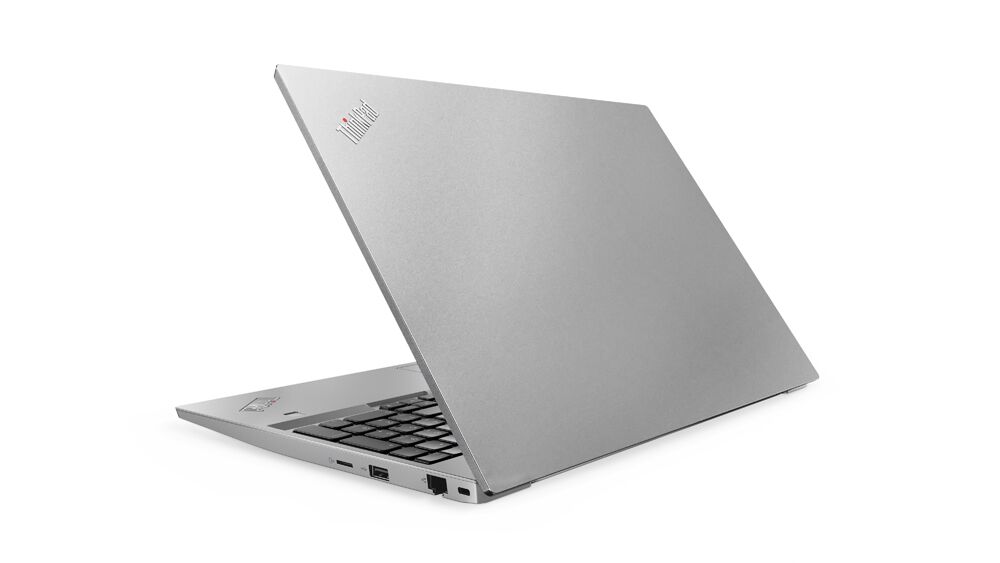

Lenovo ThinkPad E580 - 20KS0017AD
Lenovo ThinkPad E580
Product code: 20KS0017AD
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-8550U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 620
- đŽDiscrete graphics adapter model: AMD Radeon RX 550
- đŊTotal storage capacity: 1 TB
- âī¸Weight: 2.1 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Business |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 15.6 inch |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | E |
| Model name | E580 |
| Part Number | 20KS0017AD |
| Release Date | 11 February 2019 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 4 GHz |
| Processor codename | Kaby Lake R |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-8550U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | AMD Radeon RX 550 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon RX 550 |
| On-board graphics card model | Intel UHD Graphics 620 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
| Discrete graphics card memory | 2 GB |
| Storage | |
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 5400 RPM |
| HDD interface | SATA III |
| Total HDDs capacity | 1 TB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | HDD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| WLAN controller model | Intel Dual Band Wireless-AC 3165 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | No |
| HDMI version | 1.4b |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Sleep-and-Charge | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Advanced Audio |
| Speaker power | 2 W |
| Audio chip | Conexant CX11852 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | Yes |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
| Pointing device | ThinkPad UltraNav |
| Software | |
| Operating system installed | No |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 45 Wh |
| Number of battery cells | 3 |
| Battery life (max) | 13 h |
| Battery capacity | 45 Wh |
| Weight & dimensions | |
| Weight | 2.1 kg |
| Height | 19.9 mm |
| Depth | 252 mm |
| Width | 369 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
