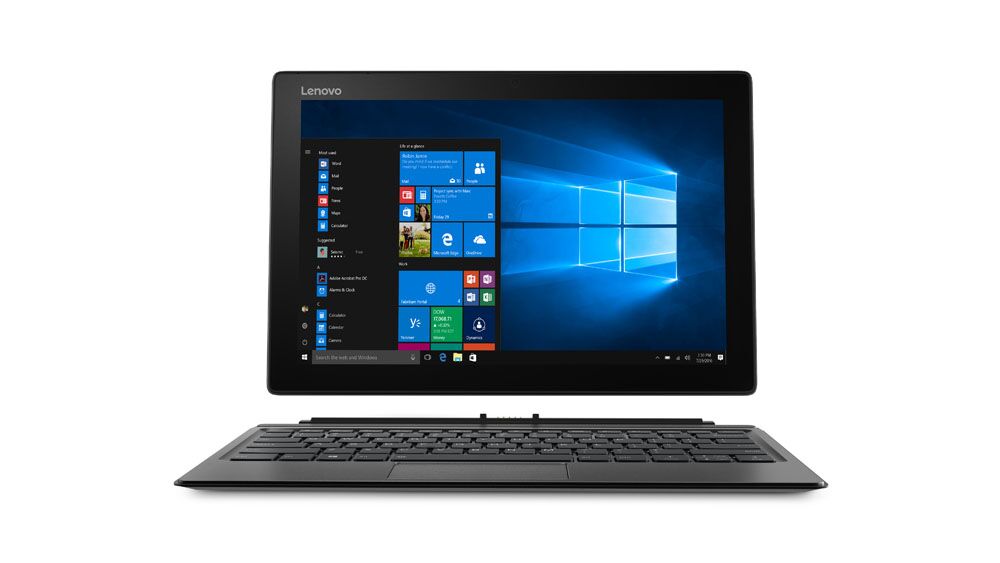

Lenovo Miix 520 - 81CG01NSAD
Lenovo Miix 520
Product code: 81CG01NSAD
- 💻Display diagonal: 12.2 inch
- 🔳Processor model: i5-8250U
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 620
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 256 GB
- ⚖️Weight: 1.26 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Platinum |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Detachable) |
| Housing material | Aluminium, Magnesium |
| Display | |
| Display diagonal | 12.2 inch |
| Touchscreen type | Capacitive |
| Display brightness | 320 cd/m² |
| Panel type | IPS |
| Touch technology | Multi-touch |
| Aspect ratio | 16:10 |
| 3D | No |
| HD type | WUXGA |
| LED backlight | Yes |
| Touchscreen | Yes |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Brand | Lenovo |
| Family | Miix |
| Series | 500 |
| Model name | 520 |
| Part Number | 81CG01NSAD |
| Release Date | 11 February 2019 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor codename | Kaby Lake R |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-8250U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | On-board |
| Memory clock speed | 2133 MHz |
| Maximum internal memory | 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 620 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Charging port type | DC-in jack |
| Combo headphone/mic port | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio |
| Speaker power | 1 W |
| Built-in subwoofer | No |
| Camera | |
| Front camera | Yes |
| Rear camera resolution (numeric) | 8 MP |
| Rear camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Keyboard | |
| Numeric keypad | No |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 39 Wh |
| Number of battery cells | 2 |
| Battery life (max) | 8 h |
| Battery capacity | 39 Wh |
| Weight & dimensions | |
| Weight | 1.26 kg |
| Depth (tablet mode) | 20.5 cm |
| Width (tablet mode) | 30 cm |
| Weight (tablet mode) | 880 g |
| Height (tablet mode) | 9.9 mm |
| Power | |
| AC adapter power | 45 W |
| Security | |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
