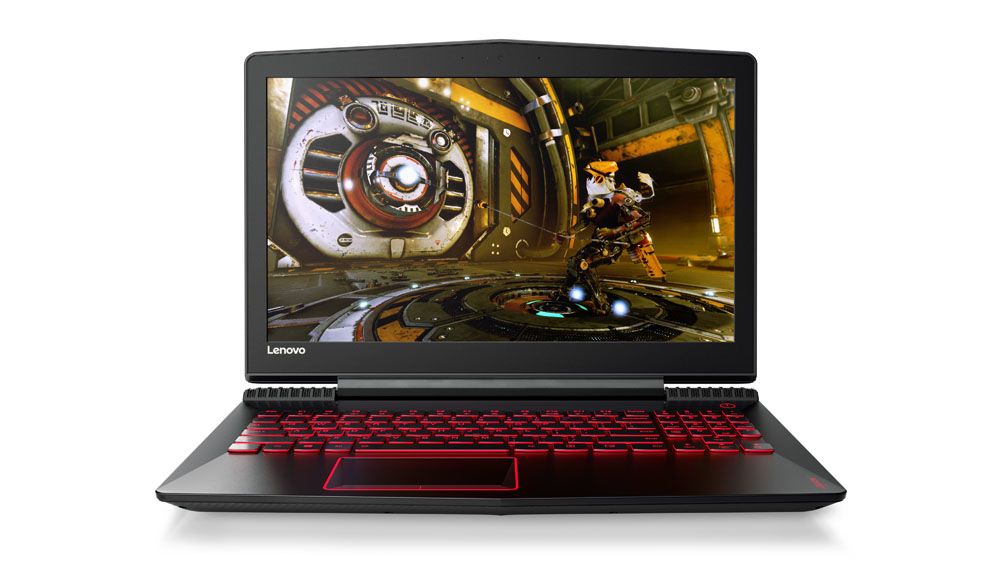

Lenovo Legion Y520 - 80YY006YSP
Lenovo Legion Y520
Product code: 80YY006YSP
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-7700HQ
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model: Intel HD Graphics 630
- 🎮Discrete graphics adapter model: NVIDIA GeForce GTX 1060
- 💽Total storage capacity: 1.13 TB
- ⚖️Weight: 2.4 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Colour of product | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Display | |
| Display diagonal | 15.6 inch |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| 3D | No |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | Legion |
| Series | Legion Y |
| Model name | Y520 |
| Part Number | 80YY006YSP |
| Release Date | 27 April 2018 |
|
|
|
| Processor | |
| Processor series | Intel Core i7-7700 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.8 GHz |
| Motherboard chipset | Intel HM175 |
| Processor boost frequency | 3.8 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-7700HQ |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor generation | 7th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 630 |
| Discrete graphics adapter model | NVIDIA GeForce GTX 1060 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 3 GB |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce GTX 1060 |
| On-board graphics card model | Intel HD Graphics 630 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591B |
| Discrete graphics card memory | 3 GB |
| Storage | |
| Total storage capacity | 1.13 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Total SSDs capacity | 128 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| SSD interface | PCI Express |
| HDD interface | SATA III |
| Total HDDs capacity | 1 TB |
| SSD form factor | M.2 |
| Hard drive speed | 5400 RPM |
| Hard drive size | 2.5" |
| Hard drive interface | SATA III |
| Hard drive capacity | 1000 GB |
| Number of hard drives installed | 1 |
| Solid-state drive capacity | 128 GB |
| Card reader integrated | No |
| Storage media | HDD+SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| DVI port | No |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio |
| Speaker power | 2 W |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 1 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 45 Wh |
| Number of battery cells | 3 |
| Battery life (max) | 4 h |
| Battery capacity | 45 Wh |
| Battery capacity (Watt hours) | 45 Wh |
| Weight & dimensions | |
| Weight | 2.4 kg |
| Height | 25.8 mm |
| Depth | 265 mm |
| Width | 380 mm |
| Power | |
| AC adapter power | 135 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | No |
| Password protection | Yes |
| Password protection type | HDD, Power on |
