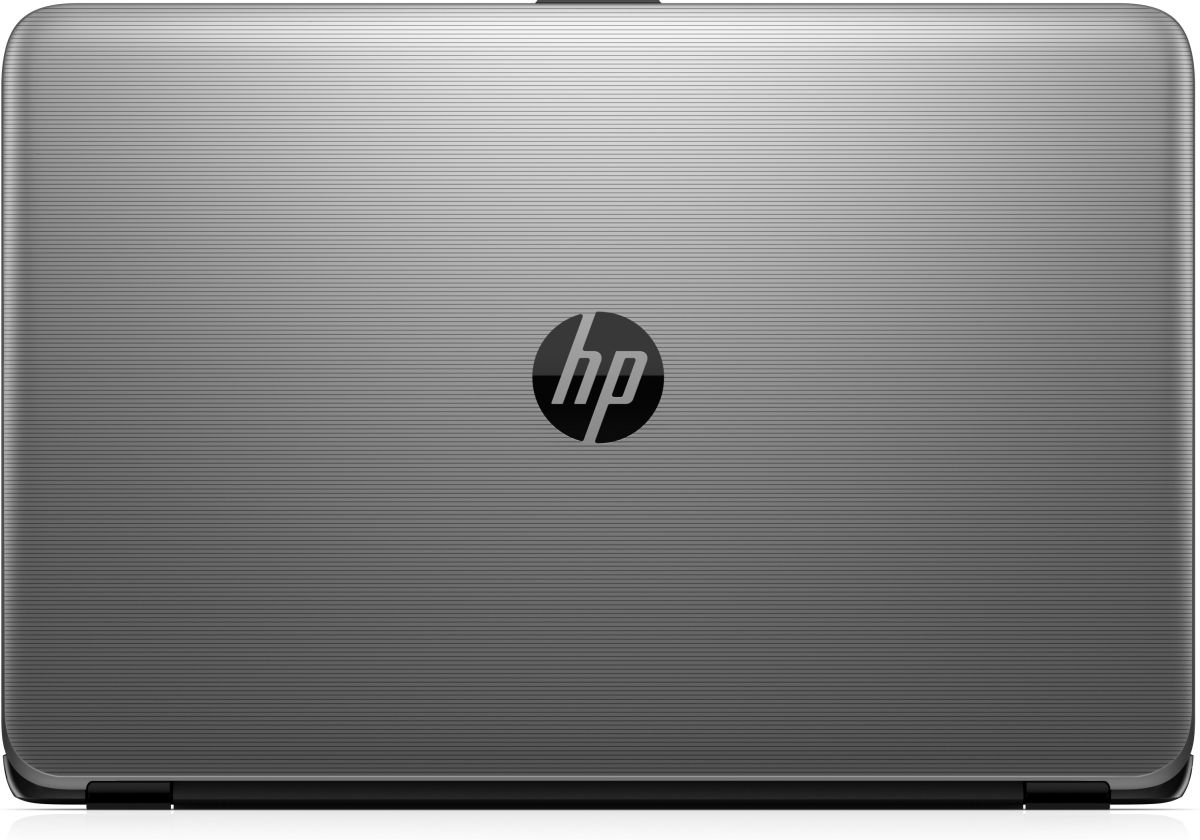

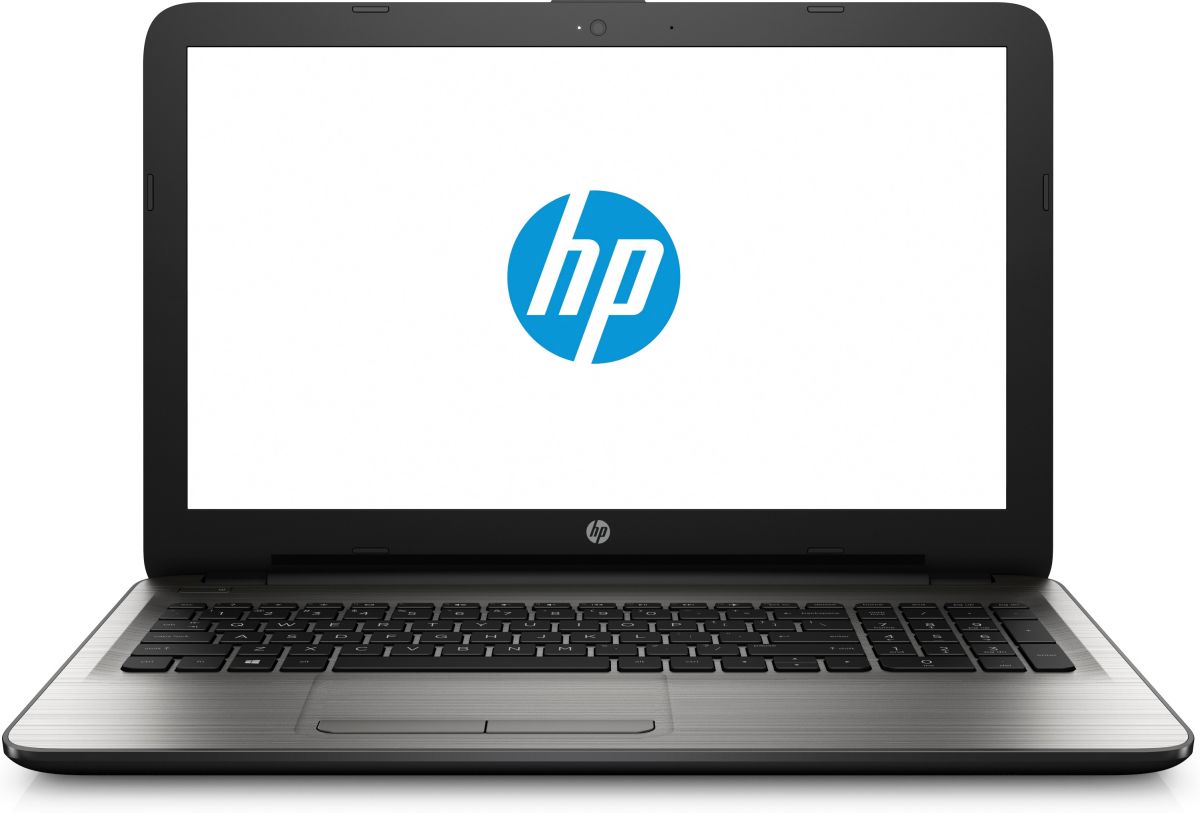

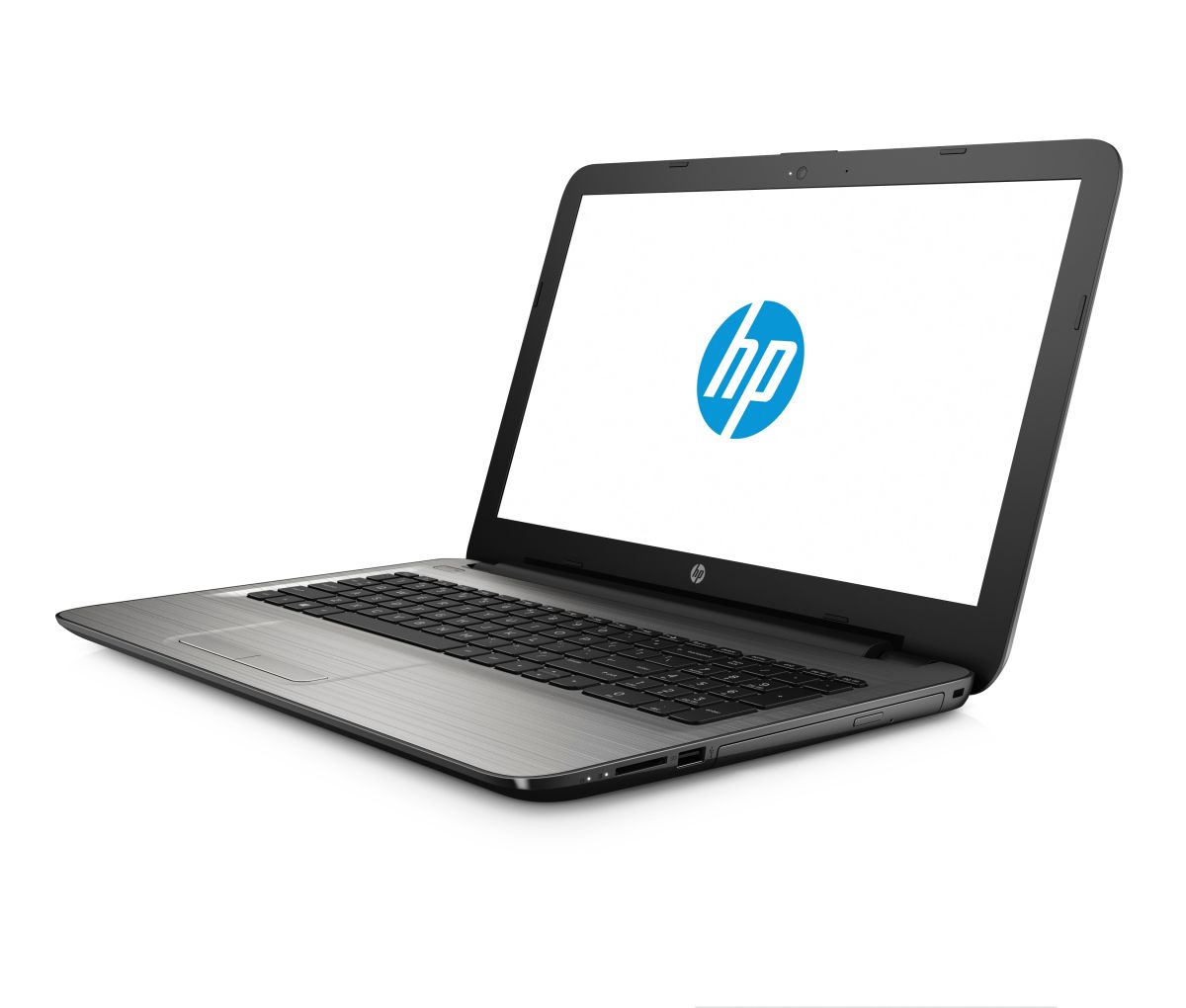

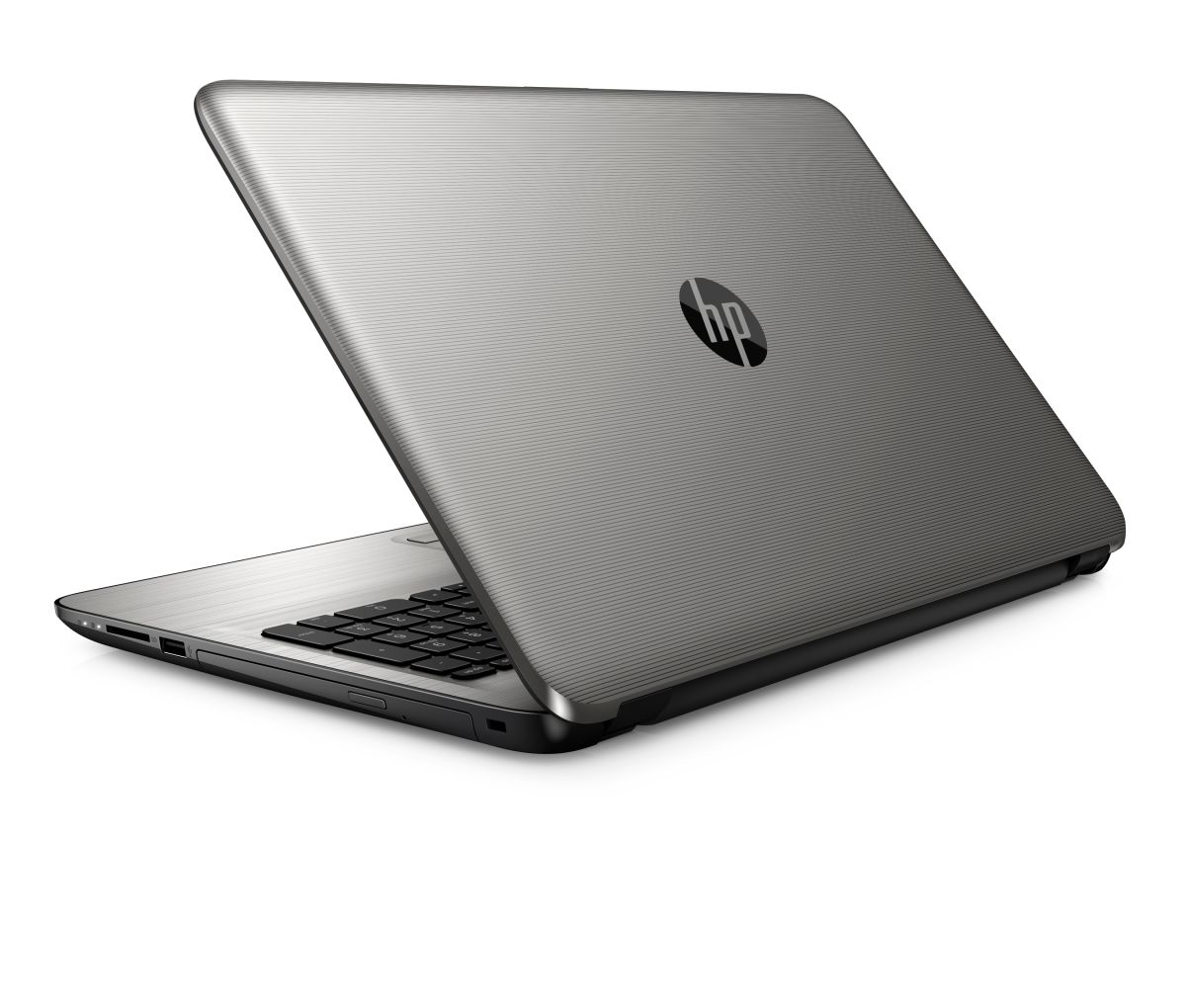

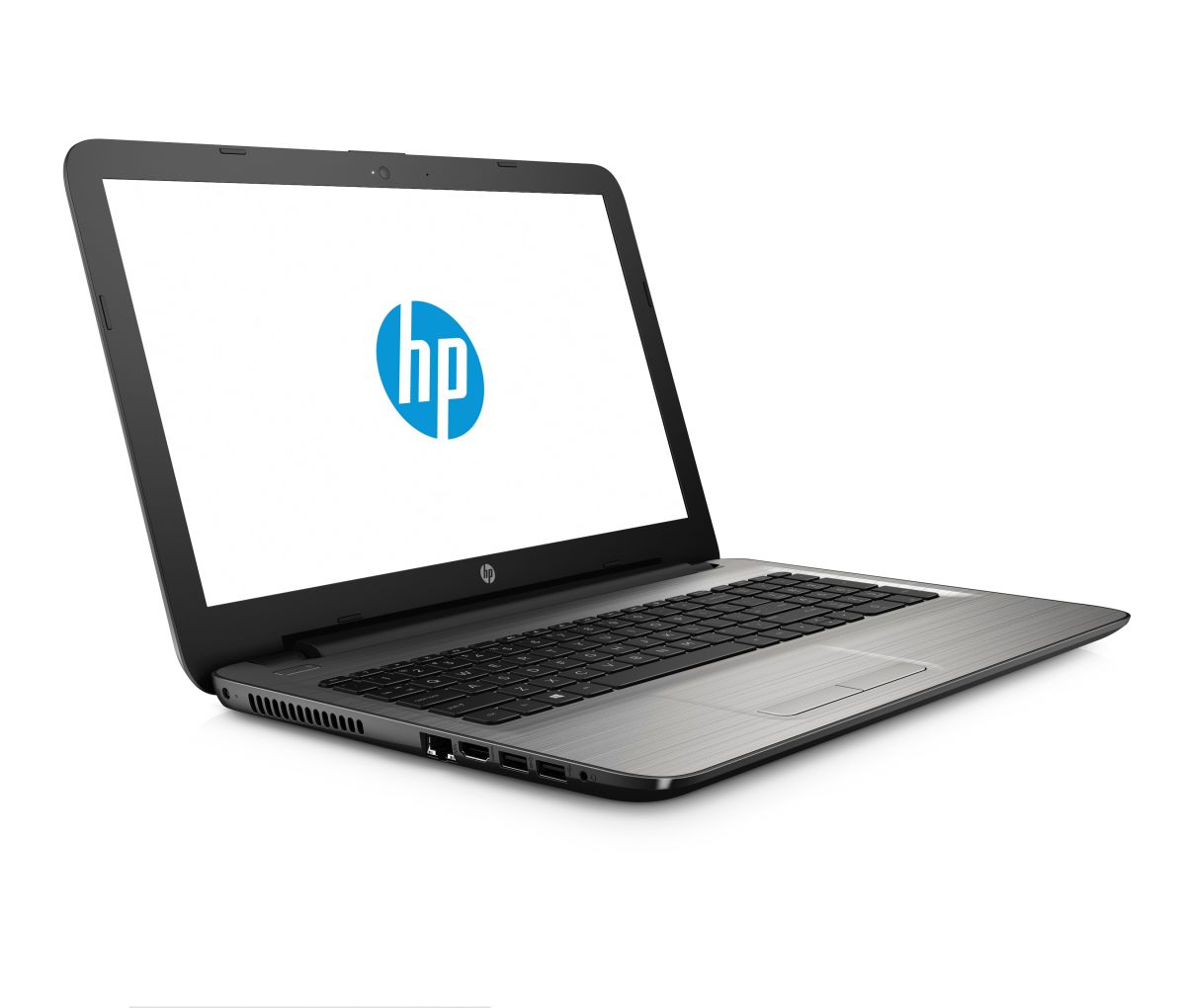

HP 15-ay157nw - Z3B22EA
HP 15-ay157nw
Product code: Z3B22EA
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i5-7200U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 620
- đŽDiscrete graphics adapter model: AMD Radeon R5 M430
- đŊTotal storage capacity: 1000 GB
- âī¸Weight: 2.04 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Aspect ratio | 16:9 |
| HD type | HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1366 x 768 pixels |
| Brand | HP |
| Model name | 15-ay157nw |
| Part Number | Z3B22EA |
| Release Date | 12 October 2016 |
| EAN/UPC code | 0190780842829 |
|
|
|
| Processor | |
| Processor family | 7th gen Intel Core i5 |
| Processor frequency | 2.50 GHz |
| Processor boost frequency | 3.10 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-7200U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| Discrete graphics memory type | GDDR3 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 620 |
| Discrete graphics adapter model | AMD Radeon R5 M430 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 2 GB |
| Storage | |
| Total storage capacity | 1000 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1000 GB |
| HDD speed | 5400 RPM |
| HDD interface | SATA |
| Total HDDs capacity | 1000 GB |
| Compatible memory cards | SD |
| Card reader integrated | Y |
| Storage media | HDD |
| Optical drive | |
| Optical drive type | DVD Super Multi |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Charging port type | DC-in jack |
| Microphone in | N |
| DVI port | N |
| Docking connector | N |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | Y |
| Island-style keyboard | Y |
| Full-size keyboard | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity (Watt hours) | 41 Wh |
| Weight & dimensions | |
| Weight | 2.04 kg |
| Height | 24.3 mm |
| Depth | 254.6 mm |
| Width | 384.3 mm |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | Power on |
| Brand-specific features | |
| HP JumpStart | Y |
| HP speaker type | HP Dual Speakers |
| HP Audio Switch | Y |
| HP front camera | HP TrueVision HD |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
