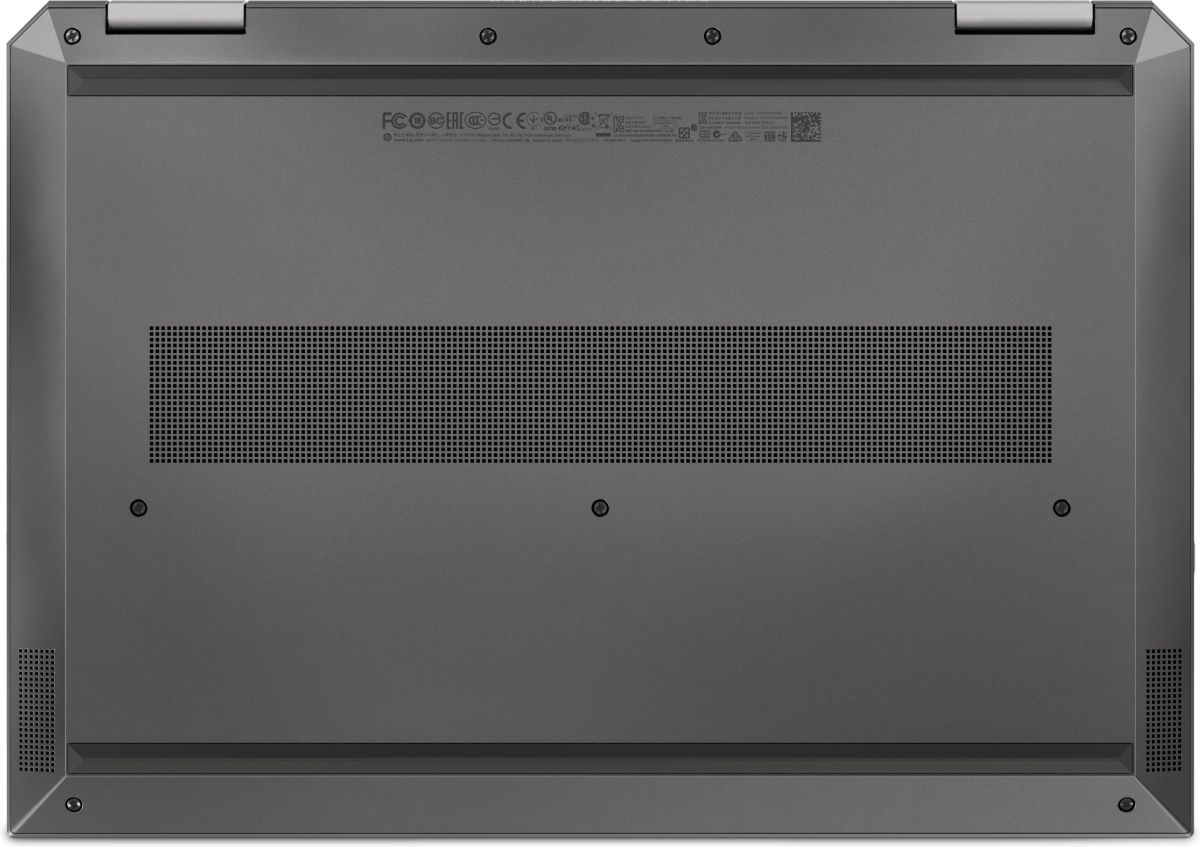

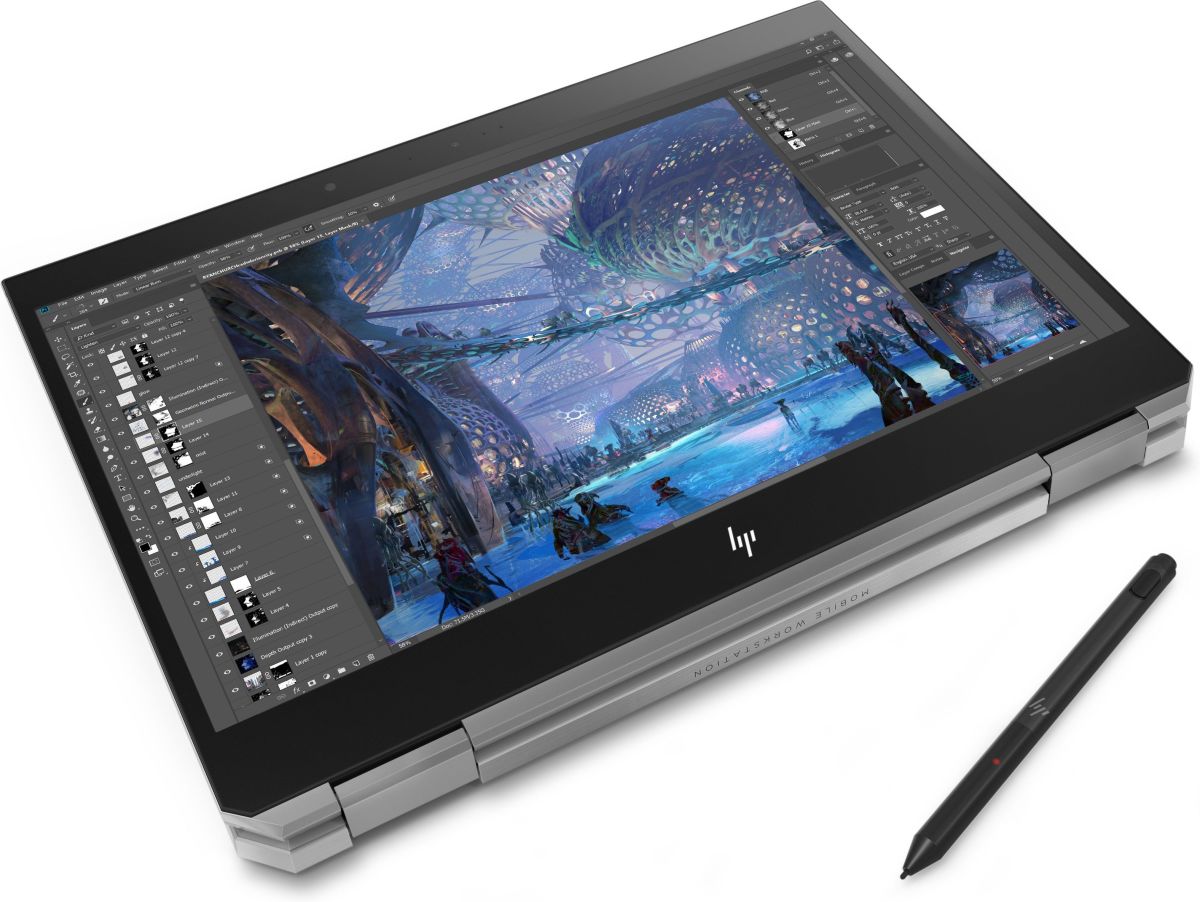

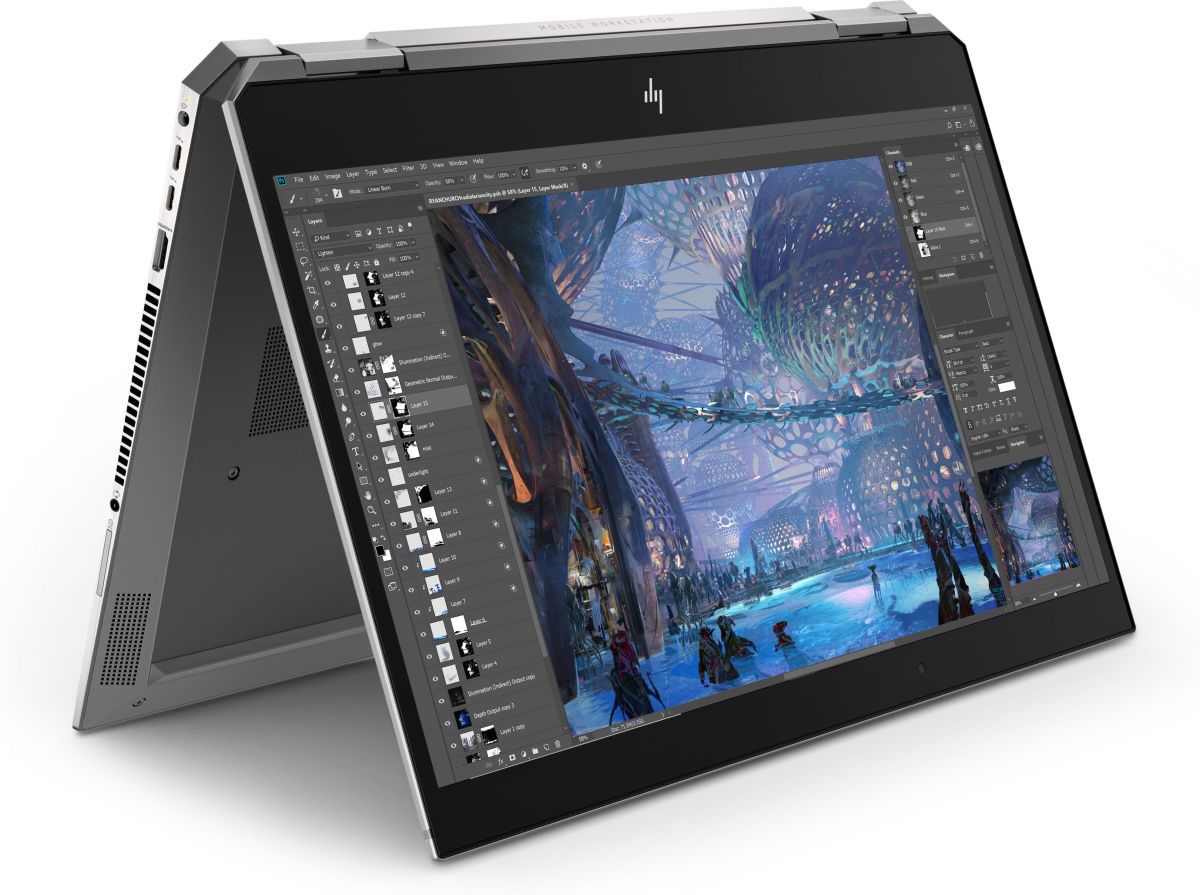

HP ZBook Studio x360 G5 - 4DC02AW
HP ZBook Studio x360 G5
Product code: 4DC02AW
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: E-2176M
- đĢInternal memory: 32 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics P630
- đŽDiscrete graphics adapter model: NVIDIA Quadro P1000
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2.26 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Mobile workstation |
| Form factor | Convertible (Folder) |
| Display | |
| Display diagonal | 15.6 inch |
| Display glass type | Gorilla Glass |
| Display brightness | 400 cd/mò |
| Panel type | IPS |
| Touch technology | Multi-touch |
| Aspect ratio | 16:9 |
| HD type | 4K Ultra HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 3840 x 2160 pixels |
| Brand | HP |
| Family | ZBook |
| Series | Studio x360 |
| Model name | Studio x360 G5 |
| Part Number | 4DC02AW |
| Release Date | 01 August 2018 |
| EAN/UPC code | 0192545505635, 0192545505819, 0192545506137, 0192545505932, 0192545506168, 0192545505727, 0192545505901, 0192545505703, 0192545505956, 0192545506021, 0192545505949, 0192545506243, 0192545506151, 0192545505925, 0192545506083, 0192545506014, 0192545506038, 0192545506182, 0192545505734, 0192545505710, 0192545506687, 0192545505864, 0192545506236, 0192545506045, 0192545506052, 0192545505826, 0192545505833, 0192545506113, 0192545506076, 0192545506175, 0192545506212, 0192545505994, 0192545506205, 0192545506144, 0192545505789, 0192545506090, 0192545506199, 0192545505857 |
|
|
|
| Processor | |
| Processor family | Intel Xeon |
| Processor frequency | 2.70 GHz |
| Processor boost frequency | 4.40 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | E-2176M |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics P630 |
| Discrete graphics adapter model | NVIDIA Quadro P1000 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Compatible memory cards | SD |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Top Wi-Fi standard | IEEE 802.11ac |
| Wi-Fi standards | IEEE 802.11ac |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.0 |
| USB Sleep-and-Charge ports | 1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 2 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | Bang & Olufsen |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | N |
| Full-size keyboard | Y |
| Spill resistant keyboard | Y |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Performance | |
| Ambient light sensor | Y |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity (Watt hours) | 95.6 Wh |
| Weight & dimensions | |
| Weight | 2.26 kg |
| Height | 20.4 mm |
| Depth | 254 mm |
| Width | 360 mm |
| Power | |
| AC adapter power | 150 W |
| Brand-specific features | |
| HP Smart AC Adapter | Y |
| HP speaker type | HP Dual Speakers |
