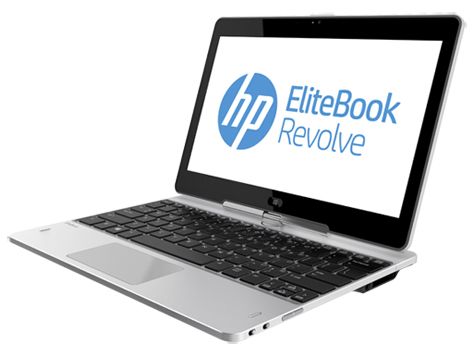

HP EliteBook Revolve 810 G1 - H5F12EA
HP EliteBook Revolve 810 G1
Product code: H5F12EA
- đģDisplay diagonal: 11.6 inch
- đŗProcessor model: i5-3437U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 4000
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 1.4 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Swivel) |
| Display | |
| Display diagonal | 11.6 inch |
| Touchscreen type | Capacitive |
| Touch technology | Multi-touch |
| Aspect ratio | 16:9 |
| 3D | N |
| HD type | HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 1366 x 768 pixels |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| Brand | HP |
| Family | EliteBook Revolve |
| Series | 810 |
| Model name | 810 G1 |
| Part Number | H5F12EA |
| Release Date | 01 April 2013 |
| EAN/UPC code | 0887758484616, 887758484616, 0887758388464, 887758388464, 0887758426944, 887758426944, 0887758515181, 887758515181, 0887758388433, 887758388433, 0887758484623, 887758484623, 0887758707791, 887758707791, 0887758388488, 887758388488, 0887758388396, 887758388396, 0887758426906, 887758426906, 0887758426913, 887758426913, 0887758388402, 887758388402, 0887758426937, 887758426937, 0887758388471, 887758388471, 0887758426920, 887758426920, 0887758388457, 887758388457, 0887758388440, 887758388440, 0887758484630, 887758484630, 0887758388426, 887758388426, 0887758426890, 887758426890, 0887758388389, 887758388389, 0887758388419, 887758388419 |
|
|
|
| Processor | |
| Processor series | Intel Core i5-3400 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 1.9 GHz |
| Motherboard chipset | Intel QM77 Express |
| Processor boost frequency | 2.9 GHz |
| Processor codename | Ivy Bridge |
| Thermal Design Power (TDP) | 17 W |
| Processor model | i5-3437U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 22 nm |
| Processor socket | BGA 1023 |
| Processor generation | 3rd gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR3-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 12 GB |
| Memory layout (slots x size) | 1 x 4 GB |
| Maximum internal memory (64-bit) | 12 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 4000 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 650 MHz |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 4000 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card ID | 0x166 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD interface | mSATA |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| LightScribe | N |
| Disc types supported | N |
| Networking | |
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Y |
| Bluetooth version | 4.0 |
| WWAN | Installed |
| Near Field Communication (NFC) | Y |
| 3G | Y |
| 3G standards | EVDO, HSPA |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Charging port type | DC-in jack |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| ExpressCard slot | N |
| CardBus PCMCIA slot type | N |
| S/PDIF out port | N |
| SmartCard slot | N |
| DVI port | N |
| Docking connector | Y |
| Combo headphone/mic port | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | DTS Studio Sound |
| Camera | |
| Front camera resolution | 1280 x 720 pixels |
| Keyboard | |
| Numeric keypad | N |
| Full-size keyboard | Y |
| Pointing device | Touchpad |
| Performance | |
| Accelerometer | Y |
| Orientation sensor | Y |
| Proximity sensor | Y |
| Software | |
| Operating system installed | Windows 8 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 44 Wh |
| Number of battery cells | 6 |
| Battery life (max) | 8.25 h |
| Battery capacity | 44 Wh |
| Battery capacity (Watt hours) | 44 Wh |
| Weight & dimensions | |
| Weight | 1.4 kg |
| Height | 22.2 mm |
| Depth | 285 mm |
| Width | 212 mm |
| Power | |
| AC adapter power | 45 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| Power auto-sensing | Y |
| Security | |
| Cable lock slot | N |
| Password protection type | Y |
