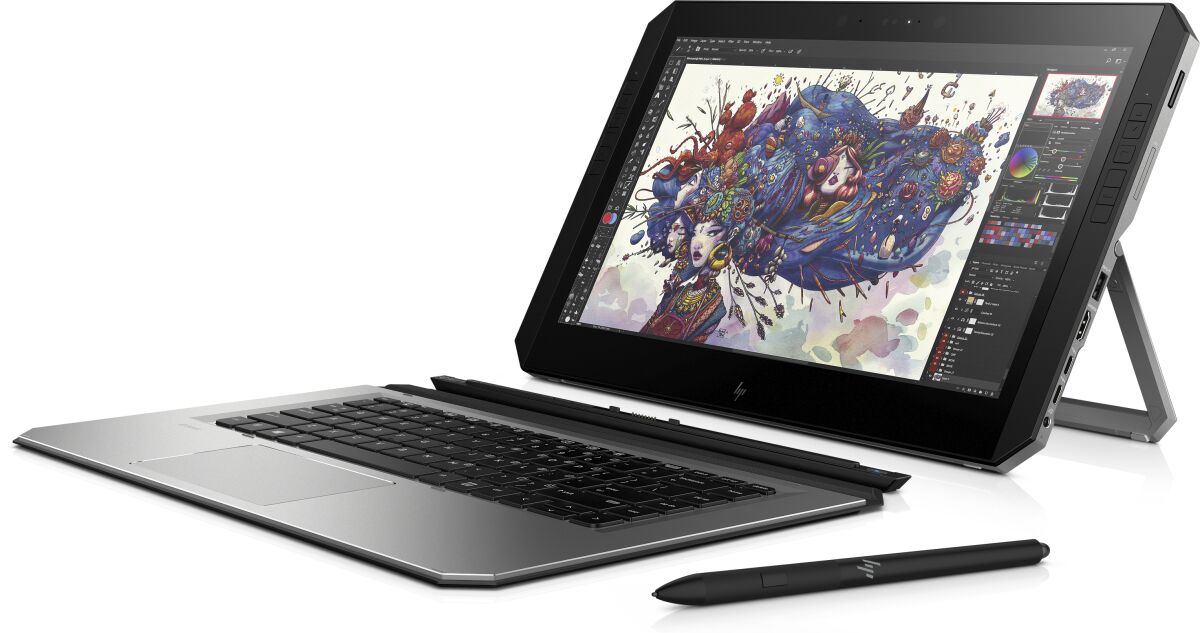

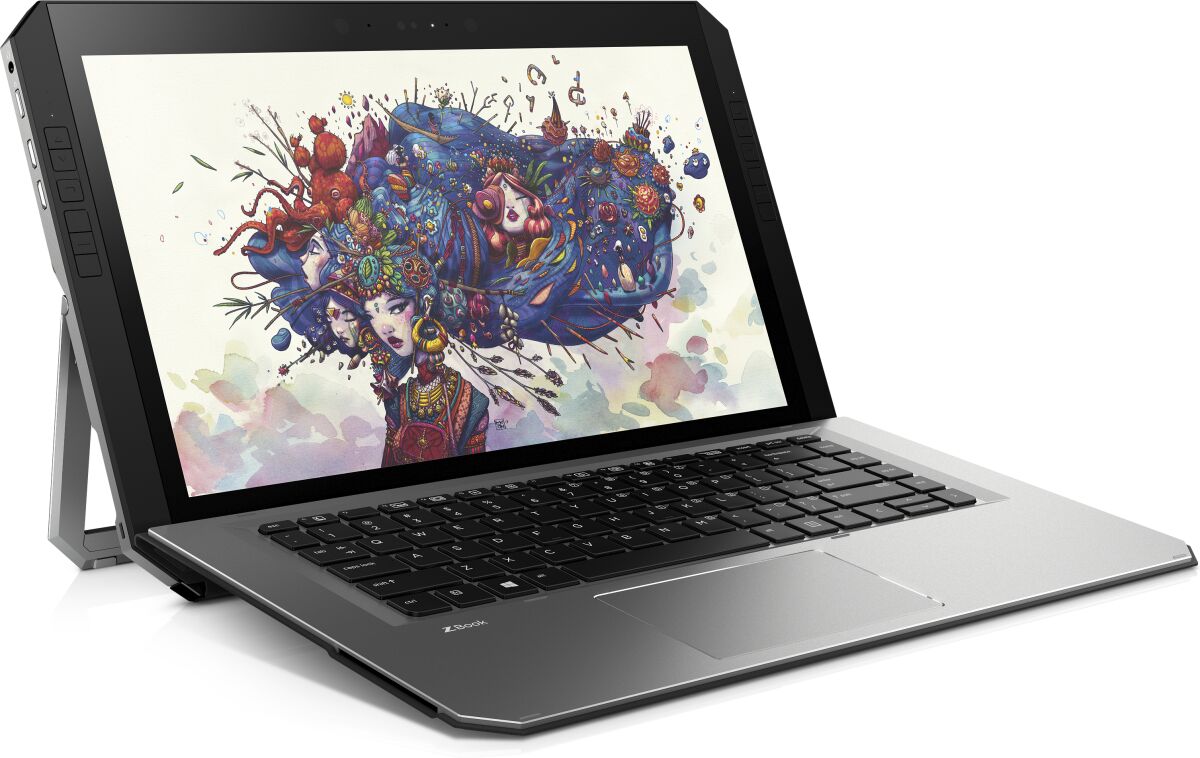

HP ZBook x2 G4 Thunderbolt Dock 230W G2 VISA - 5CE62PA-DOCK-VISA
HP ZBook x2 G4 Thunderbolt Dock 230W G2 VISA
Product code: 5CE62PA-DOCK-VISA
- đģDisplay diagonal: 14 inch
- đŗProcessor model: i7-8650U
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 620
- đŽDiscrete graphics adapter model: NVIDIA Quadro M620
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2.17 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Mobile workstation |
| Form factor | Convertible (Detachable) |
| Display | |
| Display diagonal | 14 inch |
| Touch technology | Multi-touch |
| HD type | 4K Ultra HD |
| LED backlight | Yes |
| Touchscreen | Yes |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Brand | HP |
| Family | ZBook |
| Series | x2 |
| Model name | x2 G4 + Thunderbolt Dock 230W G2 + VISA |
| Part Number | 5CE62PA-DOCK-VISA |
| Release Date | 26 April 2019 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.9 GHz |
| Processor boost frequency | 4.2 GHz |
| Processor codename | Kaby Lake R |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-8650U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2.1 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2133 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | NVIDIA Quadro M620 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro M620 |
| On-board graphics card model | Intel UHD Graphics 620 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
| Discrete graphics card memory | 2 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Charging port type | DC-in jack |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Bang & Olufsen |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | No |
| Pointing device | Clickpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 70 Wh |
| Number of battery cells | 4 |
| Battery life (max) | 10 h |
| Battery capacity | 70 Wh |
| Weight & dimensions | |
| Weight | 2.17 kg |
| Depth (tablet mode) | 22.7 cm |
| Width (tablet mode) | 36.5 cm |
| Weight (tablet mode) | 1.65 kg |
| Height | 20.3 mm |
| Depth | 227 mm |
| Width | 364.5 mm |
| Height (tablet mode) | 1.46 cm |
| Power | |
| AC adapter power | 90 W |
| Security | |
| Cable lock slot | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
