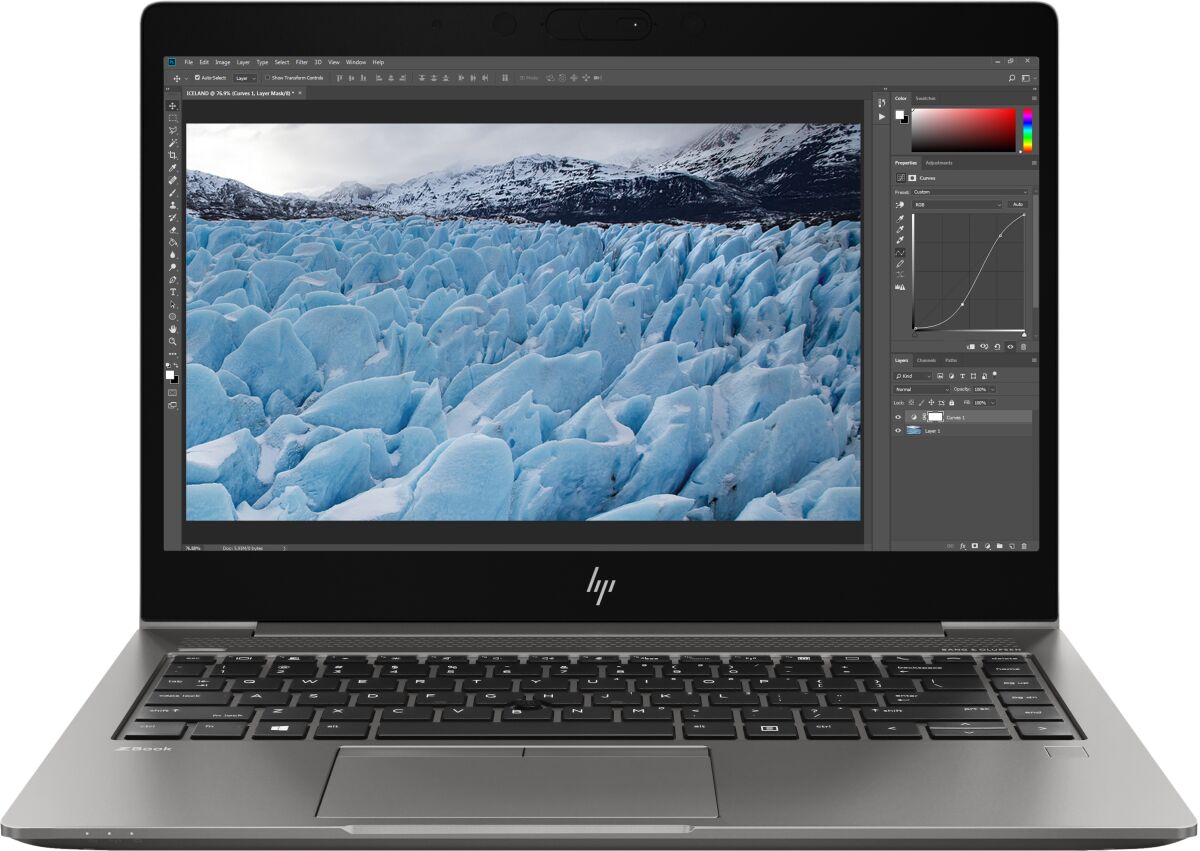

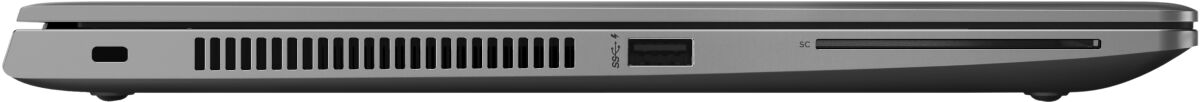

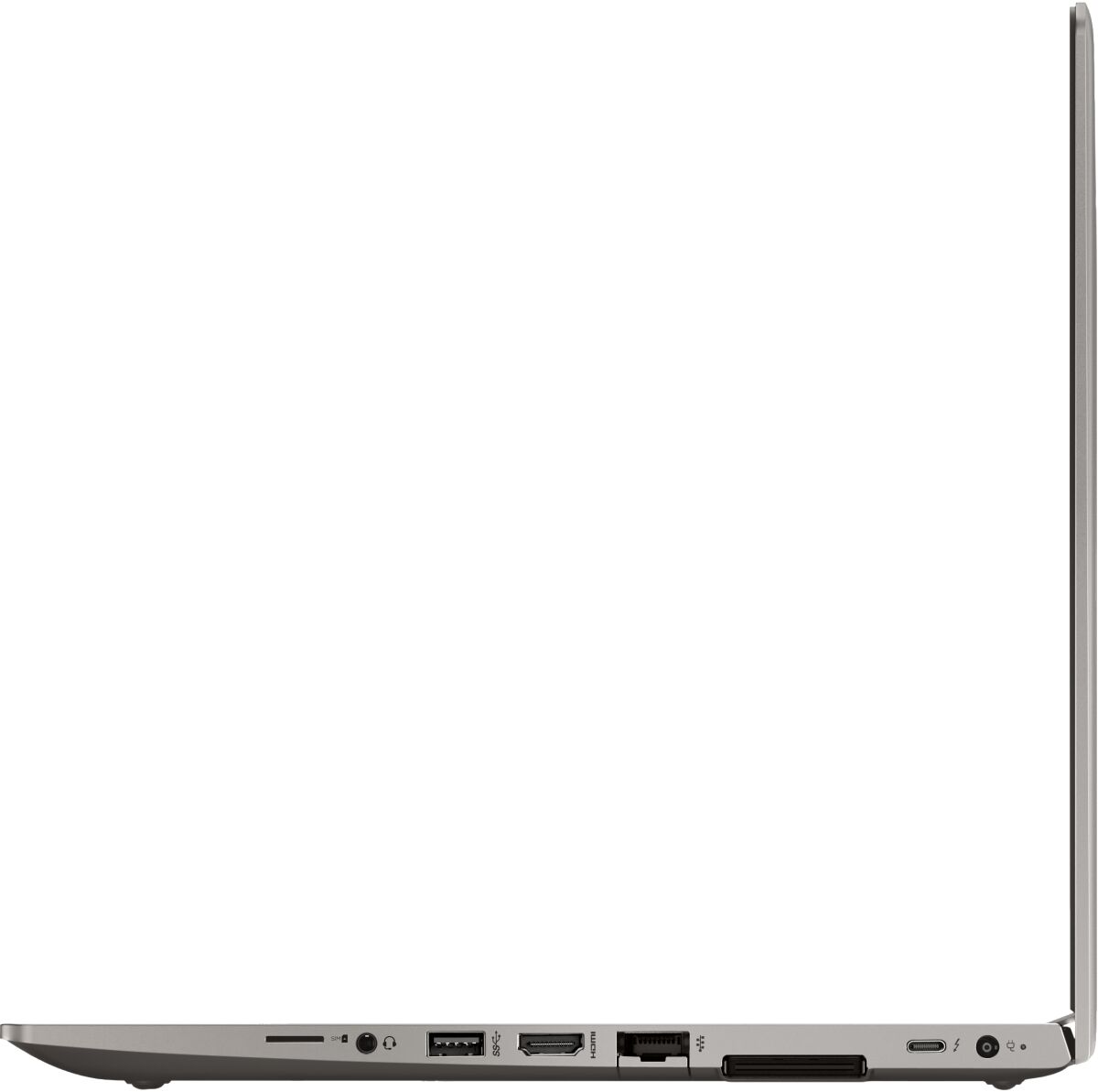

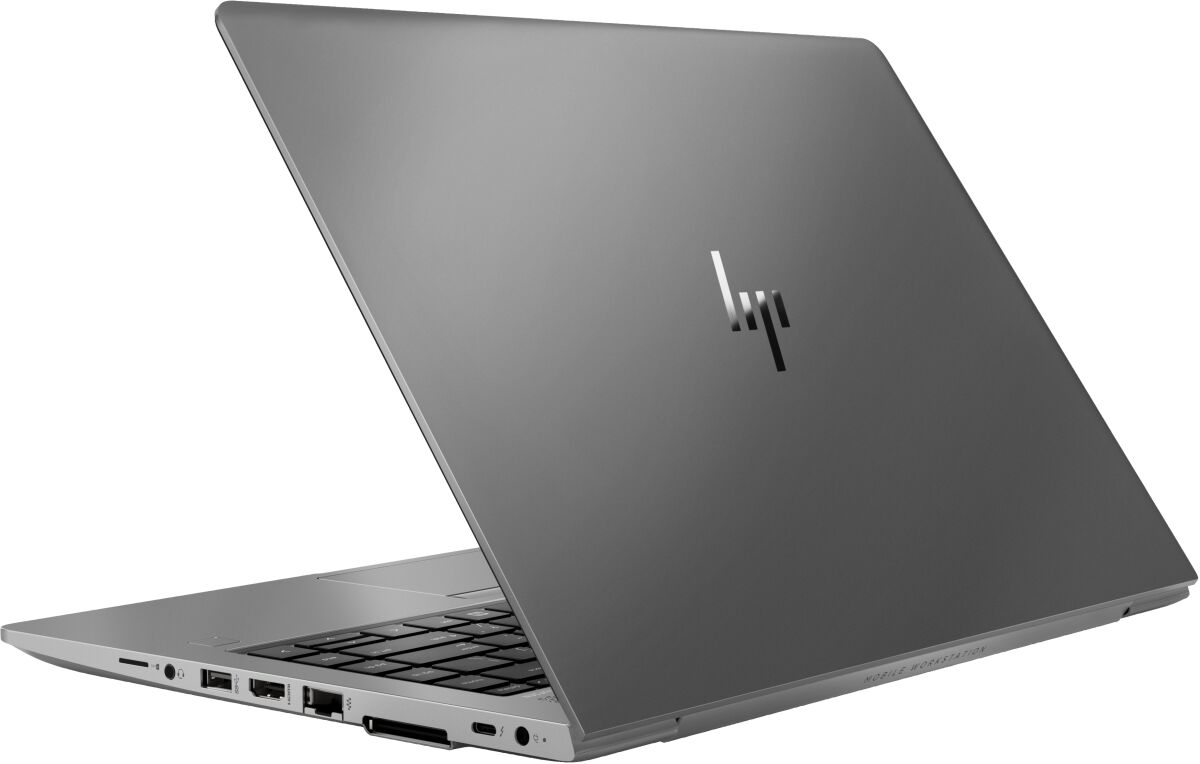

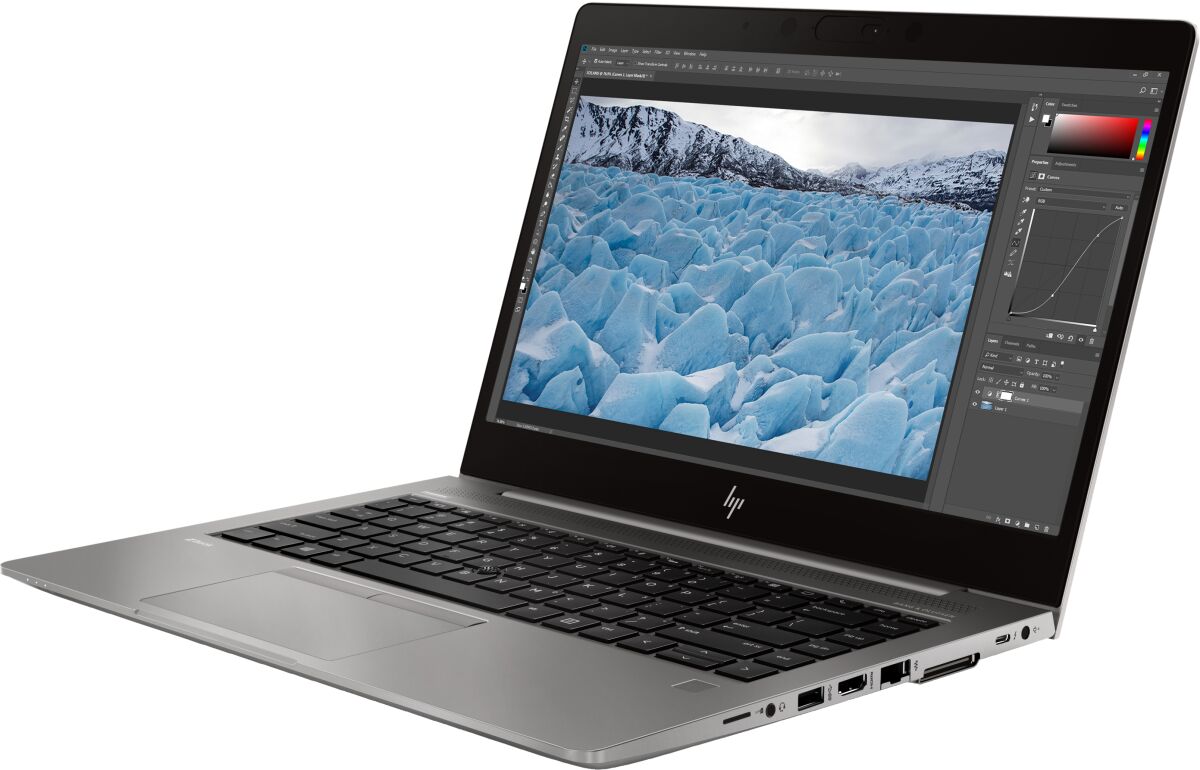

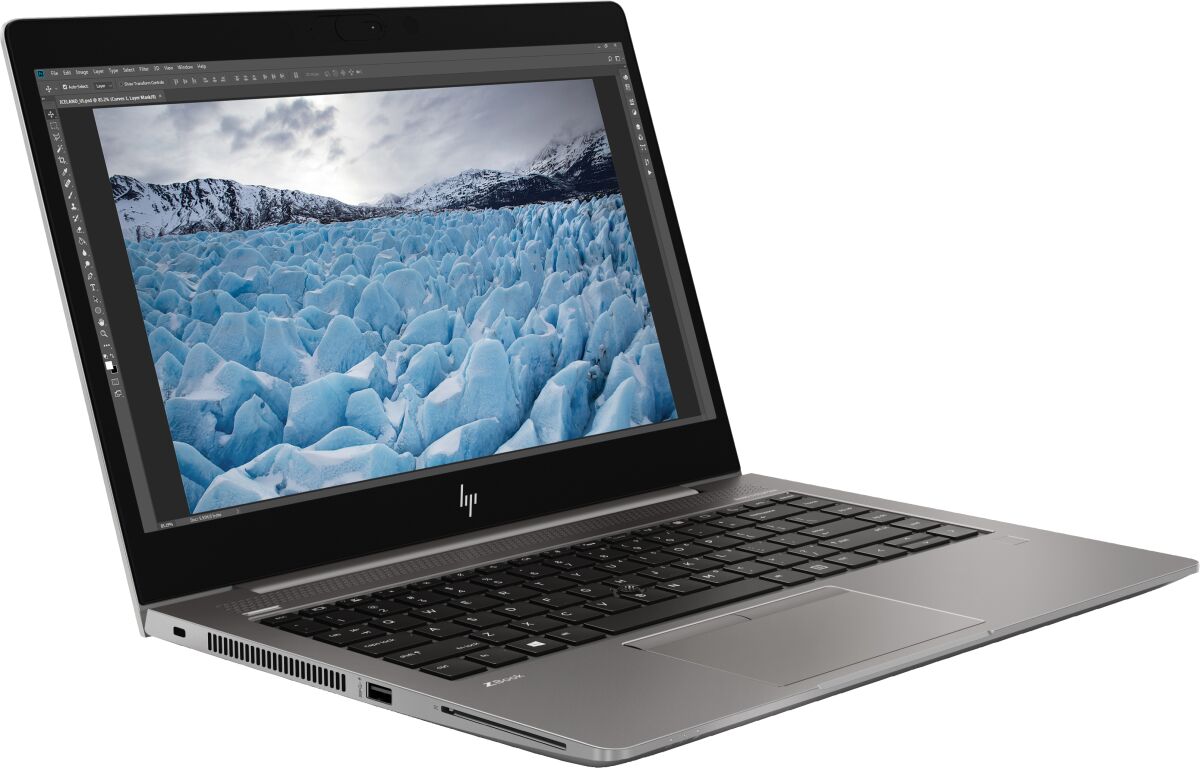

HP ZBook 14u G6 - 174F7LA
HP ZBook 14u G6
Product code: 174F7LA
- 💻Display diagonal: 14 inch
- 🔳Processor model: i5-8265U
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics
- 🎮Discrete graphics adapter model: AMD Radeon Pro WX 3200
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.48 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 14 inch |
| Display brightness | 600 cd/m² |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Brand | HP |
| Family | ZBook |
| Series | 14u |
| Model name | 14u G6 |
| Part Number | 174F7LA |
| Release Date | 26 March 2020 |
| EAN/UPC code | 0195122074692, 195122074692, 0195122556075, 195122556075 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-8265U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics |
| Discrete graphics adapter model | AMD Radeon Pro WX 3200 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 4 GB |
| Discrete GPU manufacturer | AMD |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon Pro WX 3200 |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 1.4b |
| SmartCard slot | Yes |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Bang & Olufsen |
| Camera | |
| Front camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Pointing device | Clickpad |
| Performance | |
| Ambient light sensor | Yes |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 50 Wh |
| Number of battery cells | 3 |
| Battery capacity | 50 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 45 min |
| Weight & dimensions | |
| Weight | 1.48 kg |
| Height | 17.9 mm |
| Depth | 234.3 mm |
| Width | 326 mm |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Brand-specific features | |
| HP segment | Business |
| HP speaker type | HP Dual Speakers |
| HP front camera | HP Privacy HD IR |
