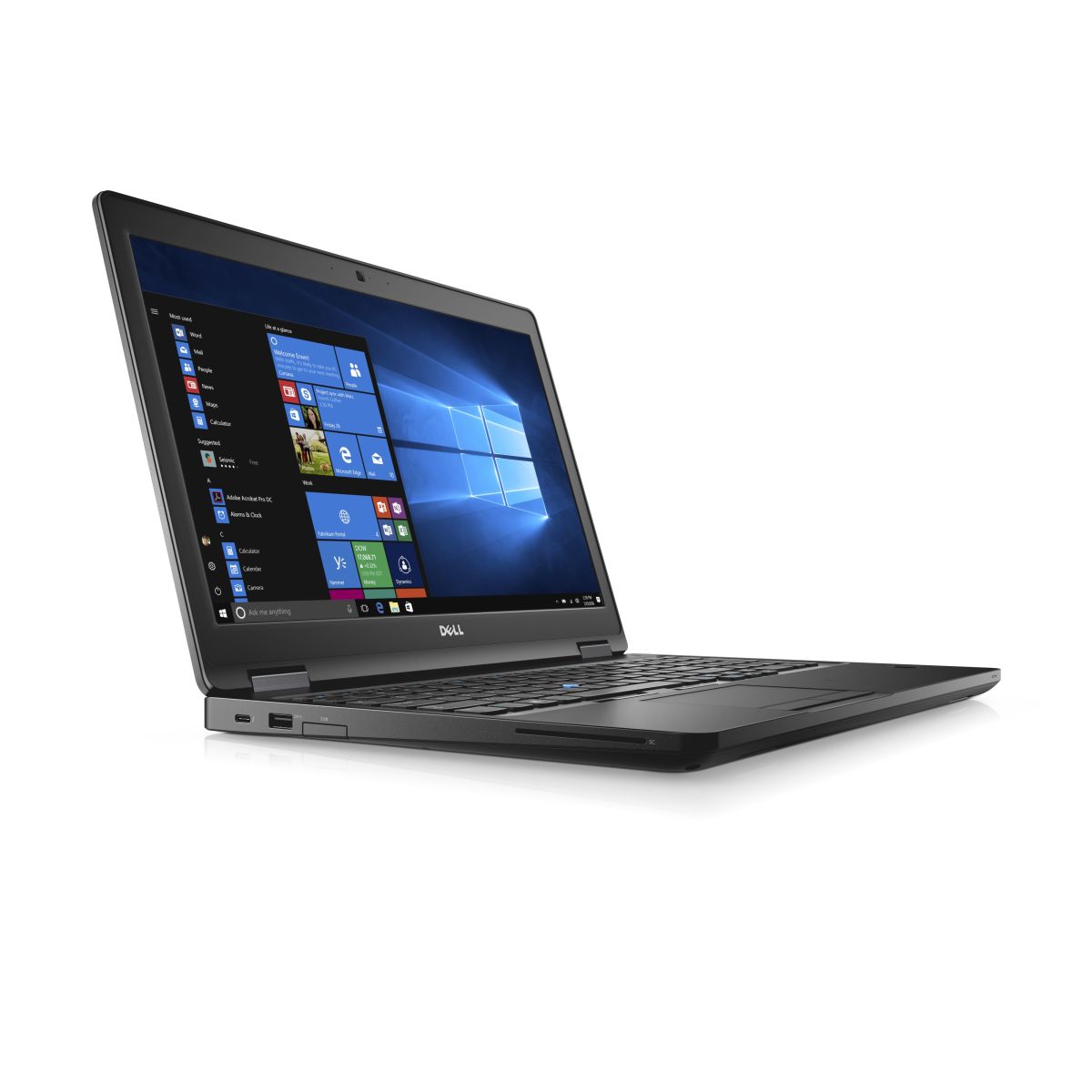

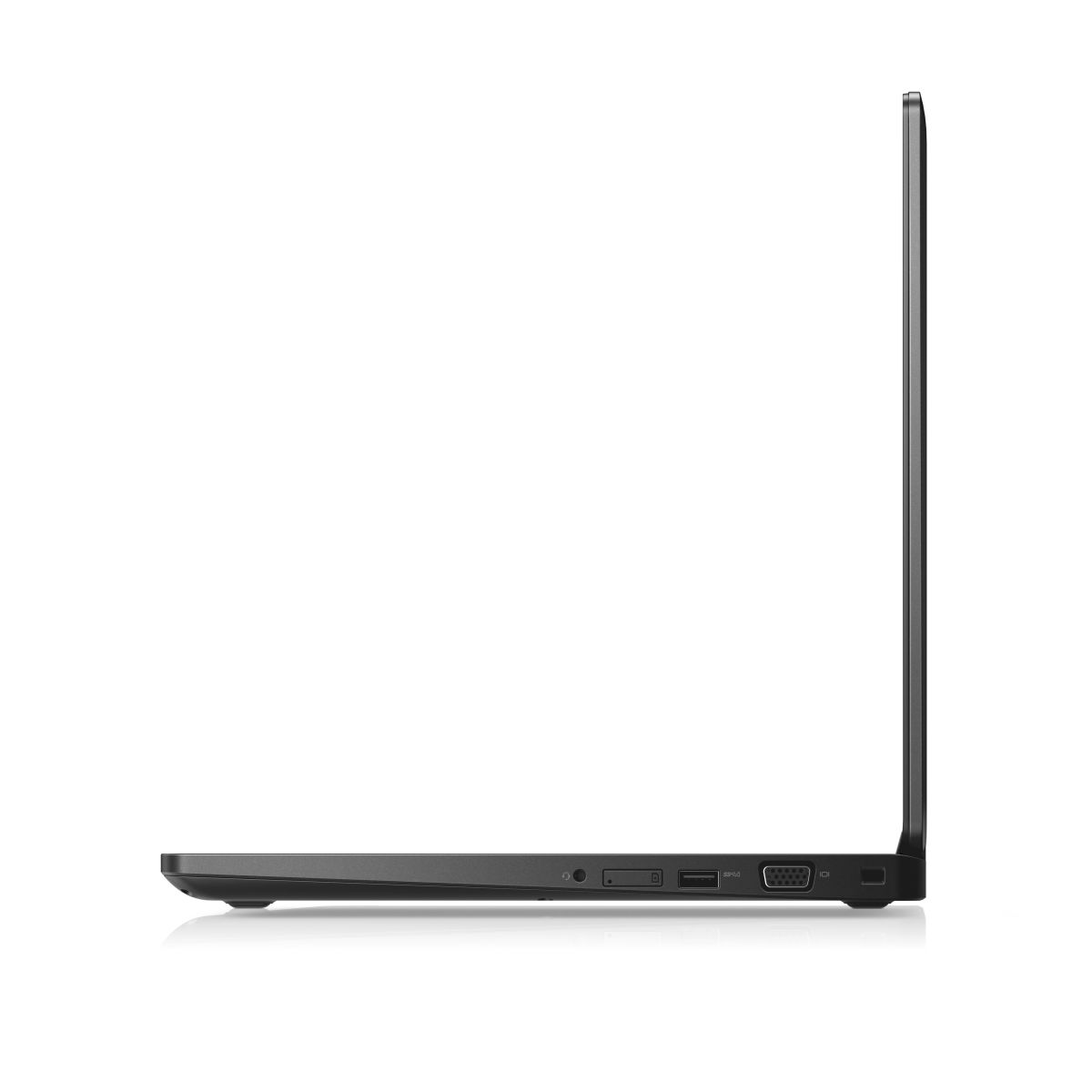

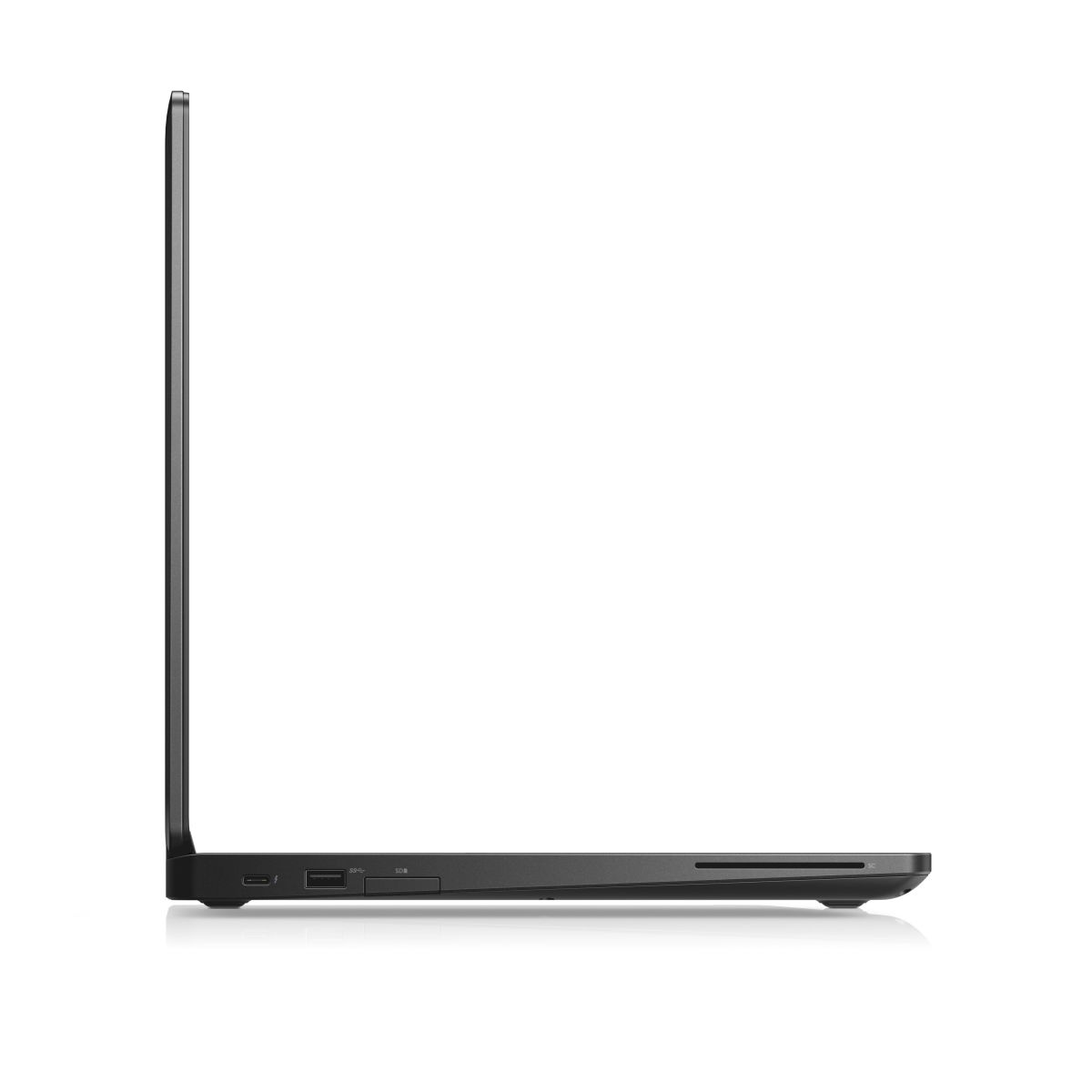

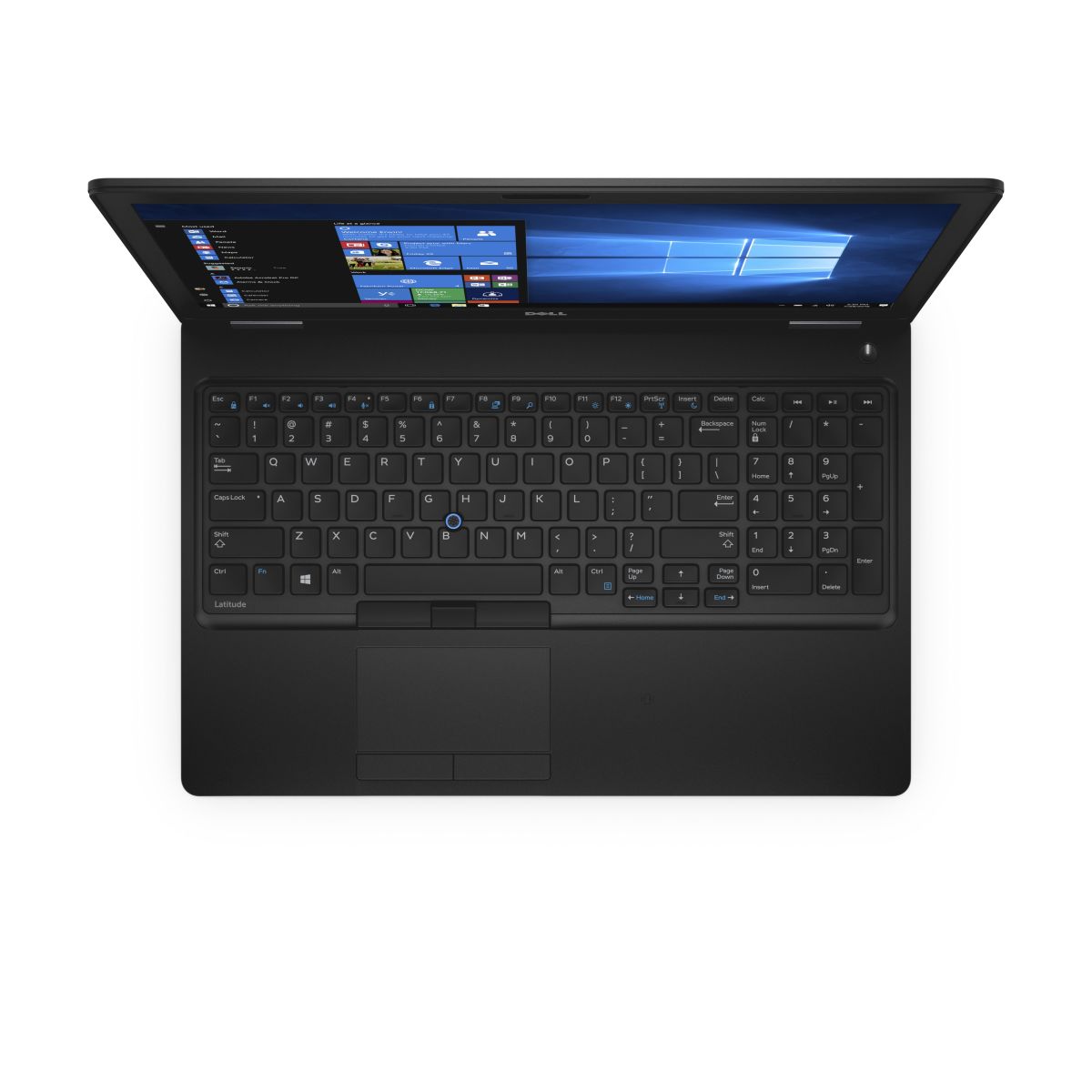

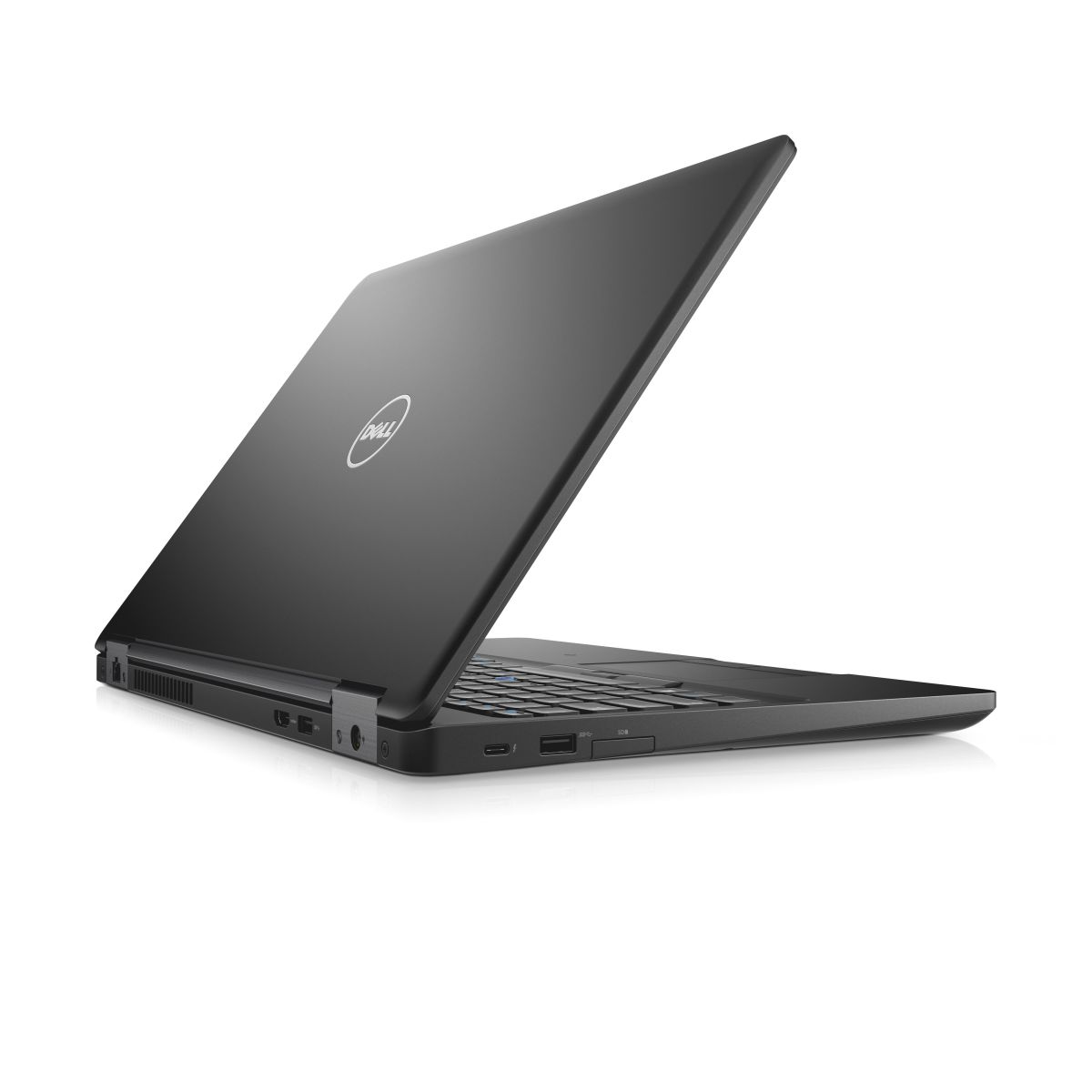

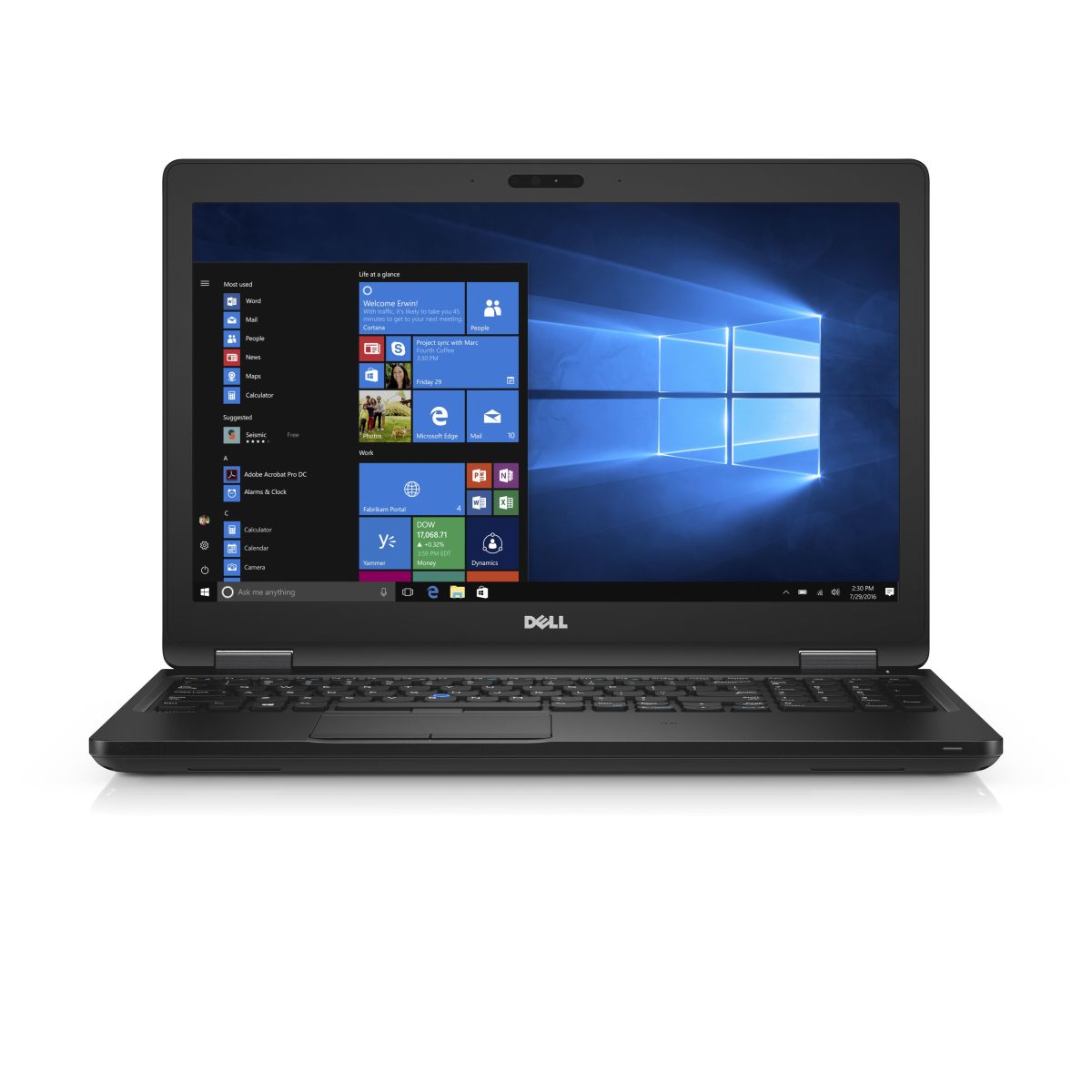

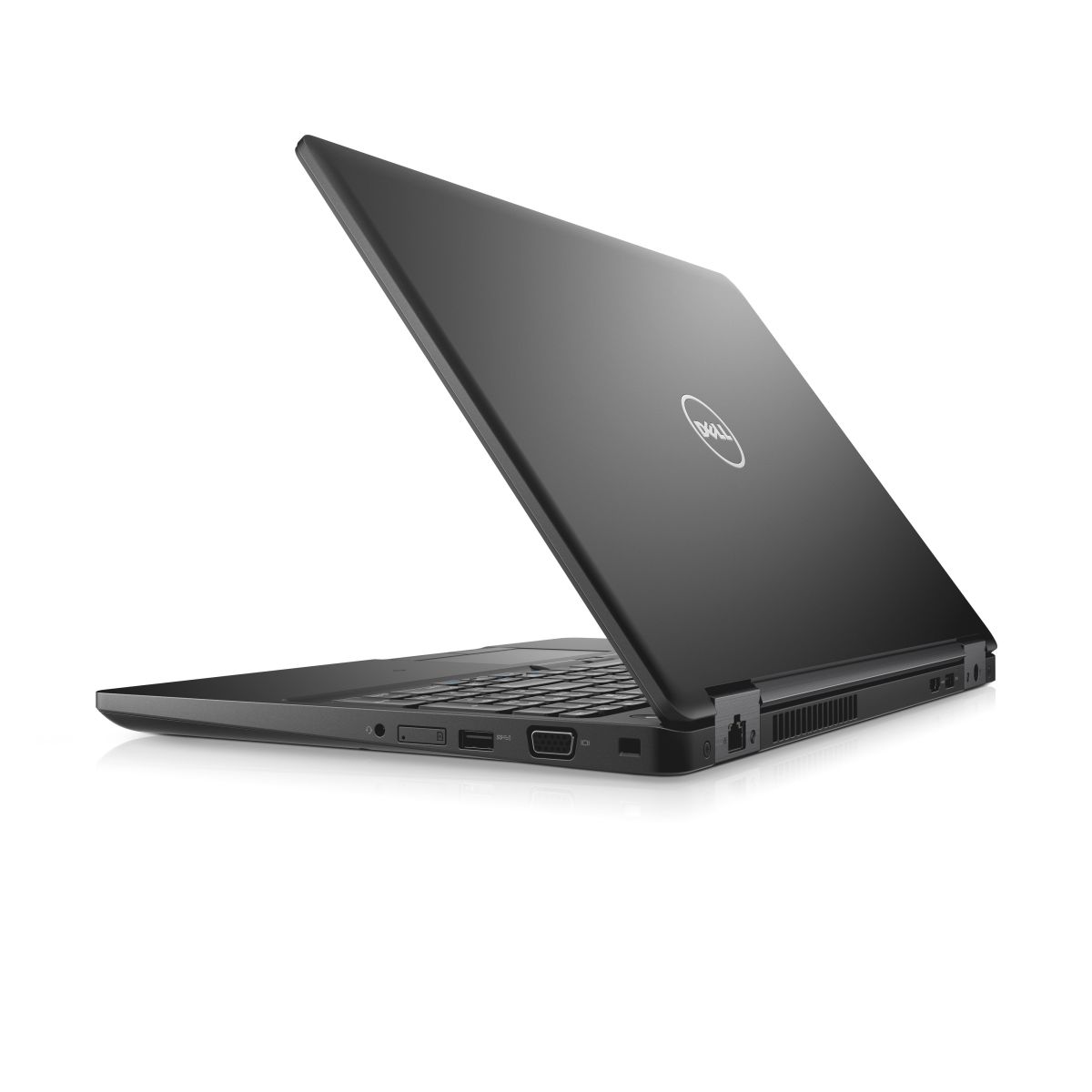

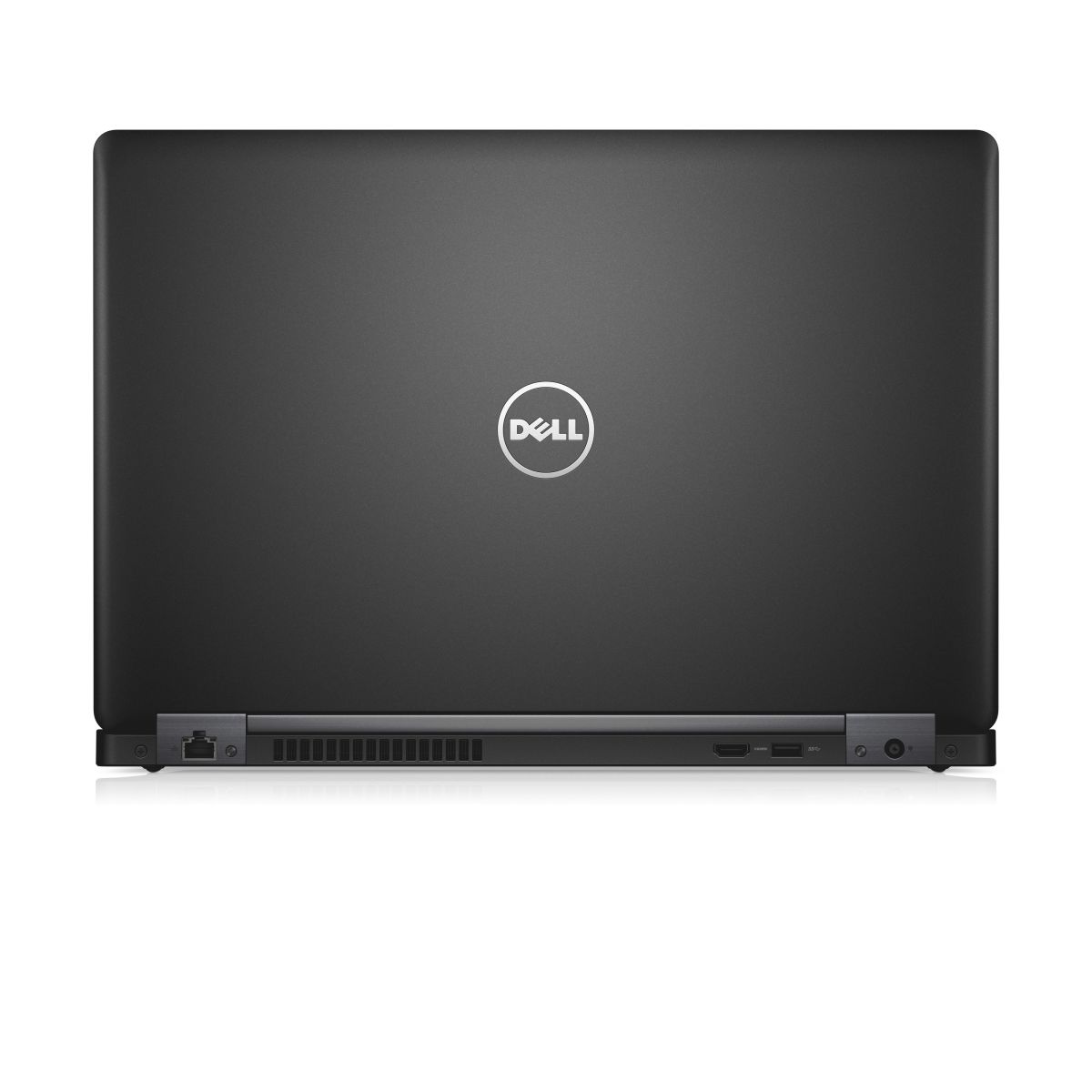

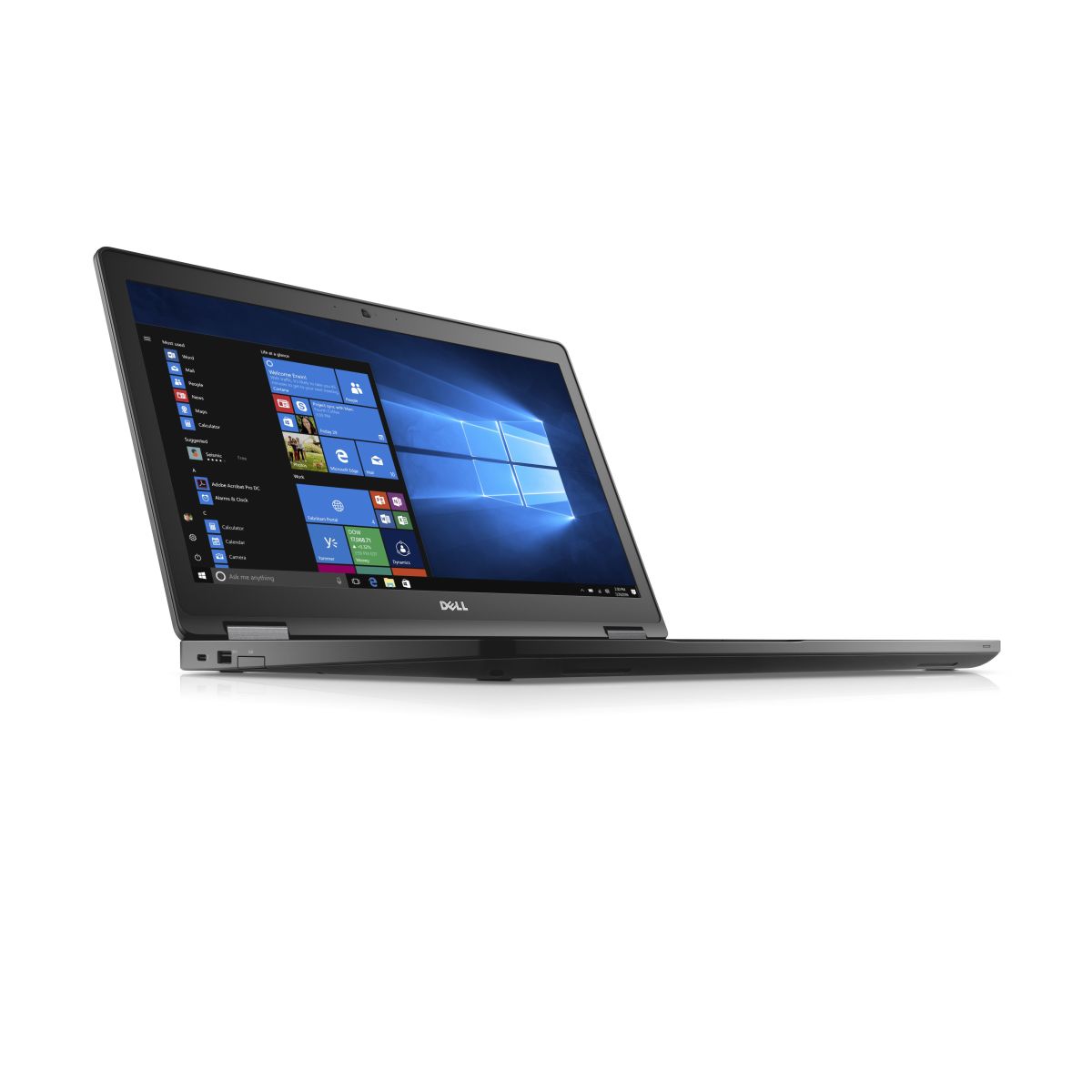

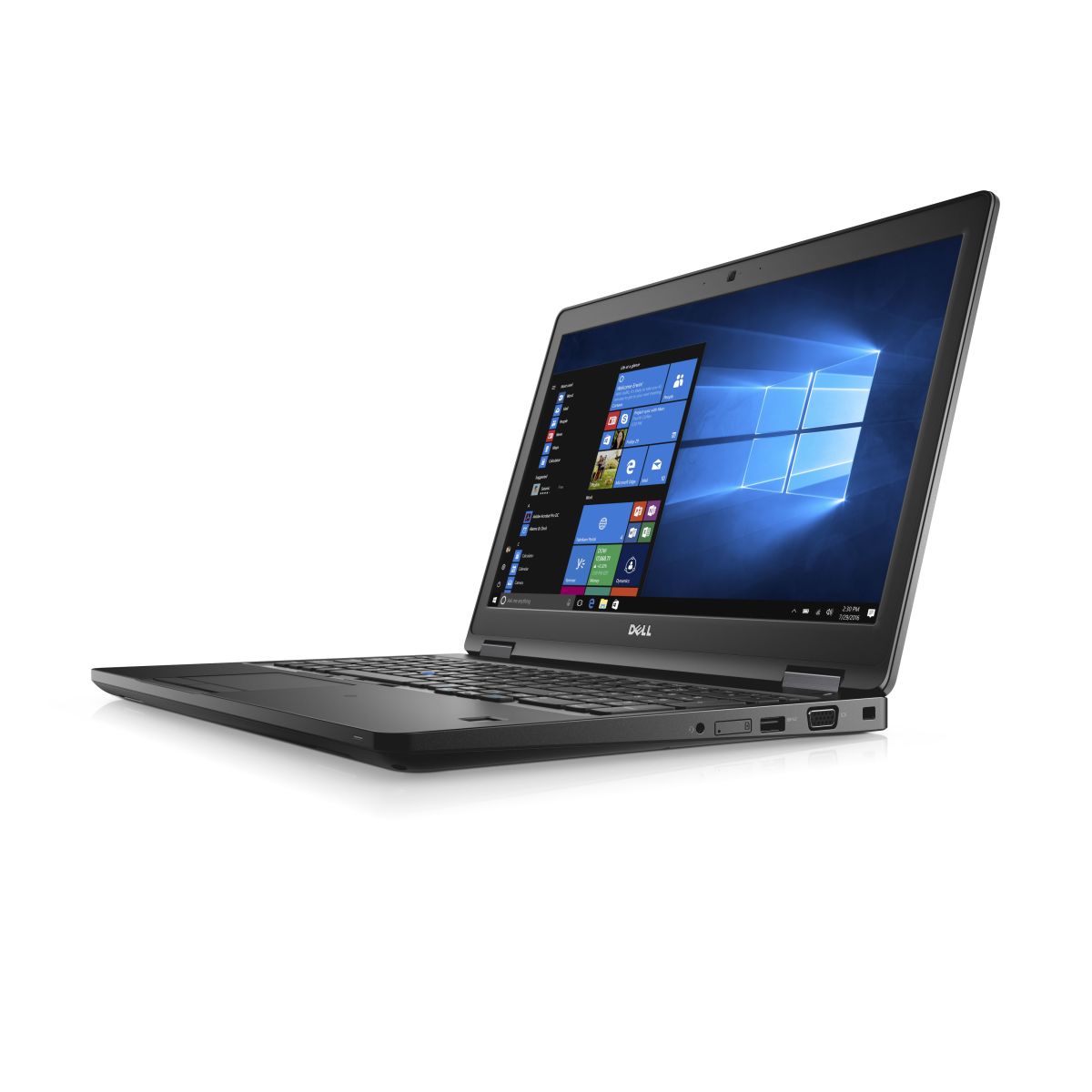

DELL Latitude 5580 - 1RT12
DELL Latitude 5580
Product code: 1RT12
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i5-7300U
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model: Intel HD Graphics 620
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 500 GB
- ⚖️Weight: 1.9 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Colour of product | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 15.6 inch |
| Pixel pitch | 0.179 x 0.179 mm |
| Display brightness | 300 cd/m² |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Latitude |
| Series | 5000 |
| Model name | 5580 |
| Part Number | 1RT12 |
| Release Date | 18 October 2017 |
| EAN/UPC code | 5397184018170 |
|
|
|
| Processor | |
| Processor series | Intel Core i5-7300 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-7300U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2.7 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 7th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| Graphics adapter Open GL support | Y |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 620 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 620 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
| Graphics card Open GL support | Y |
| Storage | |
| Total storage capacity | 500 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| HDD interface | SATA |
| Hard drive speed | 7200 RPM |
| Hard drive size | 2.5" |
| Hard drive interface | SATA |
| Hard drive capacity | 500 GB |
| Number of hard drives installed | 1 |
| Compatible memory cards | SD |
| Card reader integrated | Y |
| Storage media | HDD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.2 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| Microphone in | N |
| SmartCard slot | Y |
| USB Sleep-and-Charge ports | 1 |
| DVI port | N |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| DC-in jack | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3246 |
| Camera | |
| Front camera | Y |
| Front camera resolution | 1280 x 720 pixels |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | Y |
| Island-style keyboard | Y |
| Full-size keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Trial software | McAfee, Microsoft Office |
| Battery | |
| Number of battery cells | 4 |
| Battery capacity | 68 Wh |
| Battery capacity (Watt hours) | 68 Wh |
| Battery voltage | 7.6 V |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height | 23.2 mm |
| Depth | 250.7 mm |
| Width | 376 mm |
| Power | |
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 4.62 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Noble |
| Password protection | Y |
