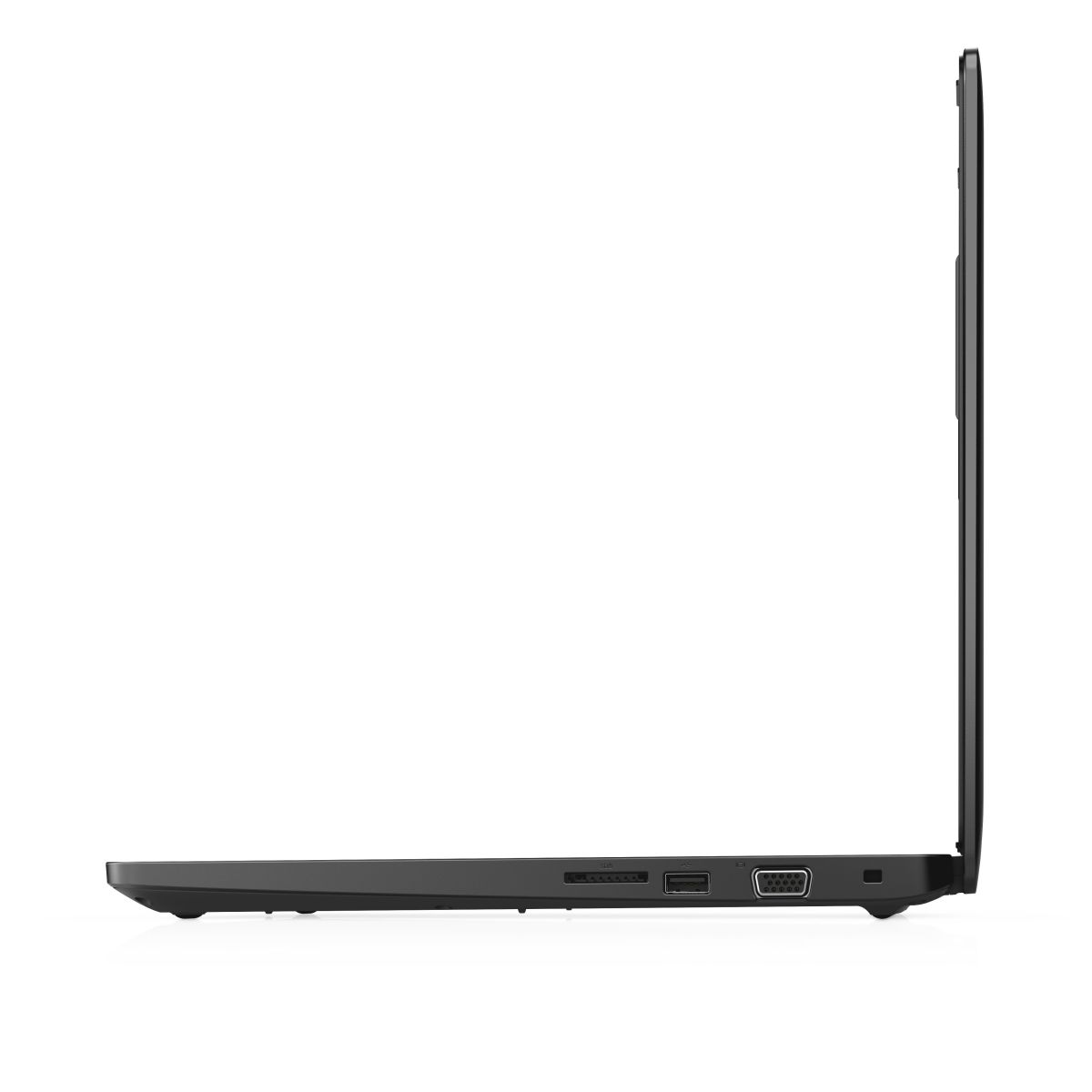

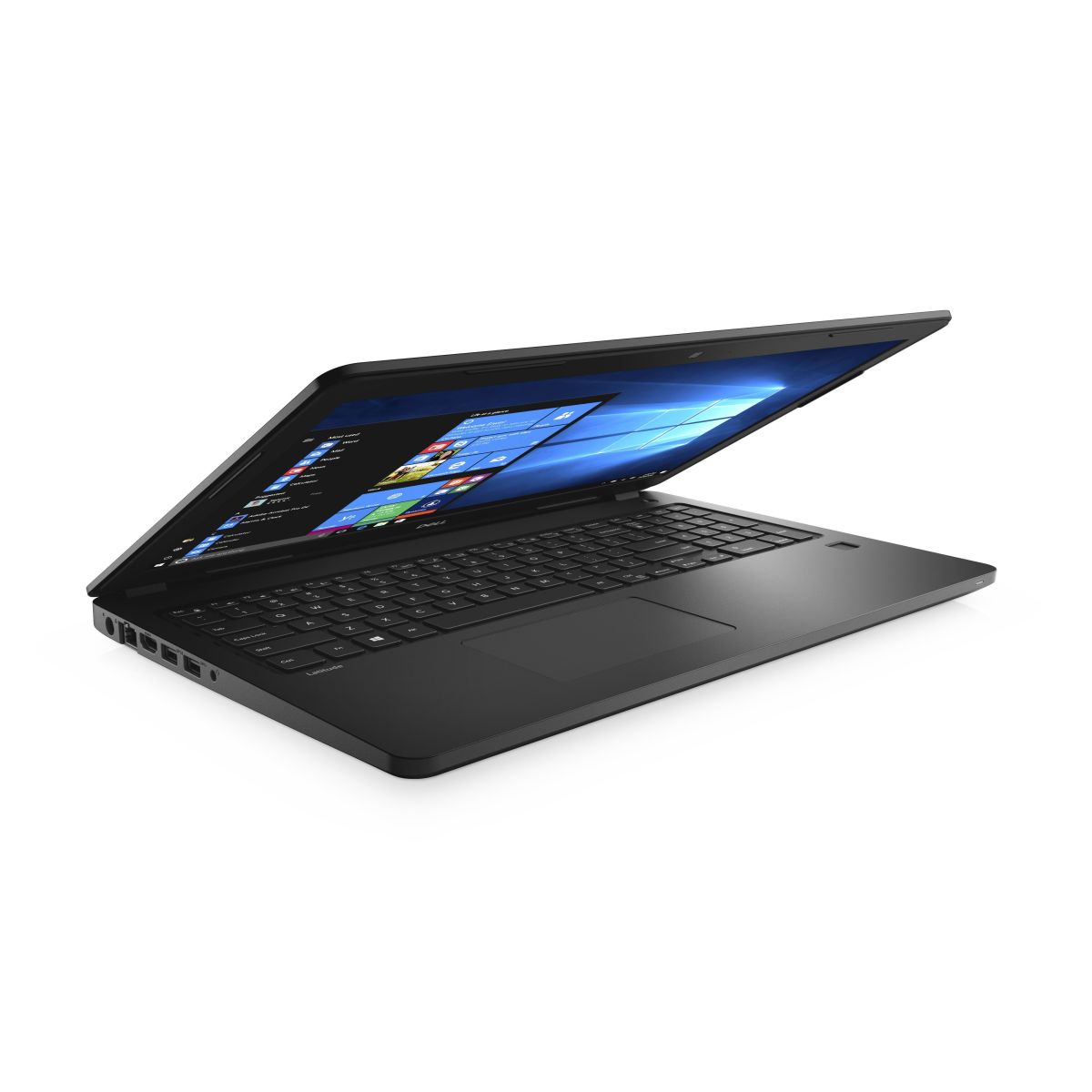

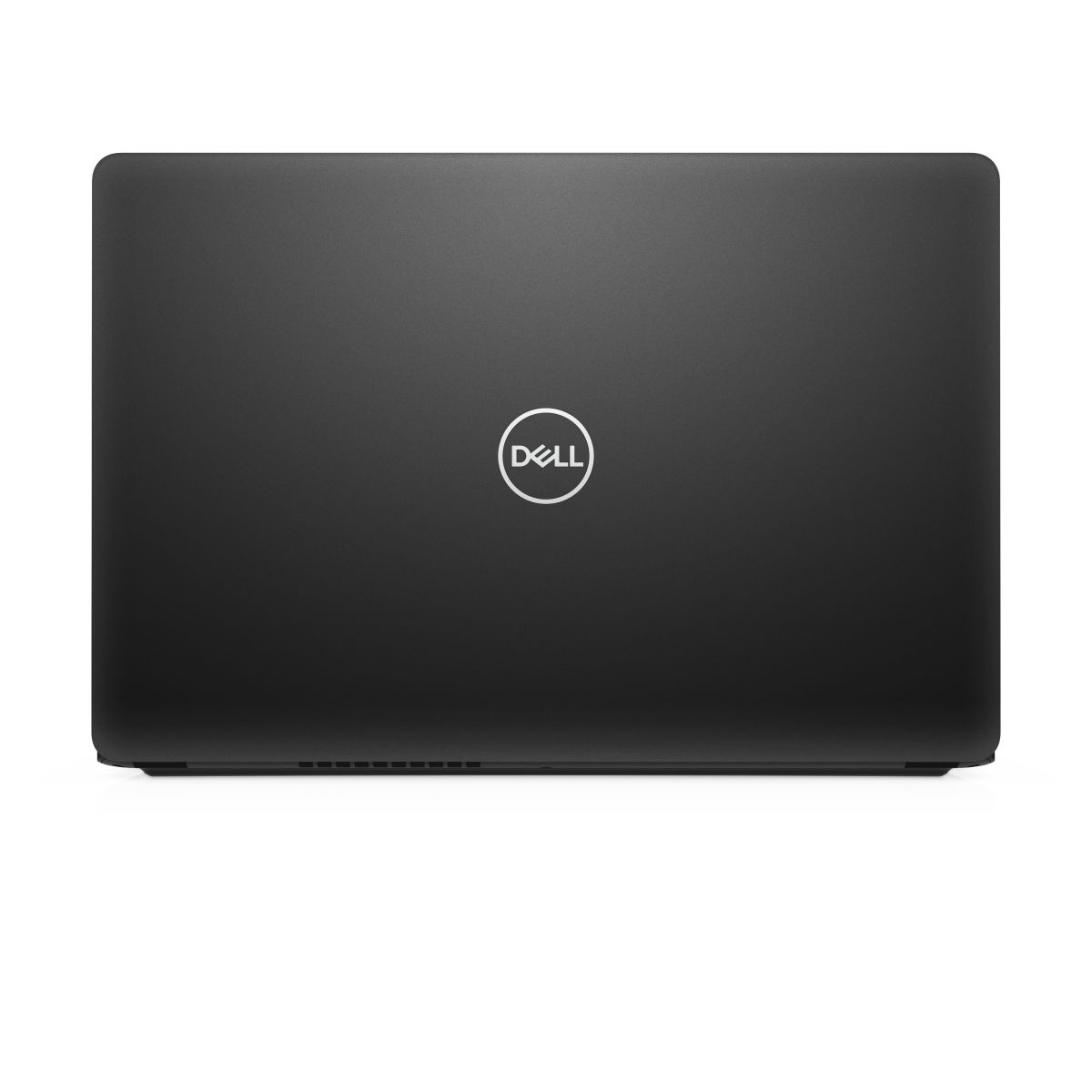

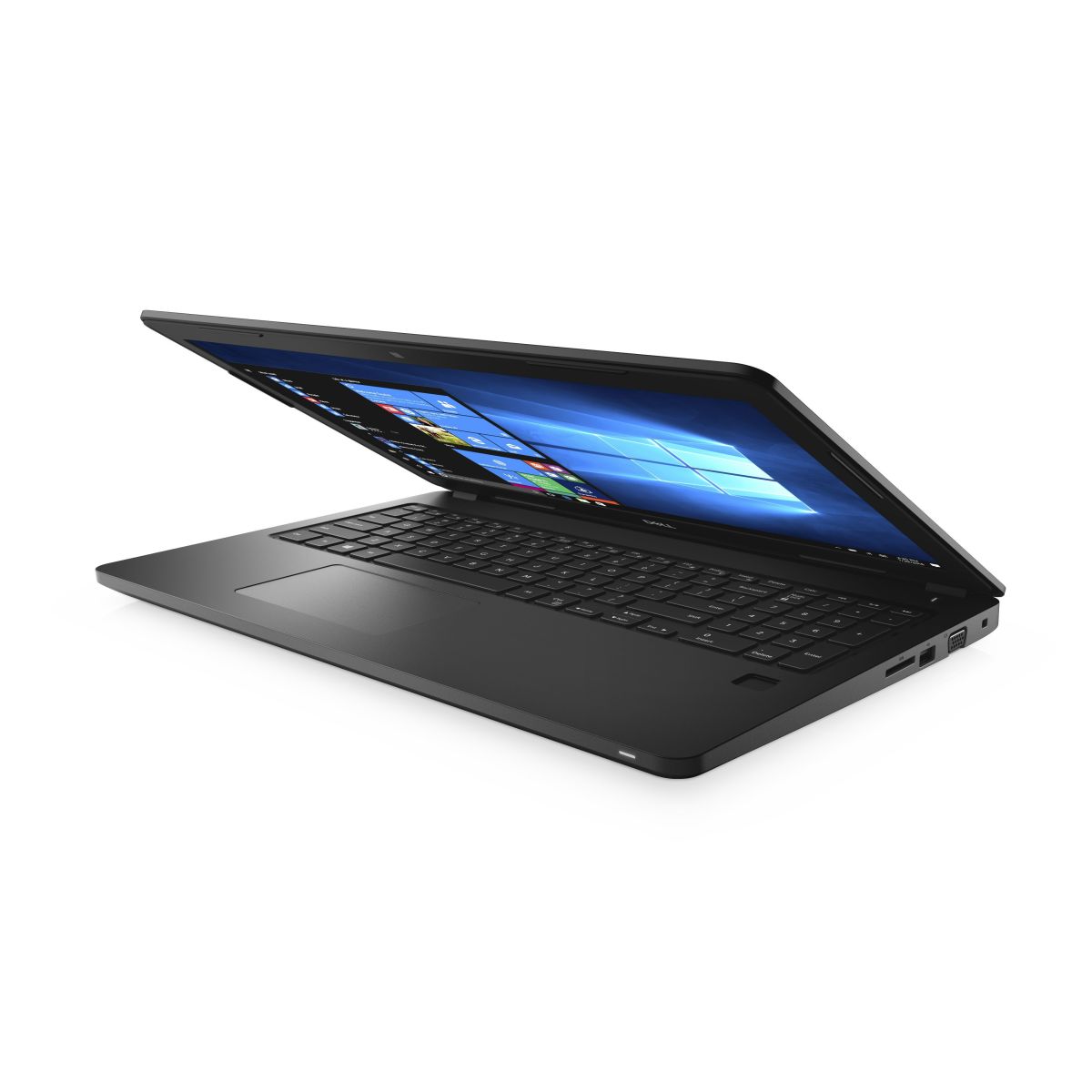

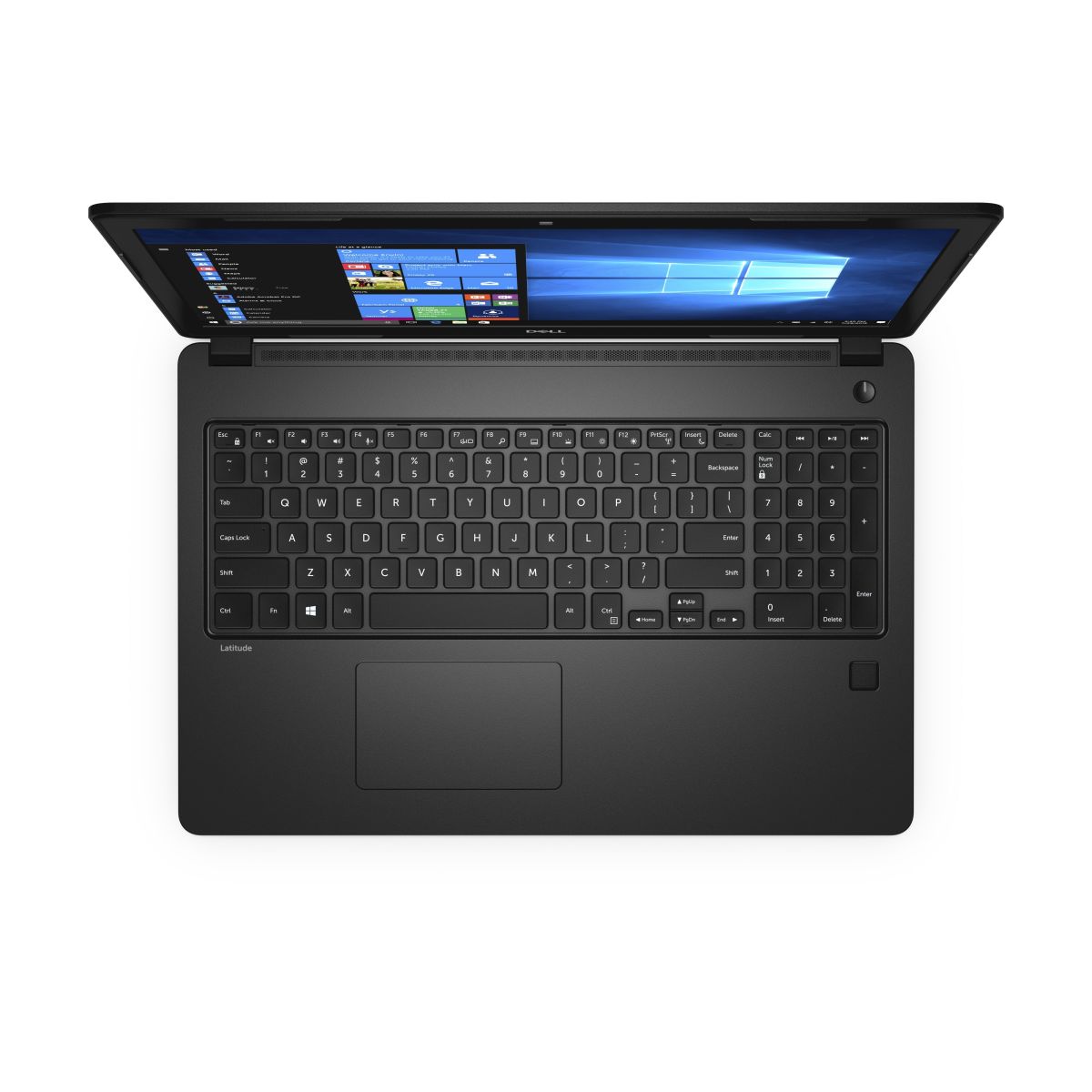

DELL Latitude 3580 - YMNPH
DELL Latitude 3580
Product code: YMNPH
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i5-6200U
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model: Intel HD Graphics 520
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 256 GB
- ⚖️Weight: 1.95 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Colour of product | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 15.6 inch |
| Contrast ratio (typical) | 400:1 |
| Display brightness | 220 cd/m² |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Latitude |
| Series | 3000 |
| Model name | 3580 |
| Part Number | YMNPH |
| Release Date | 08 July 2018 |
| EAN/UPC code | 5397184146286 |
|
|
|
| Processor | |
| Processor series | Intel Core i5-6200 series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 2.8 GHz |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-6200U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | LGA 1356 (Socket B2) |
| Configurable TDP-up frequency | 2.4 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 6th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2133 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory (64-bit) | 16 GB |
| Memory upgrade note | Additional memory sold separately |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 520 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics adapter memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 520 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 1916 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Compatible memory cards | SD |
| Solid-state drive capacity | 256 GB |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| WLAN controller model | Dell Dual Band Wireless-AC 1820 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 4.1 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 1.4 |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Y |
| DC-in jack | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3246 |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | Y |
| Full-size keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Drivers included | Y |
| Trial software | Microsoft Office |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery capacity | 42 Wh |
| Battery capacity (Watt hours) | 42 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 1.95 kg |
| Height | 23.3 mm |
| Depth | 255 mm |
| Width | 379 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 3.34 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Noble |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | BIOS, Supervisor, User |
