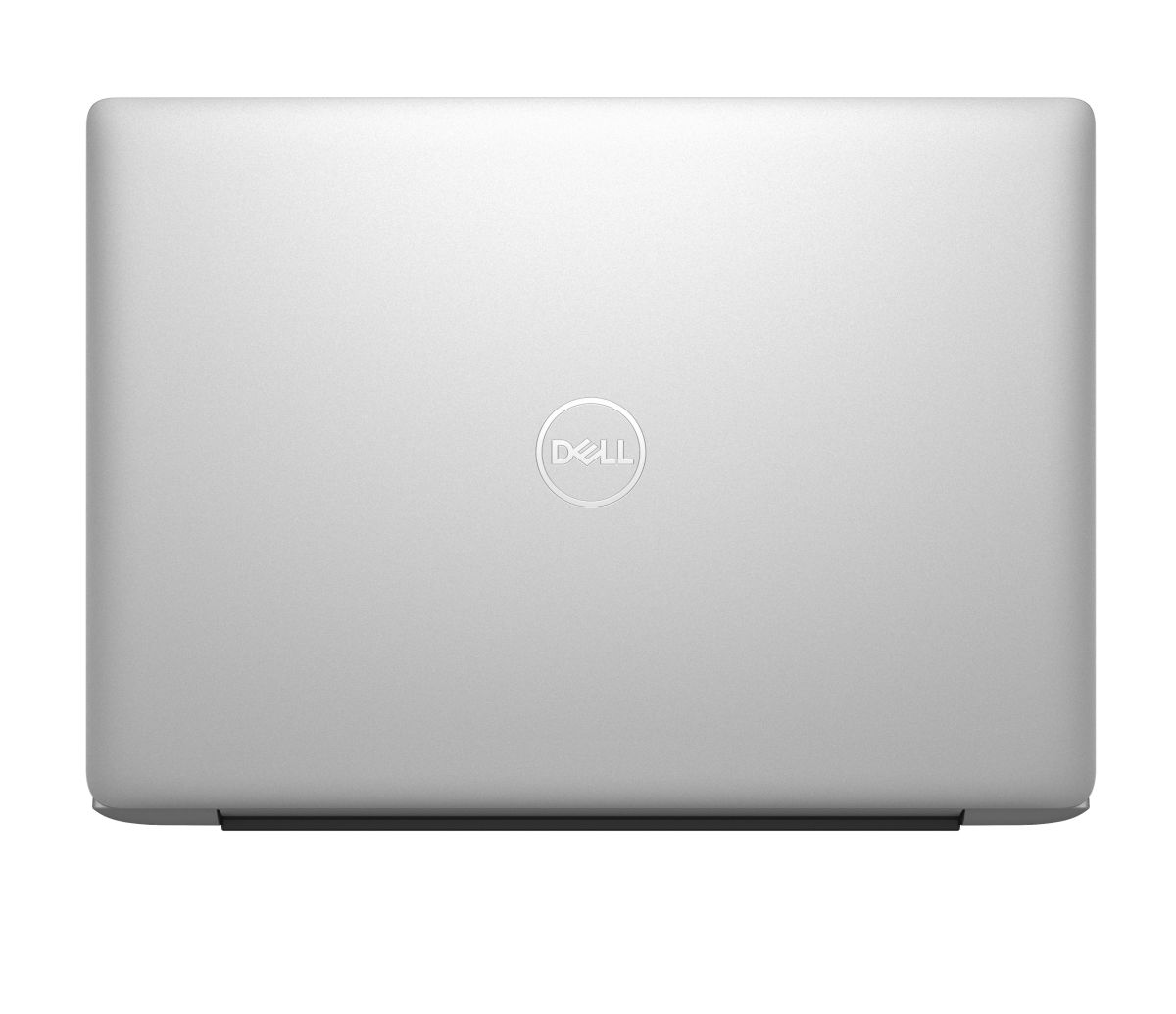

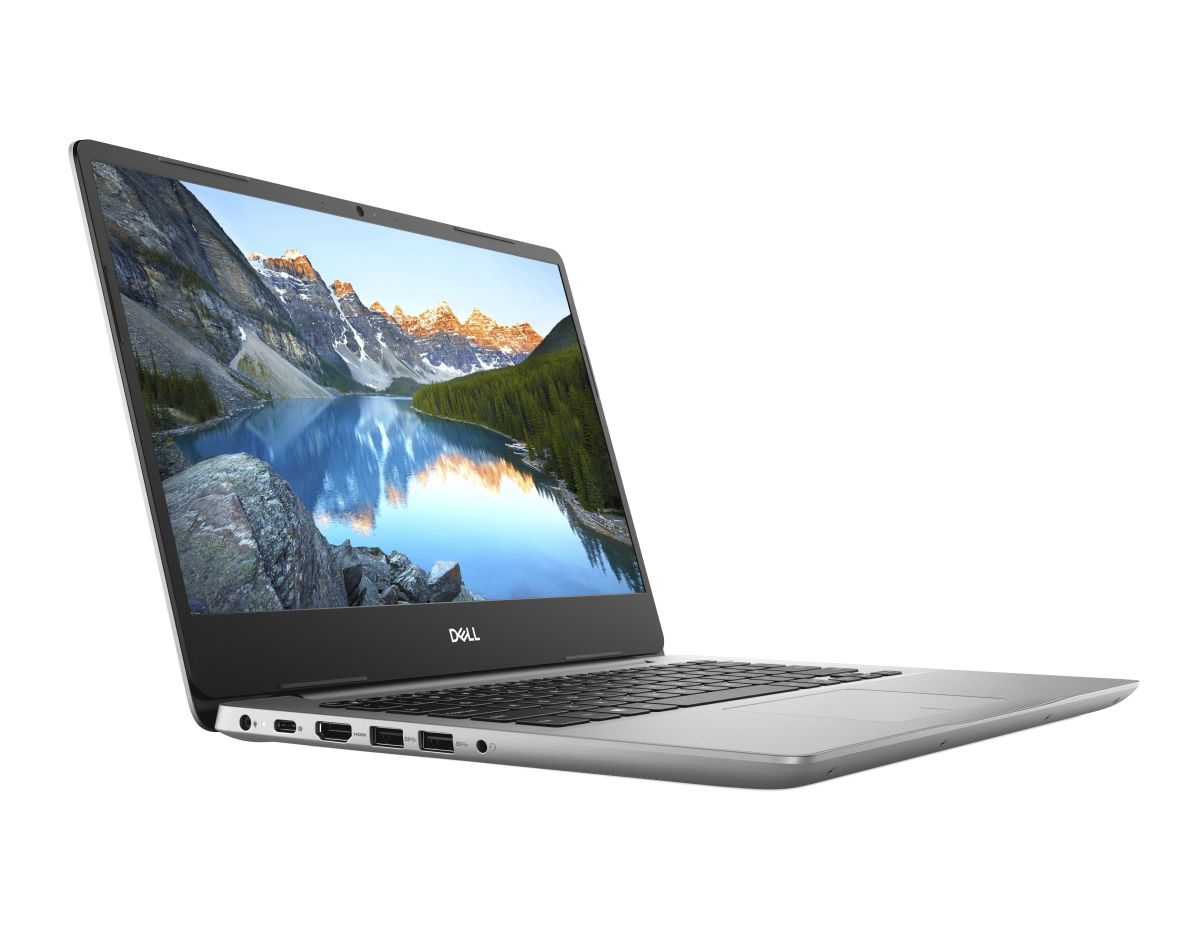

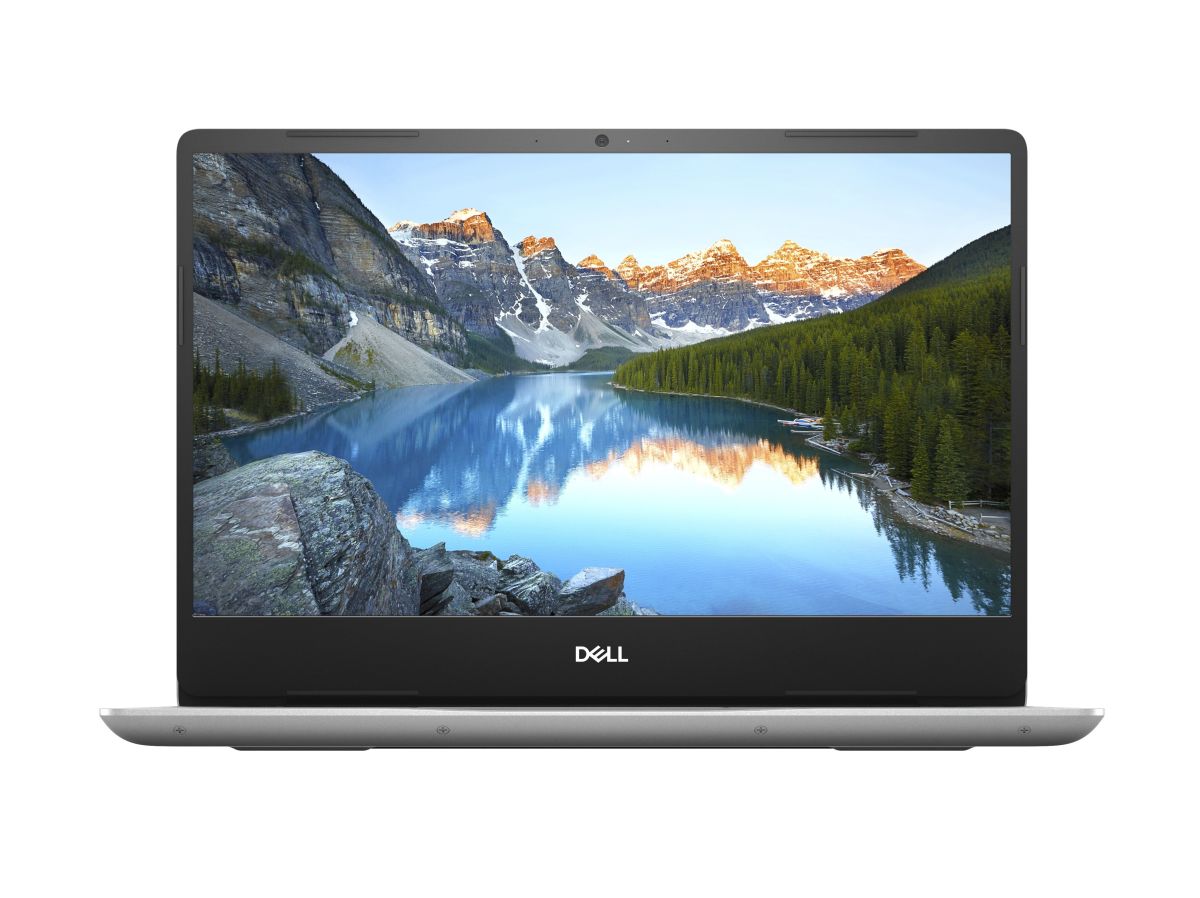

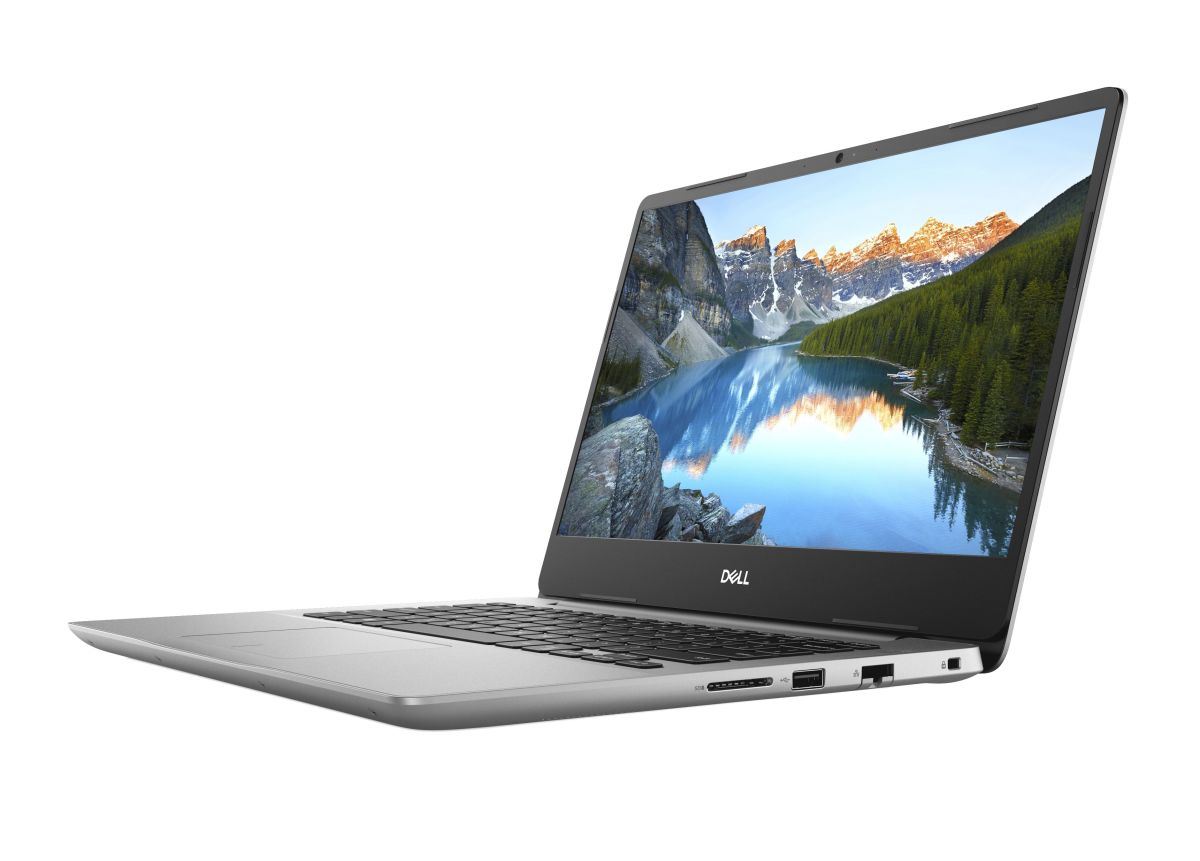

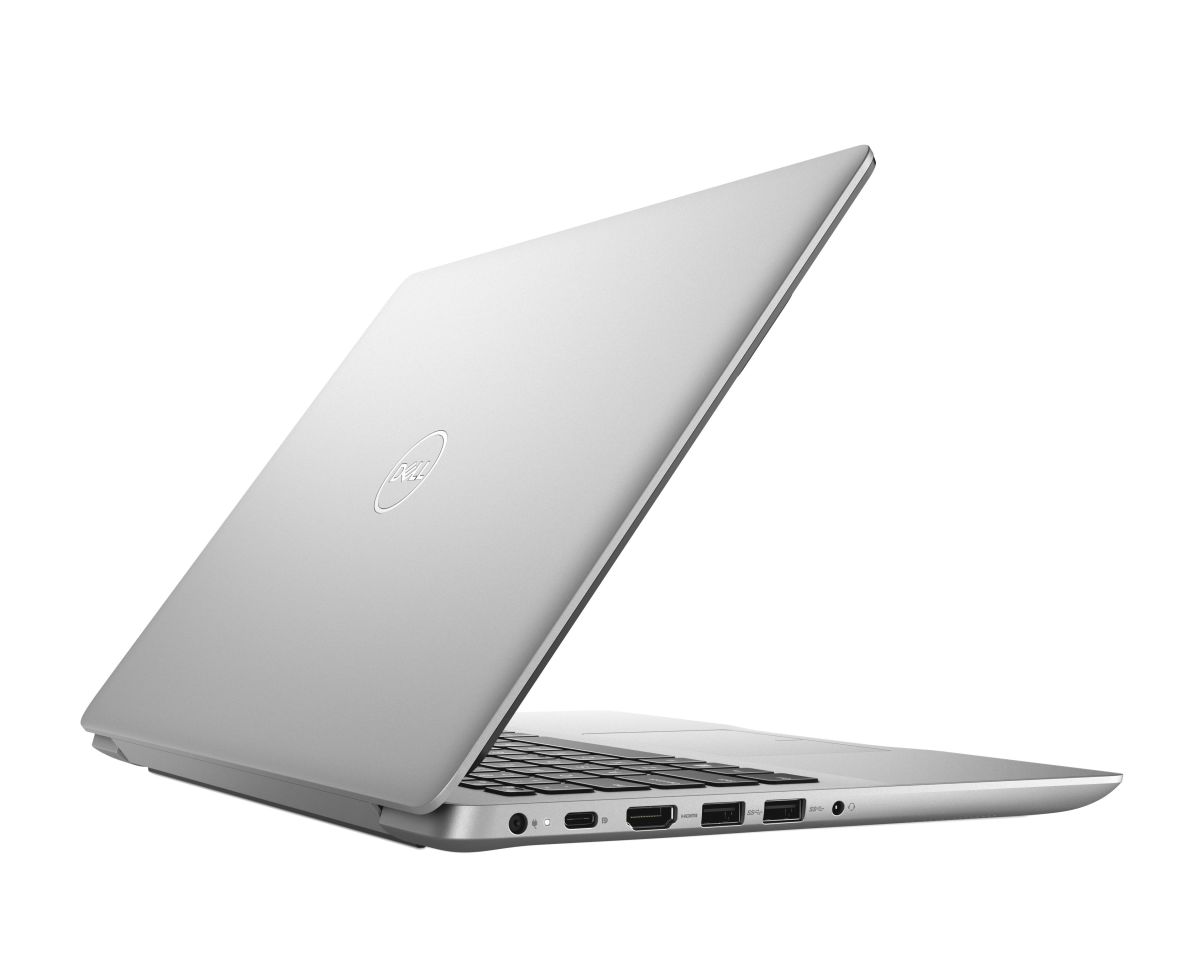

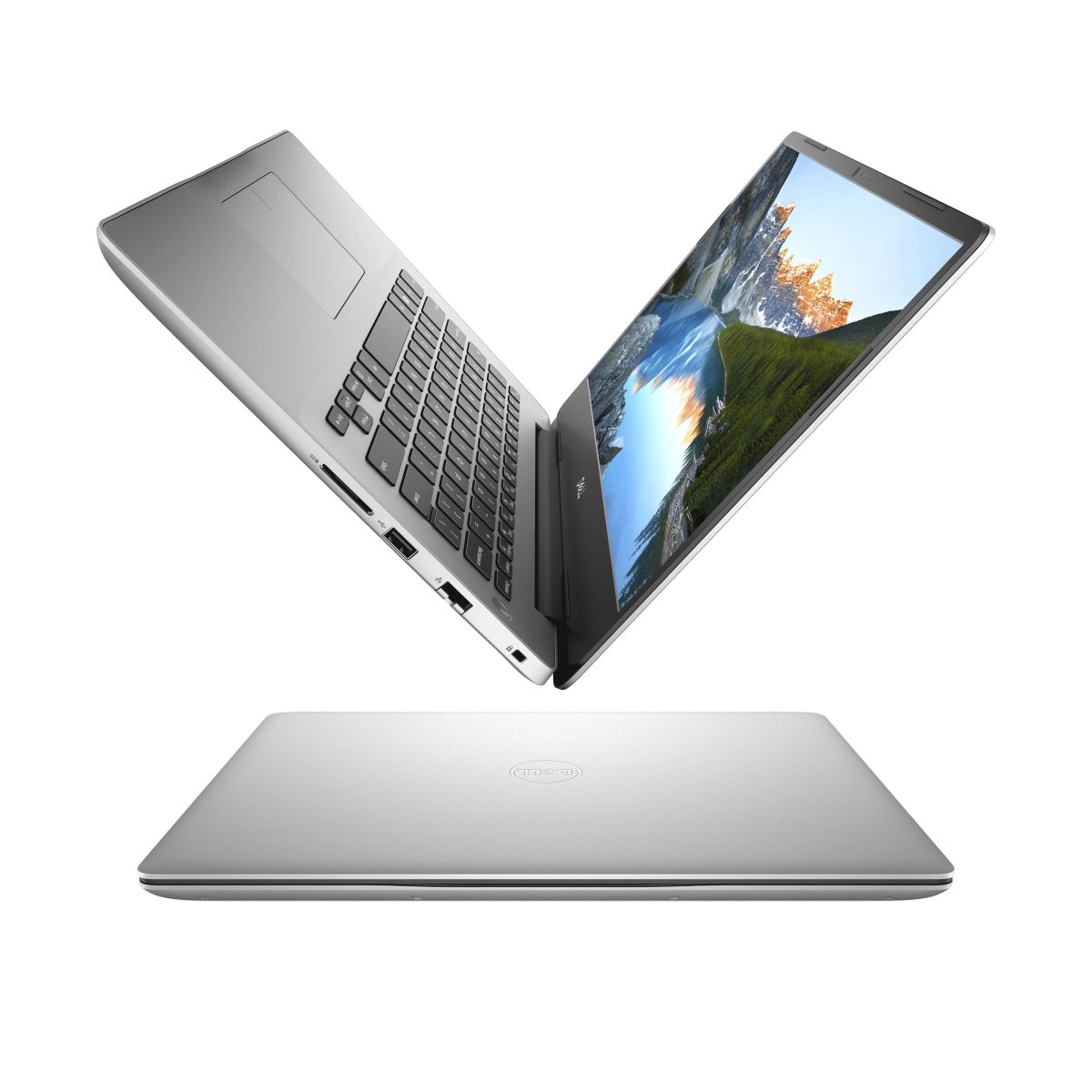

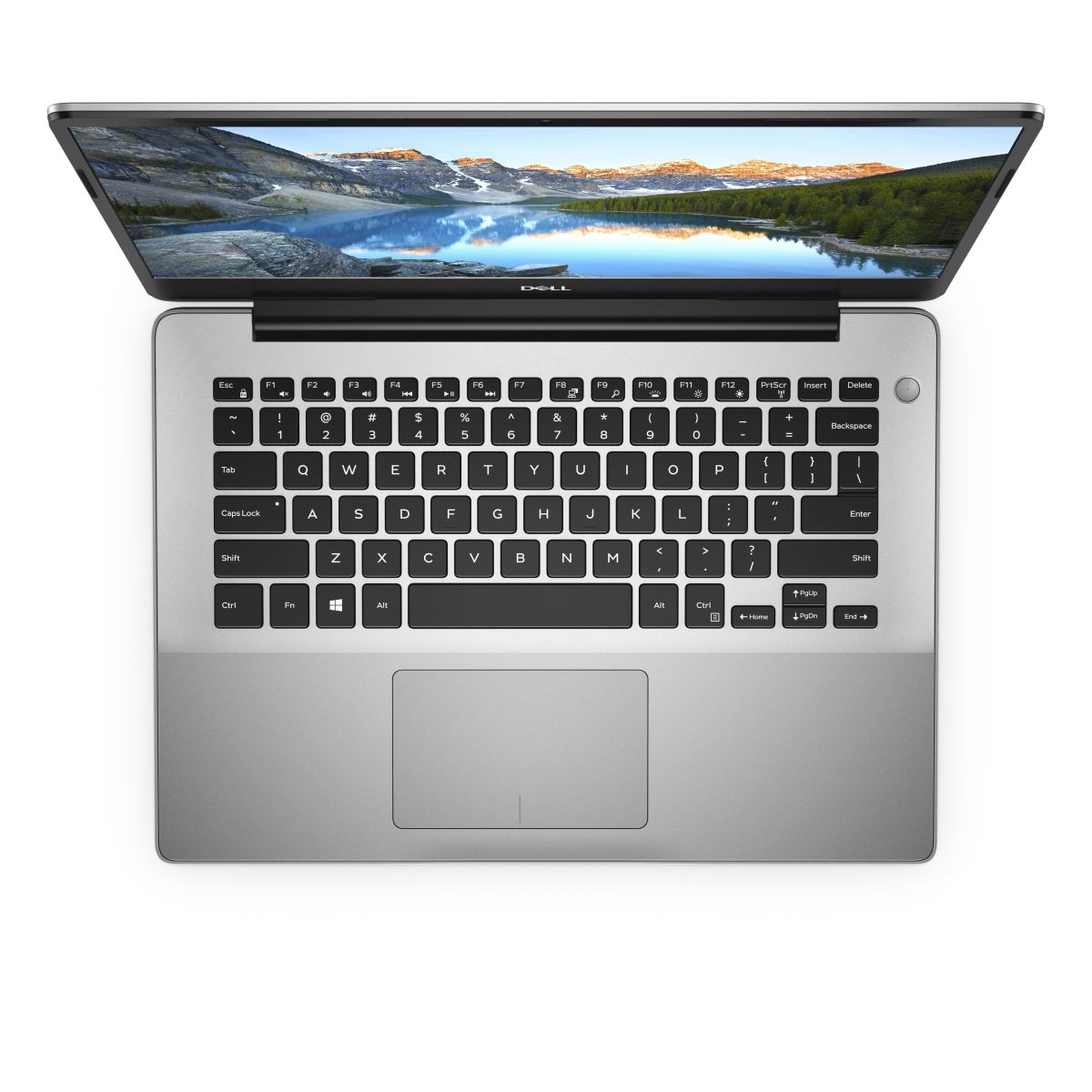

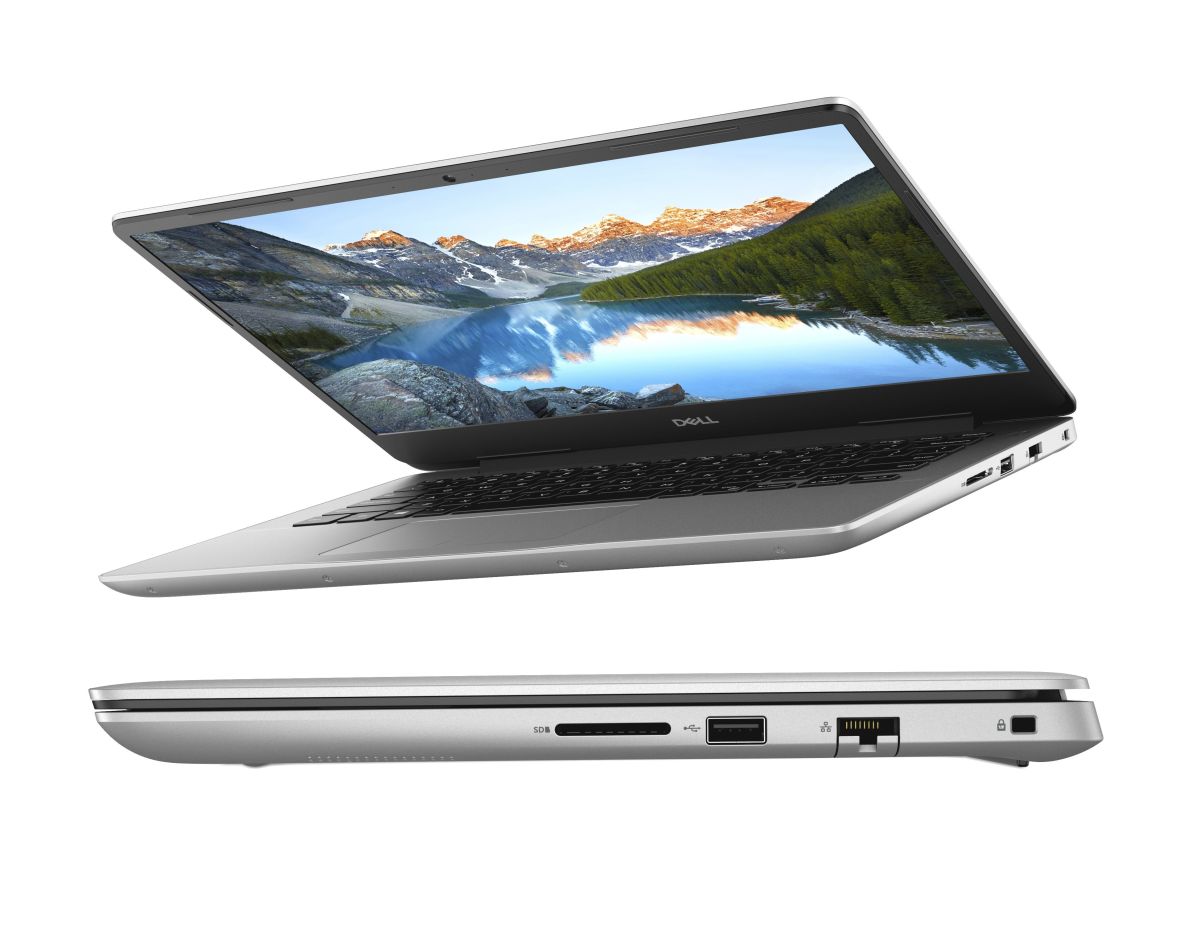

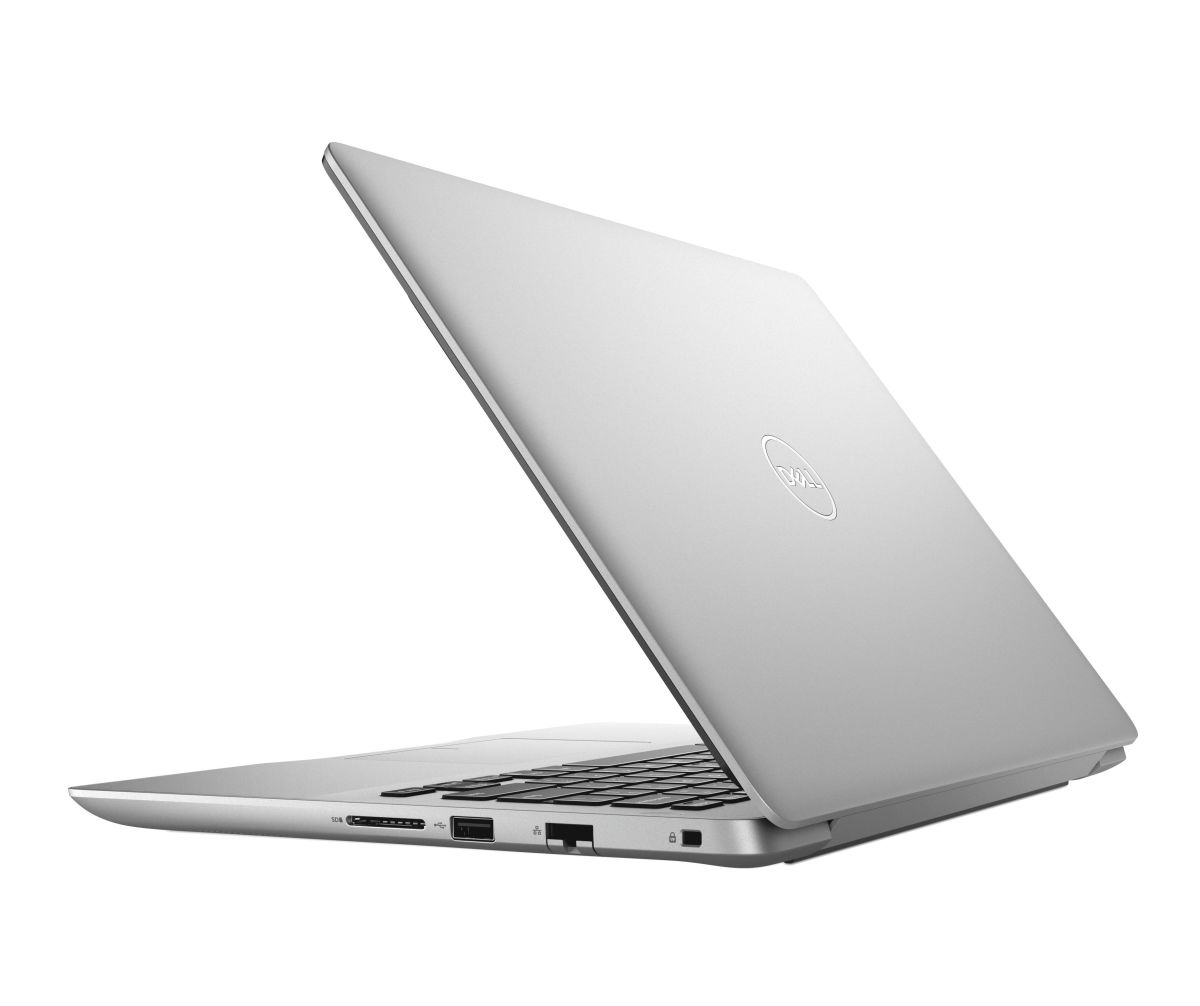

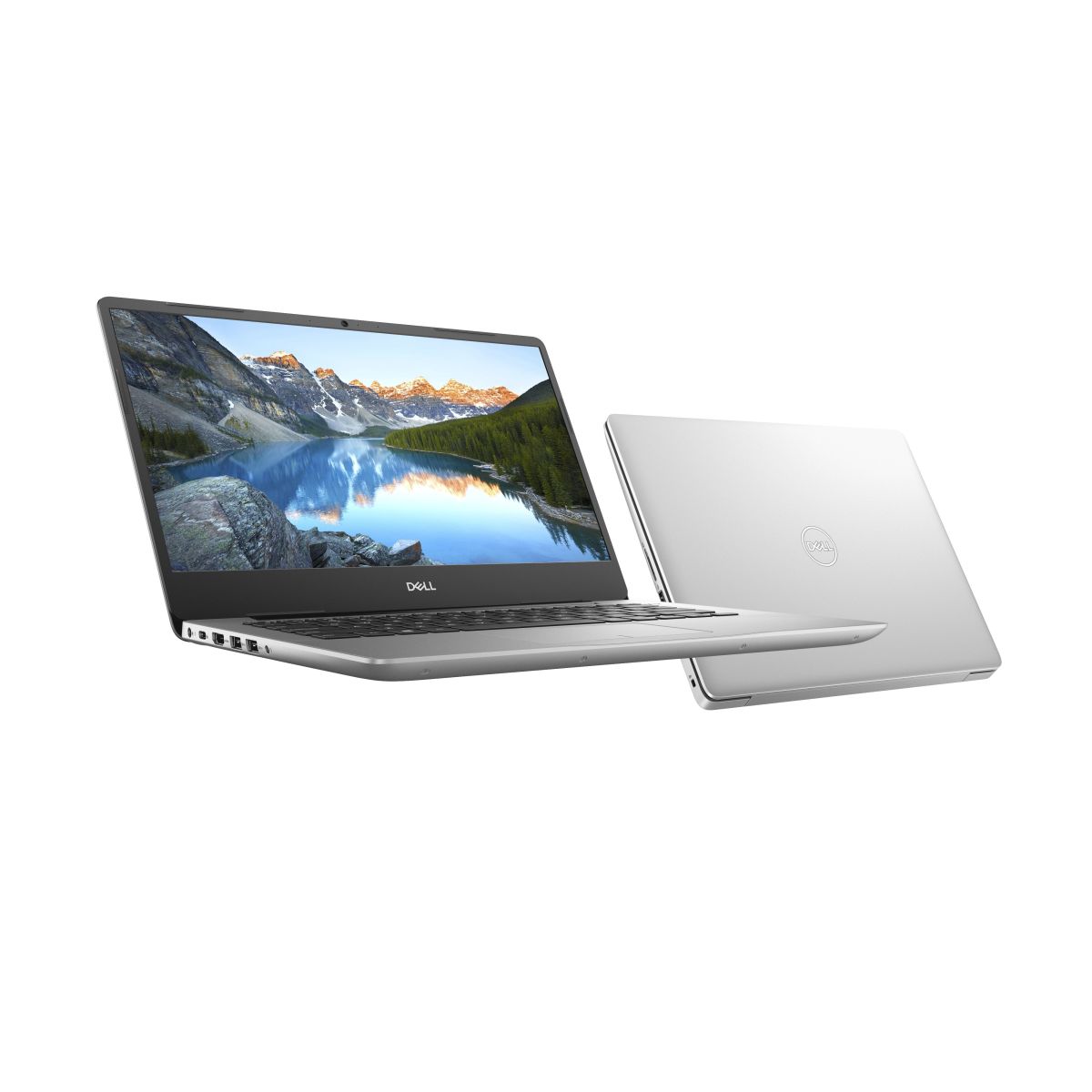

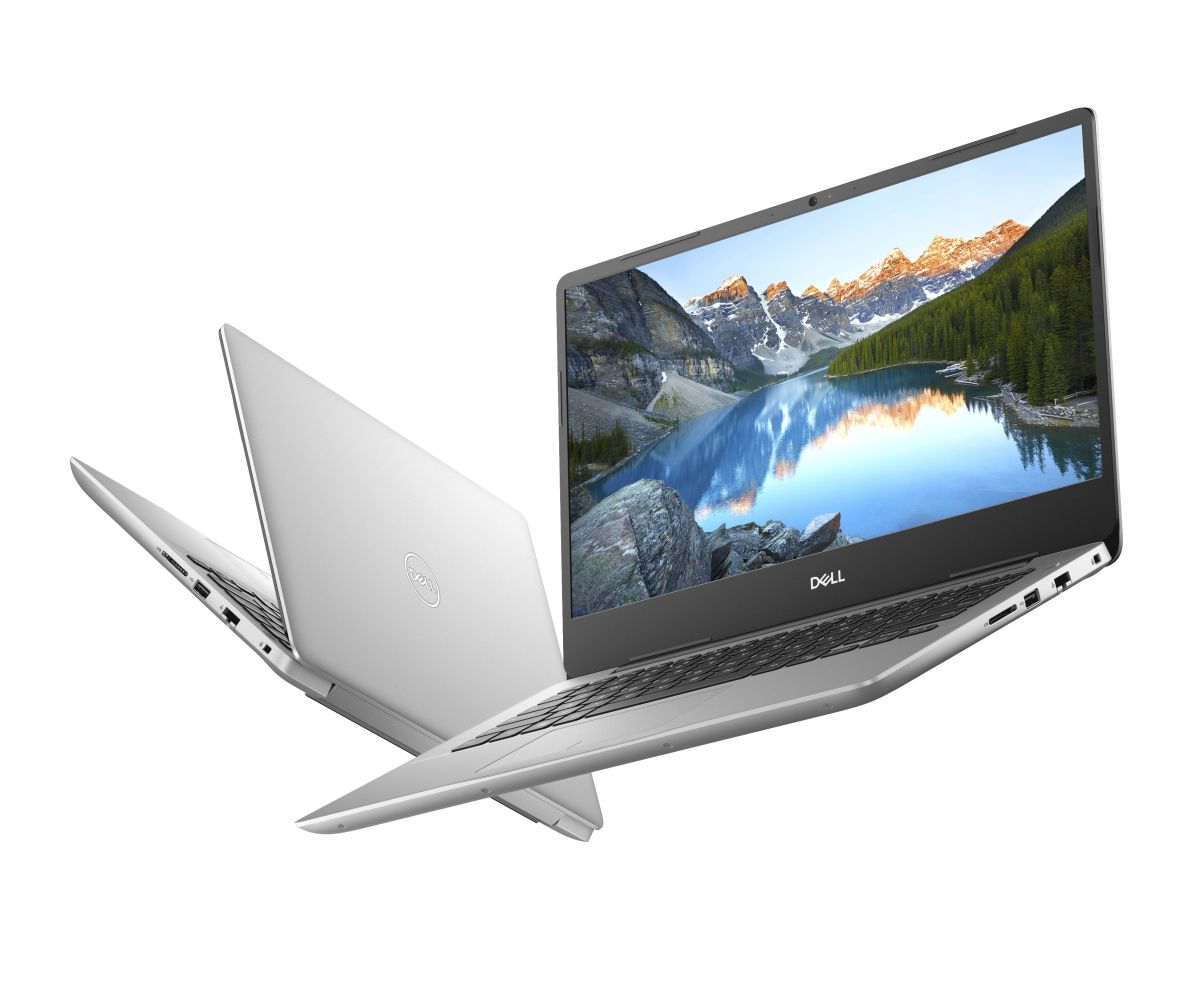

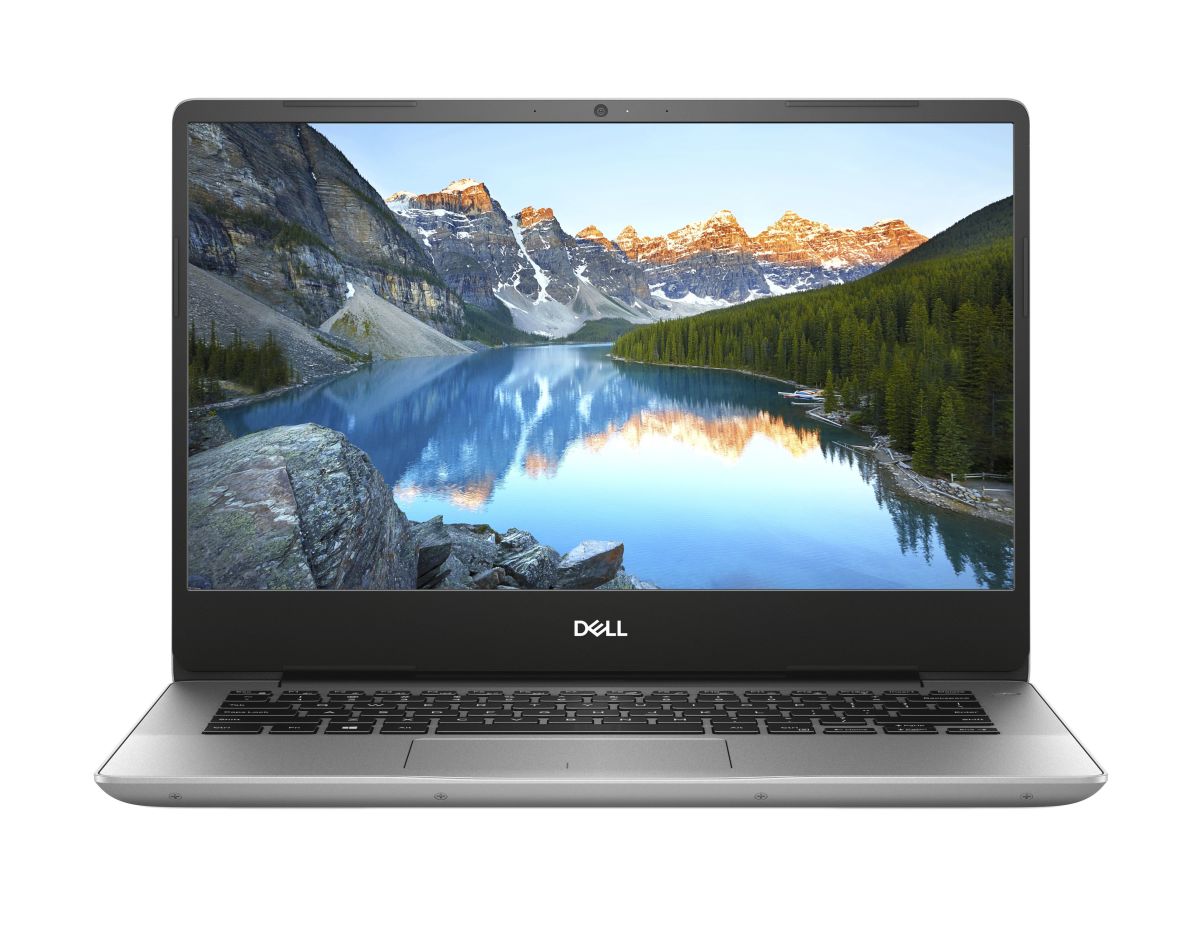

DELL Inspiron 5480 - GTJDF
DELL Inspiron 5480
Product code: GTJDF
- 💻Display diagonal: 14 inch
- 🔳Processor model: i7-8565U
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 620
- 🎮Discrete graphics adapter model: NVIDIA GeForce MX150
- 💽Total storage capacity: 1.13 TB
- ⚖️Weight: 1.48 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Platinum, Silver |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 14 inch |
| Dual-screen | N |
| Display response rise/fall | 35 ms |
| Pixel density | 157 ppi |
| Contrast ratio (typical) | 600:1 |
| Pixel pitch | 0.161 x 0.161 mm |
| Display brightness | 220 cd/m² |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Inspiron |
| Series | 5000 |
| Model name | 5480 |
| Part Number | GTJDF |
| Release Date | 15 February 2019 |
| EAN/UPC code | 0884116318989, 884116318989 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-8565U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Number of discrete graphics adapters installed | 1 |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | NVIDIA GeForce MX150 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce MX150 |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Discrete graphics card memory | 2 GB |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 1.13 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Total SSDs capacity | 128 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| Total HDDs capacity | 1 TB |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | HDD+SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| MIMO | Y |
| MIMO type | Multi User MIMO |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |

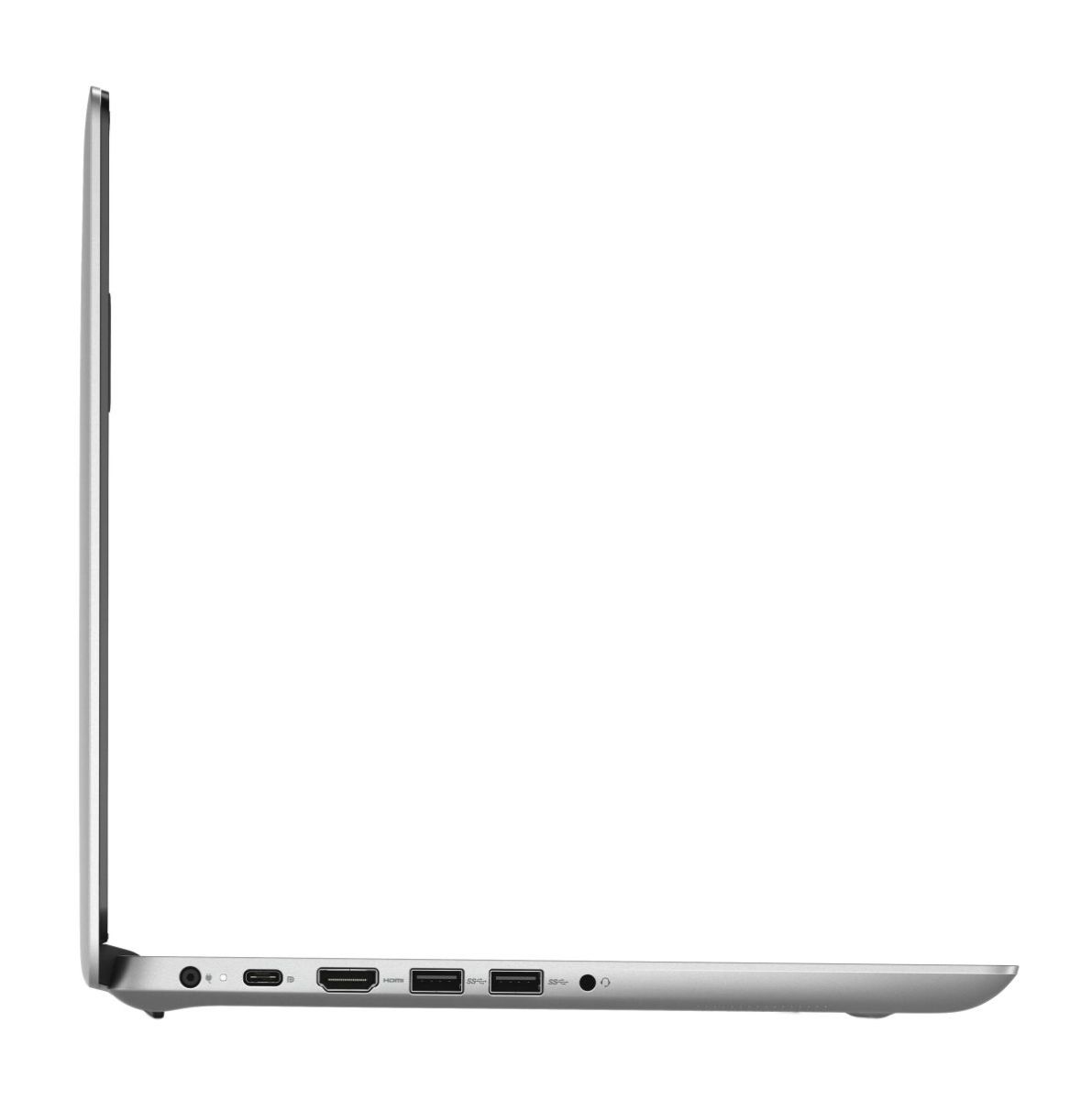

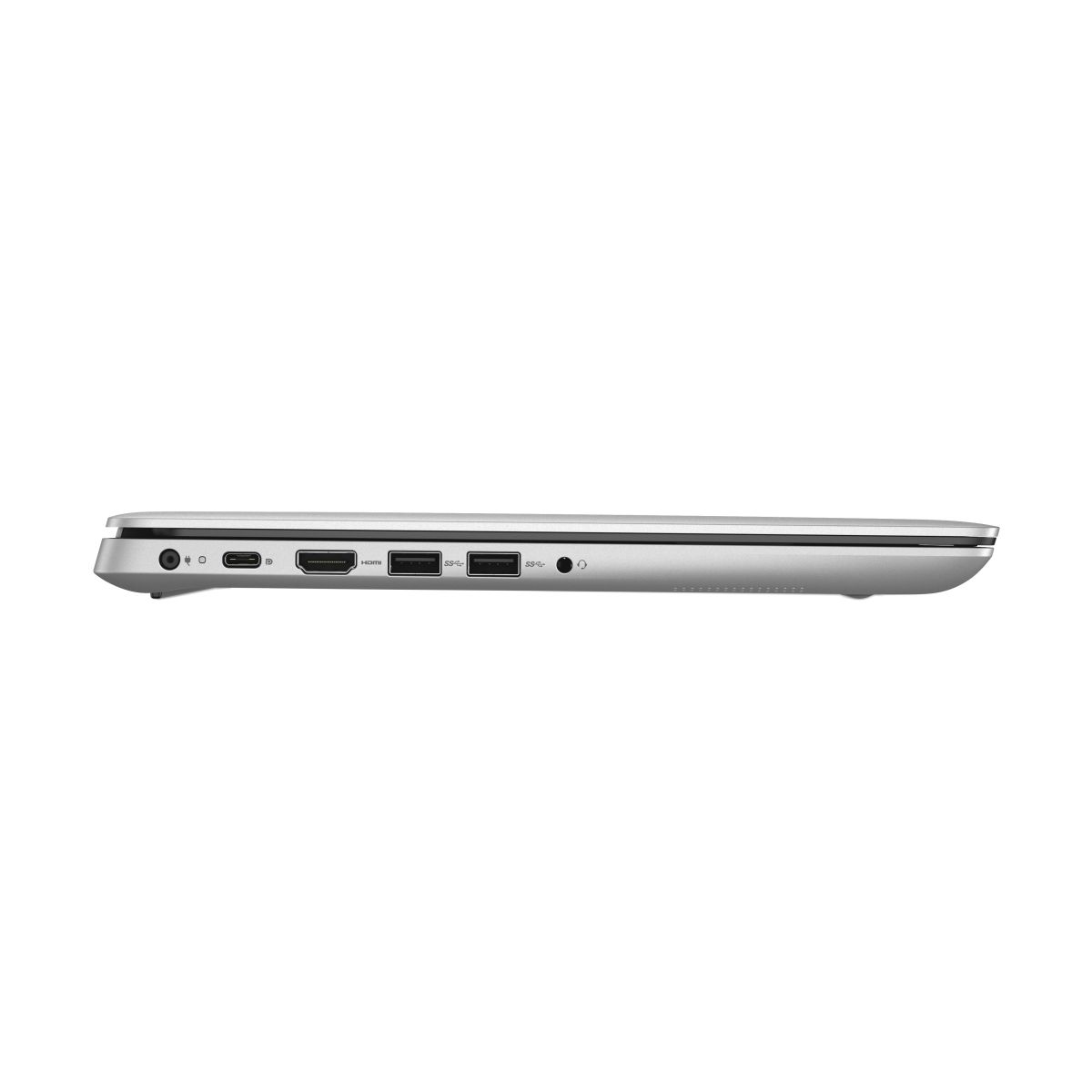

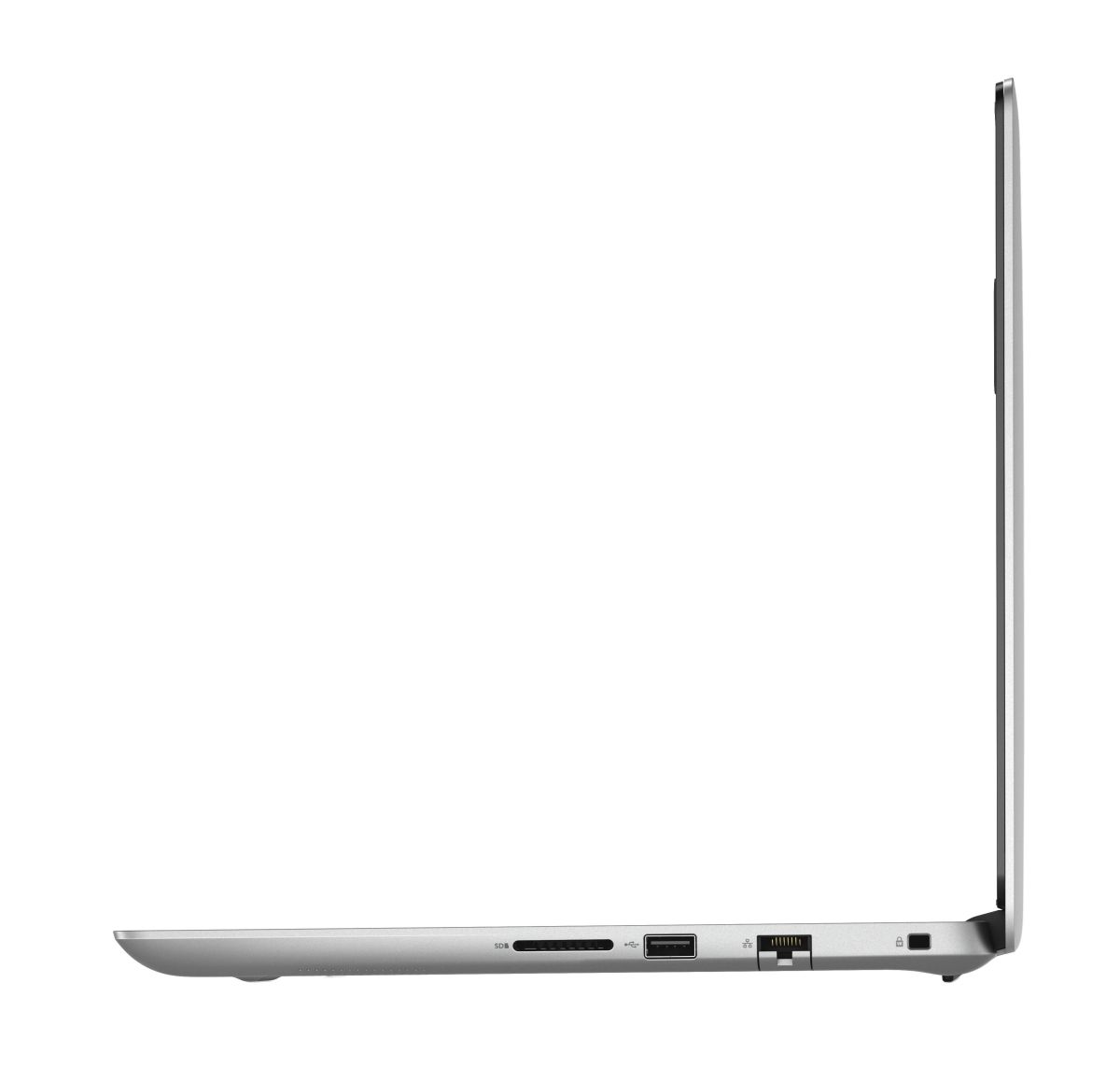

| Ports & interfaces | |

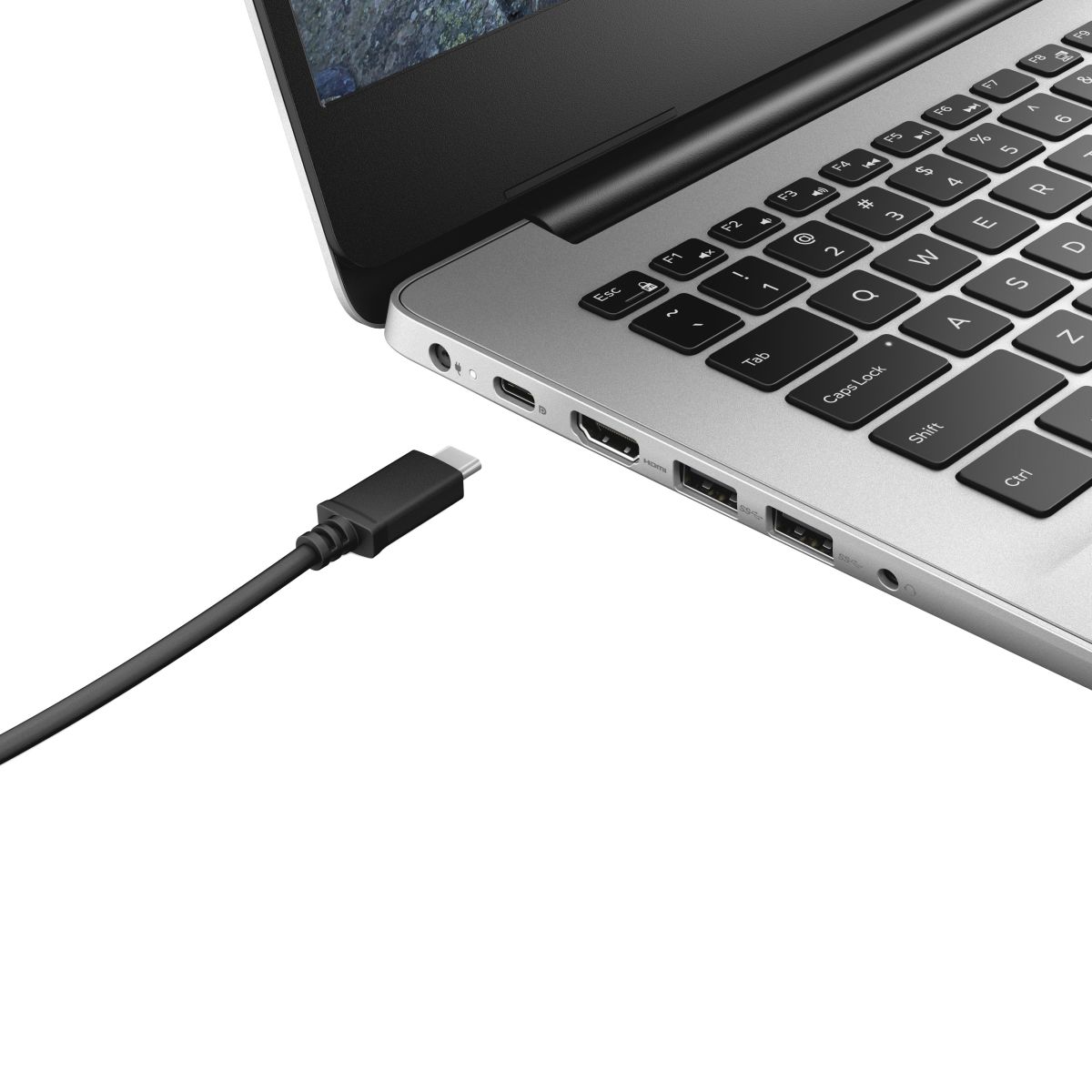

| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 1.4 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio Pro |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3204 |
| Speakers manufacturer | Waves |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | N |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Keyboard language | Spanish |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system language | Spanish |
| Operating system architecture | 64-bit |
| Bundled software | McAfee LiveSafe 15 Month Subscription |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 200 g |
| Removable battery | N |
| Battery recharge time | 4 h |
| Number of battery cells | 3 |
| Battery capacity | 42 Wh |
| Battery capacity (Watt hours) | 42 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 1.48 kg |
| Height (rear) | 1.91 cm |
| Height (front) | 1.88 cm |
| Depth | 232 mm |
| Width | 324.3 mm |
| Power | |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Noble |
| Password protection | Y |
| Password protection type | BIOS, User |
