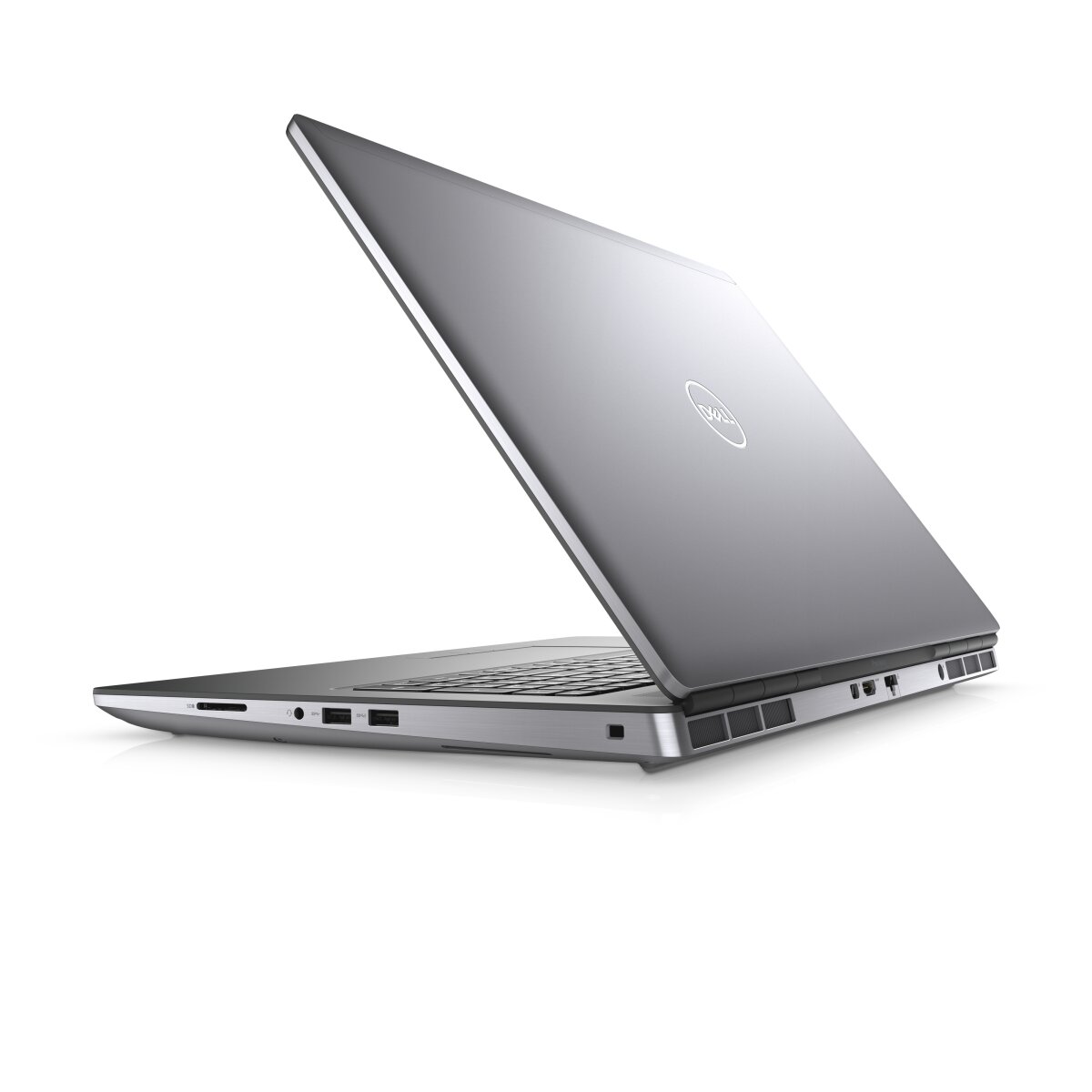

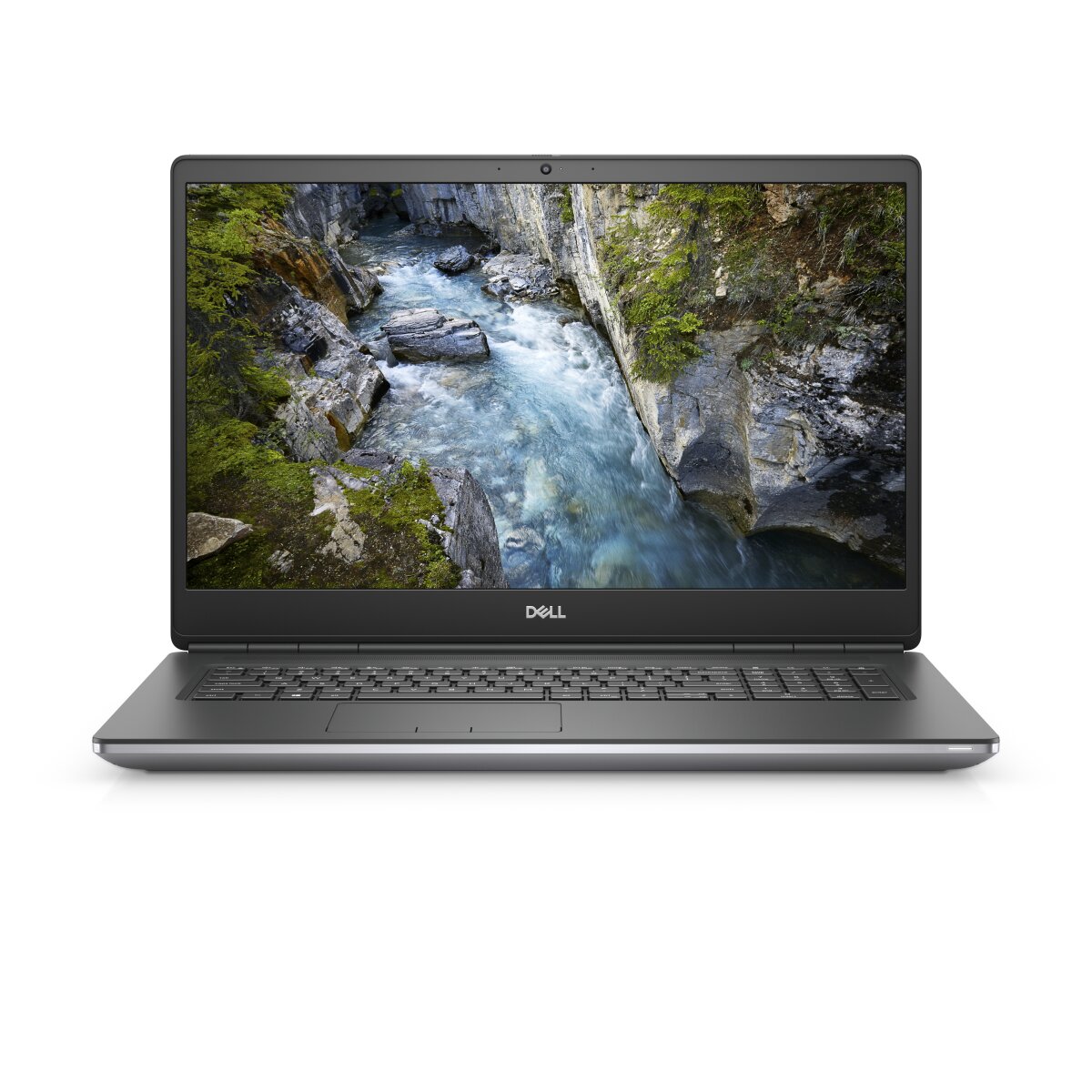

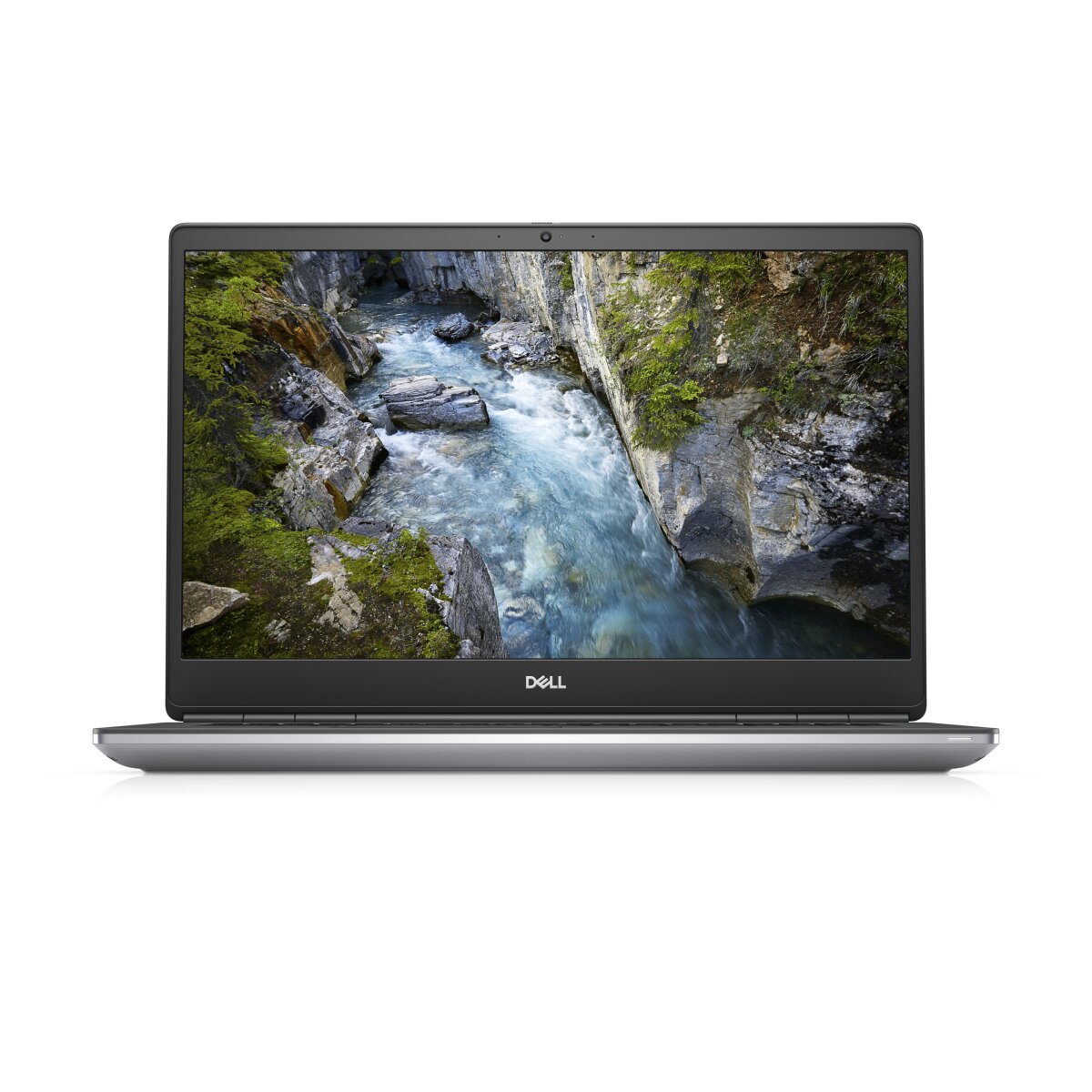

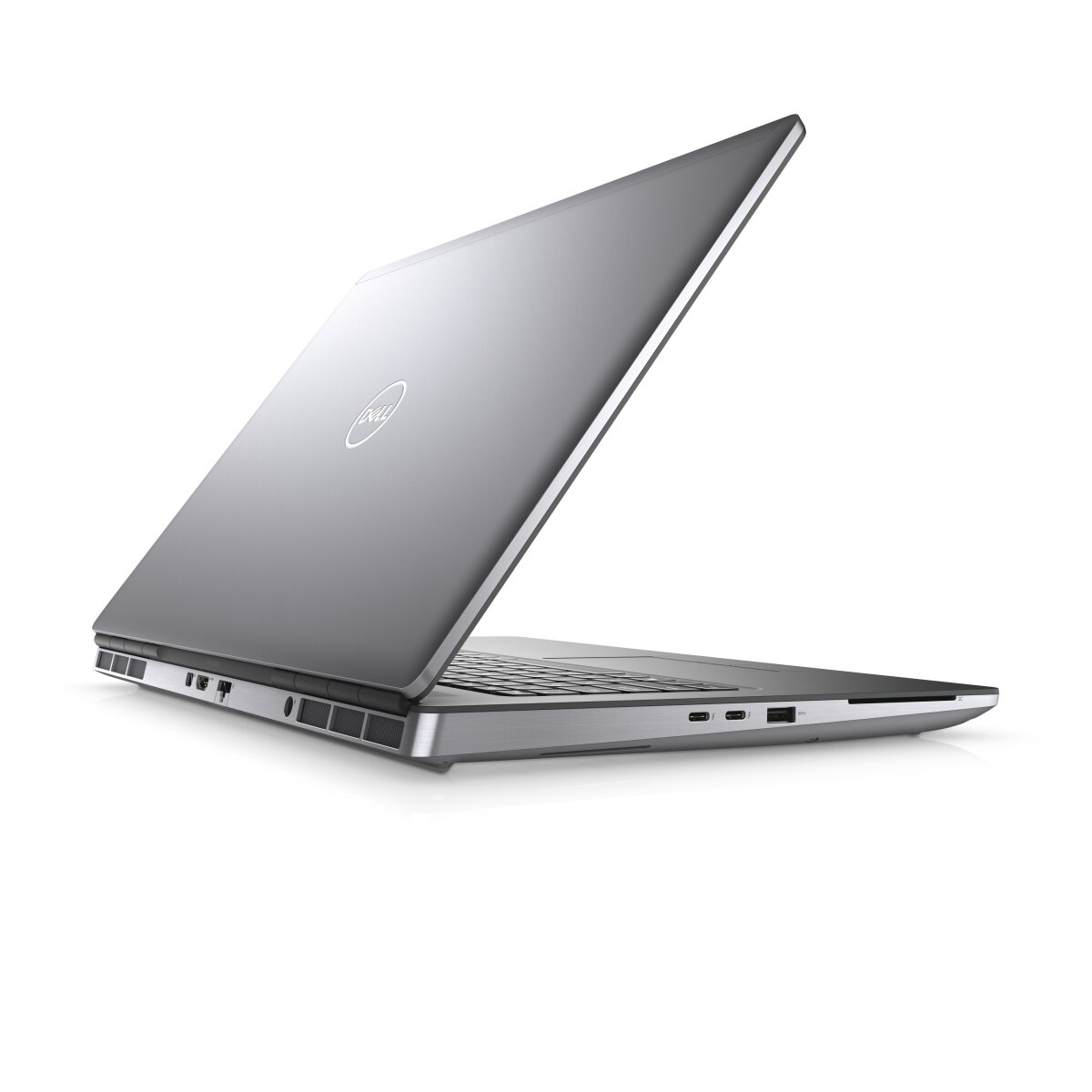

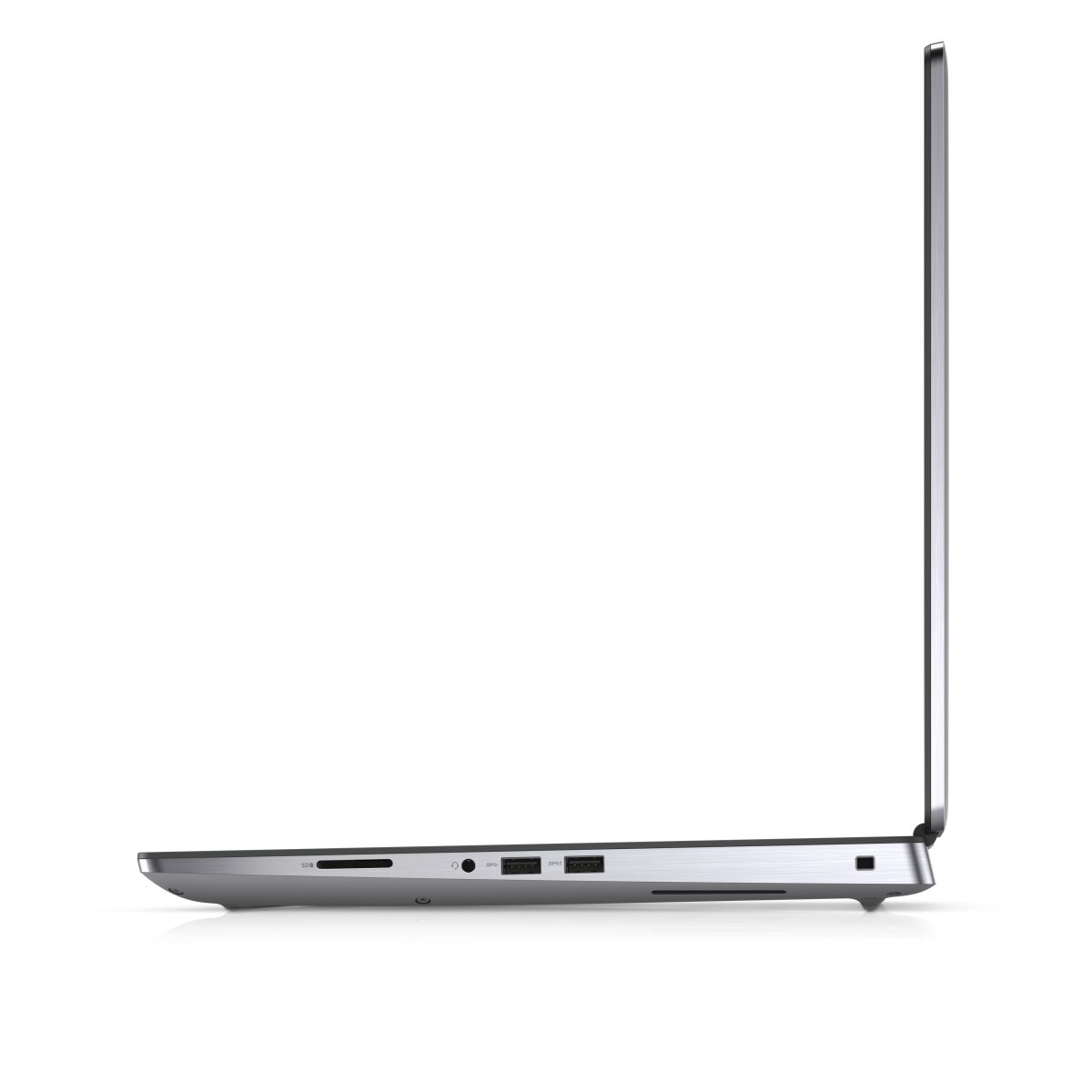

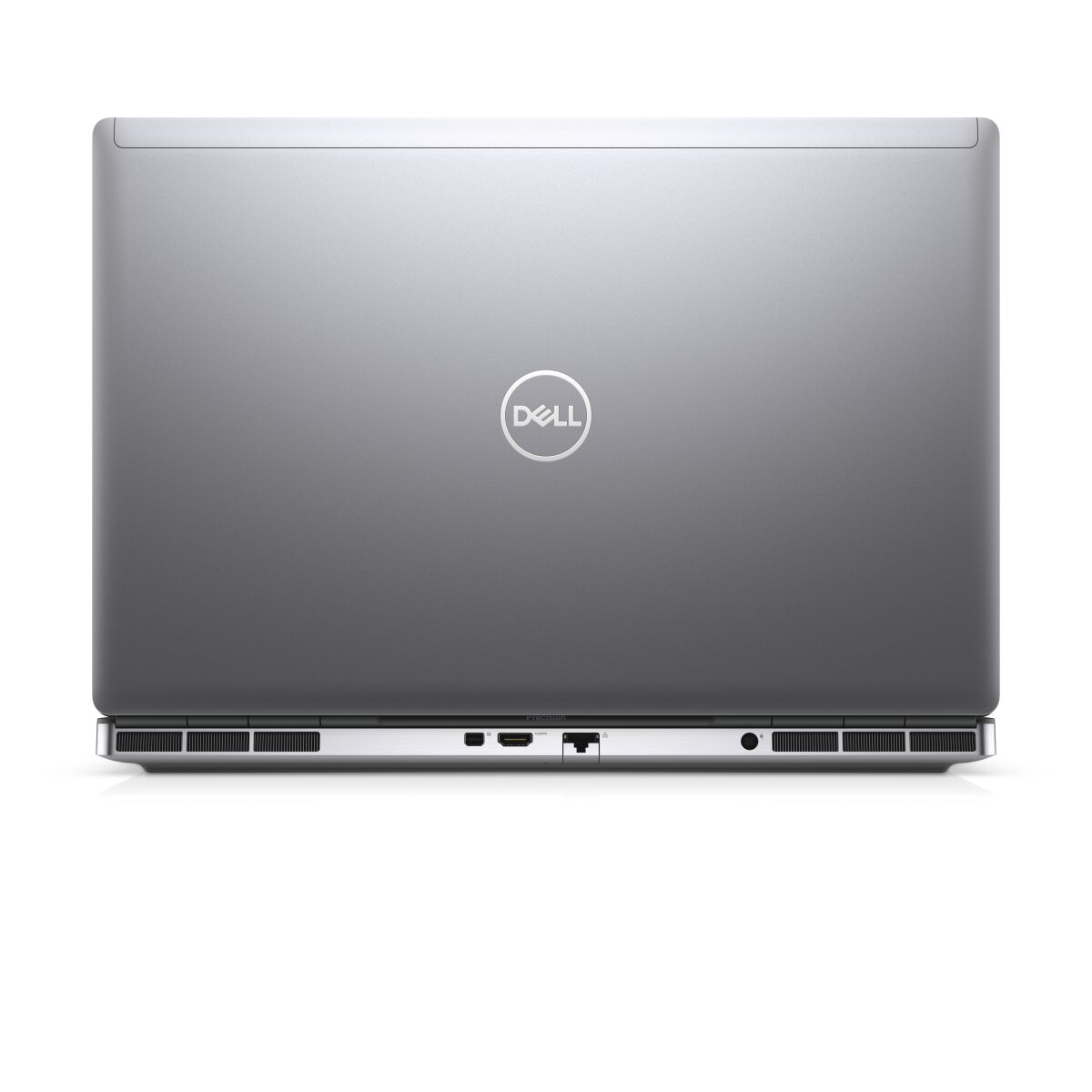

DELL Precision 7760 - XCTOP7760DSWSEMEA VIVP
DELL Precision 7760
Product code: XCTOP7760DSWSEMEA VIVP
- 💻Display diagonal: 17.3 inch
- 🔳Processor model: W-11855M
- 🎫Internal memory: 64 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 256 GB
- ⚖️Weight: 3.01 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 17.3 inch |
| Maximum refresh rate | 60 Hz |
| Display response rise/fall | 35 ms |
| Pixel density | 127 ppi |
| Contrast ratio (typical) | 600:1 |
| Pixel pitch | 0.198 x 0.198 mm |
| Display brightness | 500 cd/m² |
| Panel type | WVA |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Precision |
| Series | 7000 |
| Model name | 7760 |
| Part Number | XCTOP7760DSWSEMEA_VIVP |
| Release Date | 22 May 2022 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon |
| Motherboard chipset | Intel WM590 |
| Processor boost frequency | 4.9 GHz |
| Processor model | W-11855M |
| Processor cores | 6 |
| Processor cache | 18 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 64 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 4x SO-DIMM |
| Maximum internal memory | 128 GB |
| Memory layout (slots x size) | 2 x 32 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX A5000 |
| On-board graphics card model | Intel UHD Graphics |
| Discrete graphics card memory | 16 GB |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD interface | NVMe, PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| SSD performance class | 35 |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) | 3000 Mbit/s |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| Charging port type | DC-in jack |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3204 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Ubuntu Linux |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 430 g |
| Battery charge indicator | Yes |
| Number of battery cells | 6 |
| Battery capacity | 95 Wh |
| Battery voltage | 11.4 V |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 3.01 kg |
| Height (rear) | 2.86 cm |
| Height (front) | 2.6 cm |
| Depth | 263.6 mm |
| Width | 400 mm |
| Power | |
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 3.5 A |
| Security | |
| Cable lock slot | Yes |
| Password protection | Yes |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
