DELL Latitude Rugged 5420 - 6YNGK

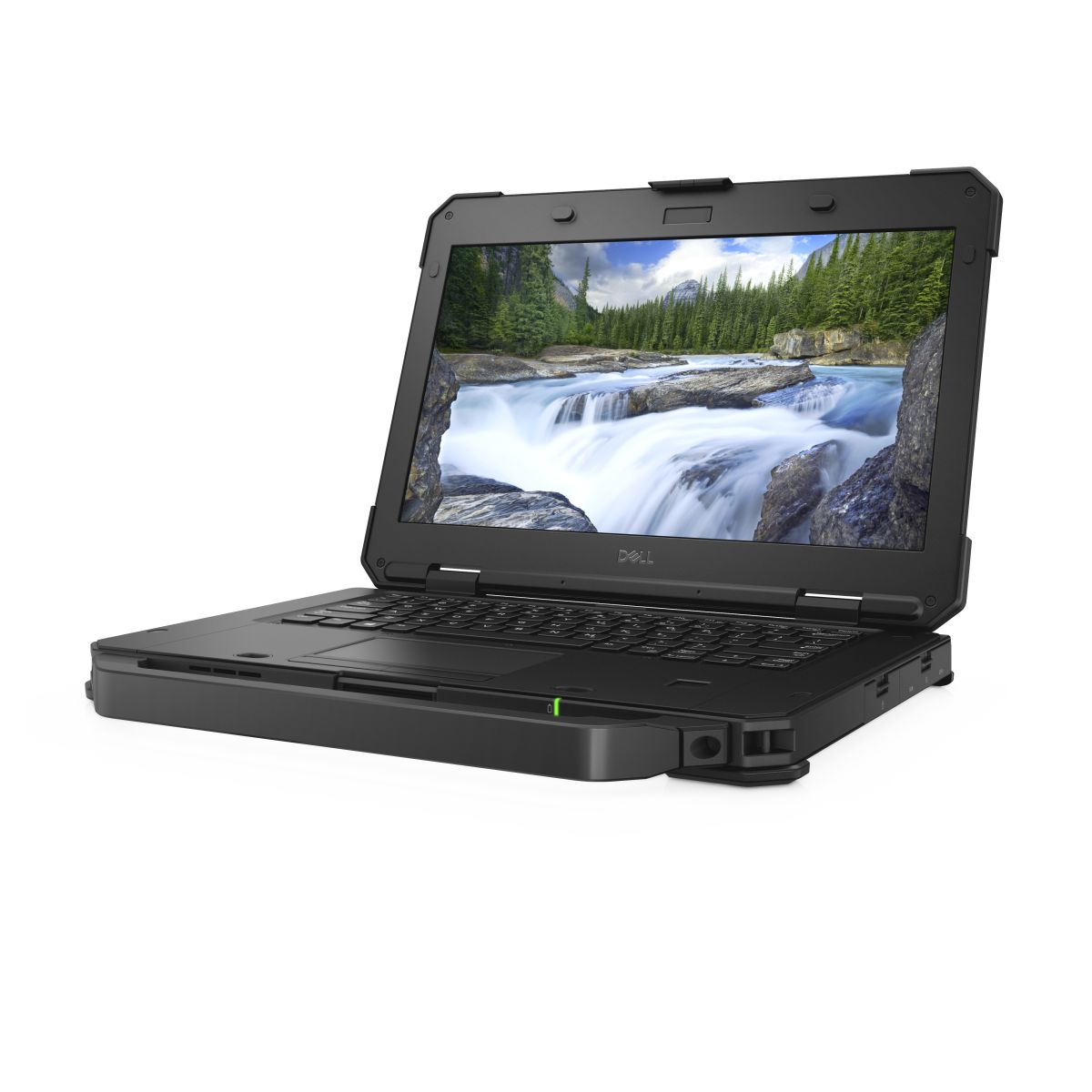

DELL Latitude Rugged 5420
Product code: 6YNGK
- đģDisplay diagonal: 14 inch
- đŗProcessor model: i5-8350U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 620
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 128 GB
- âī¸Weight: 2.2 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 14 inch |
| Dual-screen | N |
| Maximum refresh rate | 60 Hz |
| Display response rise/fall | 35 ms |
| Pixel density | 157 ppi |
| Pixel pitch | 0.161 x 0.161 mm |
| Panel type | WVA |
| Display surface | Matt |
| HD type | Full HD |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Brand | DELL |
| Family | Latitude |
| Series | Rugged |
| Model name | 5420 |
| Part Number | 6YNGK |
| Release Date | 29 April 2019 |
| EAN/UPC code | 0884116337041, 884116337041 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 1.7 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor codename | Kaby Lake R |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-8350U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 1.9 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 4 GB |
| Maximum internal memory (64-bit) | 32 GB |
| ECC | N |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | Not available |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
| Storage | |
| Total storage capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Total SSDs capacity | 128 GB |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 4.2 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Serial ports quantity | 1 |
| PowerShare | Y |
| Number of USB ports with PowerShare support | 1 |
| Charging port type | DC-in jack |
| HDMI version | 2.0 |
| Docking connector | Y |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3235 |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | N |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system language | English, Spanish, French |
| Operating system architecture | 64-bit |
| Battery | |
| Battery weight | 237 g |
| Battery capacity (Watt-hours) | 51 Wh |
| Number of battery cells | 3 |
| Battery capacity | 51 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Height | 34.7 mm |
| Depth | 243 mm |
| Width | 328 mm |
| Power | |
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 4.62 A |
| Security | |
| Password protection | Y |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
