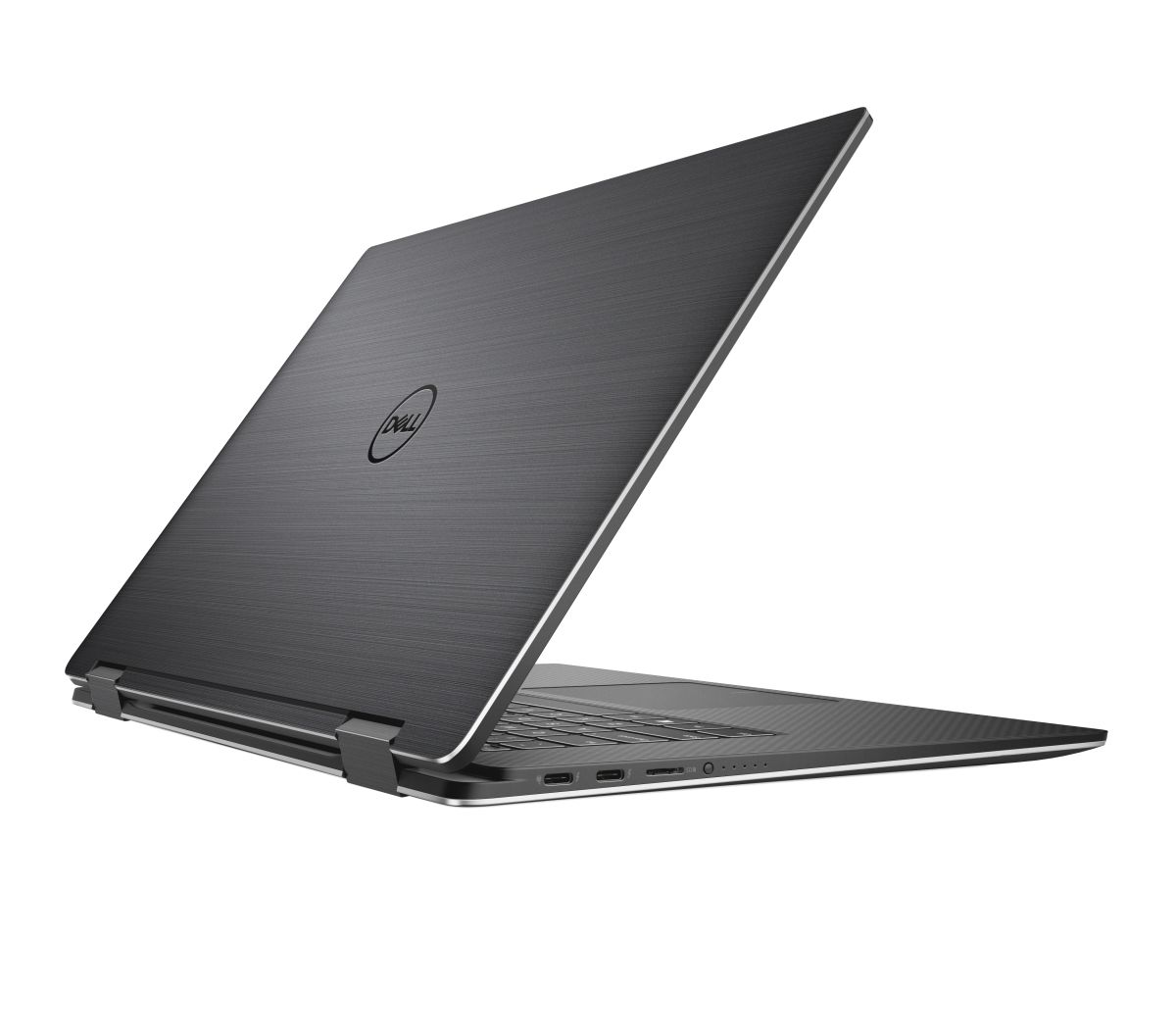

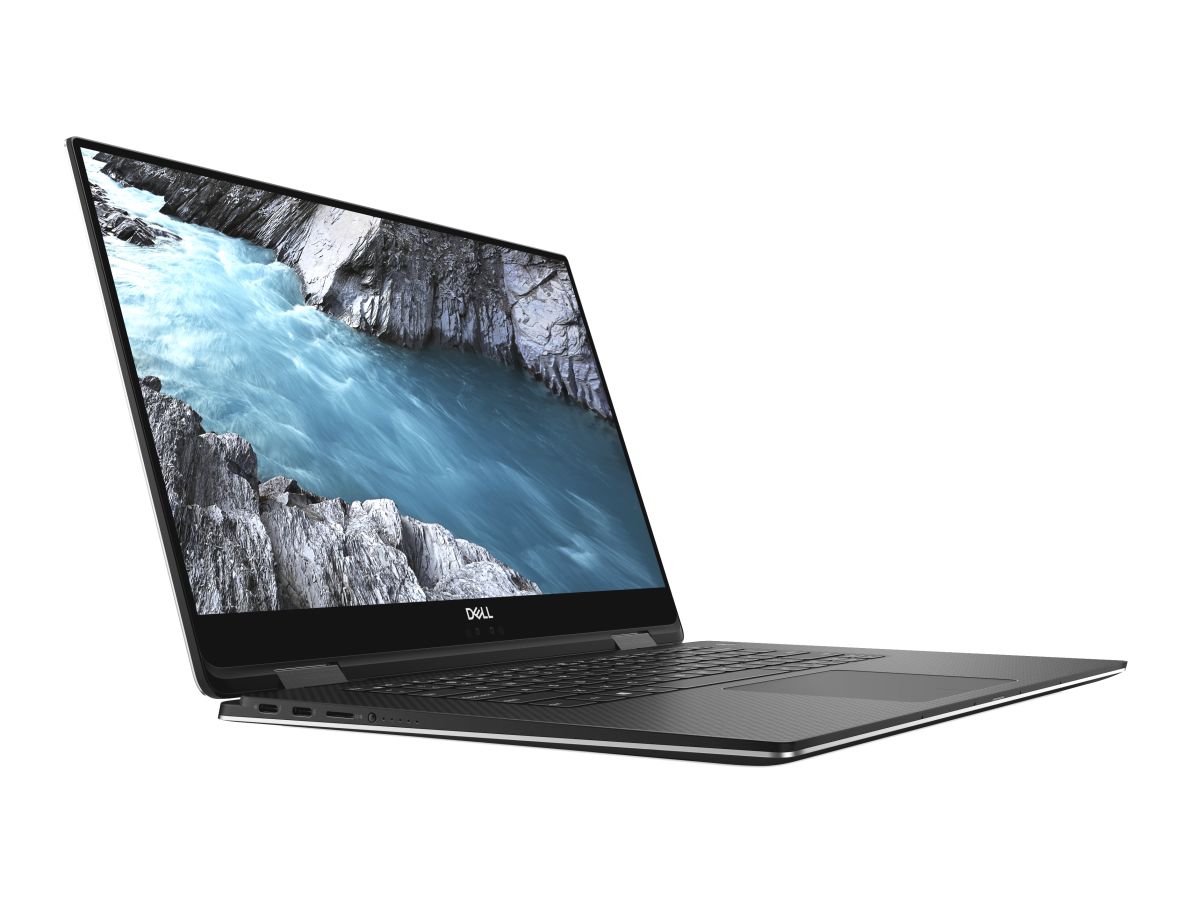

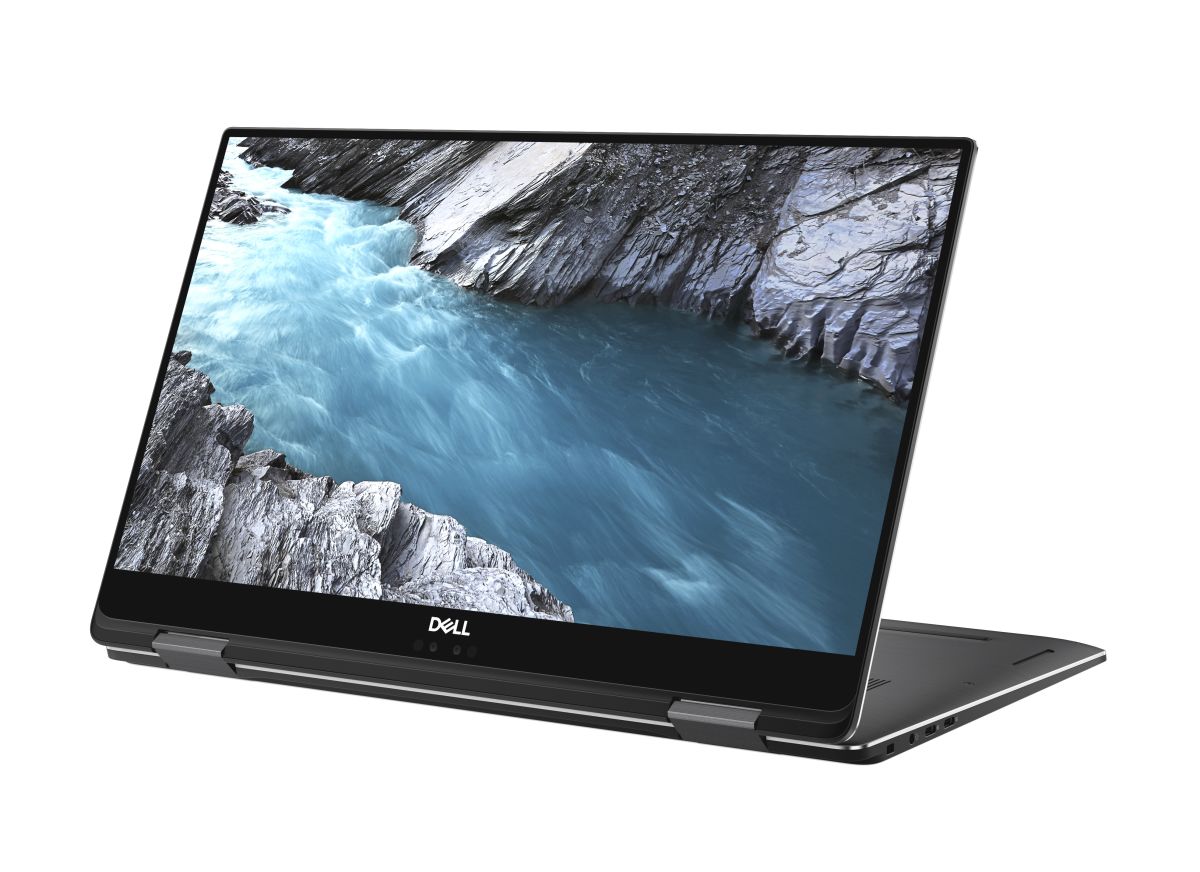

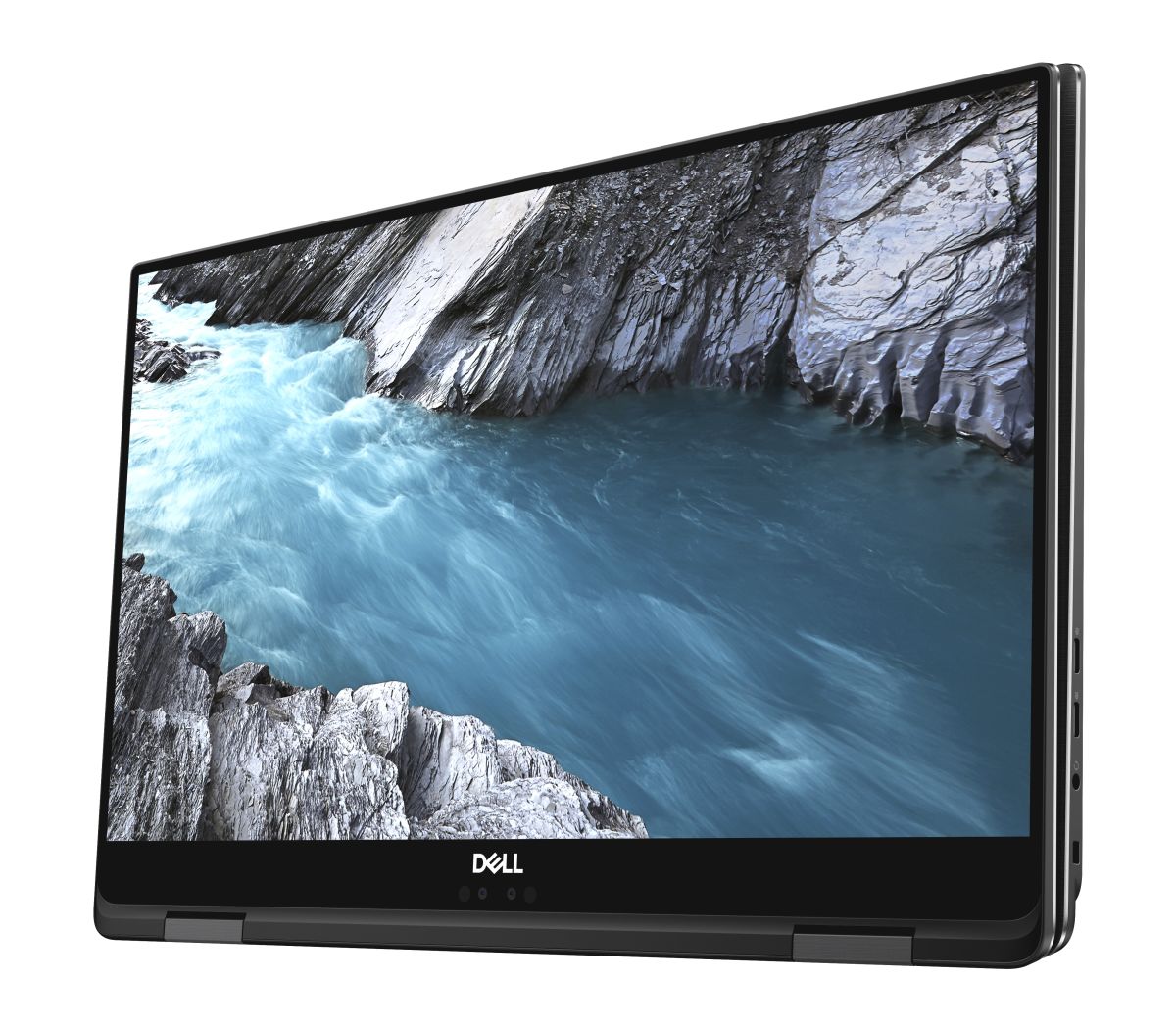

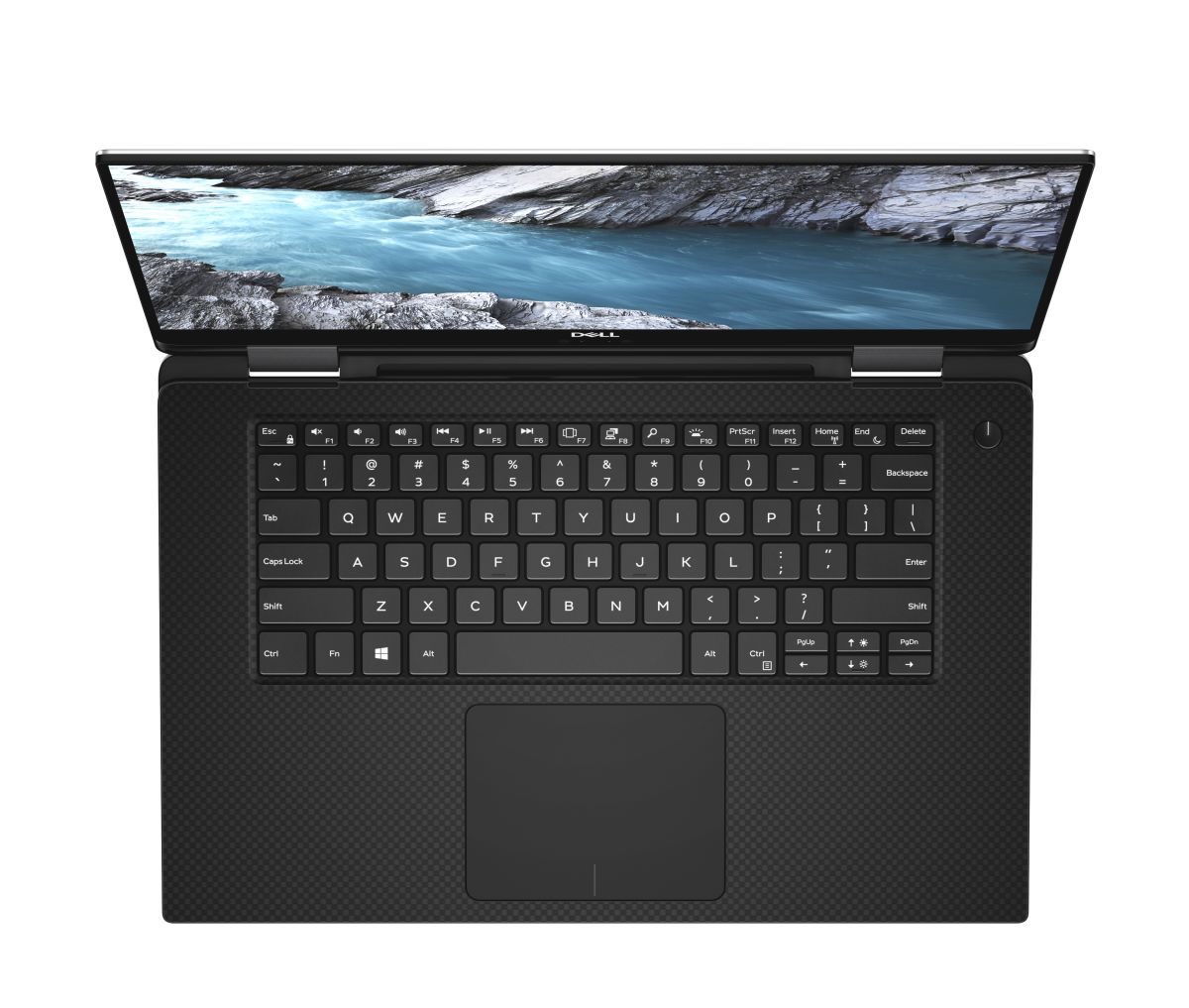

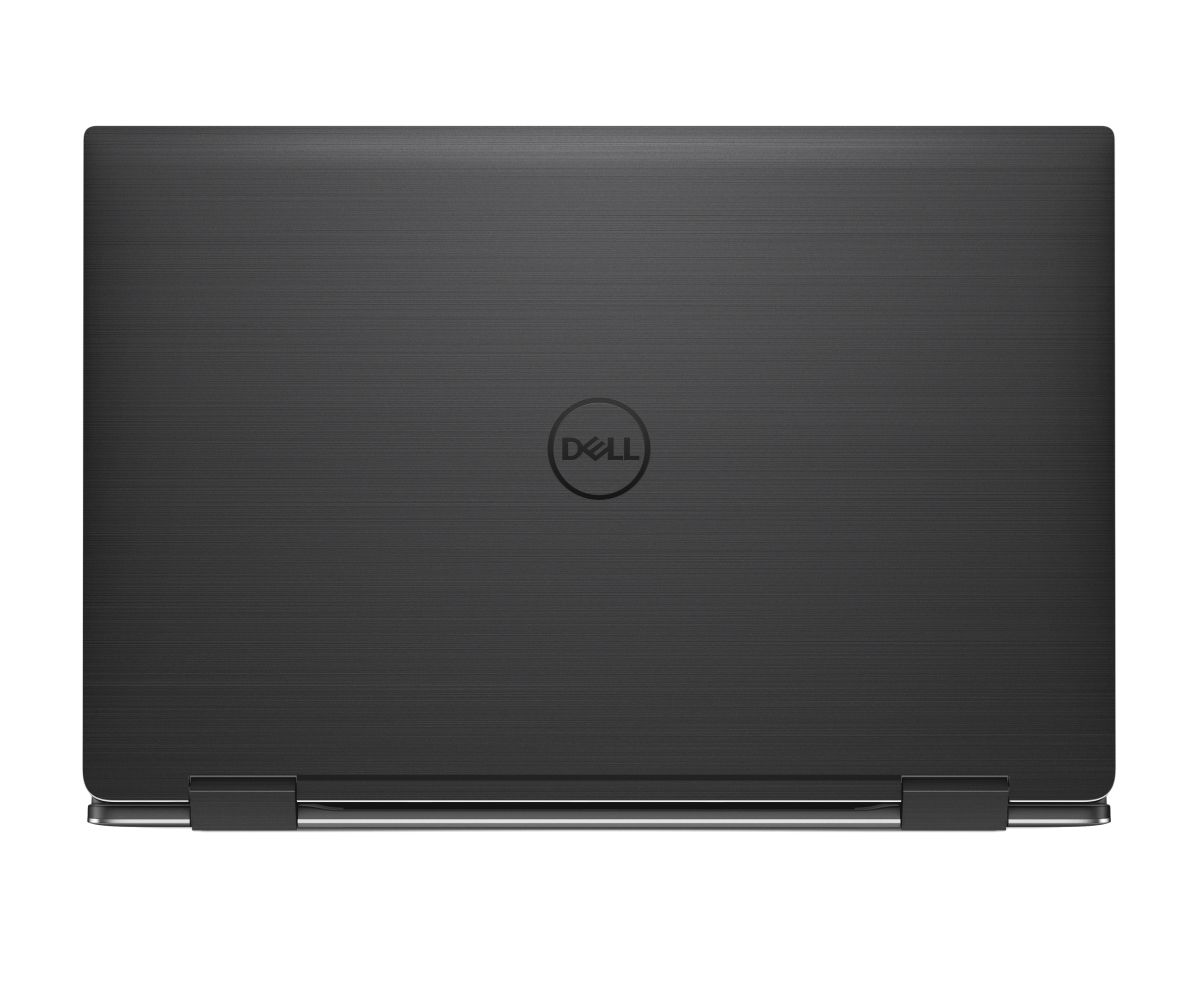

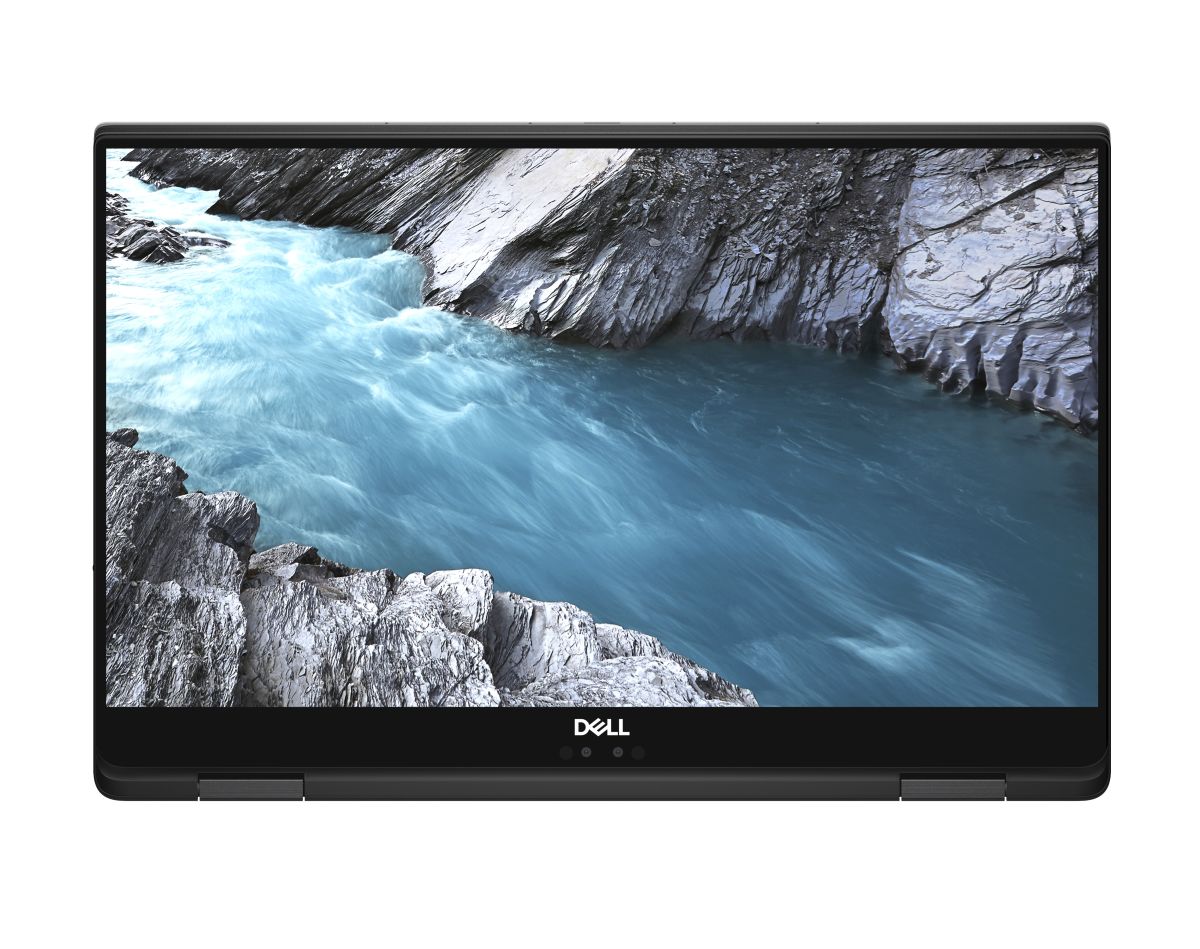

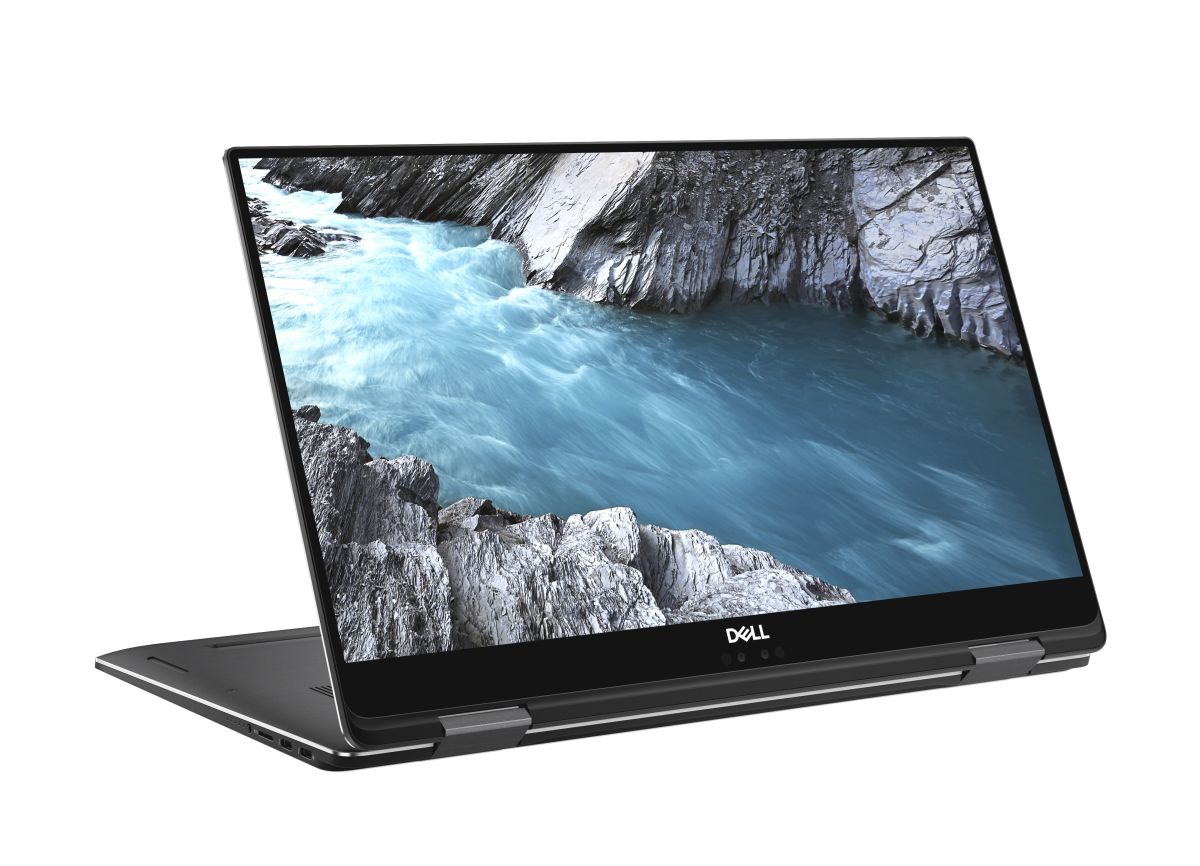

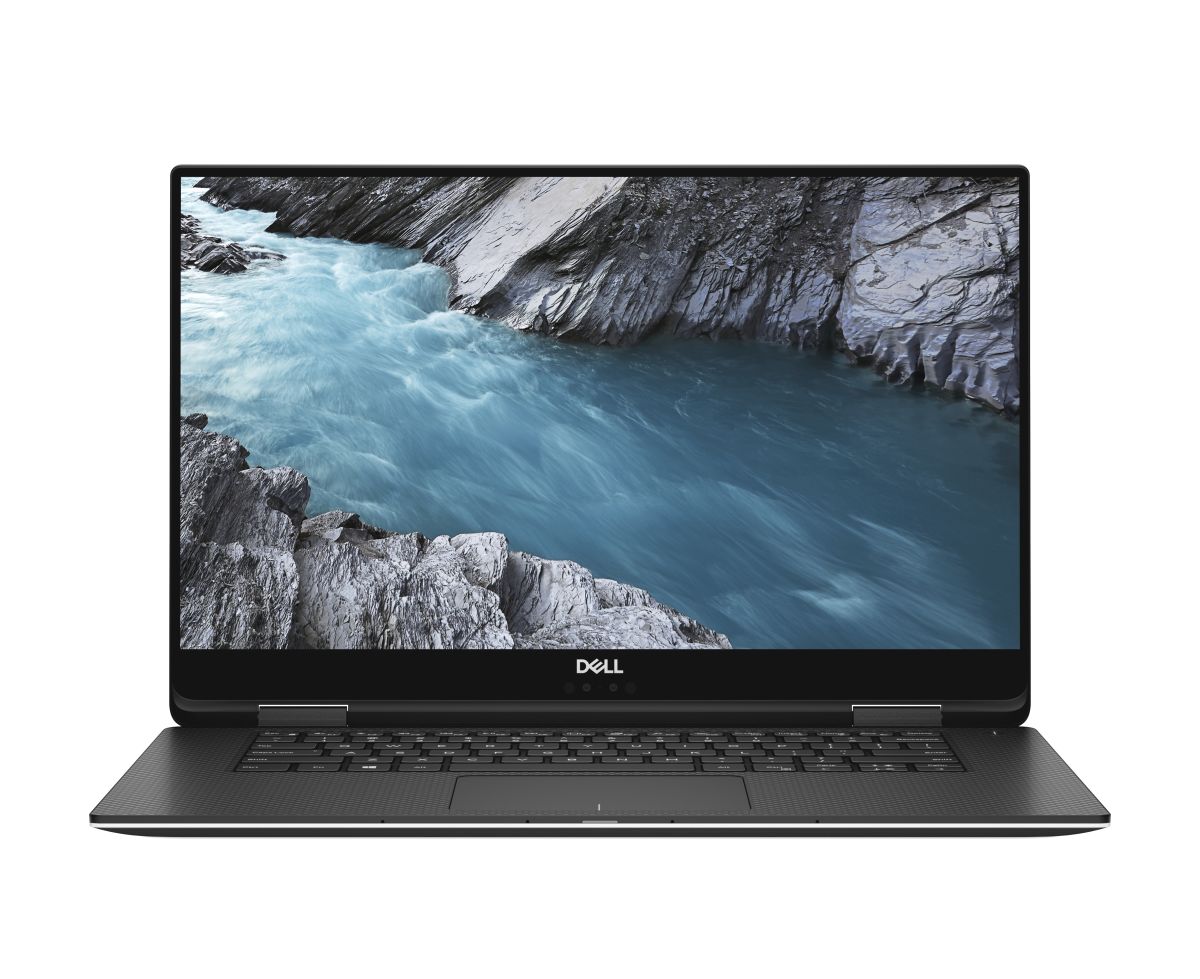

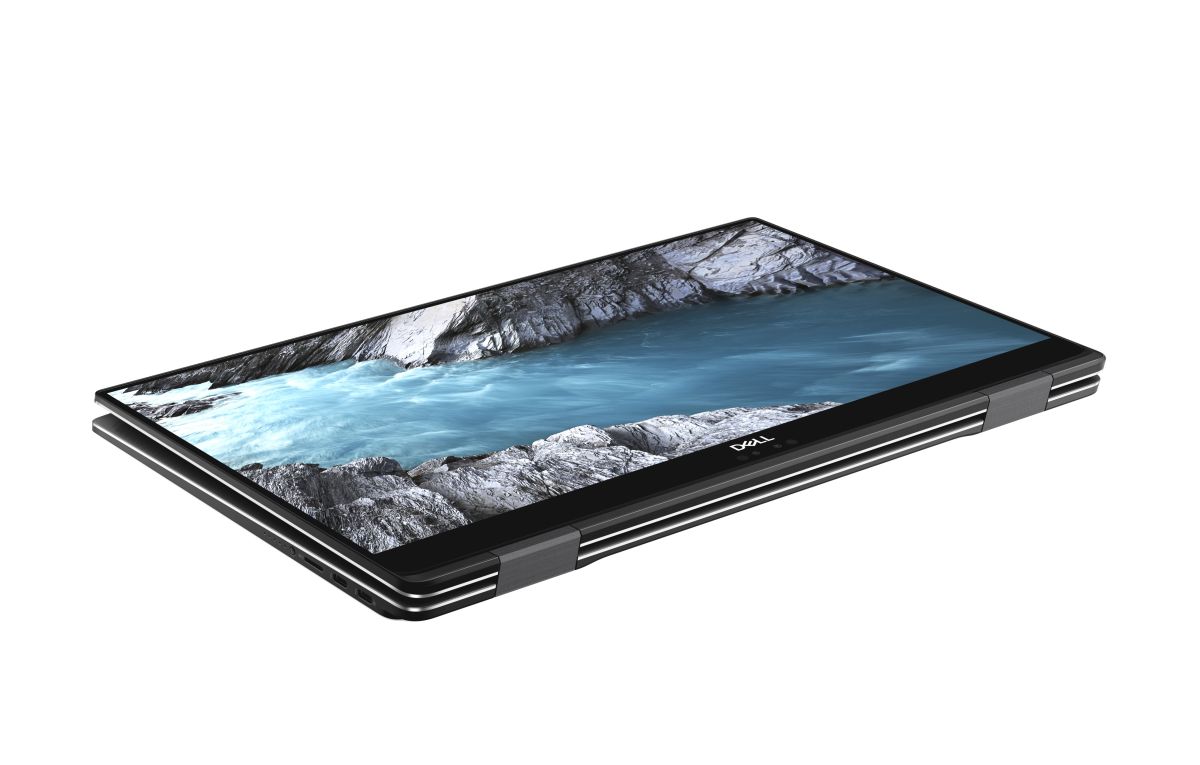

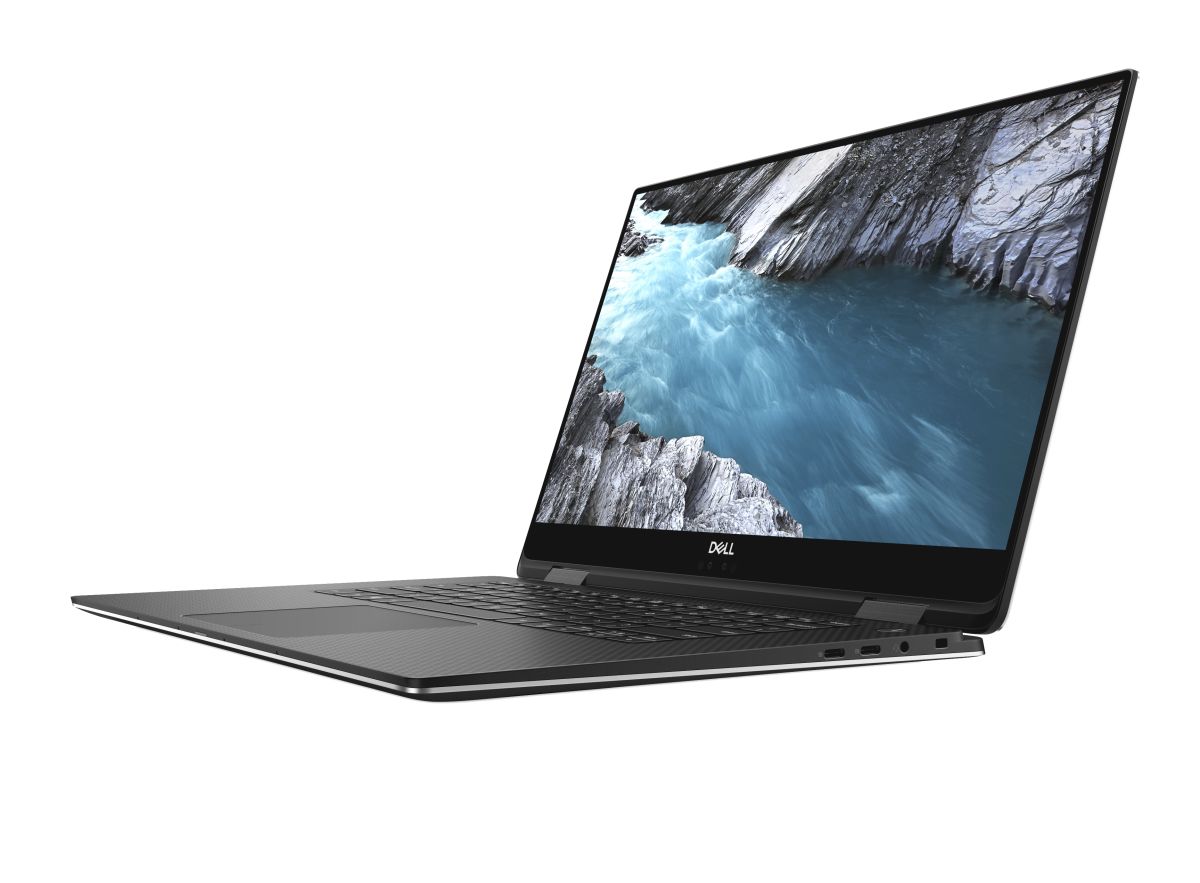

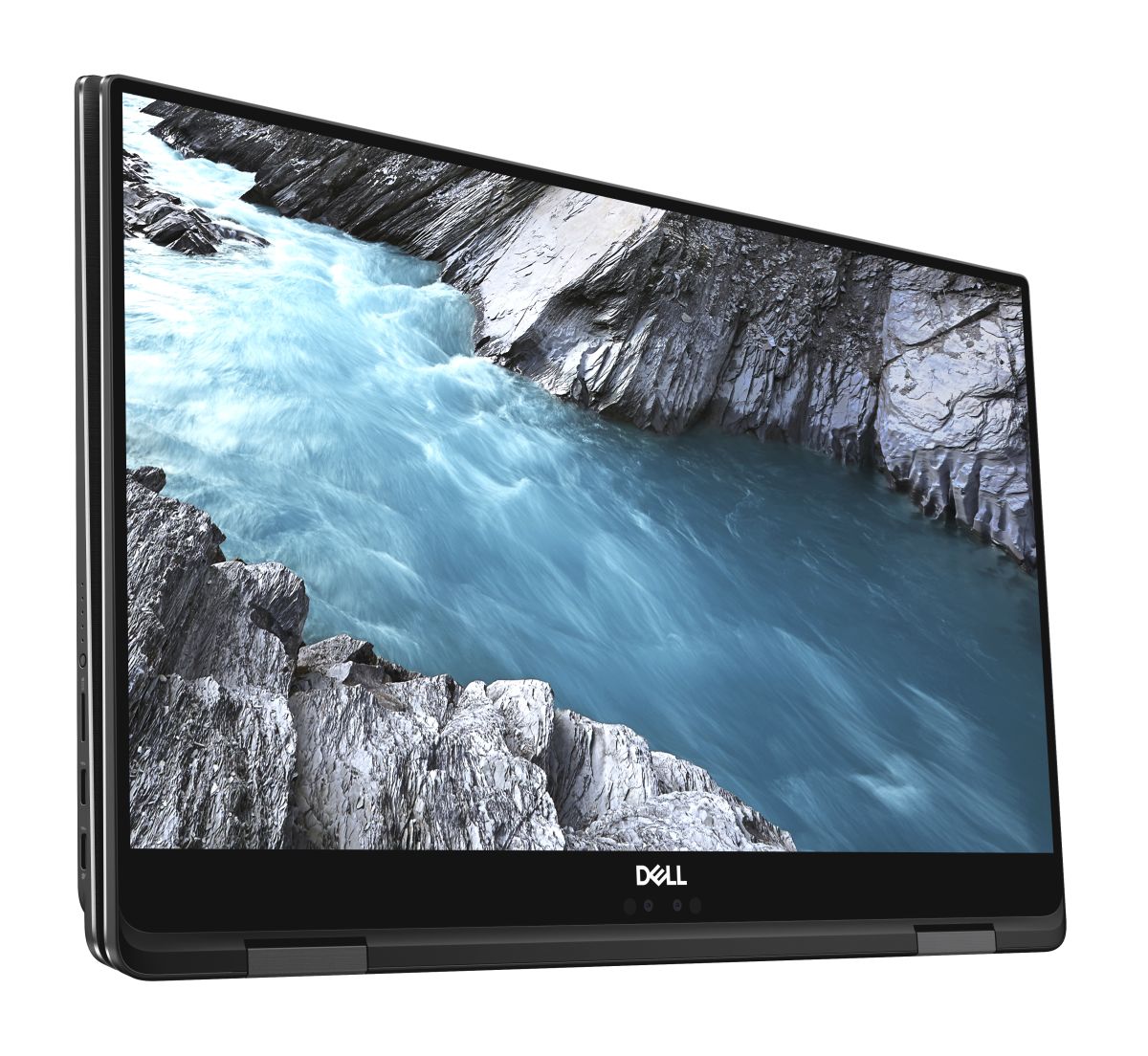

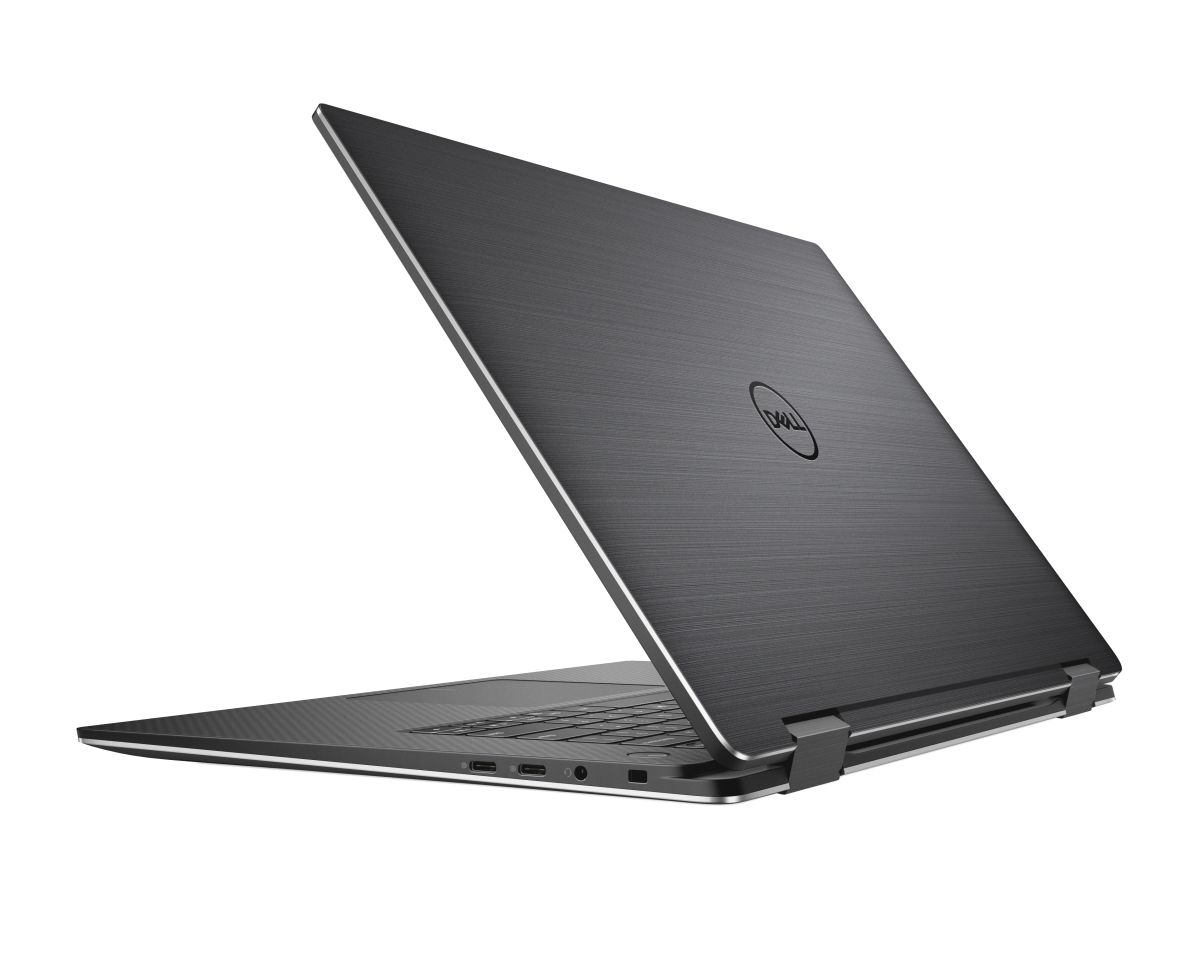

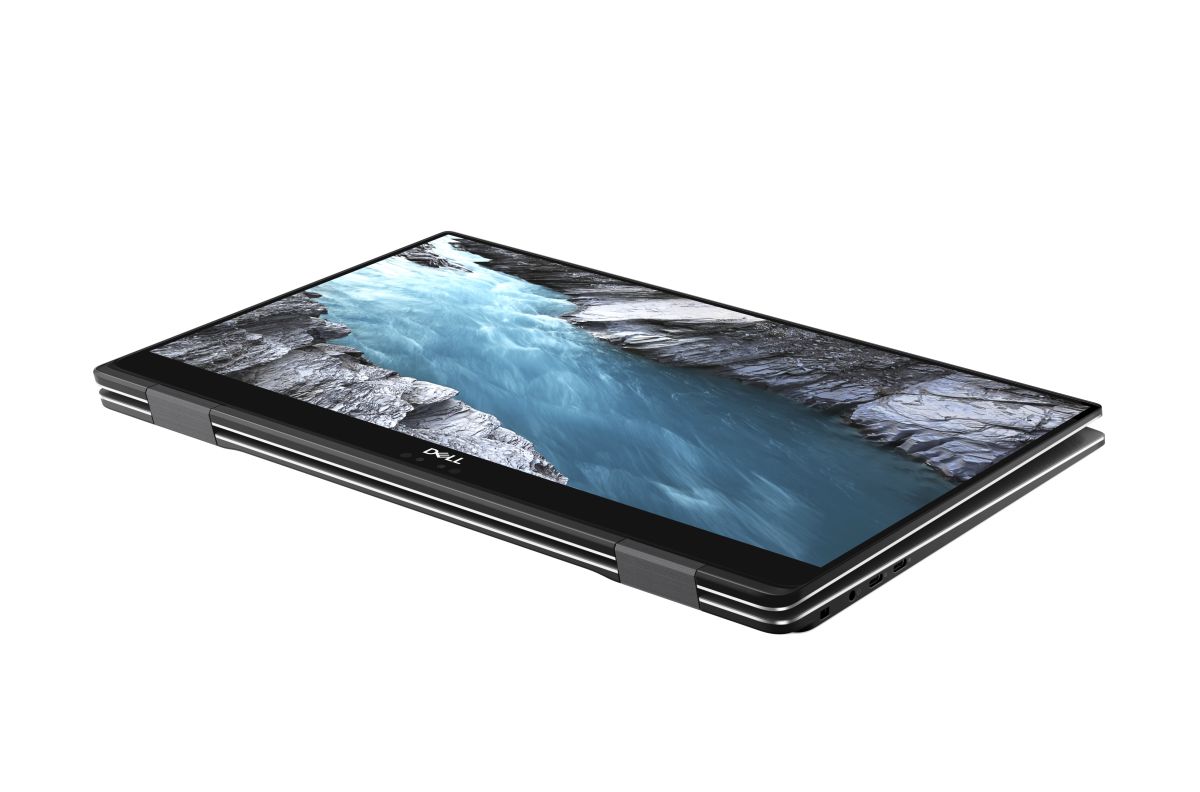

DELL XPS 15 9575 - B520403AUB

DELL XPS 15 9575

Product code: B520403AUB

  • 💻Display diagonal: 15.6 inch
  • 🔳Processor model: i7-8705G
  • 🎫Internal memory: 16 GB
  • 🎮On-board graphics adapter model: Intel HD Graphics 630
  • 🎮Discrete graphics adapter model: AMD Radeon RX Vega M GL
  • 💽Total storage capacity: 1.02 TB
  • ⚖️Weight: 2 kg
📊 Add to compare

As an Amazon Associate I earn from qualifying purchases.

Specifications
Design
Product colourBlack, Platinum, Silver
Product typeHybrid (2-in-1)
Form factorConvertible (Folder)
Market positioningBusiness
Housing materialAluminium, Carbon fibre
Display
Display diagonal15.6 inch
Dual-screenNo
Display bezel technologyInfinityEdge
Contrast ratio (typical)1500:1
Pixel pitch0.08964 x 0.08964 mm
Touchscreen typeCapacitive
Display brightness400 cd/m²
Panel typeIPS
Touch technologyMulti-touch
Aspect ratio16:9
HD type4K Ultra HD
LED backlightYes
TouchscreenYes
Display resolution3840 x 2160 pixels
Native aspect ratio16:9
BrandDELL
FamilyXPS
Series15
Model name9575
Part NumberB520403AUB
Release Date22 December 2018
Processor
Processor manufacturerIntel
Processor familyIntel Core i7
Processor frequency3.1 GHz
Motherboard chipsetIntel GL82QM175
Processor boost frequency4.1 GHz
Processor codenameKaby Lake G
Thermal Design Power (TDP)65 W
Processor modeli7-8705G
Processor cores4
Processor threads8
Processor cache8 MB
Processor lithography14 nm
Processor socketBGA 2270
Processor generation8th gen Intel Core i7
Memory
Internal memory typeDDR4-SDRAM
Internal memory16 GB
Memory form factorOn-board
Memory clock speed2400 MHz
Maximum internal memory16 GB
Maximum internal memory (64-bit)16 GB
Graphics
On-board graphics adapterY
On-board graphics adapter familyIntel HD Graphics
Number of discrete graphics adapters installed1
Discrete graphics memory typeHBM2
On-board graphics adapter DirectX version12.0
Discrete graphics adapterY
On-board graphics adapter modelIntel HD Graphics 630
Discrete graphics adapter modelAMD Radeon RX Vega M GL
On-board graphics adapter base frequency350 MHz
On-board graphics adapter dynamic frequency (max)1100 MHz
Maximum on-board graphics adapter memory64 GB
On-board graphics adapter OpenGL version4.4
Discrete graphics adapter memory4 GB
On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelAMD Radeon RX Vega M GL
On-board graphics card modelIntel HD Graphics 630
On-board graphics card familyIntel HD Graphics
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1100 MHz
Maximum on-board graphics card memory64 GB
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.4
Discrete graphics card memory4 GB
Number of discrete graphics cards installed1
Storage
Total storage capacity1.02 TB
Number of SSDs installed1
SSD capacity1.02 TB
SSD interfacePCI Express
SSD form factorM.2
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedYes
Storage mediaSSD
Optical drive
Optical drive typeNo
Networking
Ethernet LANNo
Wi-FiYes
WLAN controller modelKiller Wireless-AC 1435
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type2x2
BluetoothYes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power DeliveryYes
Combo headphone/mic portYes
USB Type-C DisplayPort Alternate ModeYes
Thunderbolt 3 ports quantity2
Audio
Built-in microphoneYes
Number of built-in speakers2
Audio systemMaxxAudio Pro
Speaker power2 W
Audio chipRealtek ALC3271-CG
Speakers manufacturerWaves
Number of microphones2
Camera
Front cameraYes
Windows HelloYes
Infrared (IR) cameraYes
Front camera HD typeHD
Video capturing speed30 fps
Front camera resolution1280 x 720 pixels
Front camera signal format720p
Front camera resolution (numeric)0.92 MP
Keyboard
Numeric keypadNo
Full-size keyboardYes
Keyboard backlitYes
Windows keysYes
Pointing deviceTouchpad
Software
Operating system installedWindows 10 Pro
Operating system architecture64-bit
Drivers includedYes
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity (Watt-hours)75 Wh
Battery charge indicatorYes
Battery recharge time4 h
Number of battery cells6
Battery capacity75 Wh
Battery voltage11.4 V
Weight & dimensions
Weight2 kg
Height (rear)1.6 cm
Height (front)9 mm
Depth235 mm
Width354 mm
Power
AC adapter power130 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output voltage20 V
AC adapter output current6.5 A
Security
Cable lock slotYes
Cable lock slot typeNoble
Face recognitionYes
Fingerprint readerYes
Password protectionYes
