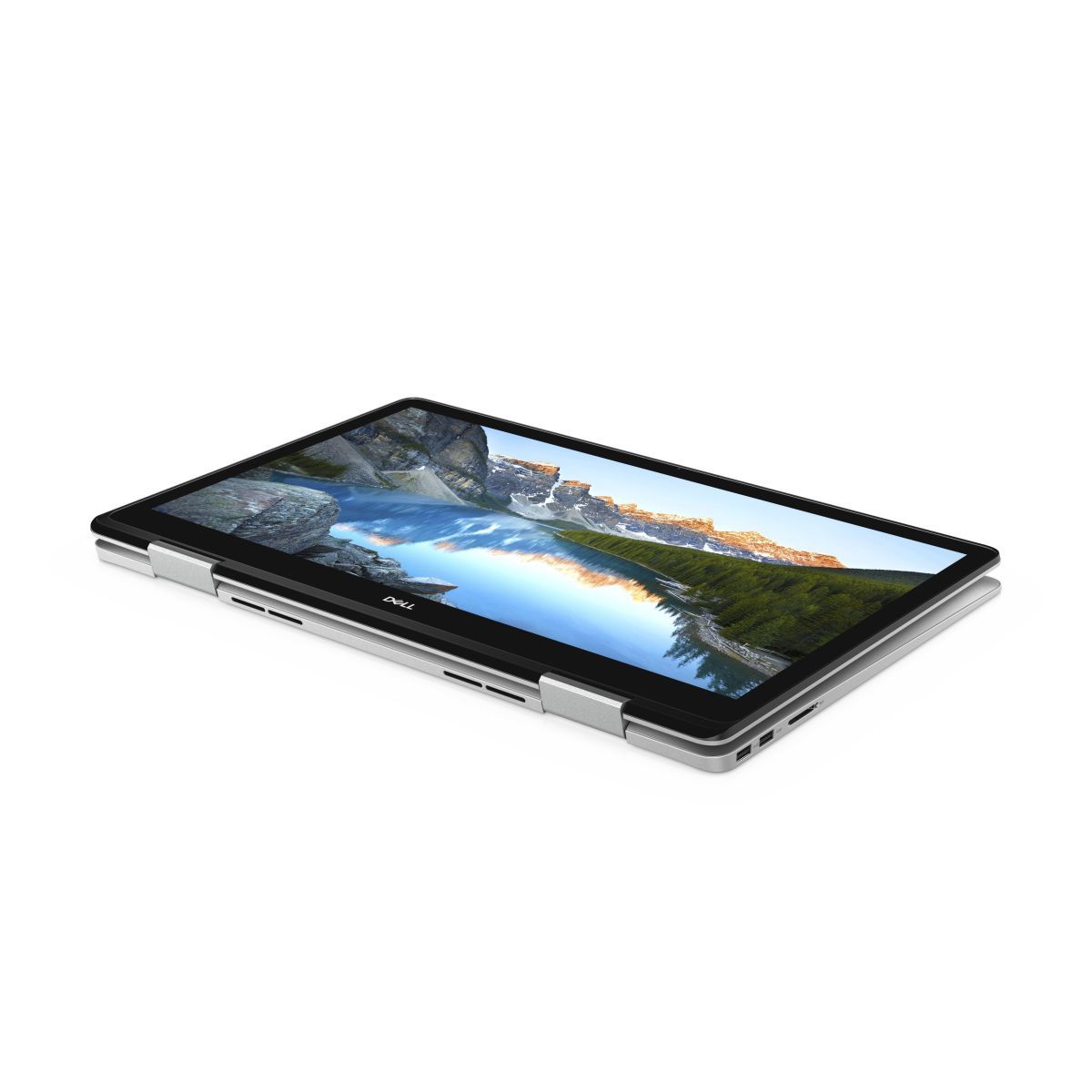

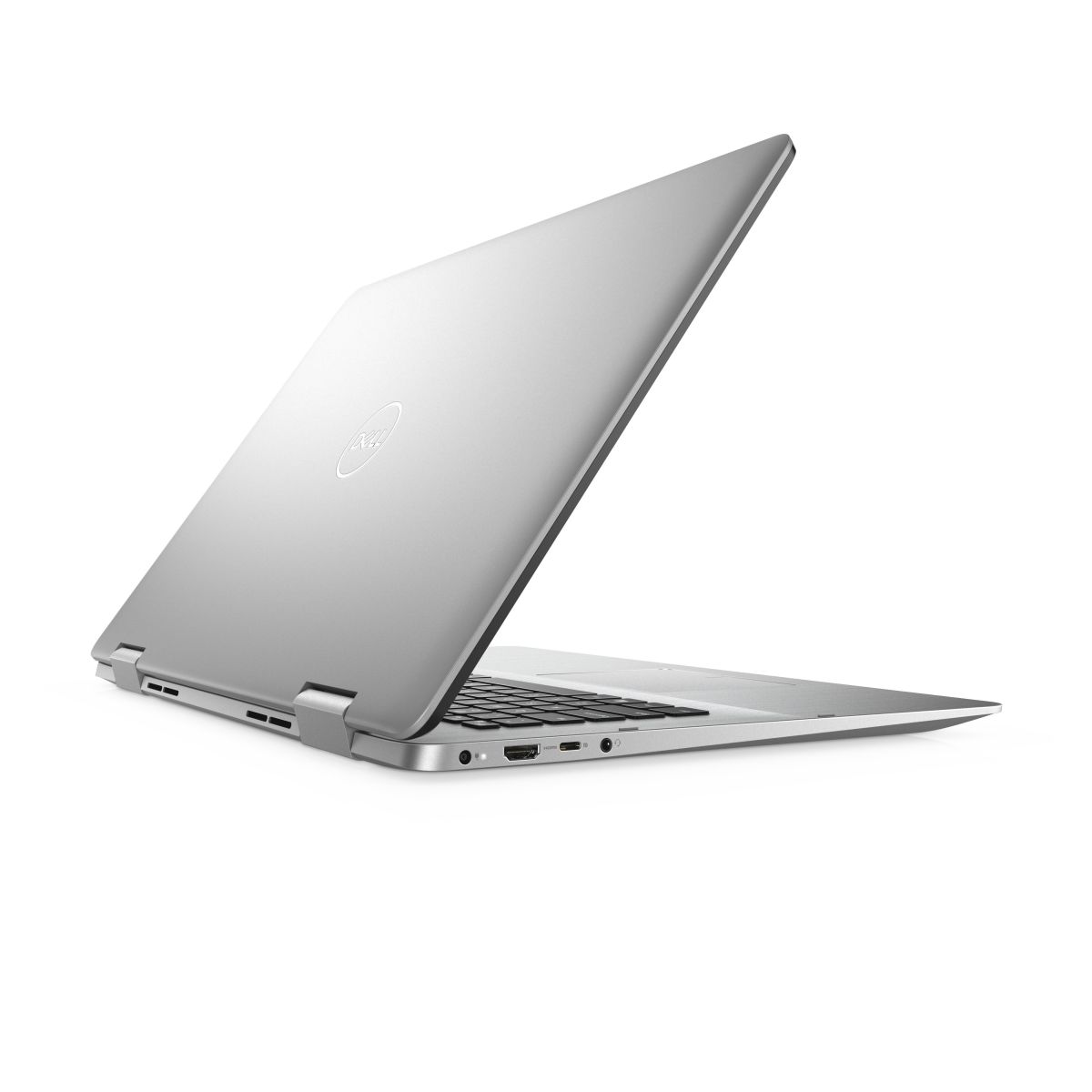

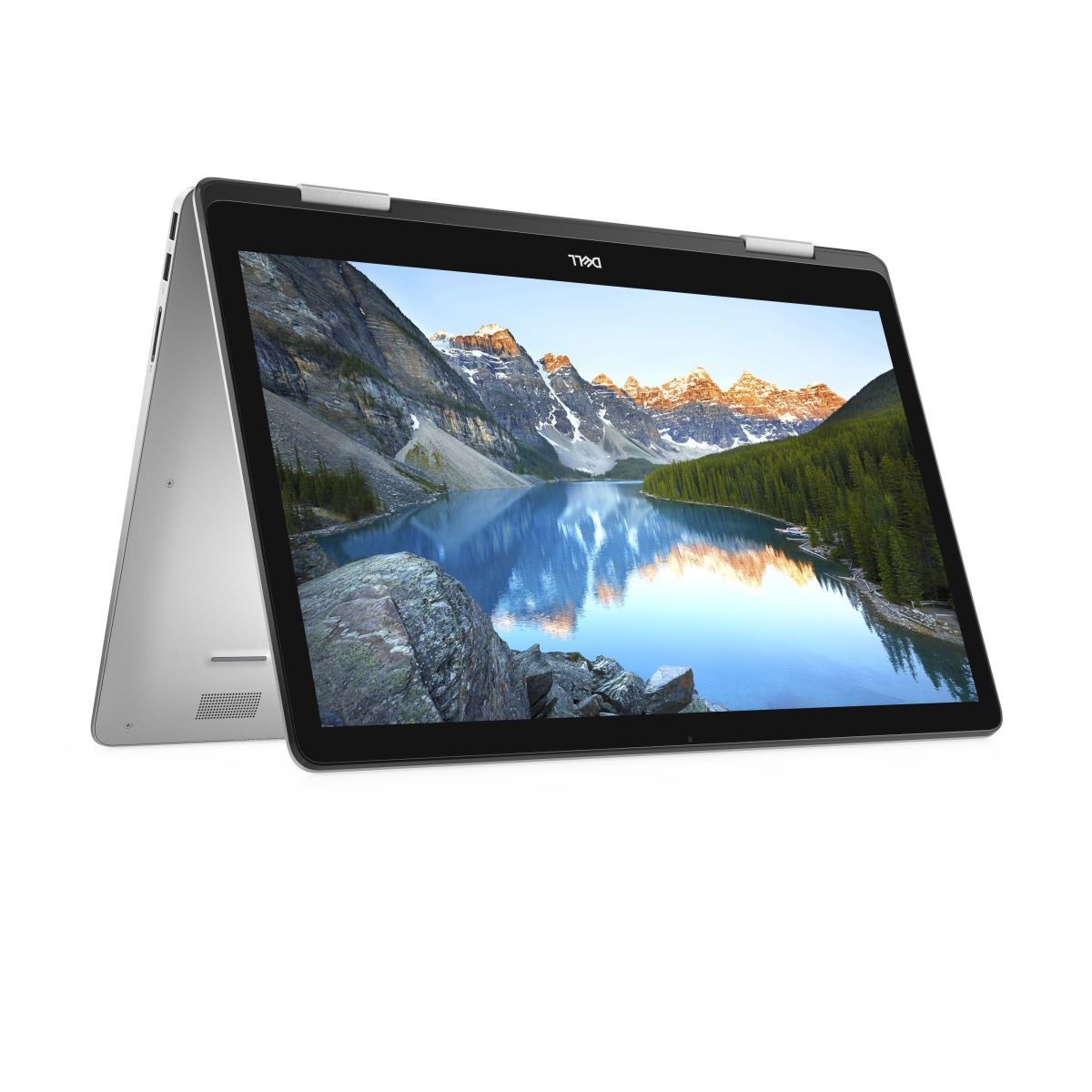

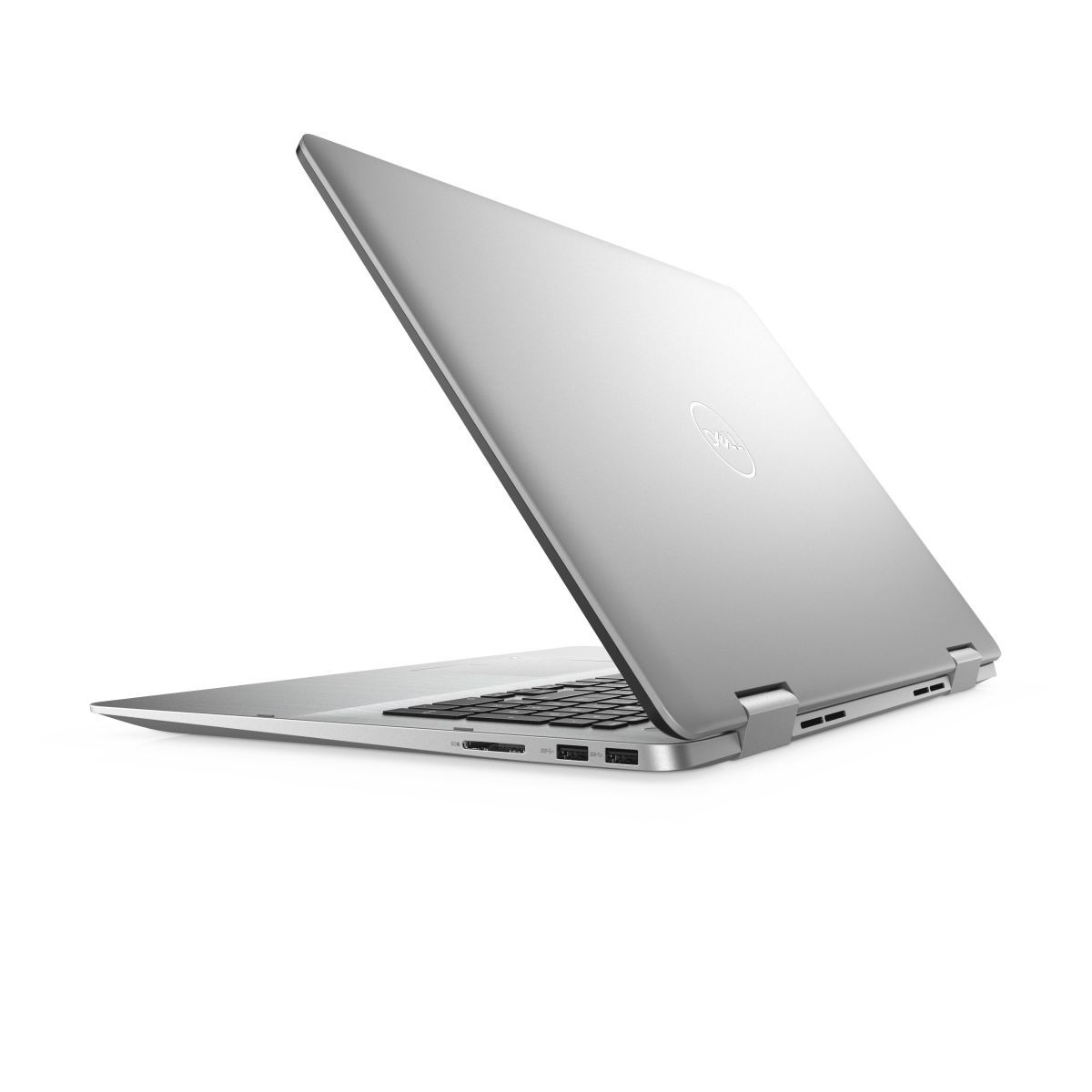

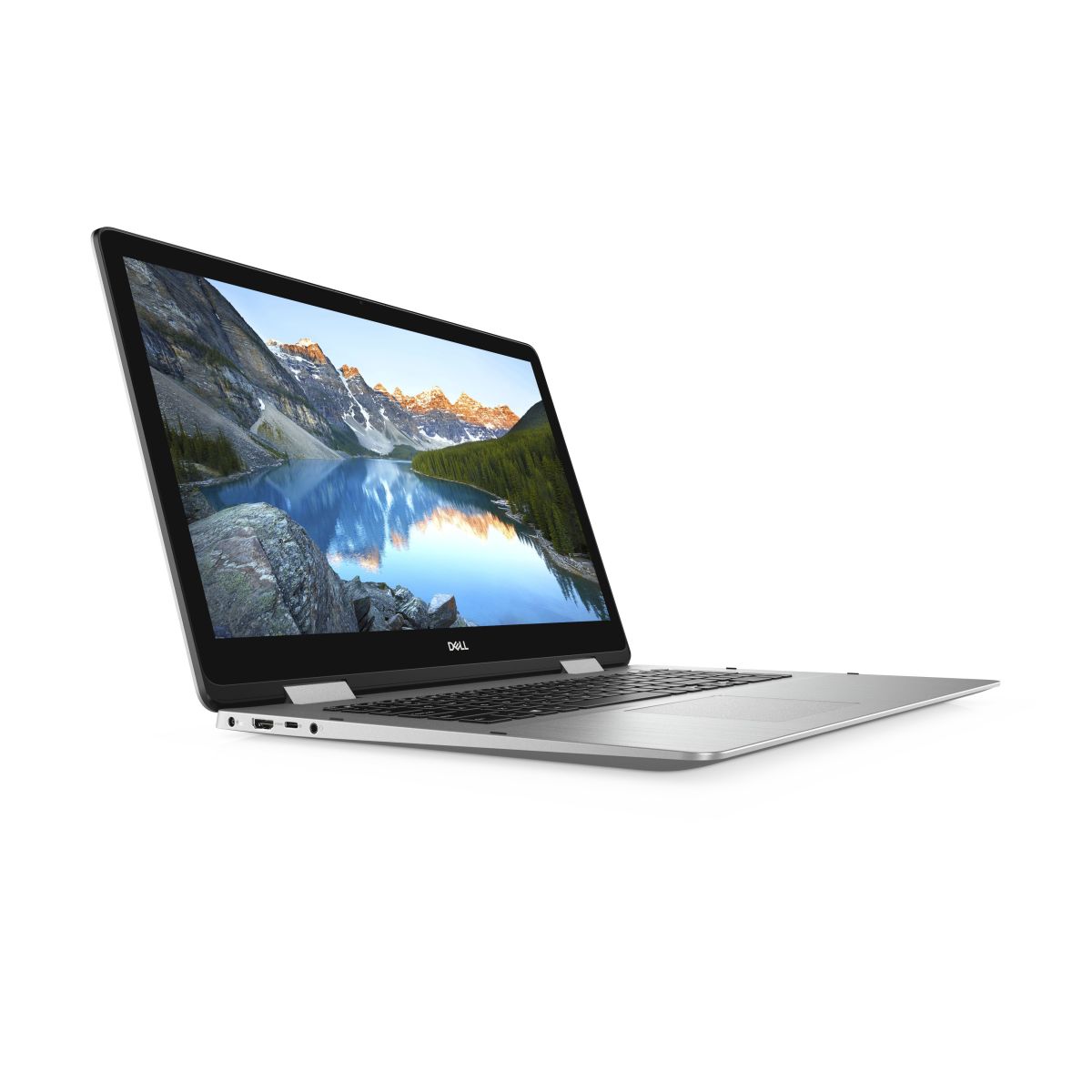

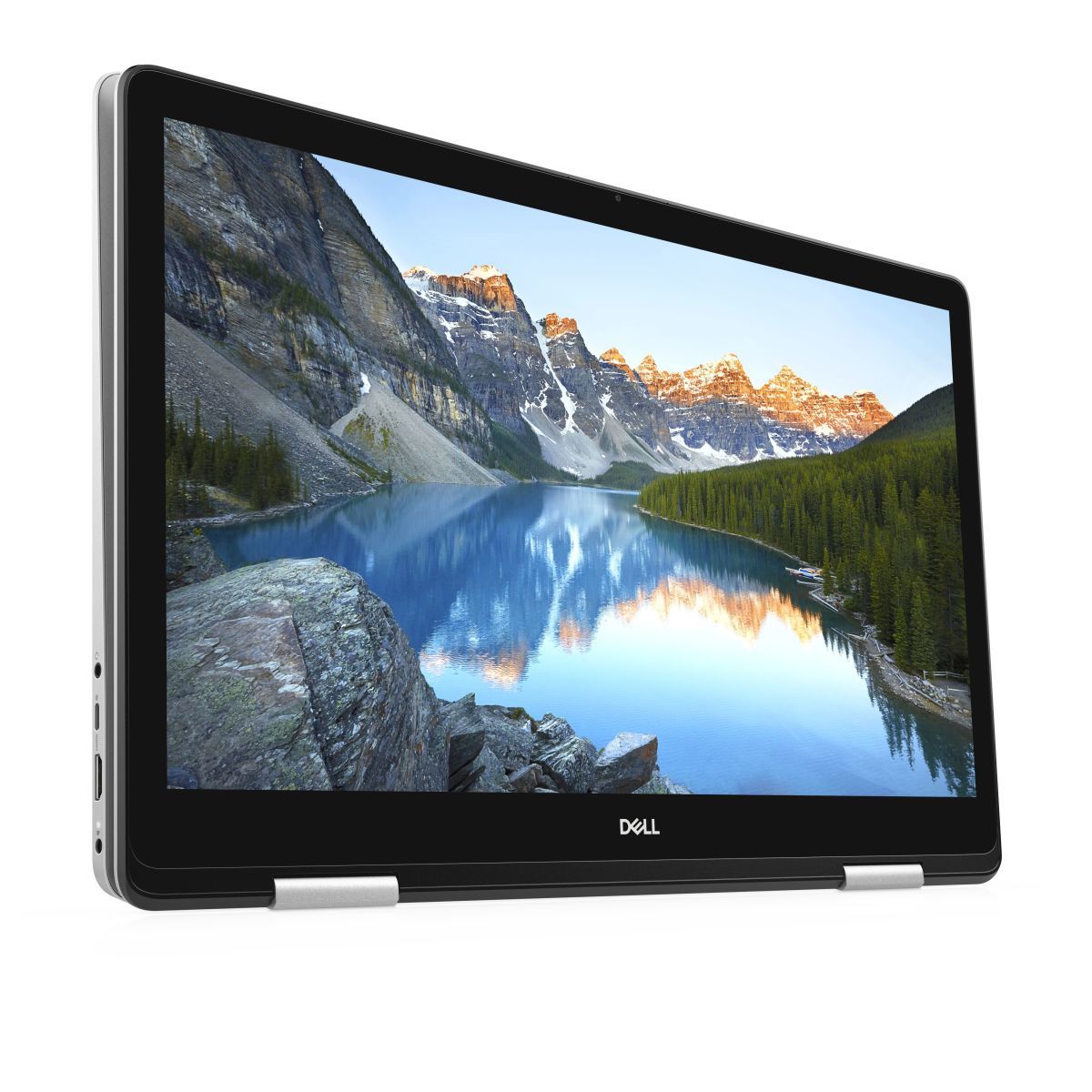

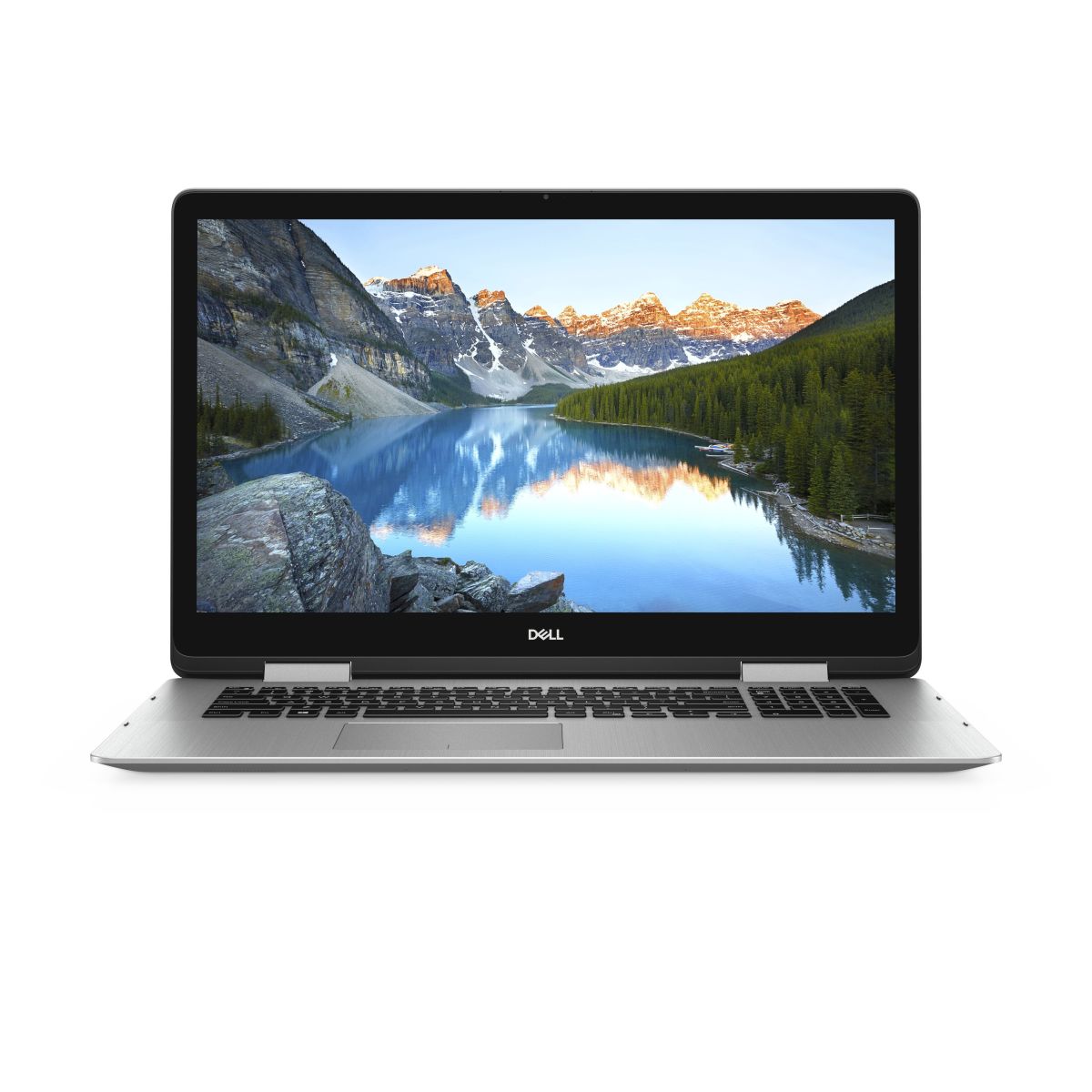

DELL Inspiron 7786 - 7786-2393
DELL Inspiron 7786
Product code: 7786-2393
- 💻Display diagonal: 17.3 inch
- 🔳Processor model: i7-8565U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 620
- 🎮Discrete graphics adapter model: NVIDIA GeForce MX150
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 2.94 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Platinum, Silver |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Display | |
| Display diagonal | 17.3 inch |
| Pixel density | 127 ppi |
| Contrast ratio (typical) | 700:1 |
| Pixel pitch | 0.198 x 0.198 mm |
| Touchscreen type | Capacitive |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Touch technology | Multi-touch |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Inspiron |
| Series | 7000 |
| Model name | 7786 |
| Part Number | 7786-2393 |
| Release Date | 12 September 2018 |
| EAN/UPC code | 5397184152393 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-8565U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory (64-bit) | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Number of discrete graphics adapters installed | 1 |
| Discrete graphics memory type | GDDR5 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | NVIDIA GeForce MX150 |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce MX150 |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Discrete graphics card memory | 2 GB |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.0 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio Pro |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3254 |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | Y |
| Full-size keyboard | Y |
| Keyboard layout | QWERTZ |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Keyboard language | German |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Drivers included | Y |
| Bundled software | Financial Tracker & Retail Information |
| Trial software | Microsoft Office, McAfee LiveSafe (30 days Trial), Microsoft Office (30 days Trial - Excludes Office License) |
| Battery | |
| Removable battery | N |
| Battery recharge time | 4 h |
| Number of battery cells | 4 |
| Battery capacity | 56 Wh |
| Battery capacity (Watt hours) | 56 Wh |
| Battery voltage | 15.2 V |
| Weight & dimensions | |
| Weight | 2.94 kg |
| Height (rear) | 2.15 cm |
| Height (front) | 1.61 cm |
| Depth | 273.9 mm |
| Width | 412.5 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 3.34 A |
| Security | |
| Fingerprint reader | Y |
| Password protection | Y |
| Password protection type | BIOS, User |
