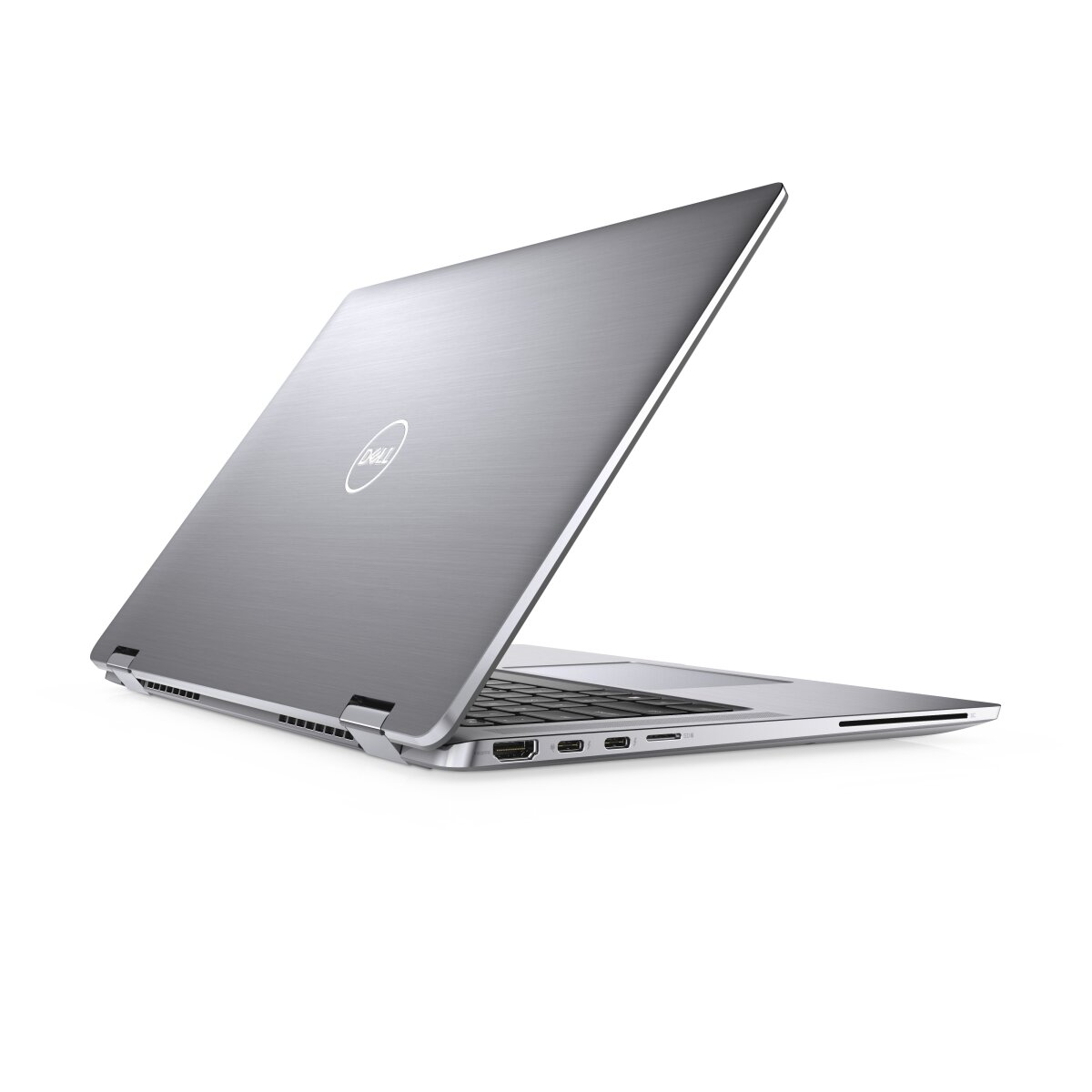

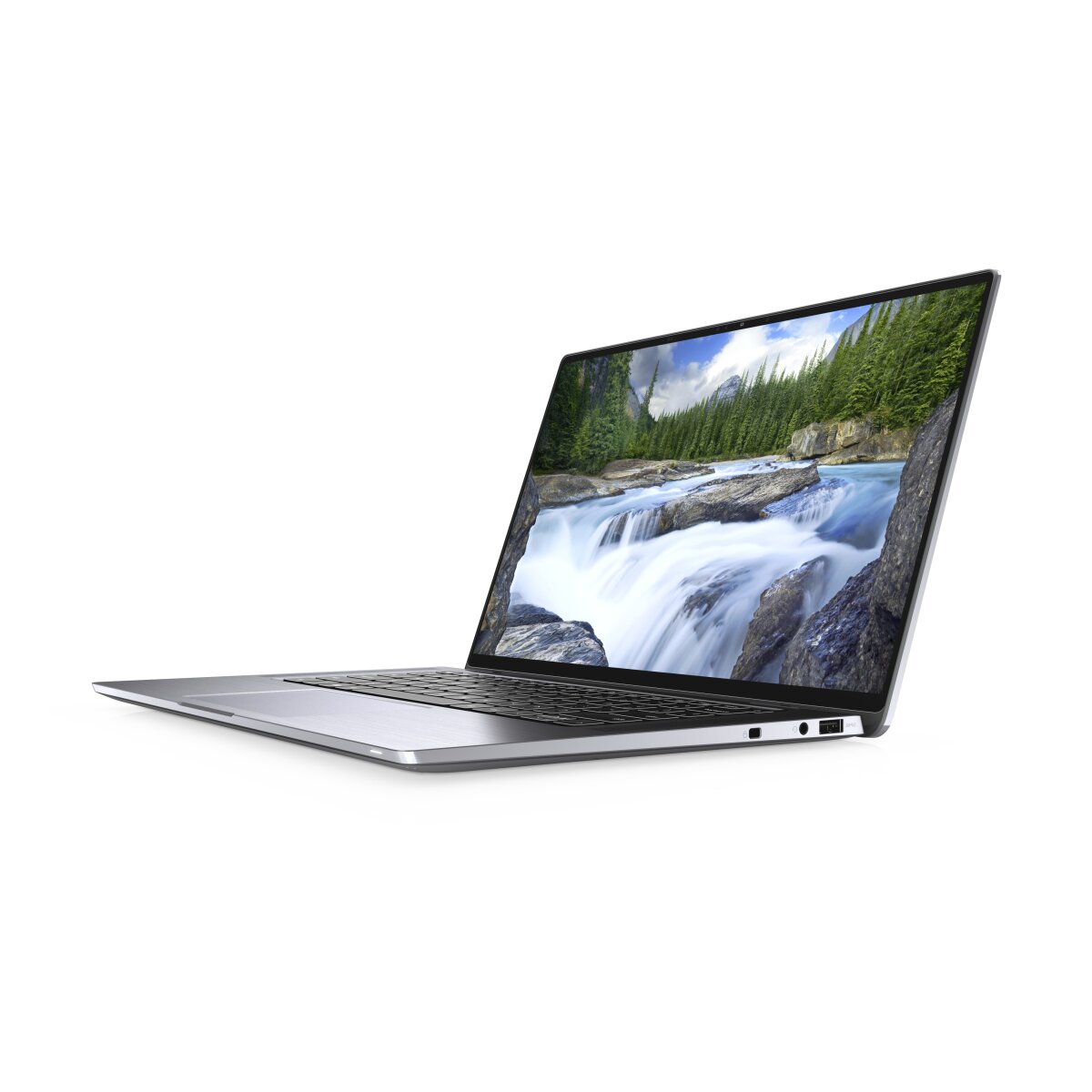

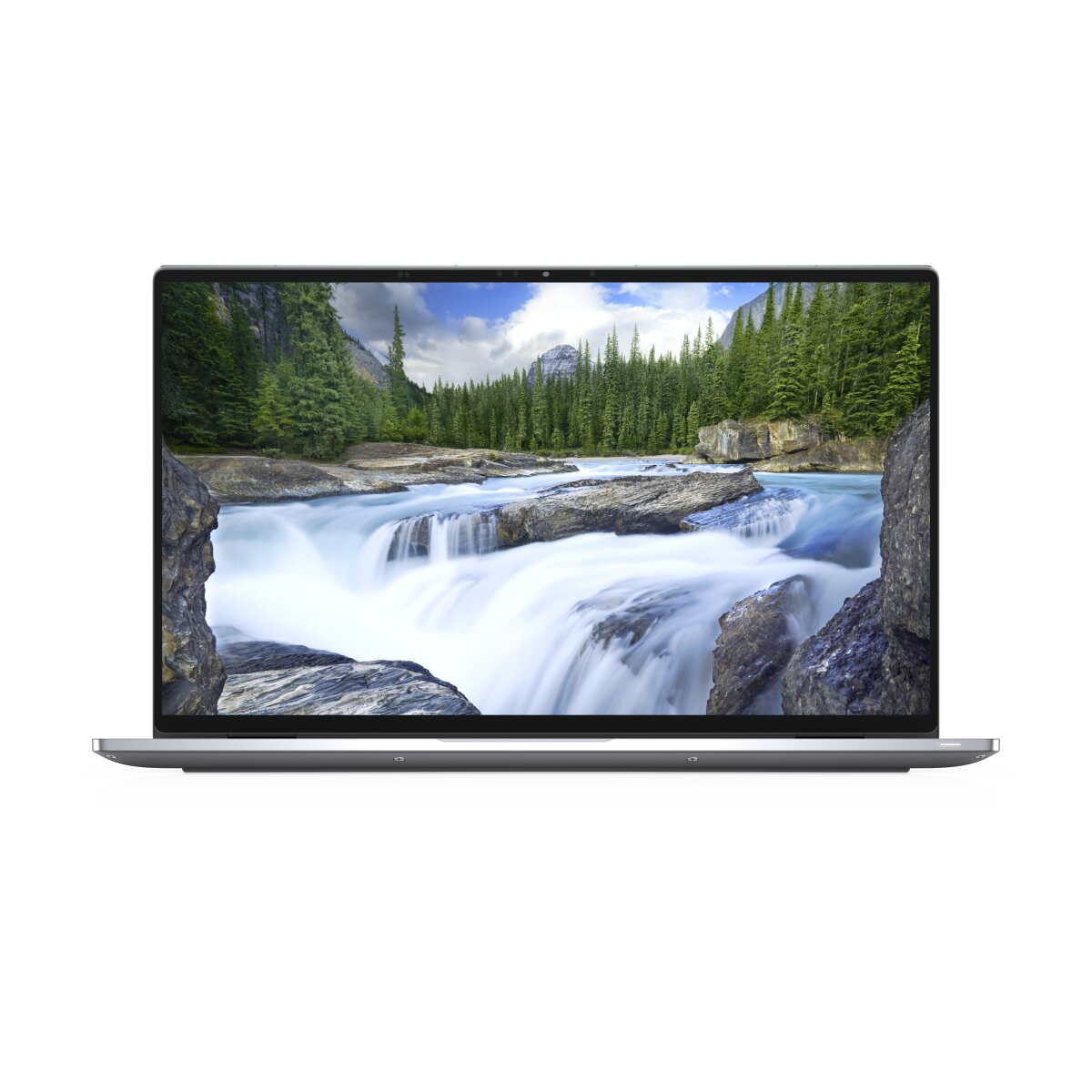

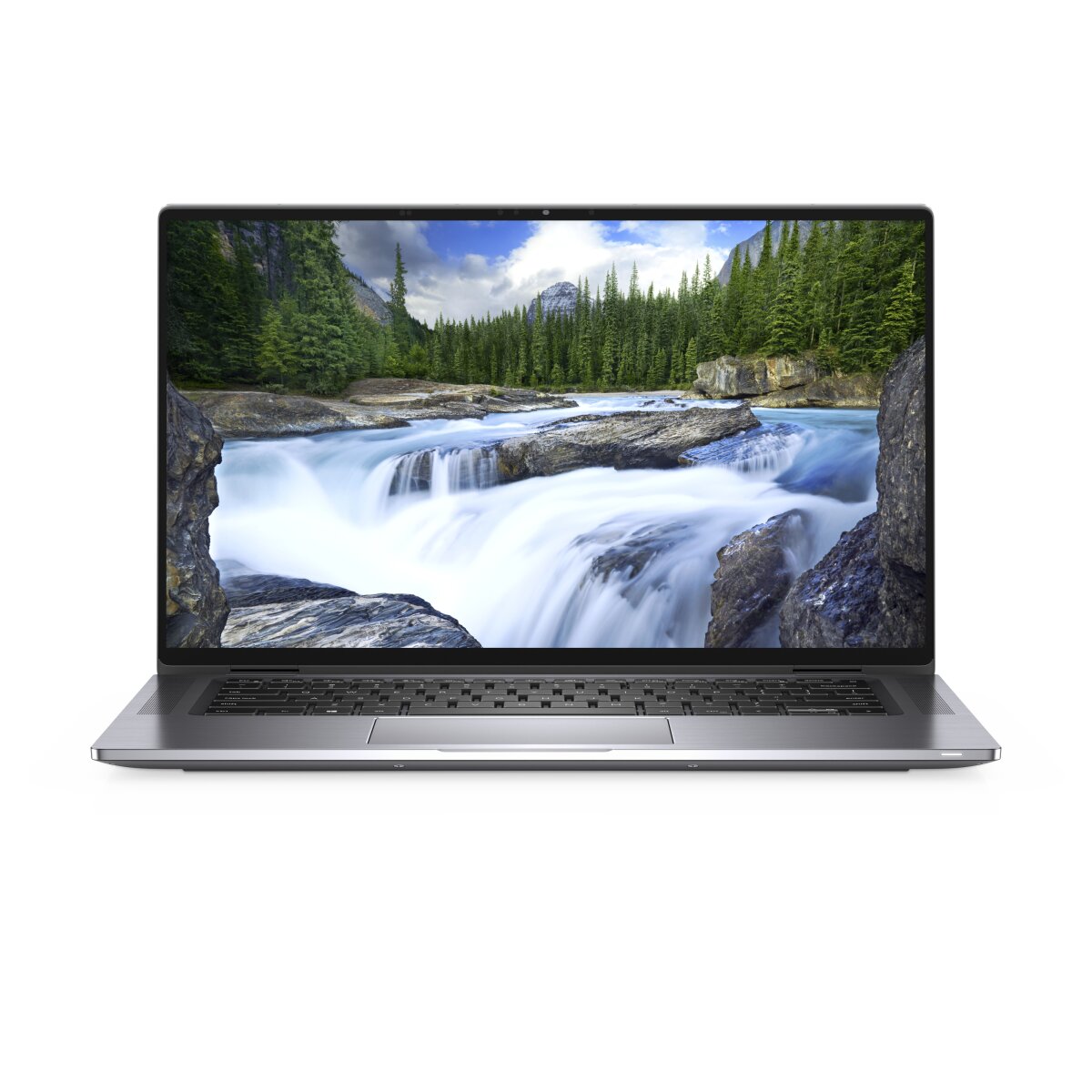

DELL Latitude 9520 - JXPY8-REFA
DELL Latitude 9520
Product code: JXPY8-REFA
- 💻Display diagonal: 15 inch
- 🔳Processor model: i7-1185G7
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.5 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Market positioning | Business |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 15 inch |
| Maximum refresh rate | 60 Hz |
| Display response rise/fall | 35 ms |
| Pixel density | 147 ppi |
| Contrast ratio (typical) | 1200:1 |
| Pixel pitch | 0.172 x 0.172 mm |
| Display brightness | 400 cd/m² |
| Panel type | WVA |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Latitude |
| Series | 9000 |
| Model name | 9520 |
| Part Number | JXPY8-REFA |
| Release Date | 01 December 2022 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor boost frequency | 4.8 GHz |
| Processor model | i7-1185G7 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 3 GHz |
| Configurable TDP-up | 28 W |
| Processor generation | 11th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR4x-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 4267 MHz |
| Maximum internal memory | 16 GB |
| ECC | No |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| PowerShare | Yes |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB4 Gen 2x2 ports quantity | 2 |
| Thunderbolt technology | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio |
| Speaker power | 2 W |
| Audio chip | Realtek ALC714-CG |
| Speakers manufacturer | Waves |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |
| Privacy type | Privacy shutter |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | SinglePoint |
| Performance | |
| Ambient light sensor | Yes |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery weight | 240 g |
| Battery recharge time | 4 h |
| Number of battery cells | 4 |
| Battery capacity | 49 Wh |
| Battery voltage | 7.6 V |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Height (rear) | 1.48 cm |
| Height (front) | 9.13 mm |
| Depth | 215.8 mm |
| Width | 340.2 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 5, 9, 15, 20 V |
| Security | |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Dell ControlVault | Yes |
| Other features | |
| Display diagonal (metric) | 38 cm |
| Anti-glare screen | Yes |
| Sustainability | |
| Doesn't contain | Halogen, PVC/BFR |
