DELL Latitude 5511 - AL5511

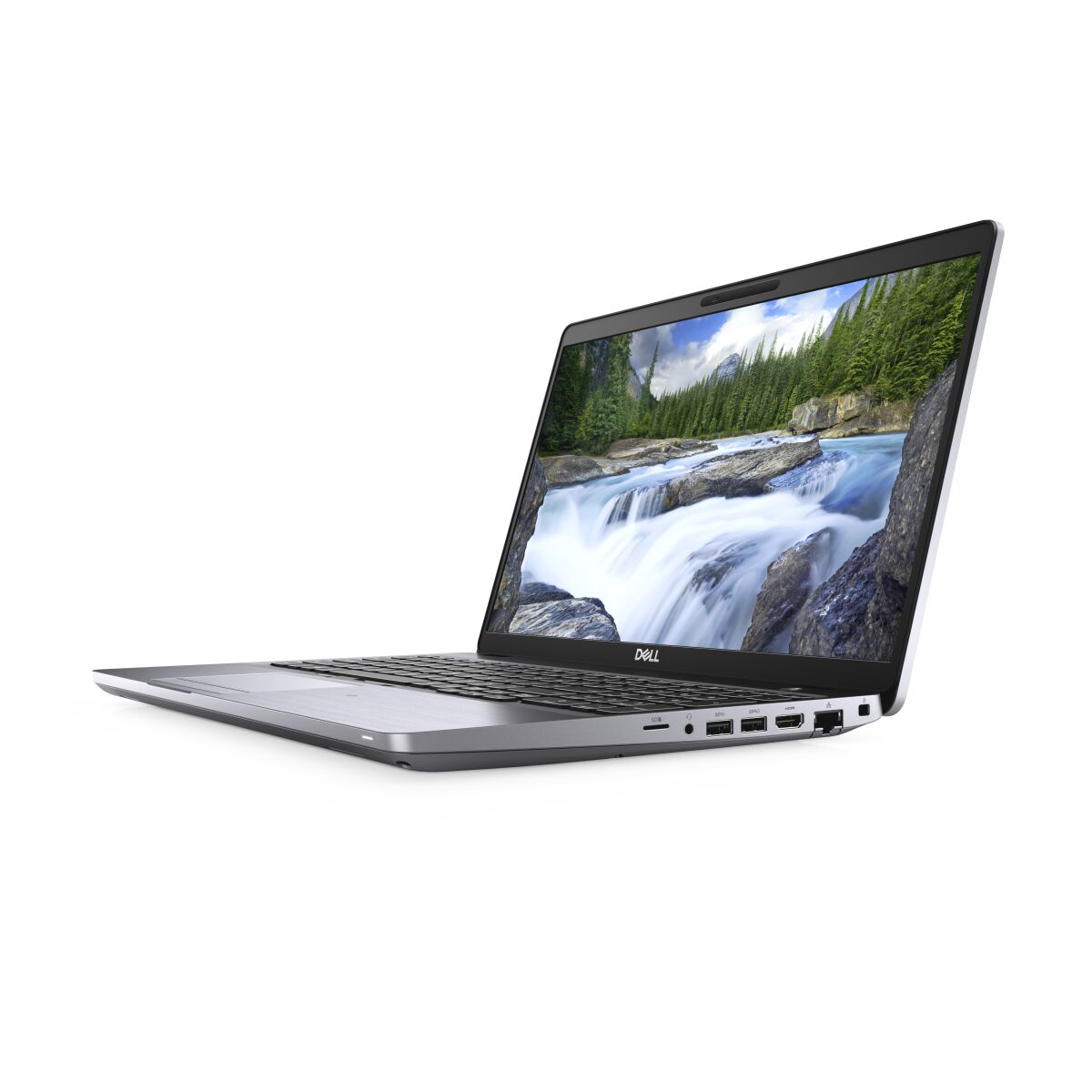

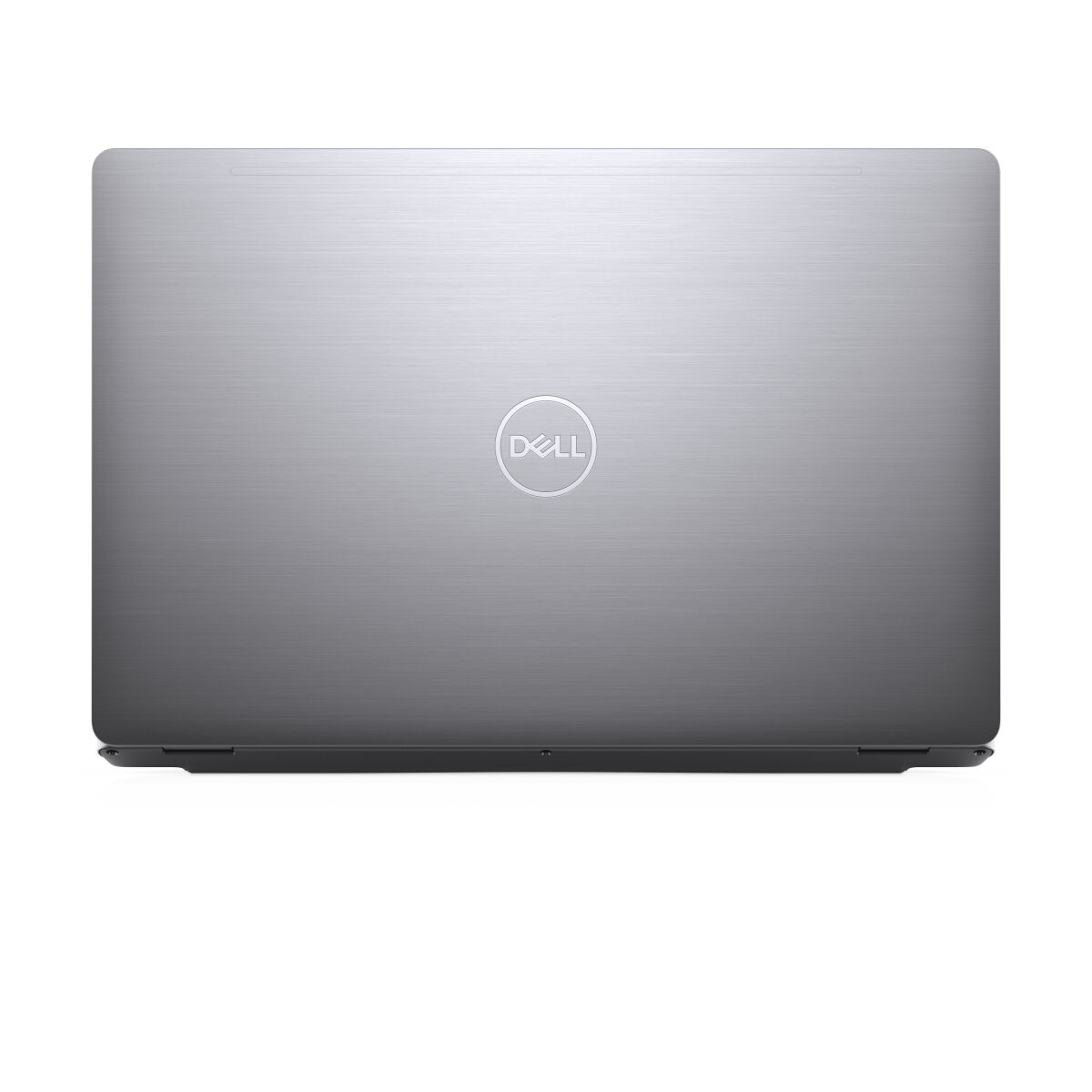

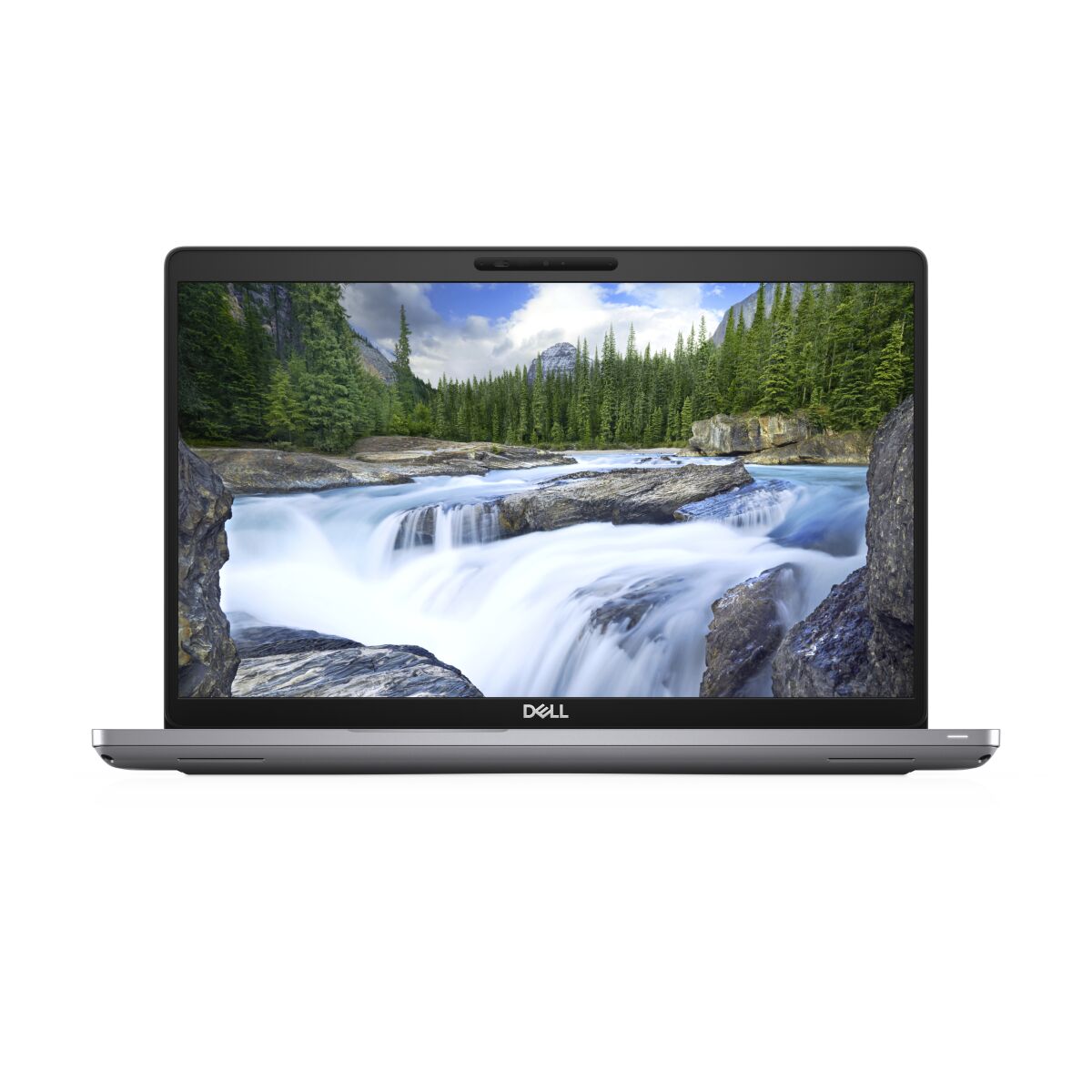

DELL Latitude 5511
Product code: AL5511
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i5-10300H
- 🎫Internal memory: 4 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 128 GB
- ⚖️Weight: 1.89 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 60 Hz |
| Pixel density | 100 ppi |
| Display brightness | 220 cd/m² |
| Panel type | WVA |
| Aspect ratio | 16:9 |
| HD type | HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Latitude |
| Series | 5000 |
| Model name | 5511 |
| Part Number | AL5511 |
| Release Date | 16 June 2020 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.5 GHz |
| Motherboard chipset | Intel WM490 |
| Processor boost frequency | 4.5 GHz |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i5-10300H |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 10th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 4 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 4 GB |
| ECC | No |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel UHD Graphics |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1050 MHz |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9BC4 |
| Storage | |
| Total storage capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Total SSDs capacity | 128 GB |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| Charging port type | DC-in jack |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio Pro |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3204 |
| Speakers manufacturer | Waves |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera resolution (numeric) | 5 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Full-size keyboard | Yes |
| Keyboard backlit | Yes |
| Pointing device | DualPoint |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery weight | 250 g |
| Battery capacity (Watt-hours) | 51 Wh |
| Battery recharge time | 4 h |
| Number of battery cells | 3 |
| Battery capacity | 51 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 1.89 kg |
| Height (rear) | 2.49 cm |
| Height (front) | 2.25 cm |
| Depth | 236.2 mm |
| Width | 359.1 mm |
| Power | |
| AC adapter power | 90 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Yes |
| Password protection | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
