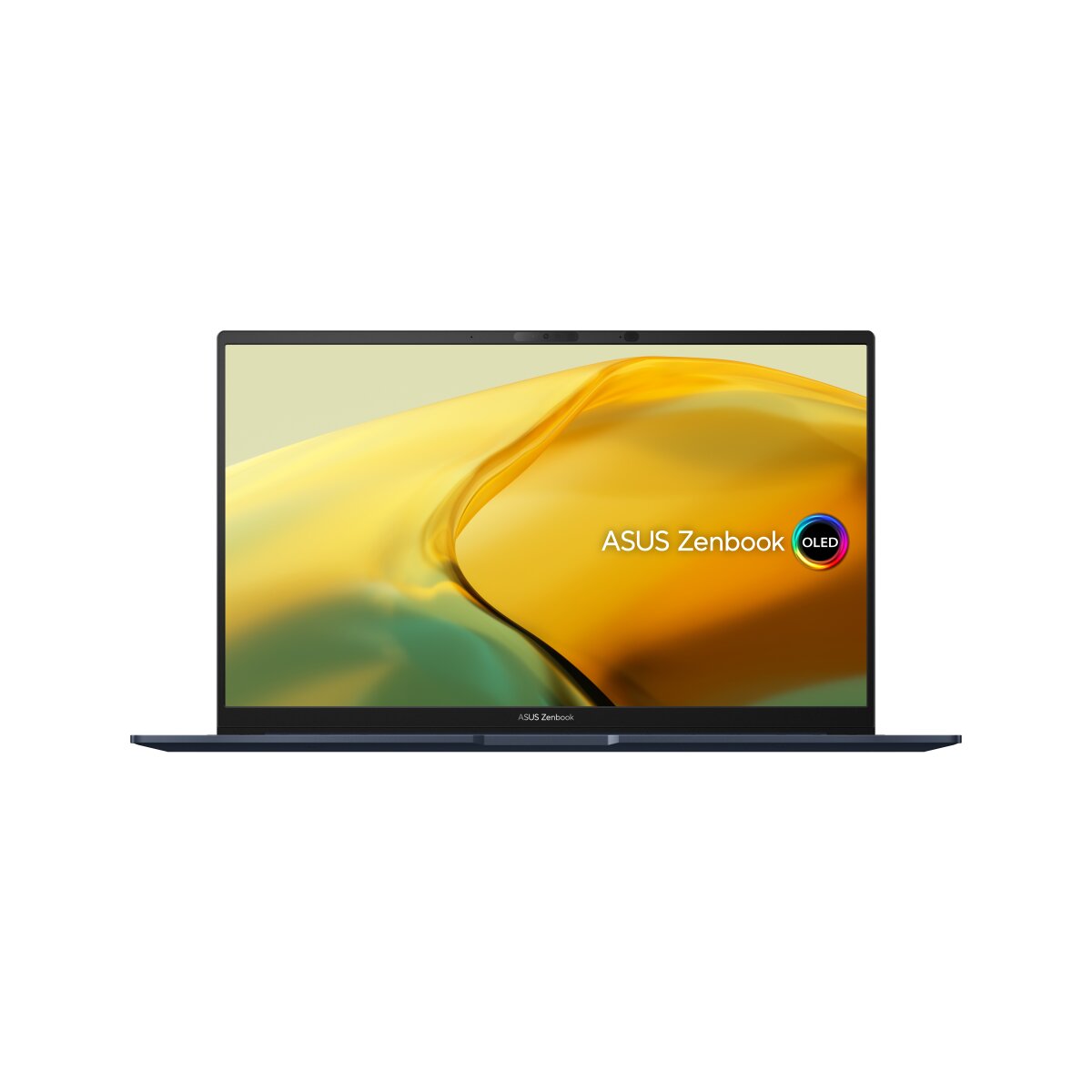

ASUS ZenBook 15 OLED UM3504DA-NX013W - 90NB1161-M009L0
ASUS ZenBook 15 OLED UM3504DA-NX013W
Product code: 90NB1161-M009L0
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: 7535U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.4 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Blue |
| Product type | Notebook |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Introduction year | 2023 |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 120 Hz |
| Display response rise/fall | 0.2 ms |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 400 cd/m² |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | 2.8K |
| Touchscreen | N |
| Display resolution | 2880 x 1620 pixels |
| High Dynamic Range (HDR) technology | HDR True Black 600 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| High Dynamic Range (HDR) supported | Y |
| Maximum display brightness (HDR) | 600 cd/m² |
| Brand | ASUS |
| Family | ZenBook |
| Series | 15 OLED |
| Model name | UM3504DA-NX013W |
| Part Number | 90NB1161-M009L0 |
| Release Date | 22 April 2023 |
| EAN/UPC code | 4711387142899, 0197105142893, 197105142893 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 5 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.55 GHz |
| Processor model | 7535U |
| Processor cores | 6 |
| Processor cache | 19 MB |
| Memory | |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Graphics | |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon 660M |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 1x1 |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery | Y |
| Charging port type | USB Type-C |
| HDMI version | 2.1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB4 Gen 3x2 ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Audio system | Smart Amp |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Y |
| Windows Hello | Y |
| Infrared (IR) camera | Y |
| Front camera HD type | Full HD |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee LiveSafe 30 days |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 67 Wh |
| Weight & dimensions | |
| Weight | 1.4 kg |
| Height (rear) | 1.58 cm |
| Height (front) | 1.49 cm |
| Depth | 226.6 mm |
| Width | 354.8 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 3.25 A |
| Security | |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Trusted Platform Module (TPM) version | 2.0 |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
