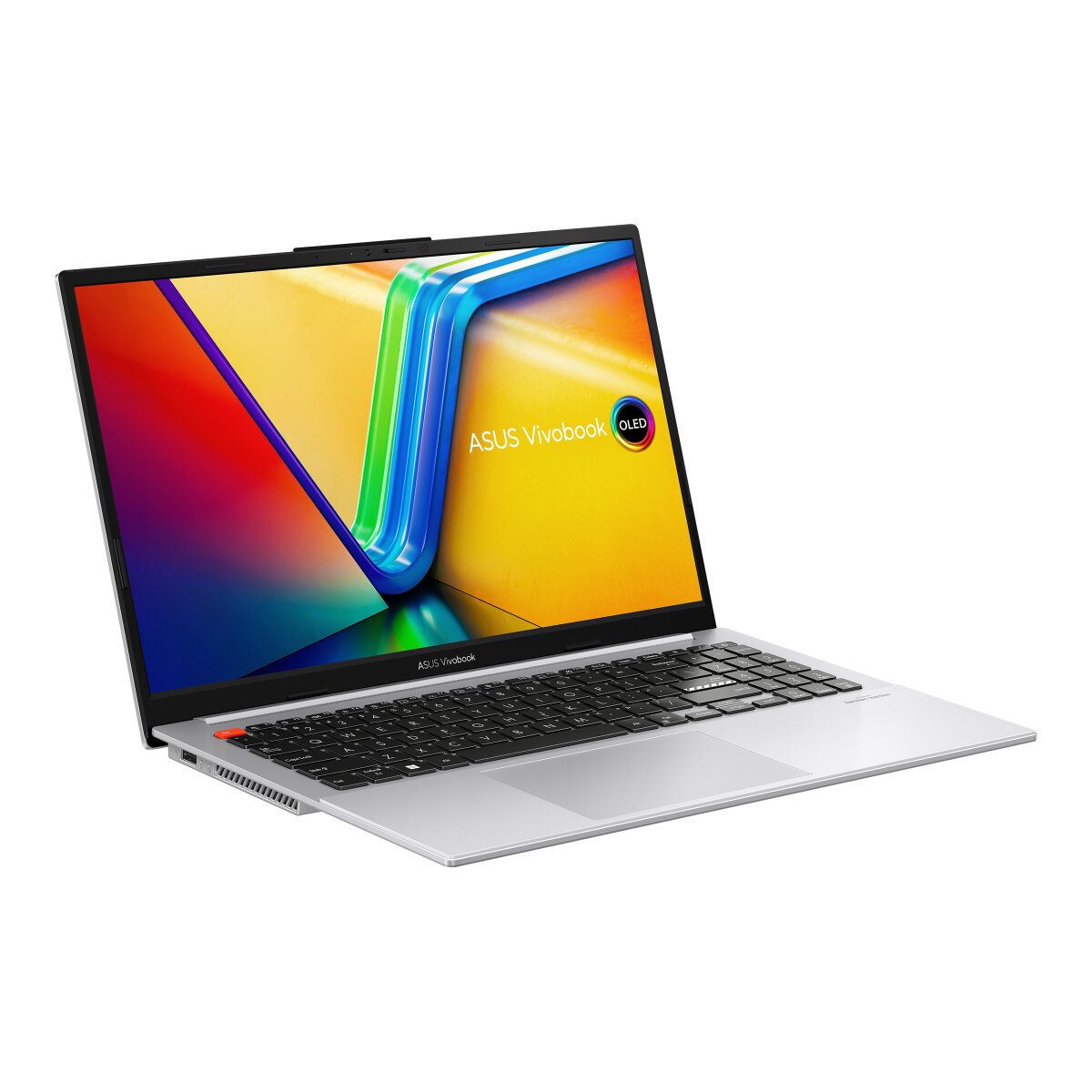

ASUS VivoBook S5504VN-L1061W - 90NB0ZQ3-M00710
ASUS VivoBook S5504VN-L1061W
Product code: 90NB0ZQ3-M00710
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-13700H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1000 GB
- ⚖️Weight: 1.7 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Notebook |
| Form factor | Clamshell |
| Housing material | Aluminium, Plastic |
| Introduction year | 2023 |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 120 Hz |
| Display response rise/fall | 0.2 ms |
| Contrast ratio (typical) | 1000000:1 |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | Full HD |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| High Dynamic Range (HDR) technology | HDR True Black 600 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| High Dynamic Range (HDR) supported | Y |
| Maximum display brightness (HDR) | 600 cd/m² |
| Brand | ASUS |
| Family | VivoBook |
| Series | S 15 OLED |
| Model name | S5504VN-L1061W |
| Part Number | 90NB0ZQ3-M00710 |
| Release Date | 07 February 2023 |
| EAN/UPC code | 4711387142561, 0197105142565, 197105142565 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor cores | 14 |
| Processor cache | 24 MB |
| Processor generation | 13th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | Intel |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | Intel Arc A350M |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 1000 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Power Delivery | Y |
| Charging port type | DC-in jack |
| HDMI version | 1.4 |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Y |
| Power adapter barrel connector | 4.5 mm |
| Audio | |
| Built-in microphone | Y |
| Audio system | Smart Amp |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Y |
| Privacy camera | Y |
| Front camera HD type | Full HD |
| Privacy type | Privacy shutter |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee LiveSafe 30 days |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 70 Wh |
| Weight & dimensions | |
| Weight | 1.7 kg |
| Height | 17.9 mm |
| Depth | 229.4 mm |
| Width | 359.3 mm |
| Power | |
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Security | |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | BIOS, User |
