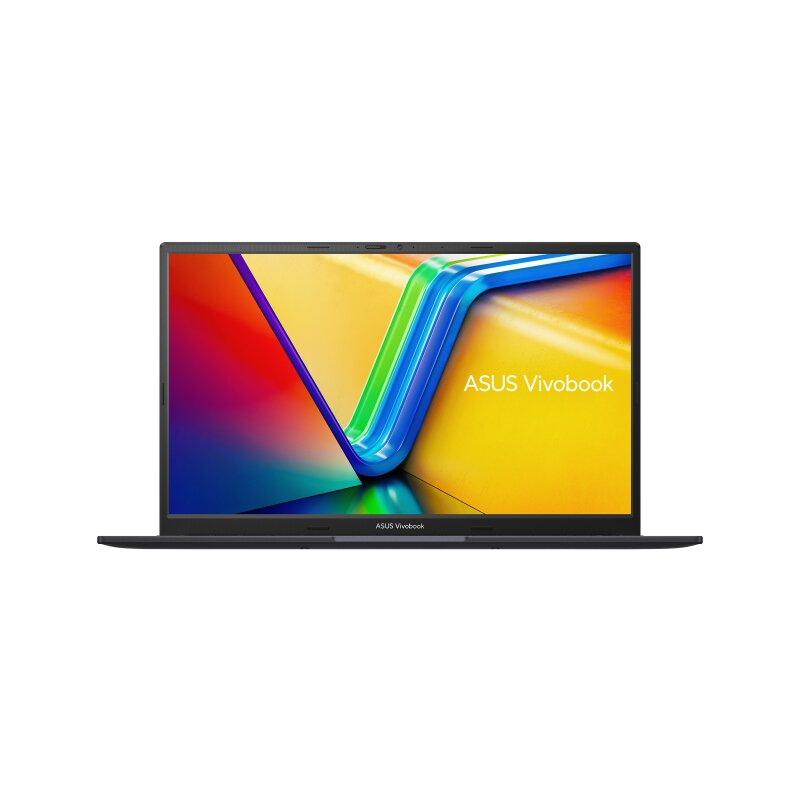

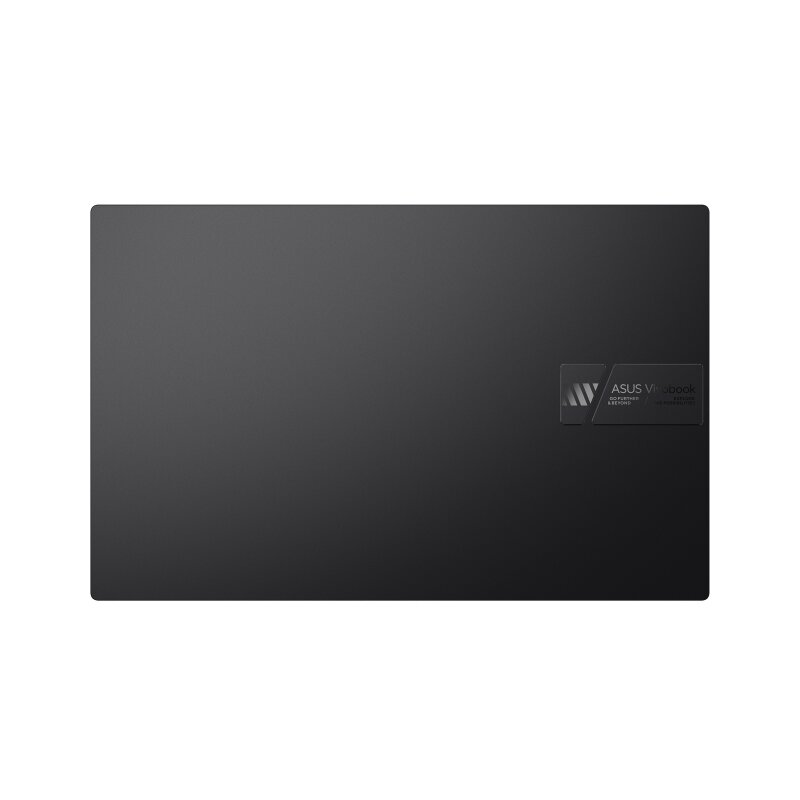

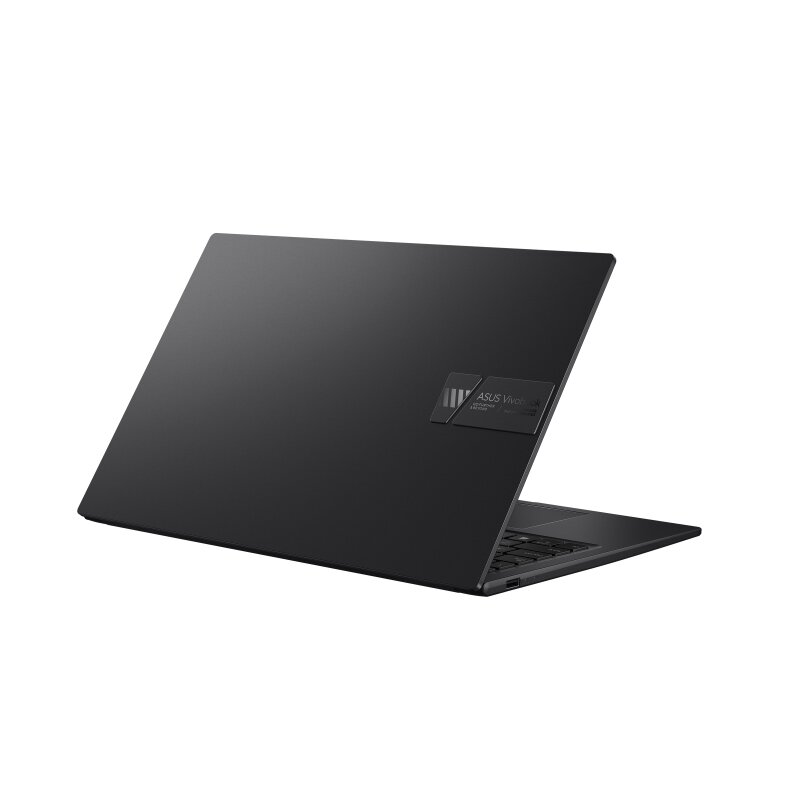

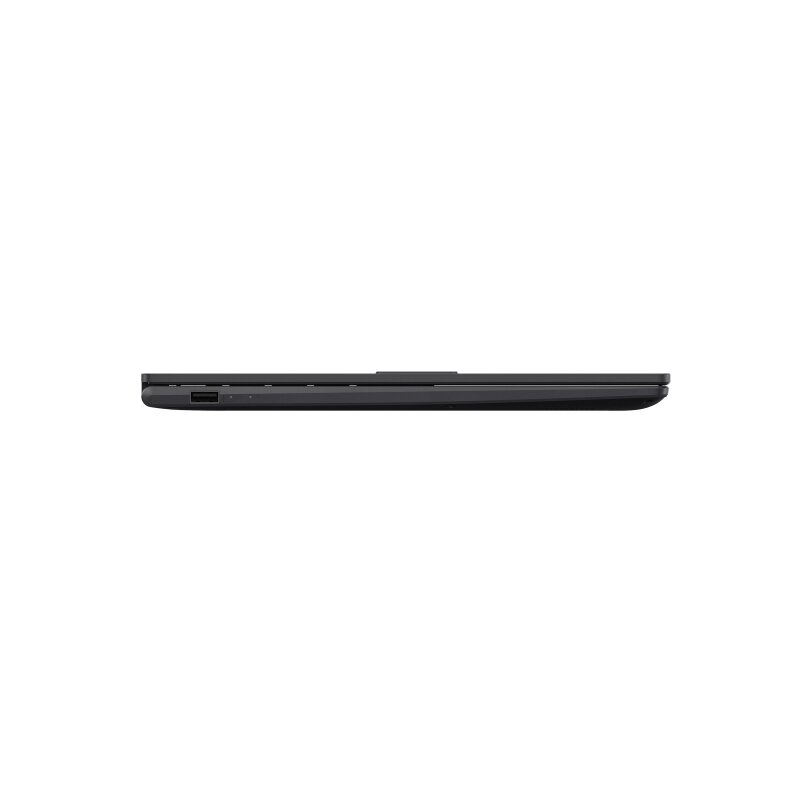

ASUS VivoBook 15X OLED M3504YA-L1168W - 90NB1181-M00640
ASUS VivoBook 15X OLED M3504YA-L1168W
Product code: 90NB1181-M00640
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: 7730U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.6 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Home |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000000:1 |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | Full HD |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| High Dynamic Range (HDR) technology | HDR True Black 600 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| High Dynamic Range (HDR) supported | Y |
| Maximum display brightness (HDR) | 600 cd/m² |
| Brand | ASUS |
| Family | VivoBook |
| Series | 15X OLED |
| Model name | M3504YA-L1168W |
| Part Number | 90NB1181-M00640 |
| Release Date | 13 March 2023 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 7 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 4.5 GHz |
| Processor model | 7730U |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon Graphics |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Bluetooth | Y |
| Bluetooth version | 5.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery | Y |
| Charging port type | DC-in jack |
| HDMI version | 1.4 |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Weight & dimensions | |
| Weight | 1.6 kg |
| Height | 17.9 mm |
| Depth | 232.5 mm |
| Width | 359.7 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Security | |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | BIOS, User |
