ASUS TUF Gaming FX507ZC4-HN066W - 90NR0GW2-M008S0

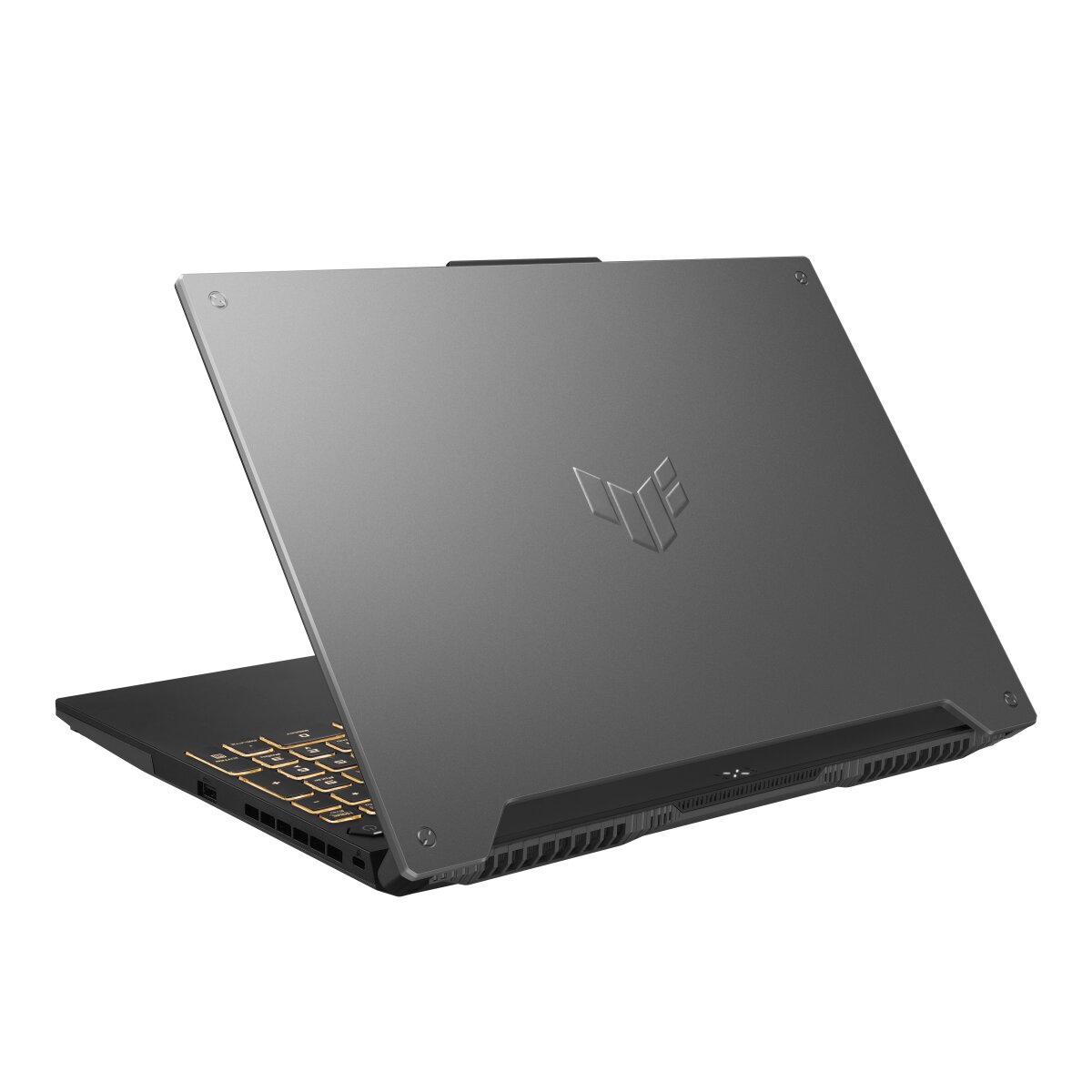

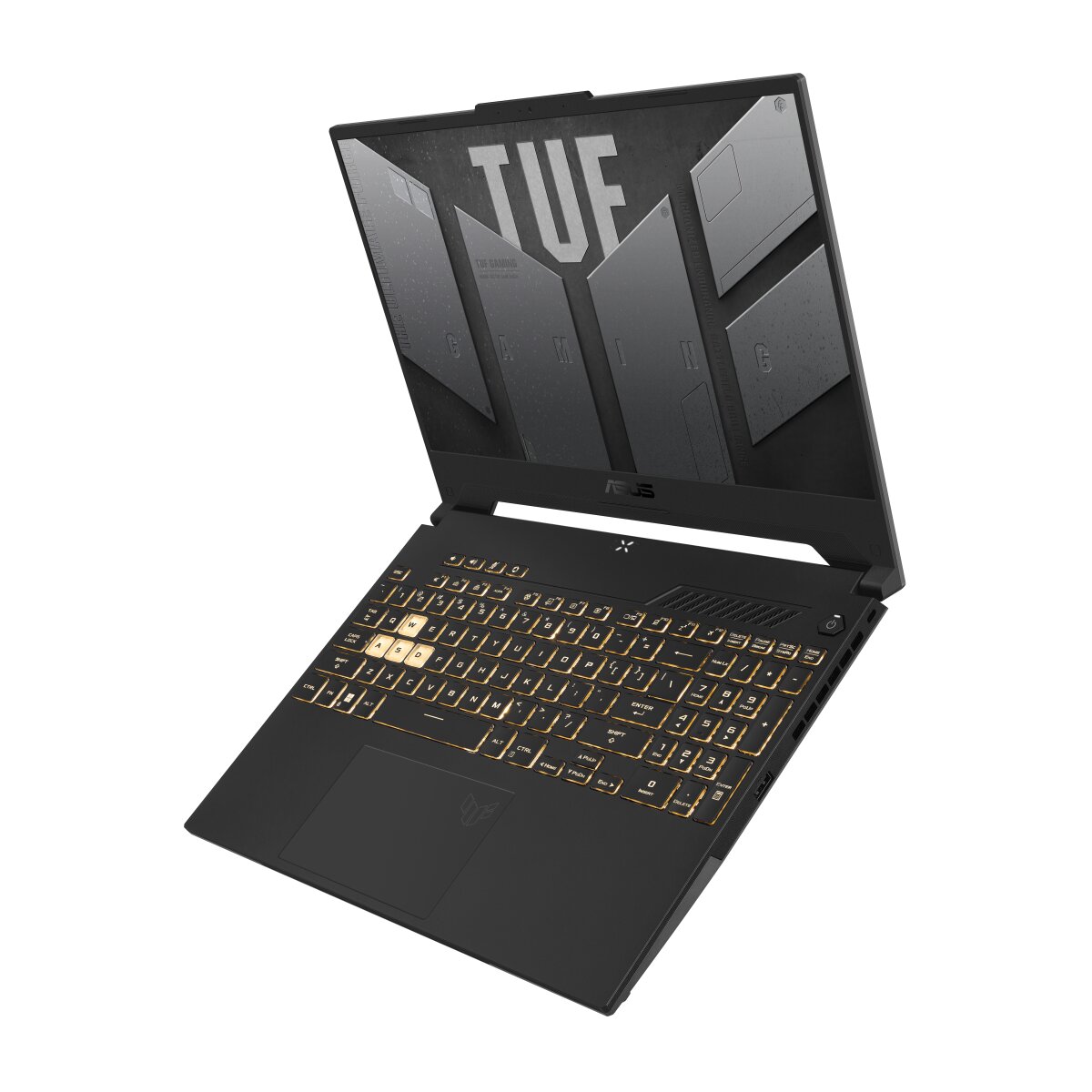

ASUS TUF Gaming FX507ZC4-HN066W
Product code: 90NR0GW2-M008S0
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-12700H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 2.2 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Grey |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 144 Hz |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | sRGB |
| Colour gamut | 62.5% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | TUF Gaming |
| Series | F15 |
| Model name | FX507ZC4-HN066W |
| Part Number | 90NR0GW2-M008S0 |
| Release Date | 20 June 2023 |
| EAN/UPC code | 4711387055731 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor model | i7-12700H |
| Processor cores | 14 |
| Processor cache | 24 MB |
| Processor generation | 12th gen Intel Core i7 |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
| Performance-core base frequency | 4.7 GHz |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory channels | Dual-channel |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce RTX 3050 |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit colour | RGB |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Keyboard backlit zone | 1-zone RGB |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 56 Wh |
| Fast charging time (50%) | 30 min |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Height (rear) | 2.49 cm |
| Height (front) | 2.24 cm |
| Depth | 251 mm |
| Width | 354 mm |
| Power | |
| AC adapter power | 200 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 10 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | BIOS, User |
| Other features | |
| Anti-glare screen | Y |
