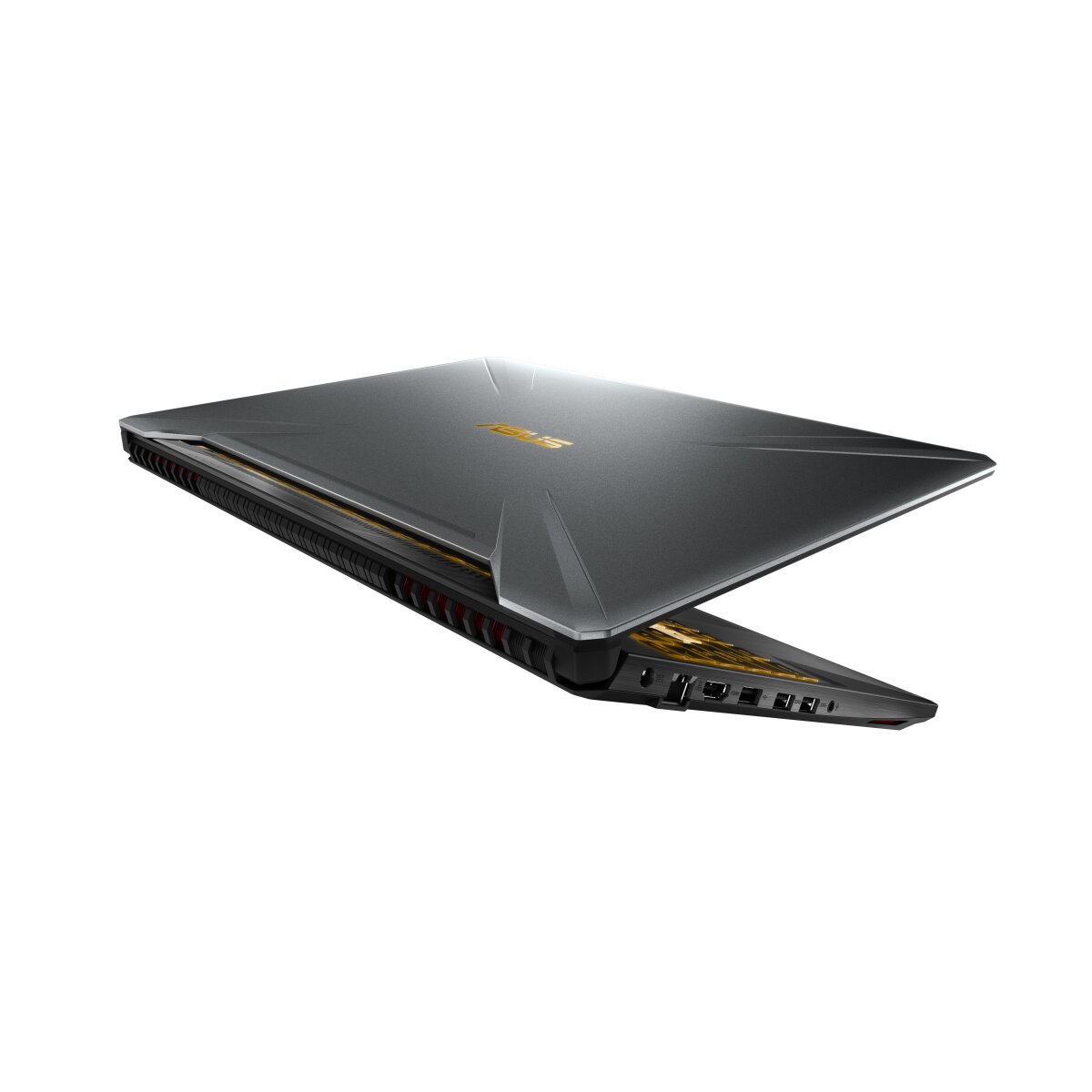

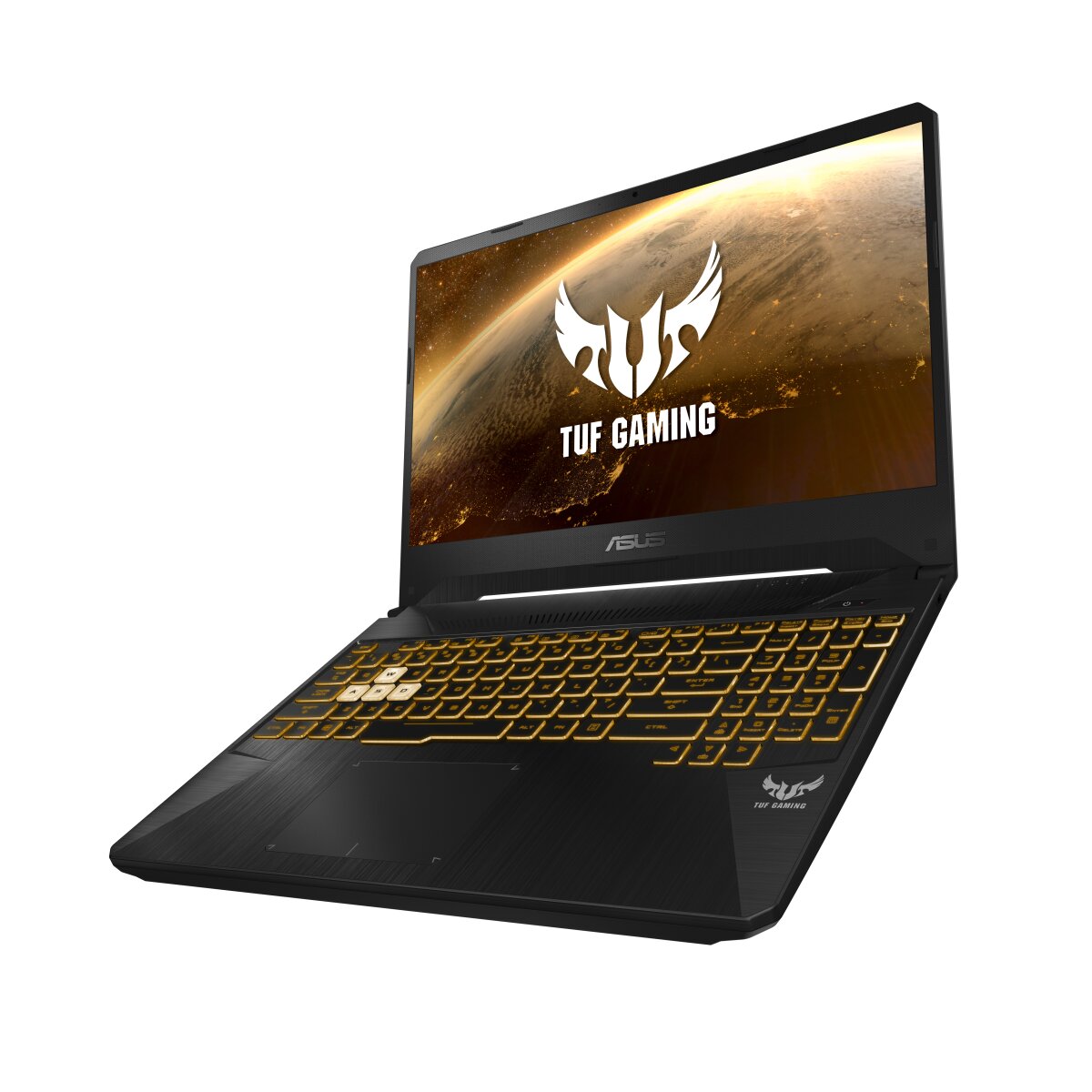

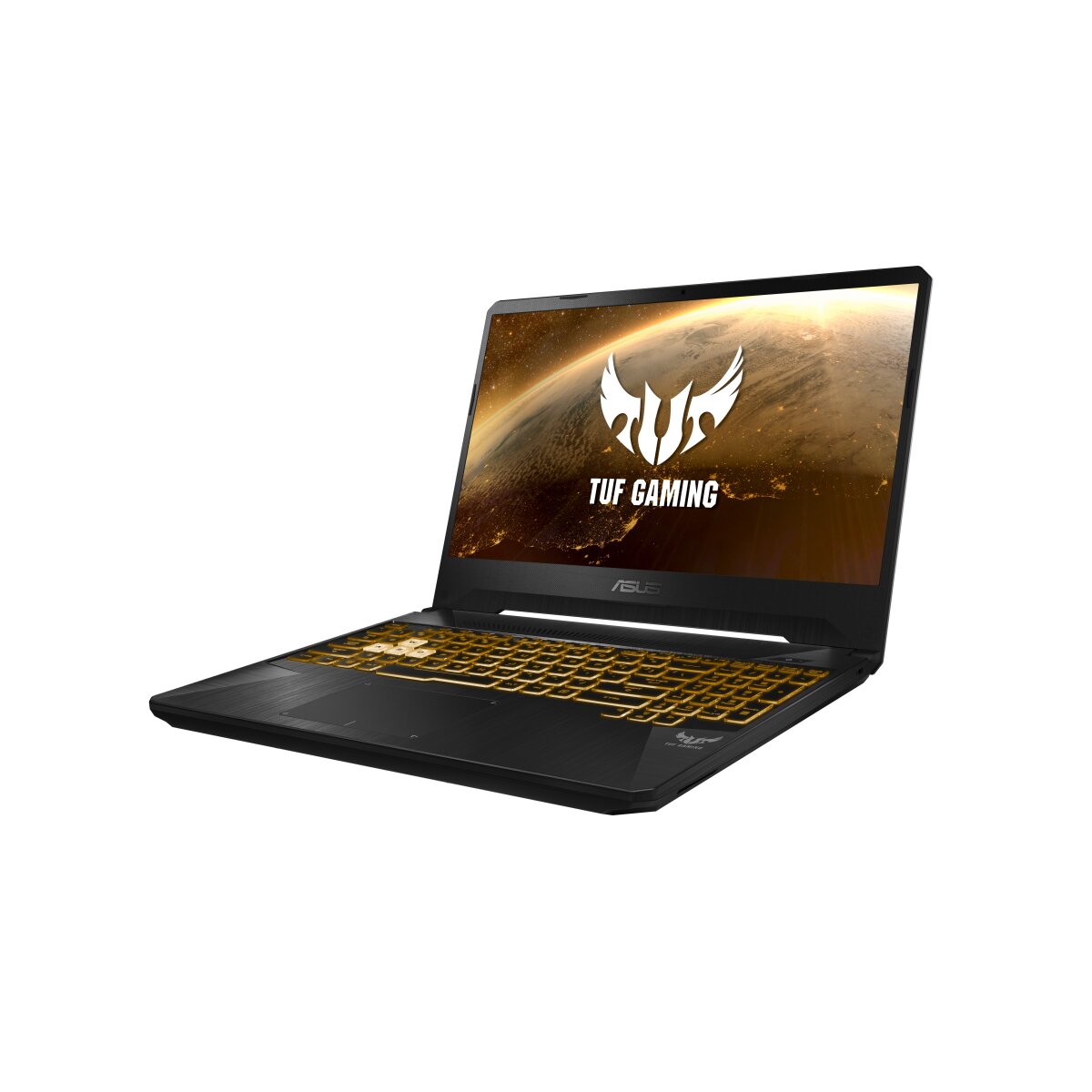

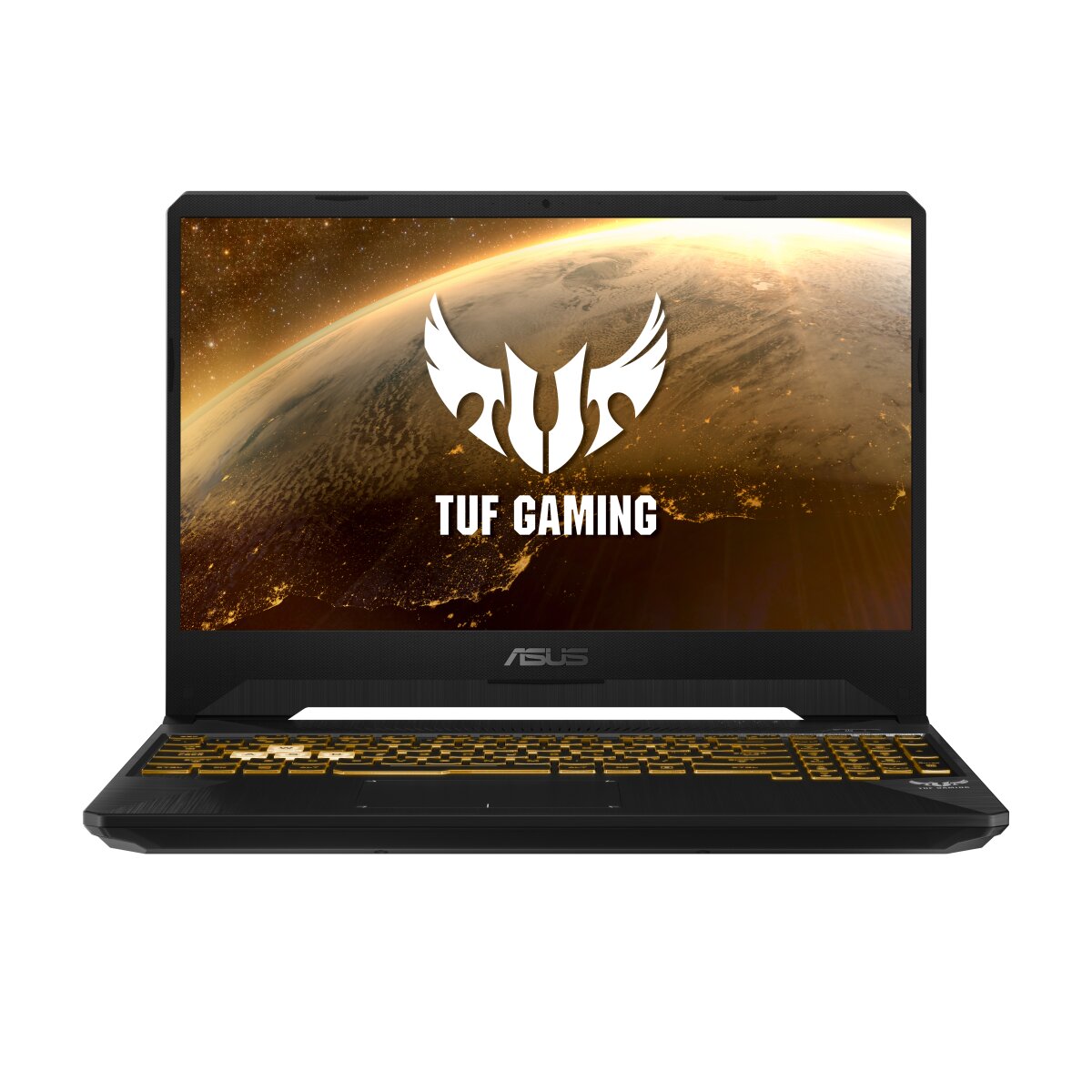

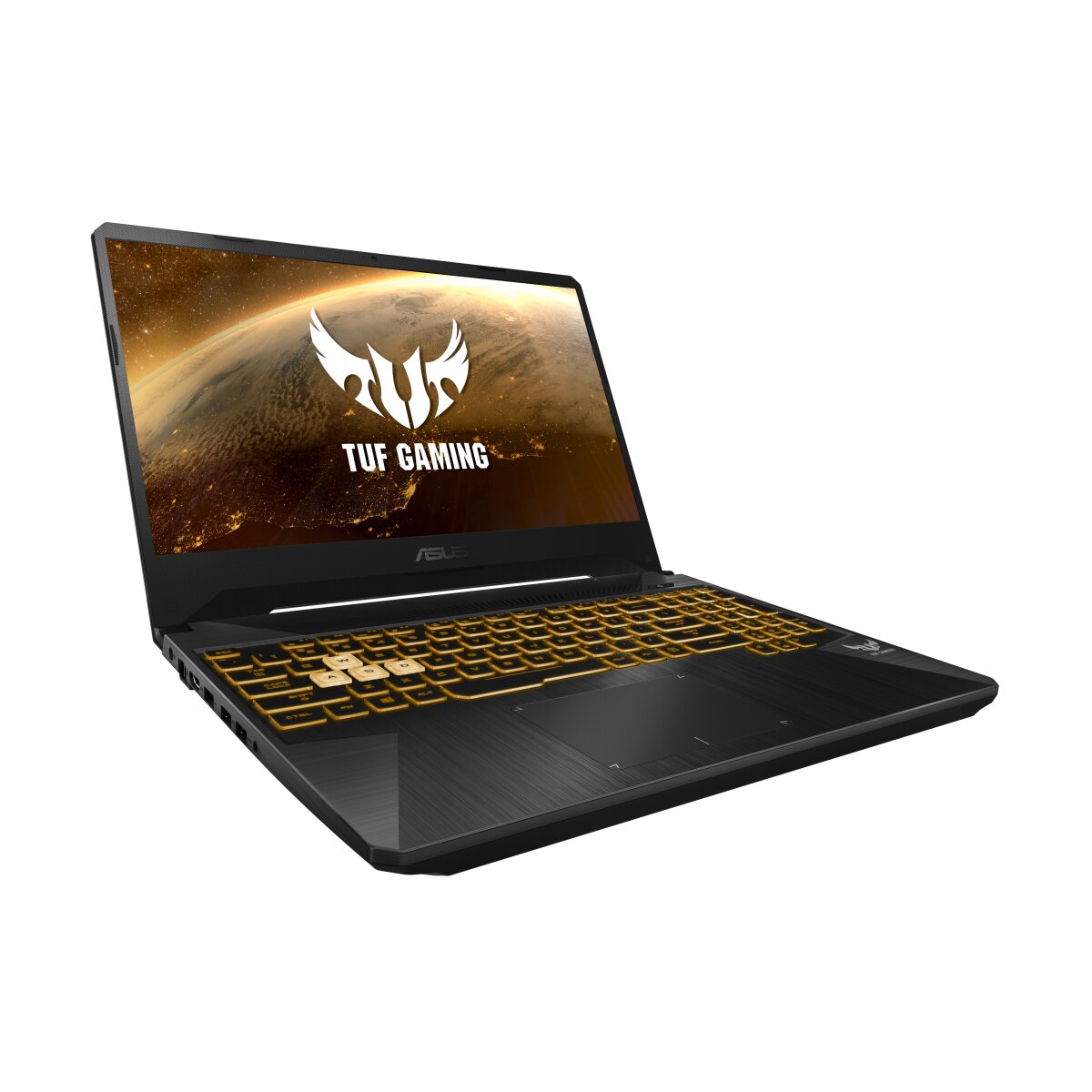

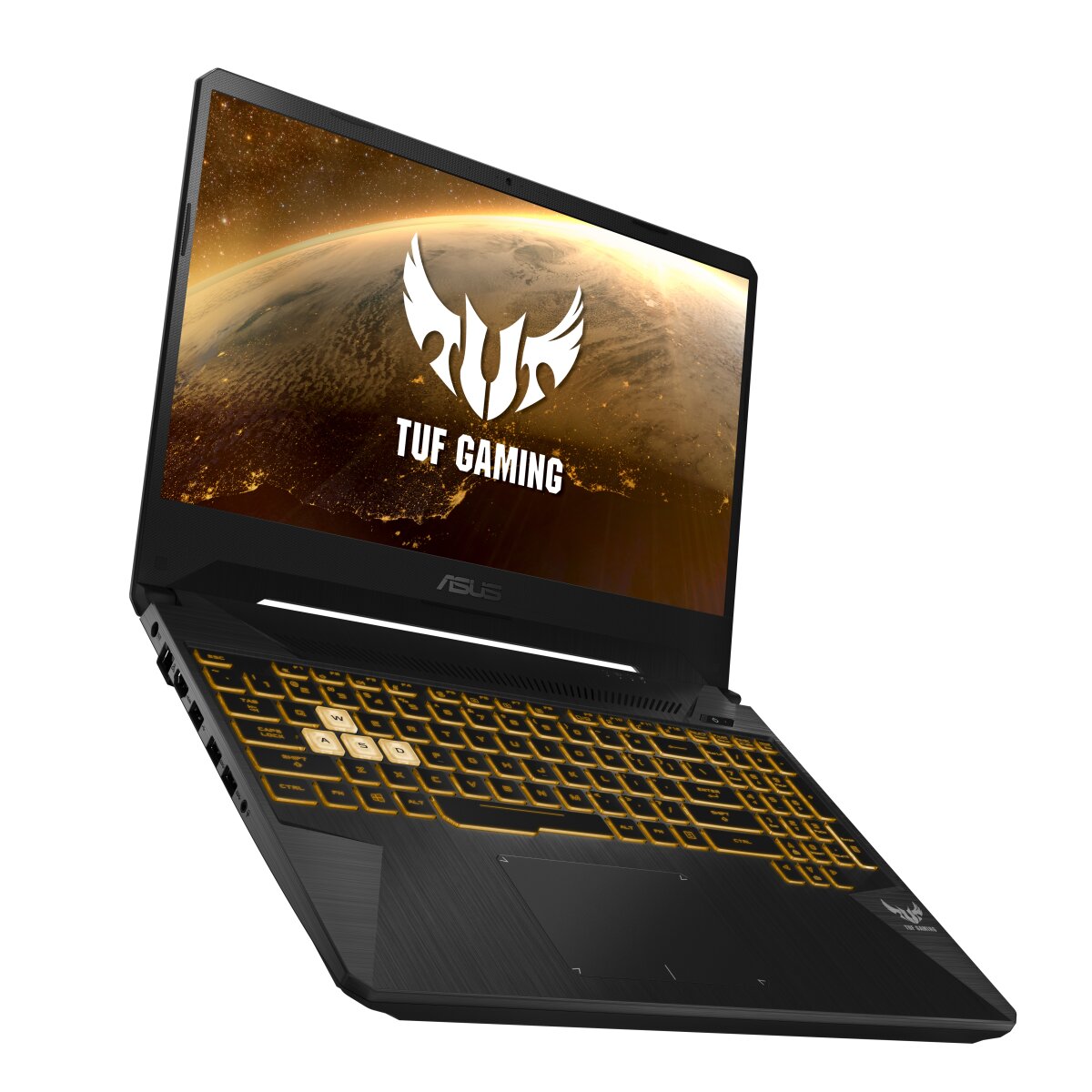

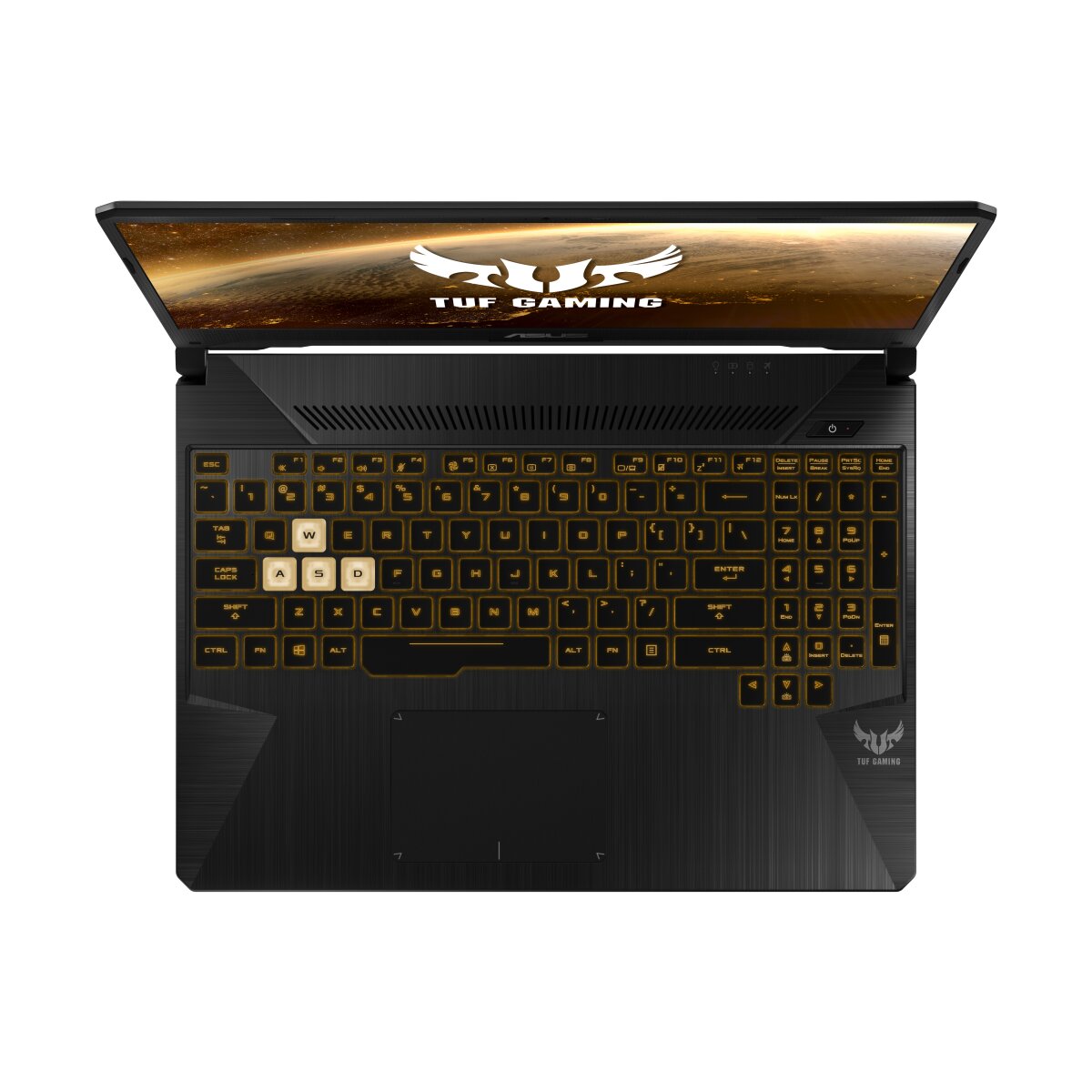

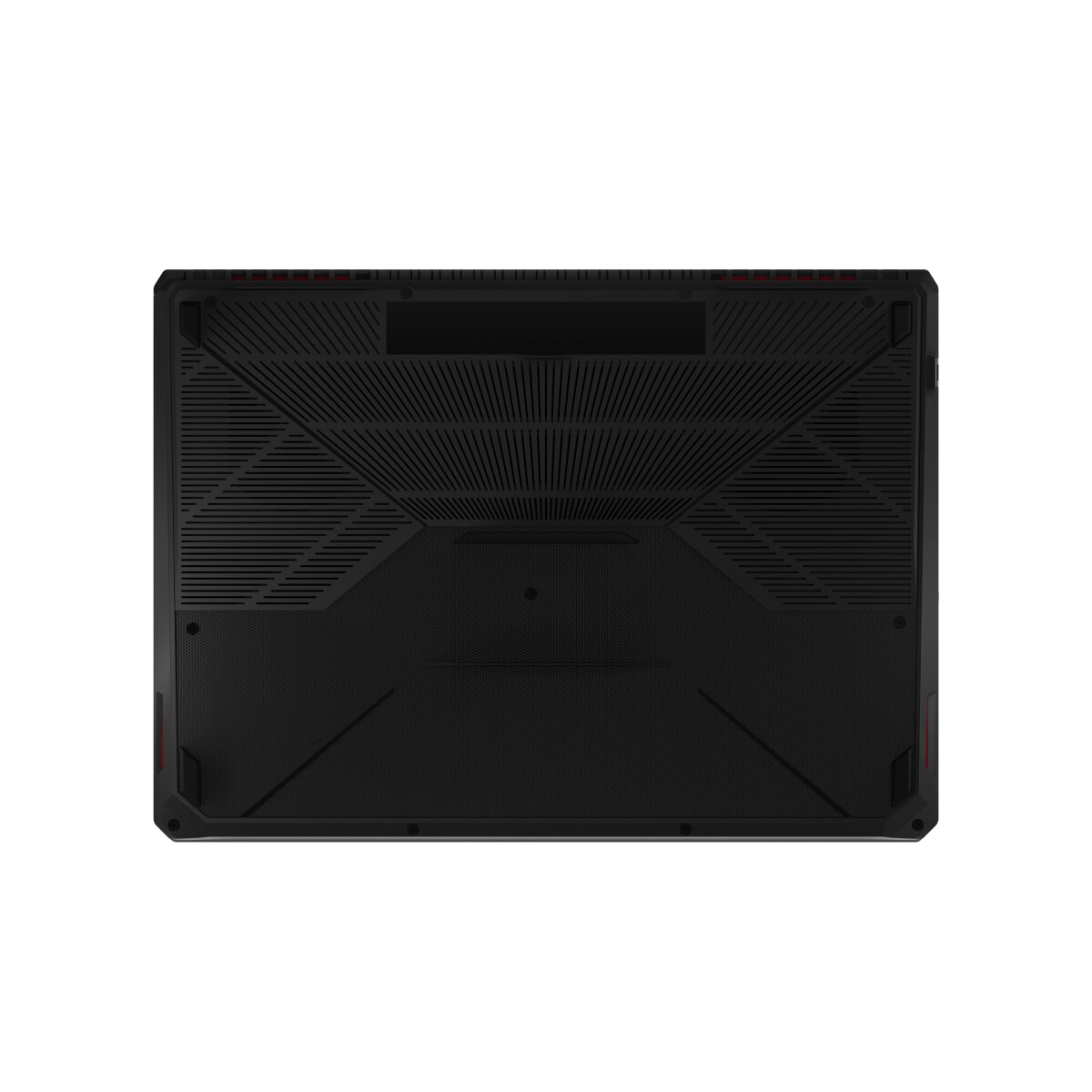

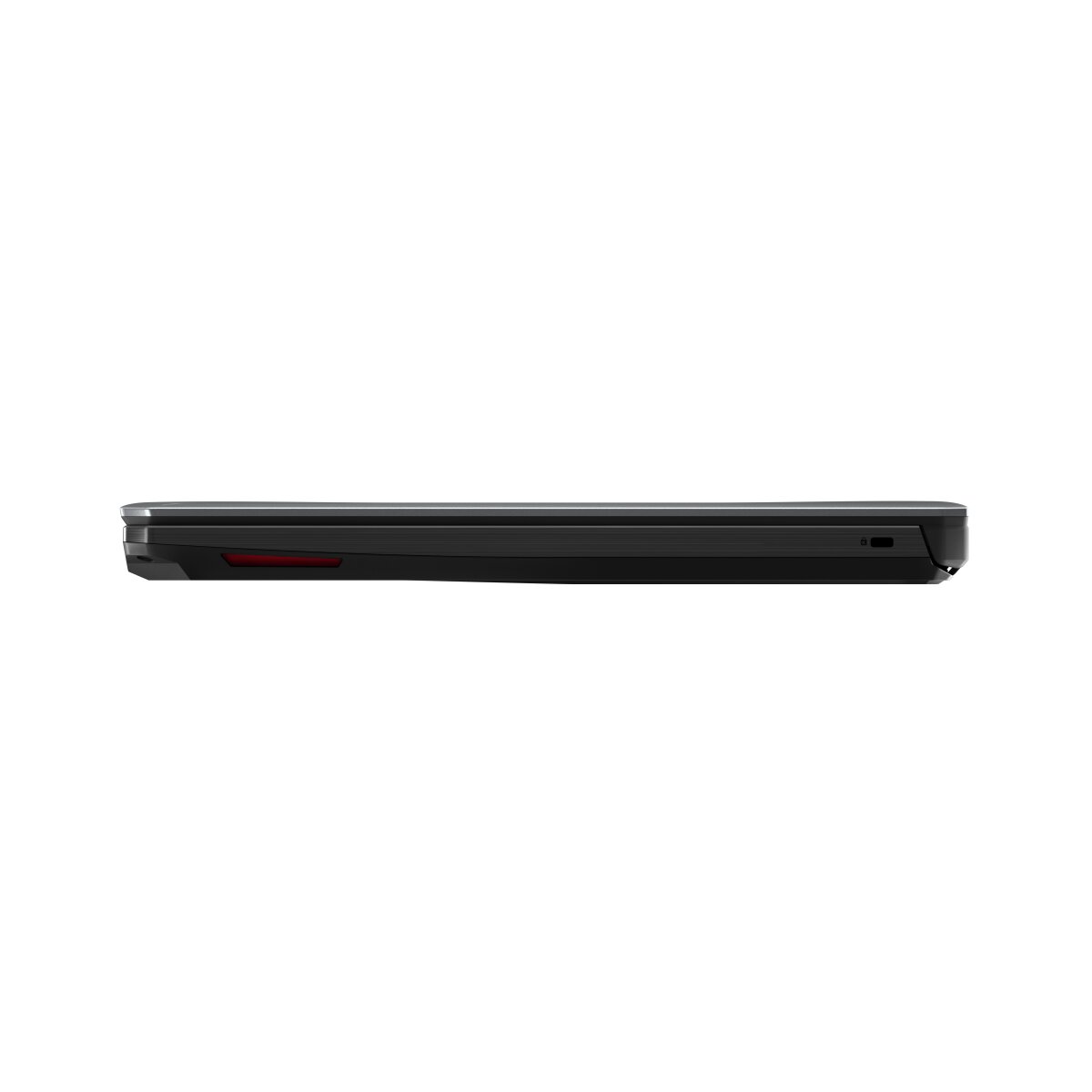

ASUS TUF Gaming FX505DT-HN503 - 90NR02D1-M18250
ASUS TUF Gaming FX505DT-HN503
Product code: 90NR02D1-M18250
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: 3750H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 2.2 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Introduction year | 2020 |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 144 Hz |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | TUF Gaming |
| Model name | FX505DT-HN503 |
| Part Number | 90NR02D1-M18250 |
| Release Date | 24 June 2021 |
| EAN/UPC code | 4711081004806, 0195553004800, 195553004800 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 7 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 4 GHz |
| Processor model | 3750H |
| Processor cores | 4 |
| Processor cache | 4 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce GTX 1650 |
| On-board graphics card model | AMD Radeon RX Vega 10 |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |

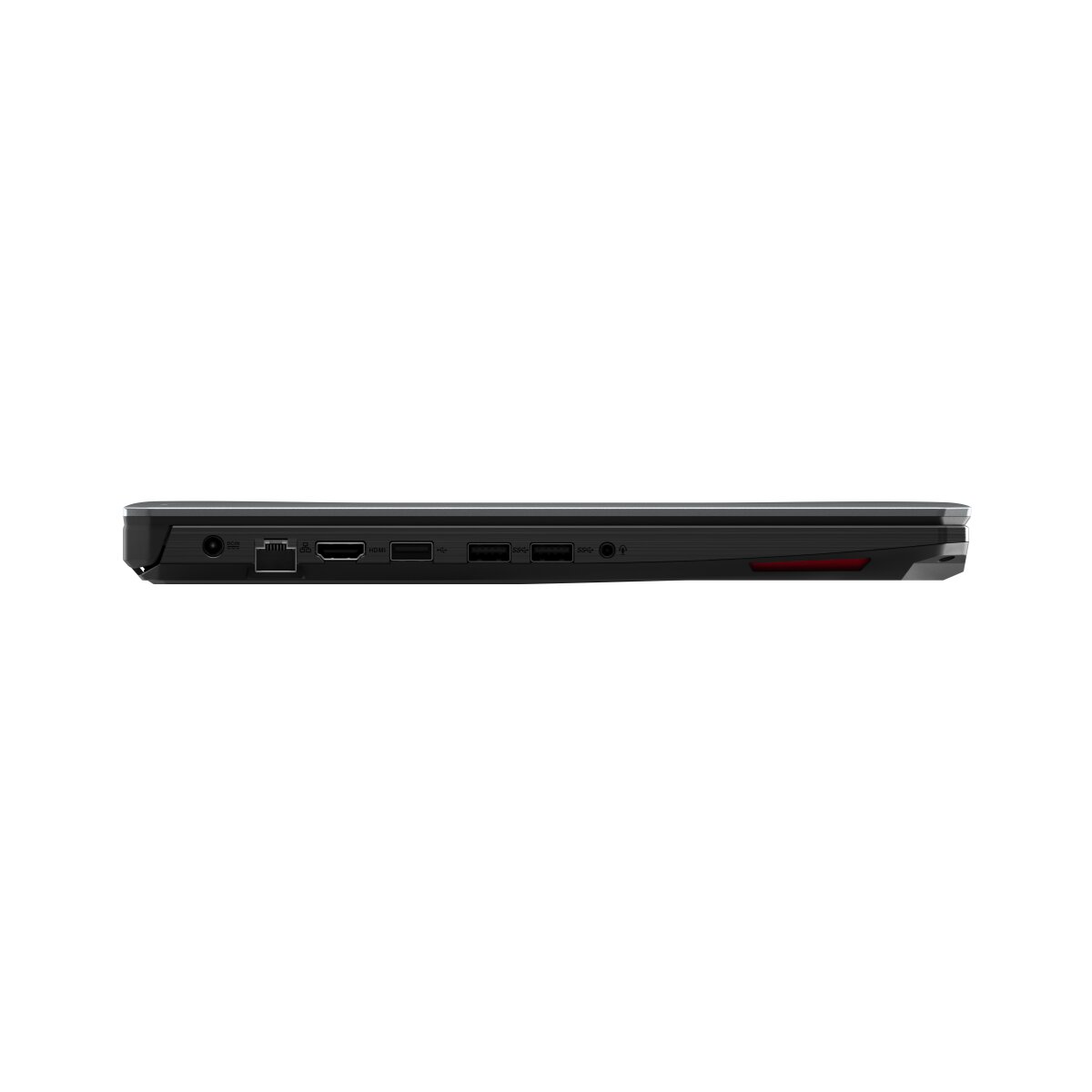

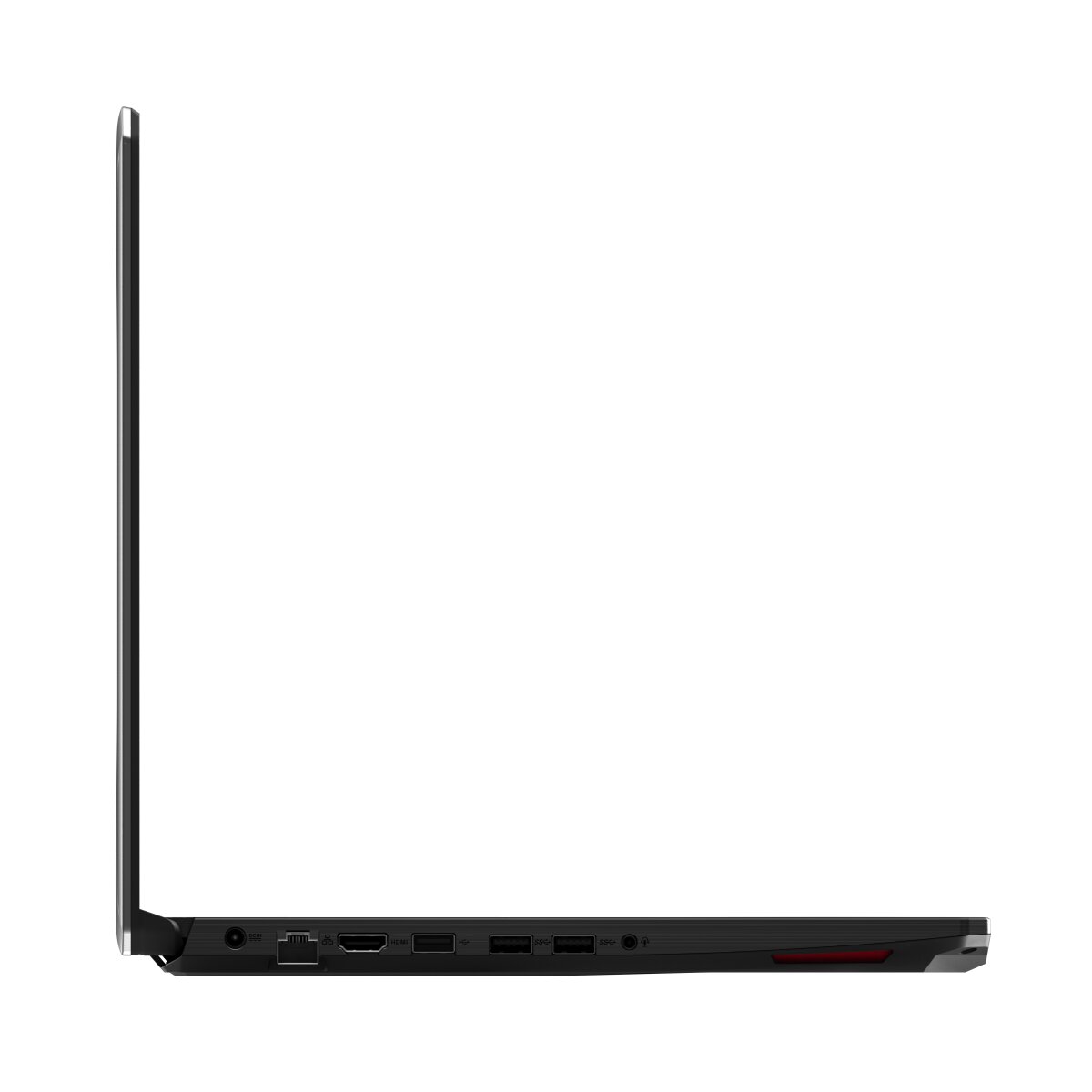

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit colour | RGB |
| Full-size keyboard | Y |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | N |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Height (rear) | 2.6 cm |
| Height (front) | 2.5 cm |
| Depth | 262 mm |
| Width | 360 mm |
| Power | |
| AC adapter power | 150 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 7.5 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Password protection | Y |
| Other features | |
| Anti-glare screen | Y |
