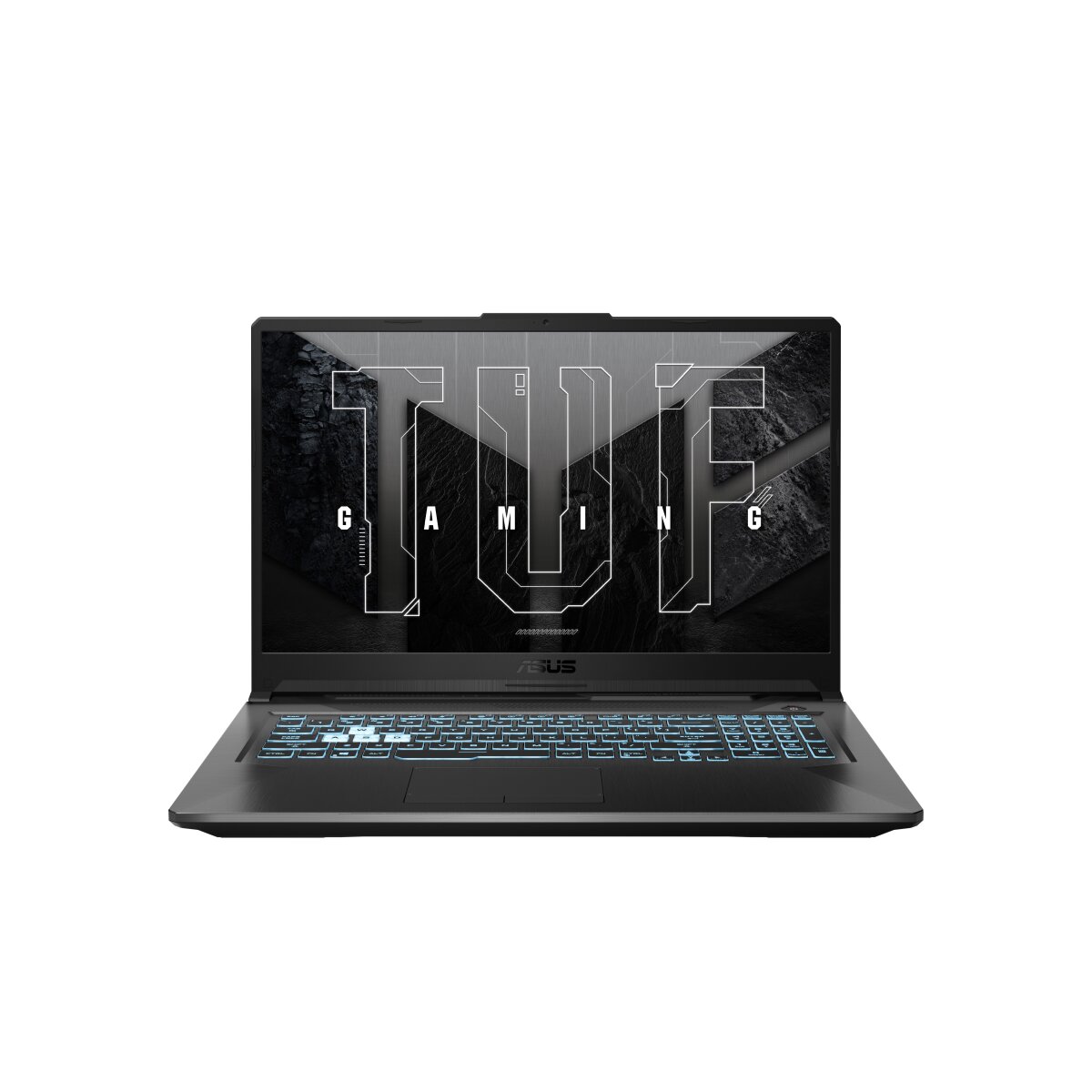

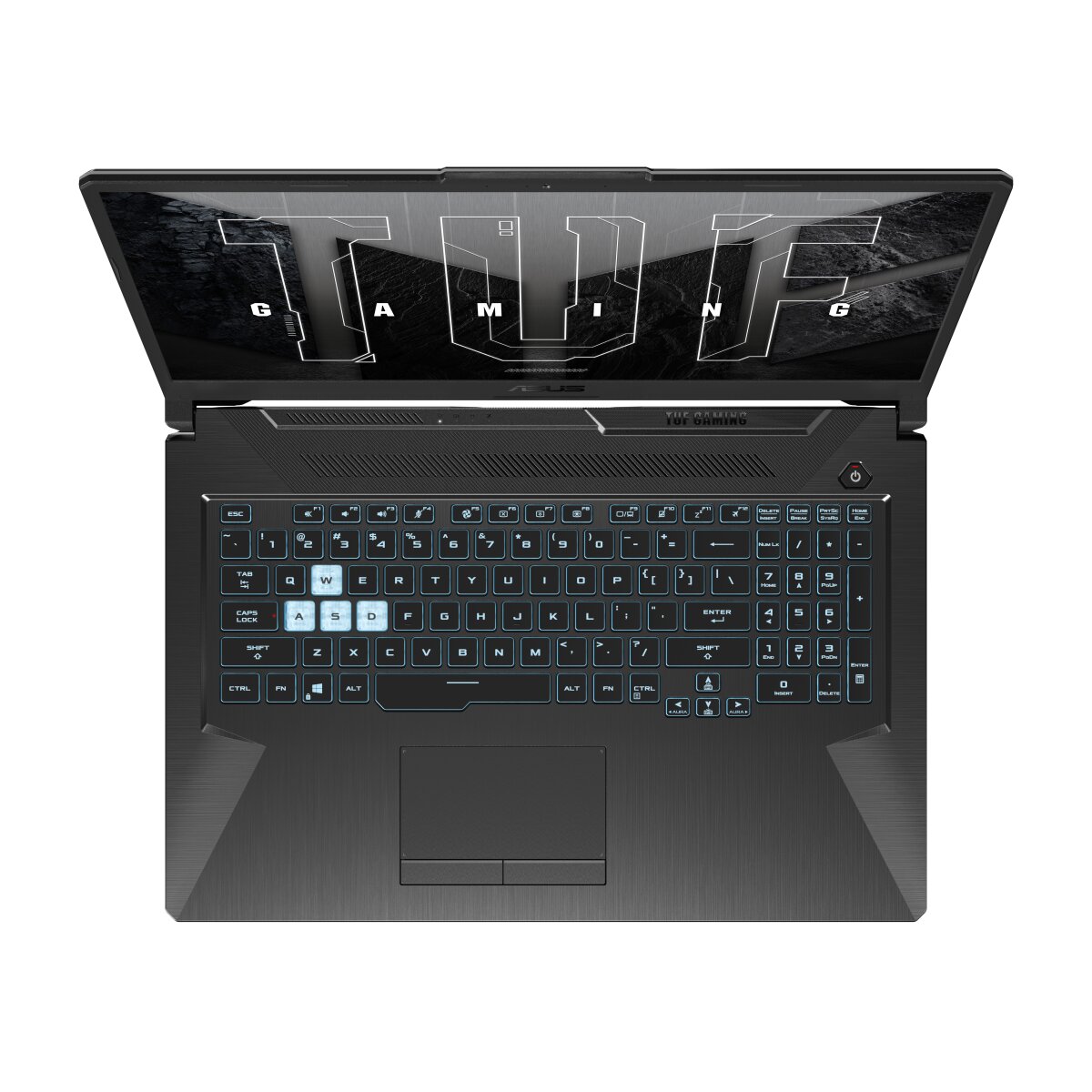

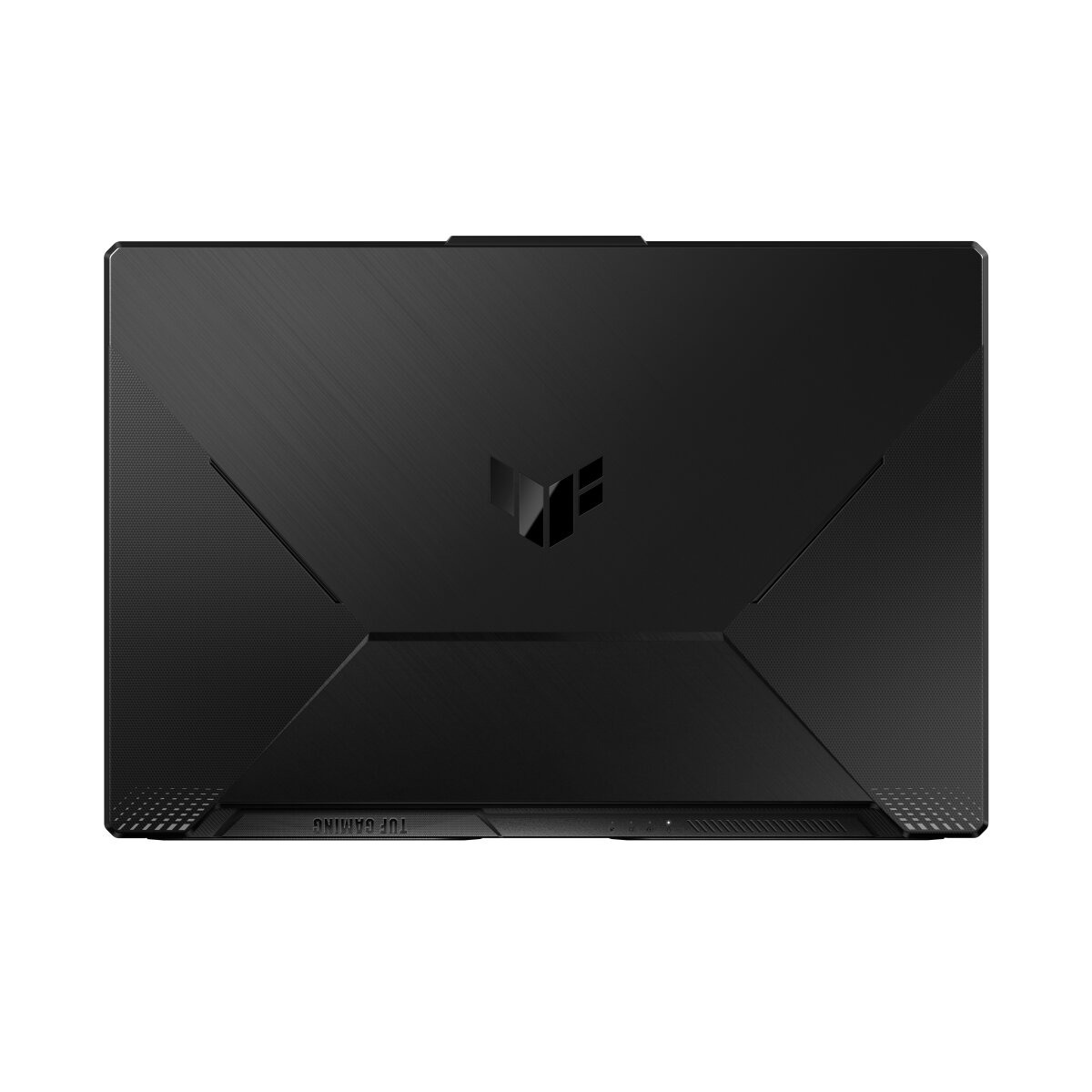

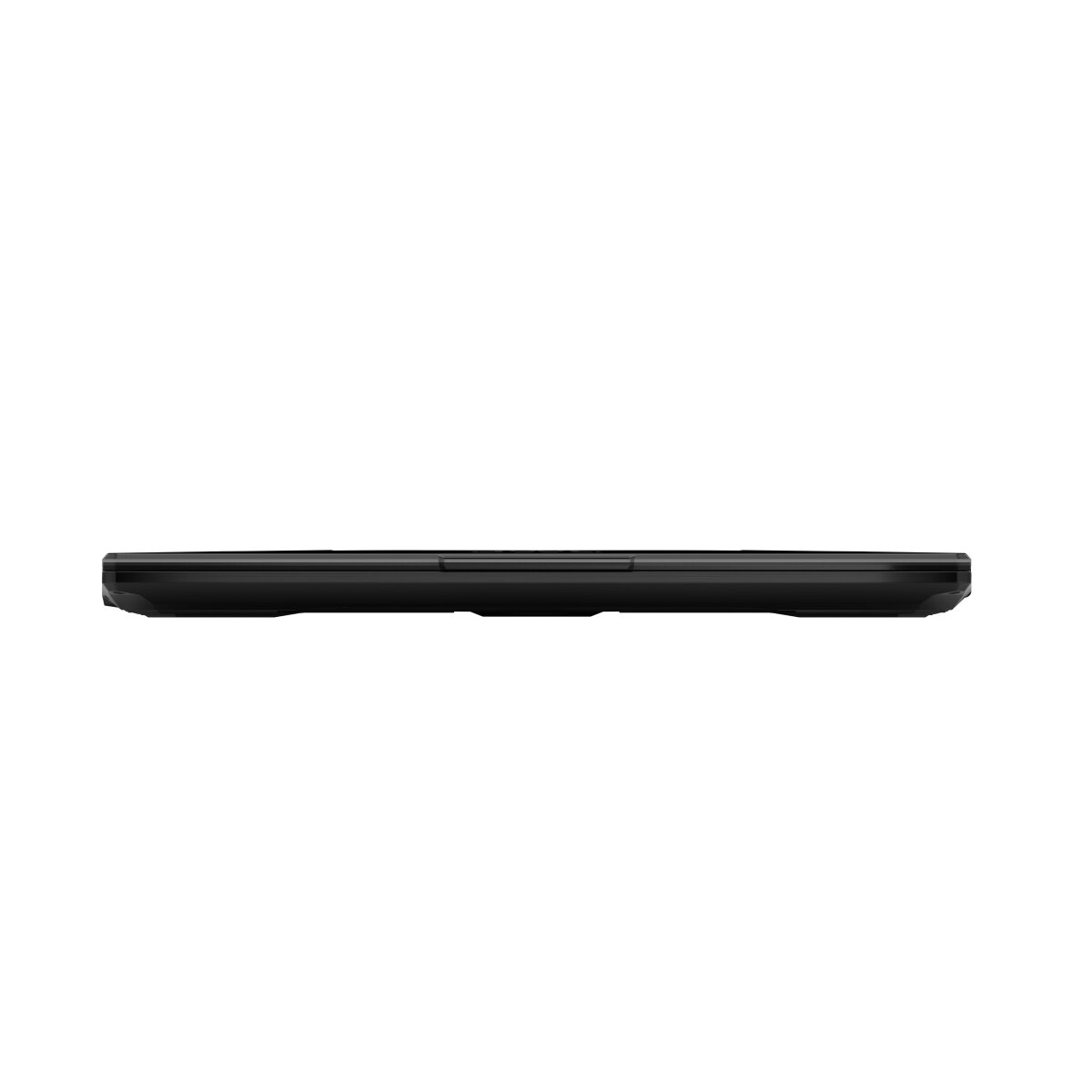

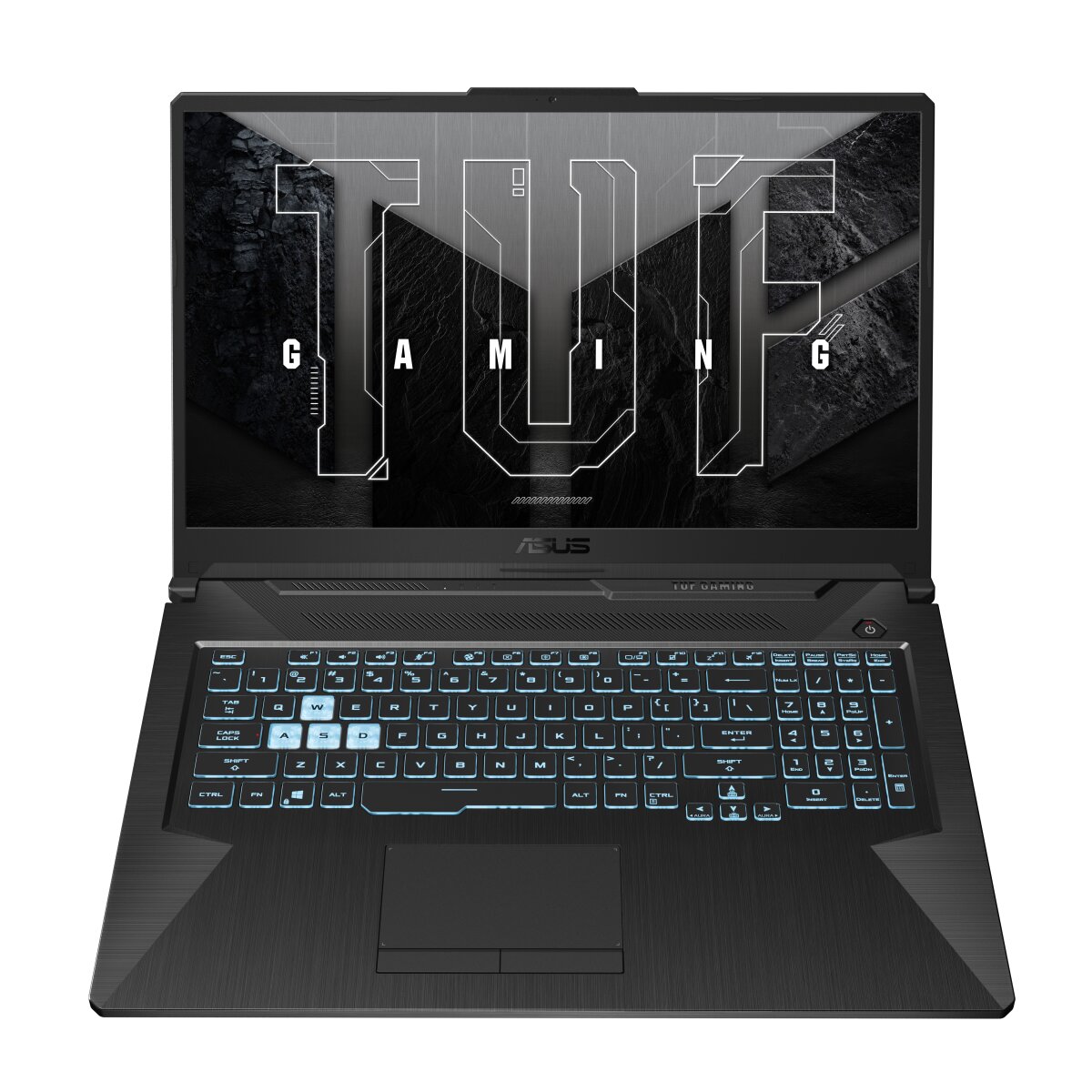

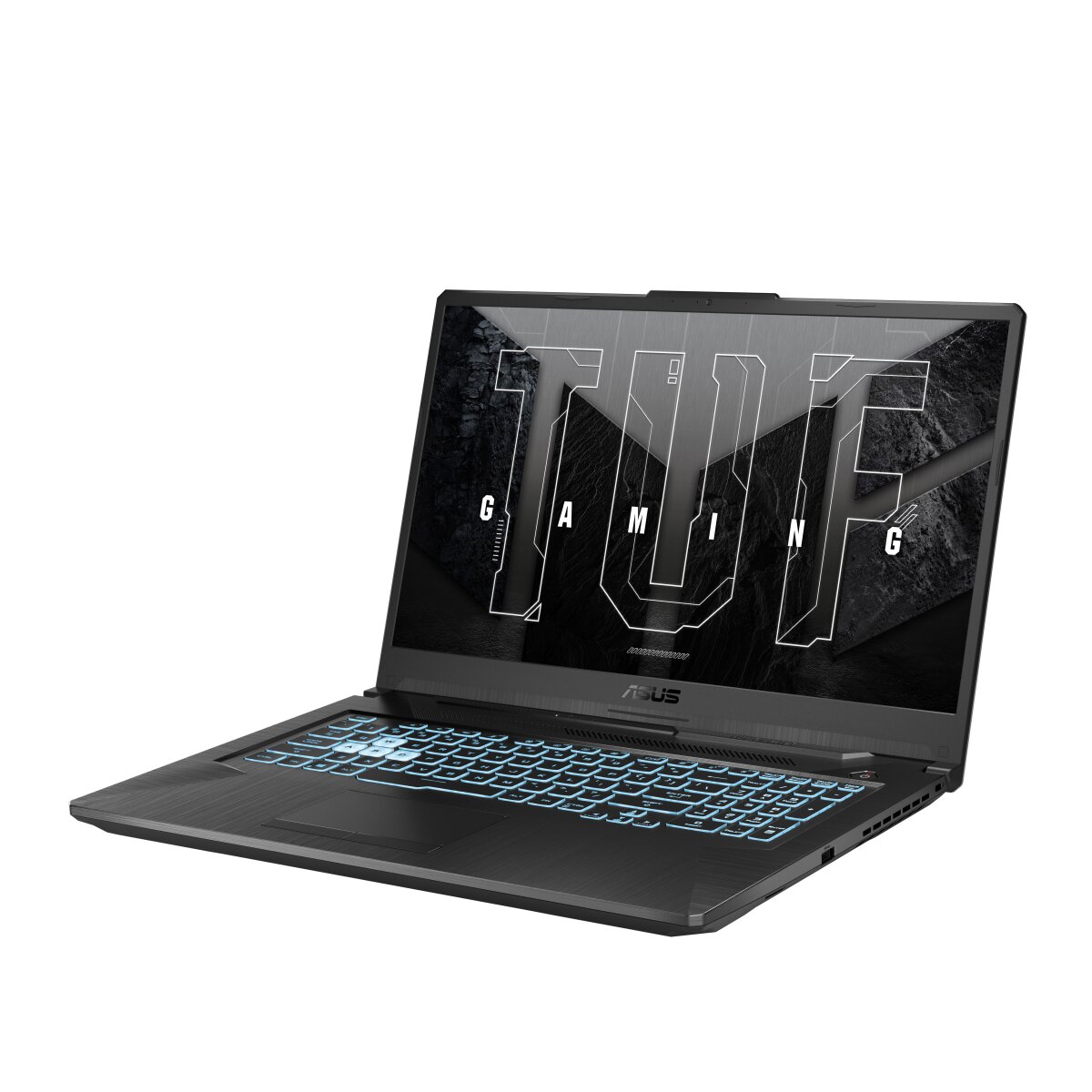

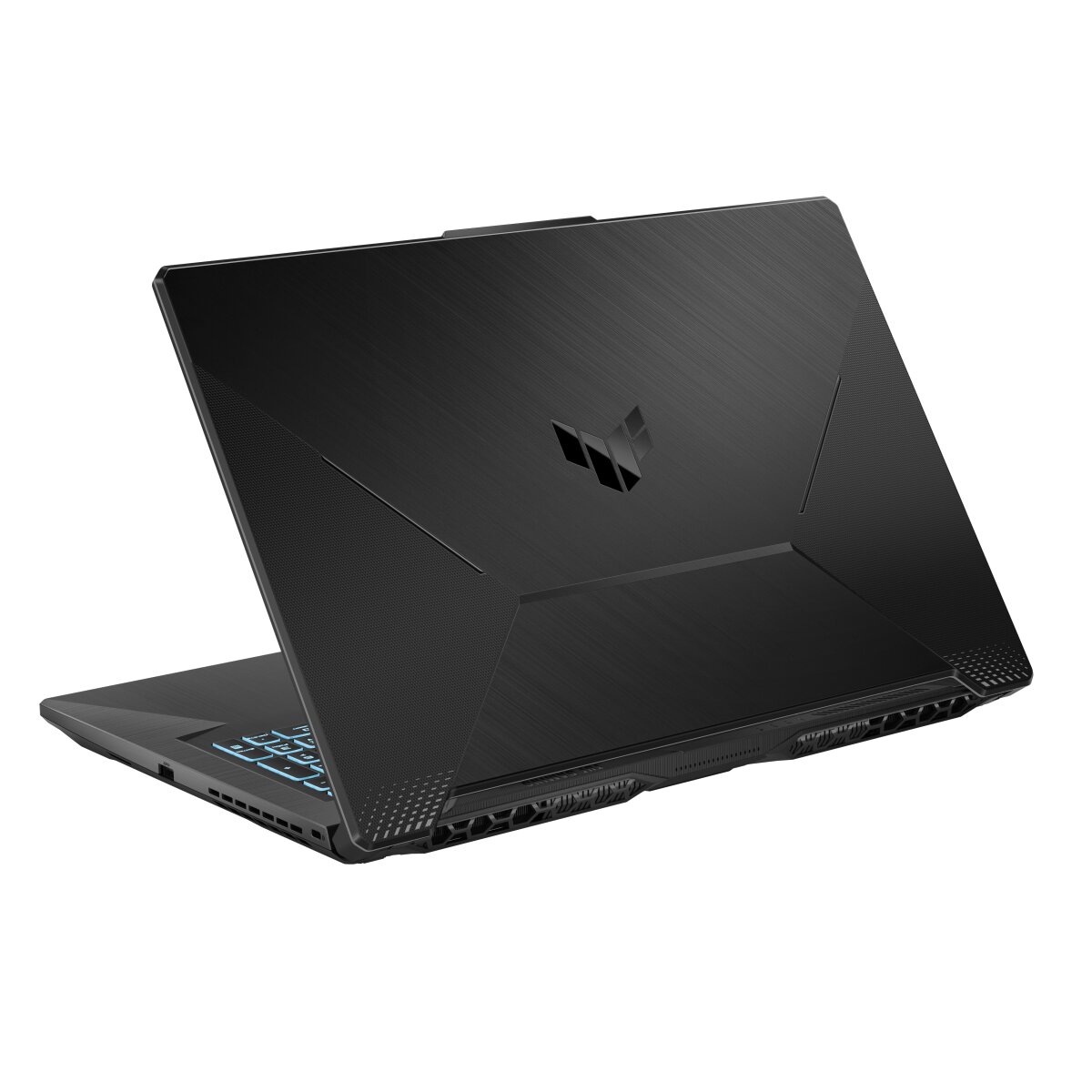

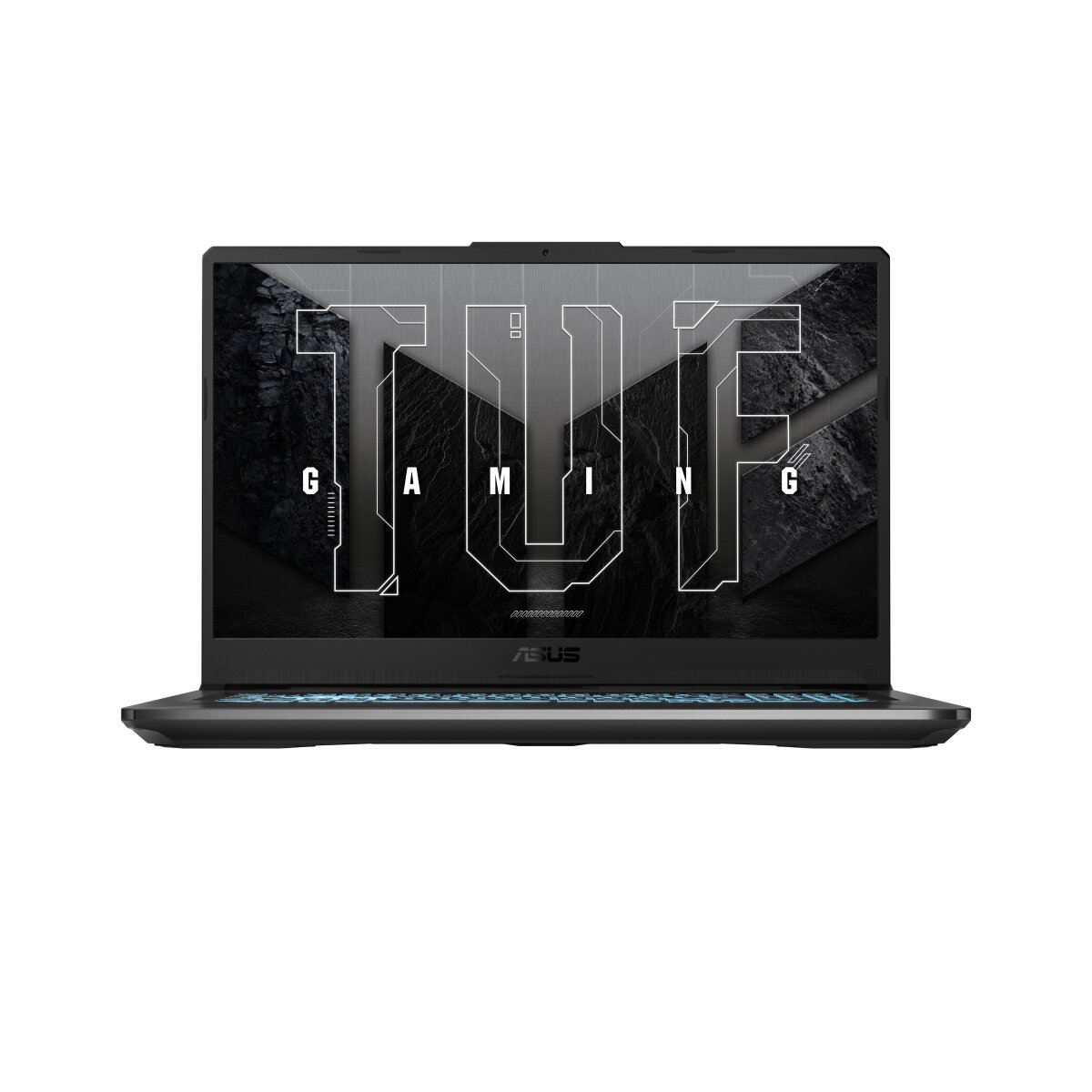

ASUS TUF Gaming A17 PX706QM-HX063X - 90NR05Z5-M001W0
ASUS TUF Gaming A17 PX706QM-HX063X
Product code: 90NR05Z5-M001W0
- đģDisplay diagonal: 17.3 inch
- đŗProcessor model: 5800H
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model:
- đŽDiscrete graphics adapter model:
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2.6 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Housing material | Plastic |
| Introduction year | 2021 |
| Display | |
| Display diagonal | 17.3 inch |
| Maximum refresh rate | 144 Hz |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | sRGB |
| Colour gamut | 62.5% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | TUF Gaming |
| Series | A17 |
| Model name | PX706QM-HX063X |
| Part Number | 90NR05Z5-M001W0 |
| Release Date | 08 January 2023 |
| EAN/UPC code | 4711387047545 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 7 |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.4 GHz |
| Processor model | 5800H |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card memory | 6 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.2 |

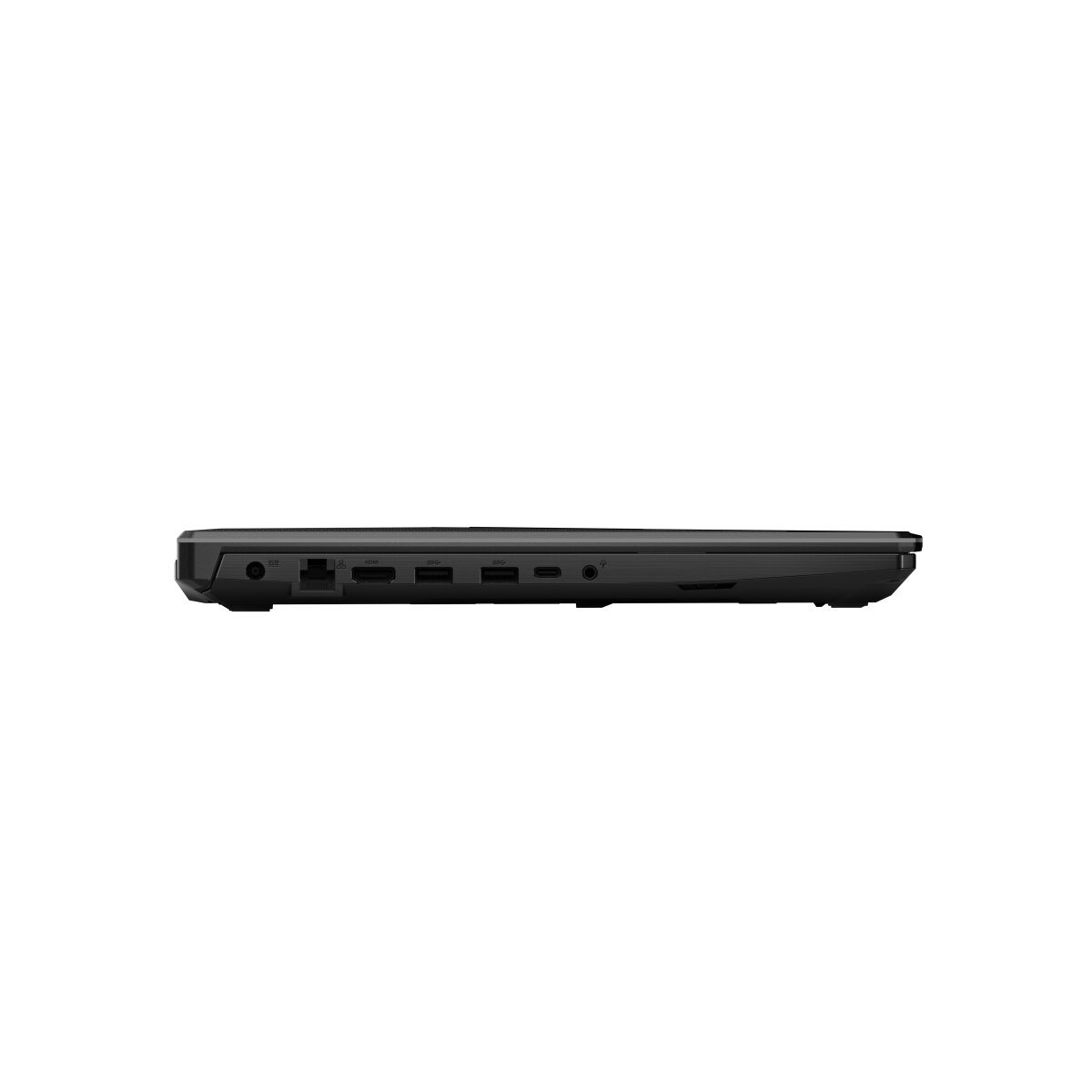

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power adapter barrel connector | 6.0 mm |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit colour | RGB |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Weight & dimensions | |
| Weight | 2.6 kg |
| Height (rear) | 2.48 cm |
| Height (front) | 2.33 cm |
| Depth | 268 mm |
| Width | 399 mm |
| Power | |
| AC adapter power | 200 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 10 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Password protection | Y |
| Password protection type | BIOS, User |
| Other features | |
| Anti-glare screen | Y |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
