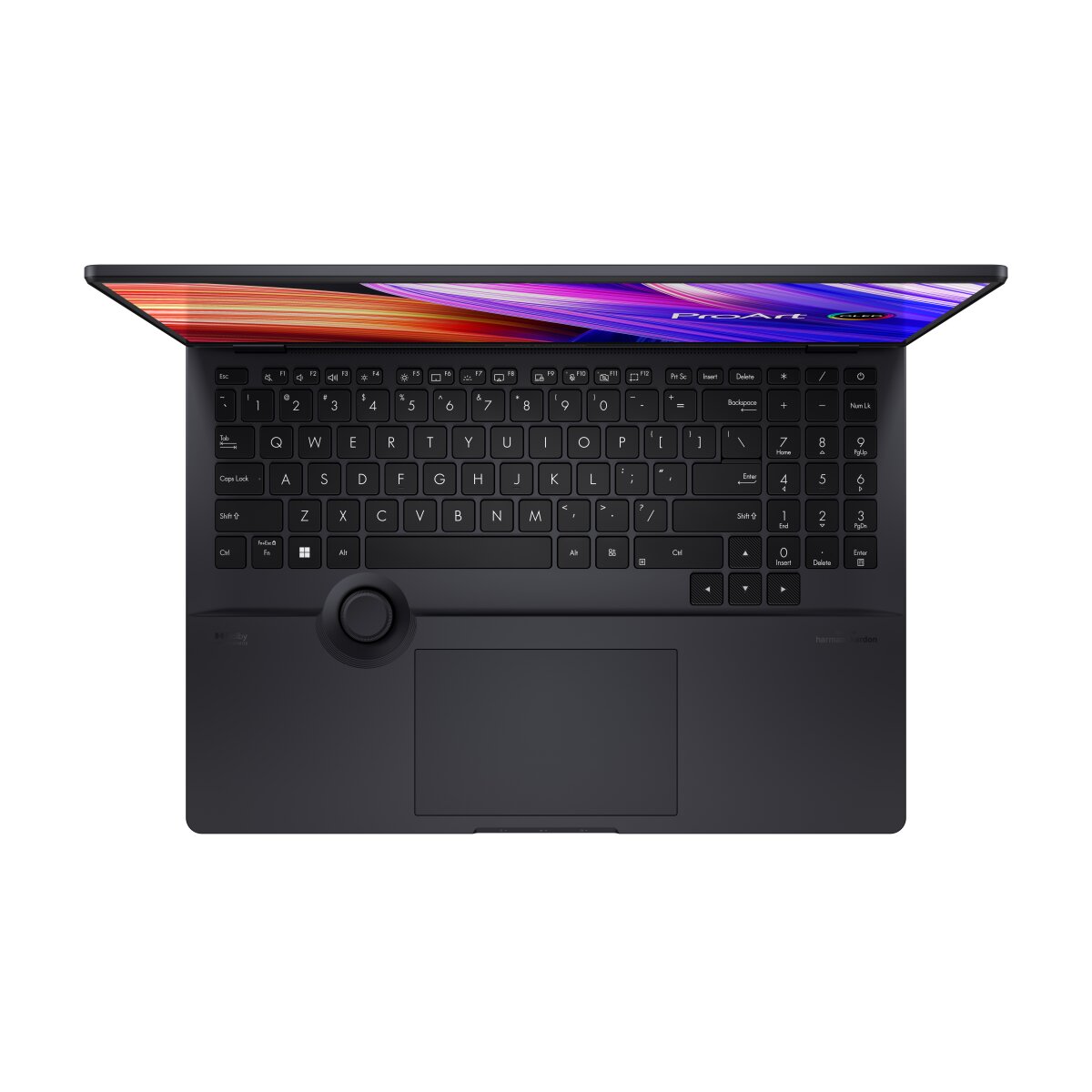

ASUS ProArt StudioBook Pro 16 OLED W7604J3D-MY021X - 90NB10B1-M001D0
ASUS ProArt StudioBook Pro 16 OLED W7604J3D-MY021X
Product code: 90NB10B1-M001D0
- 💻Display diagonal: 16 inch
- 🔳Processor model: i9-13980HX
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 2000 GB
- ⚖️Weight: 2.4 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Performance |
| Housing material | Aluminium, Magnesium |
| Introduction year | 2022 |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 120 Hz |
| Display response rise/fall | 0.2 ms |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 500 cd/m² |
| Panel type | OLED |
| Display surface | Gloss |
| Touchscreen | Y |
| Display resolution | 3200 x 2000 pixels |
| Display number of colours | 1.073 billion colours |
| High Dynamic Range (HDR) technology | HDR True Black 500 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Y |
| Maximum display brightness (HDR) | 550 cd/m² |
| Brand | ASUS |
| Family | ProArt StudioBook |
| Series | Pro 16 OLED |
| Model name | W7604J3D-MY021X |
| Part Number | 90NB10B1-M001D0 |
| Release Date | 19 March 2023 |
| EAN/UPC code | 4711387098929 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i9 |
| Processor boost frequency | 5.6 GHz |
| Processor model | i9-13980HX |
| Processor cores | 24 |
| Processor cache | 36 MB |
| Processor generation | 13th gen Intel Core i9 |
| Efficient-core boost frequency | 4 GHz |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA RTX A3000 |
| On-board graphics card model | Intel UHD Graphics |
| Discrete graphics card memory | 8 GB |
| Storage | |
| Total storage capacity | 2000 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 2000 GB |
| Total SSDs capacity | 2000 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Y |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB Power Delivery | Y |
| Charging port type | DC-in jack |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Y |
| Power adapter barrel connector | 6.0 mm |
| Audio | |
| Built-in microphone | Y |
| Audio system | Smart Amp |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Y |
| Privacy camera | Y |
| Windows Hello | Y |
| Infrared (IR) camera | Y |
| Front camera HD type | Full HD |
| Privacy type | Privacy shutter |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Weight & dimensions | |
| Weight | 2.4 kg |
| Height (rear) | 2.39 cm |
| Height (front) | 2.09 cm |
| Depth | 271 mm |
| Width | 356 mm |
| Power | |
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 12 A |
| Security | |
| Cable lock slot | Y |
| Face recognition | Y |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | BIOS, HDD, User |
| Trusted Platform Module (TPM) version | 2.0 |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
