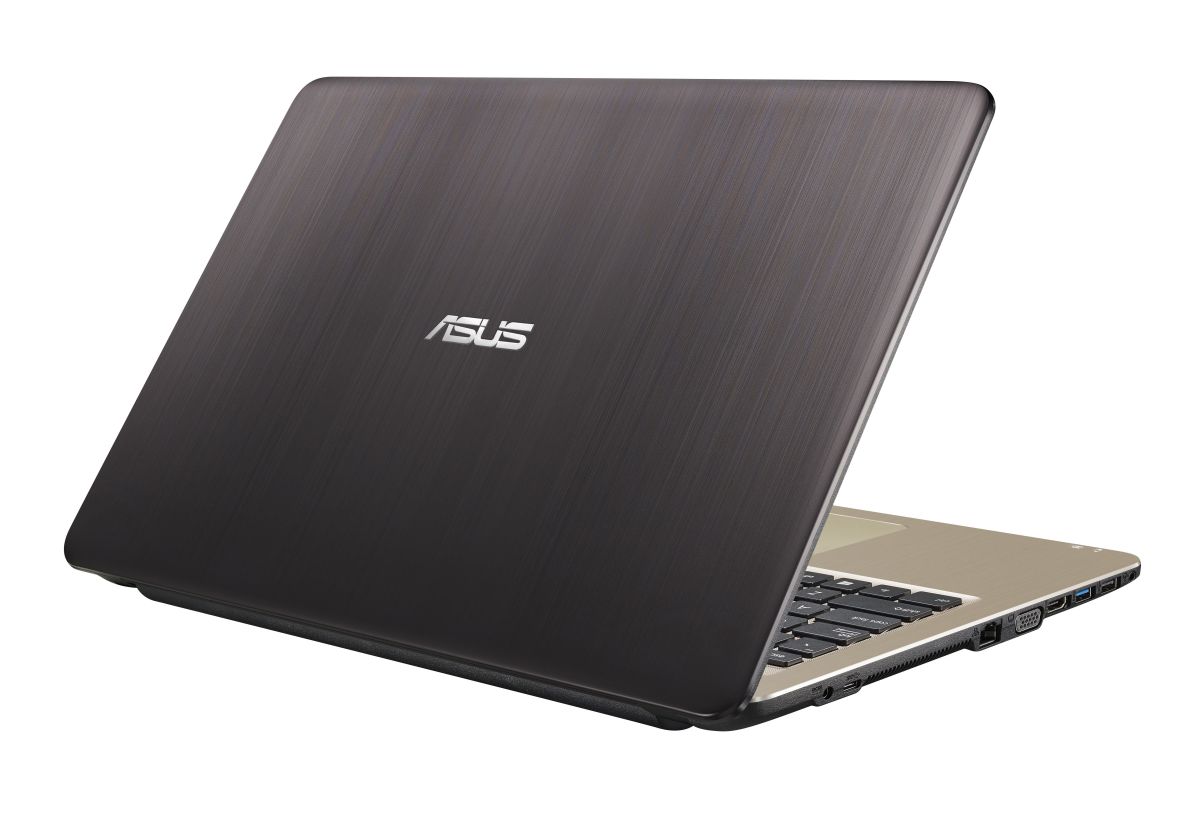

ASUS 540MA-GQ120T - 90NB0IR1-M03650
ASUS 540MA-GQ120T
Product code: 90NB0IR1-M03650
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: N5000
- đĢInternal memory: 4 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 605
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 500 GB
- âī¸Weight: 1.9 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Chocolate |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Display surface | Gloss |
| Aspect ratio | 16:9 |
| HD type | HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Model name | 540MA-GQ120T |
| Part Number | 90NB0IR1-M03650 |
| Release Date | 03 April 2019 |
| EAN/UPC code | 4718017170512 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Silver |
| Processor frequency | 1.1 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor codename | Gemini Lake |
| Thermal Design Power (TDP) | 6 W |
| Processor model | N5000 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1090 |
| Memory | |
| Internal memory type | LPDDR4-SDRAM |
| Internal memory | 4 GB |
| Memory form factor | On-board |
| Memory clock speed | 2400 MHz |
| Maximum internal memory | 4 GB |
| Maximum internal memory (64-bit) | 4 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Number of execution units | 18 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel UHD Graphics 605 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 200 MHz |
| On-board graphics adapter dynamic frequency (max) | 750 MHz |
| Maximum on-board graphics adapter memory | 8 GB |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 605 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card dynamic frequency (max) | 750 MHz |
| Maximum on-board graphics card memory | 8 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3184 |
| On-board graphics card burst frequency | 750 MHz |
| Storage | |
| Total storage capacity | 500 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Y |
| Storage media | HDD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 1x1 |
| Bluetooth | Y |
| Bluetooth version | 4.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 1 |
| ExpressCard slot | N |
| SmartCard slot | N |
| DVI port | N |
| Docking connector | N |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Audio system | SonicMaster |
| Speaker power | 2 W |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | Y |
| Full-size keyboard | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Number of battery cells | 3 |
| Battery life (max) | 8 h |
| Battery capacity | 33 Wh |
| Battery capacity (Watt hours) | 33 Wh |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height | 27.2 mm |
| Depth | 251 mm |
| Width | 381 mm |
| Power | |
| AC adapter power | 33 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 1.75 A |
| Security | |
| Cable lock slot | Y |
| Password protection | Y |
| Password protection type | BIOS, HDD, User |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
Comments
Migs REPLY21 Apr 2020 - 19:04
RE: the release date 2019-04-03... does that read as year 2019, April 3rd or 2019, March 4th?
laptoparena REPLY23 Apr 2020 - 00:04
3rd of April, will change to show month to be more clear from now on
Danica REPLY25 May 2020 - 16:05
Hello, I want to know if I can upgrade the HDD to SSDlaptoparena REPLY25 May 2020 - 16:05
yes you can! the hdd has SATA interface so you can replace it with a sata ssd drive.
