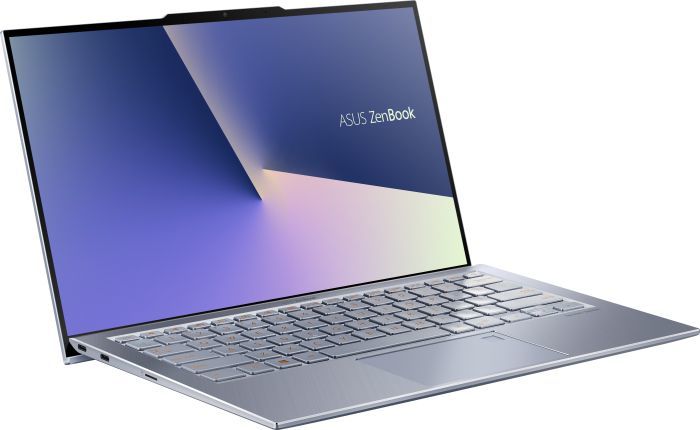

ASUS ZenBook S13 UX392FN-AB019T - 90NB0KZ1-M00540
ASUS ZenBook S13 UX392FN-AB019T
Product code: 90NB0KZ1-M00540
- đģDisplay diagonal: 13.9 inch
- đŗProcessor model: i5-8265U
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics
- đŽDiscrete graphics adapter model: NVIDIA GeForce MX150
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 1.1 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Blue |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 13.9 inch |
| Panel type | IPS |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ZenBook |
| Series | S13 |
| Model name | UX392FN-AB019T |
| Part Number | 90NB0KZ1-M00540 |
| Release Date | 07 April 2020 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-8265U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i5 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 2133 MHz |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics |
| Discrete graphics adapter model | NVIDIA GeForce MX150 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce MX150 |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Yes |
| Keyboard | |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Keyboard language | German |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 50 Wh |
| Number of battery cells | 3 |
| Battery capacity | 50 Wh |
| Weight & dimensions | |
| Weight | 1.1 kg |
| Height | 12.9 mm |
| Depth | 195 mm |
| Width | 316 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
