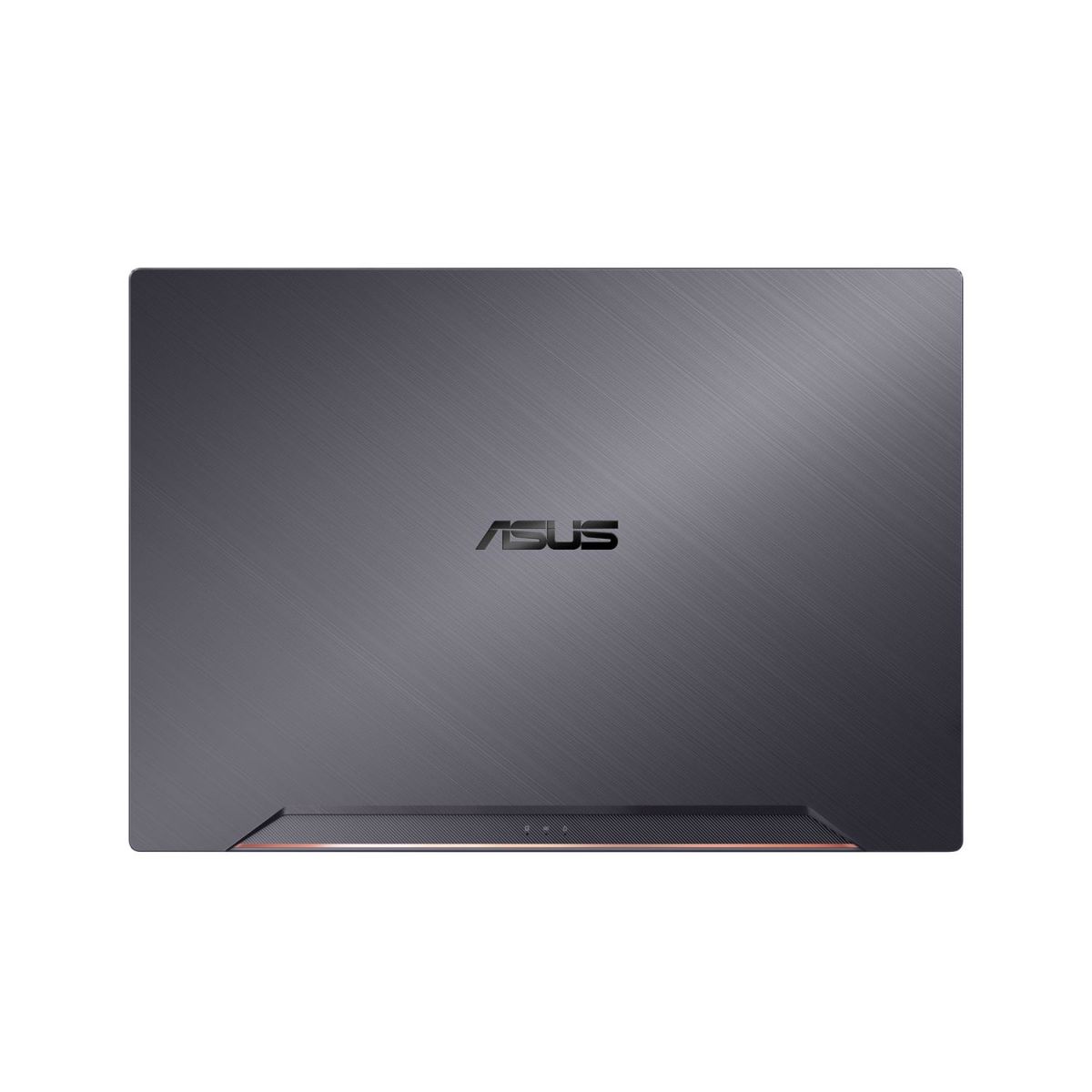

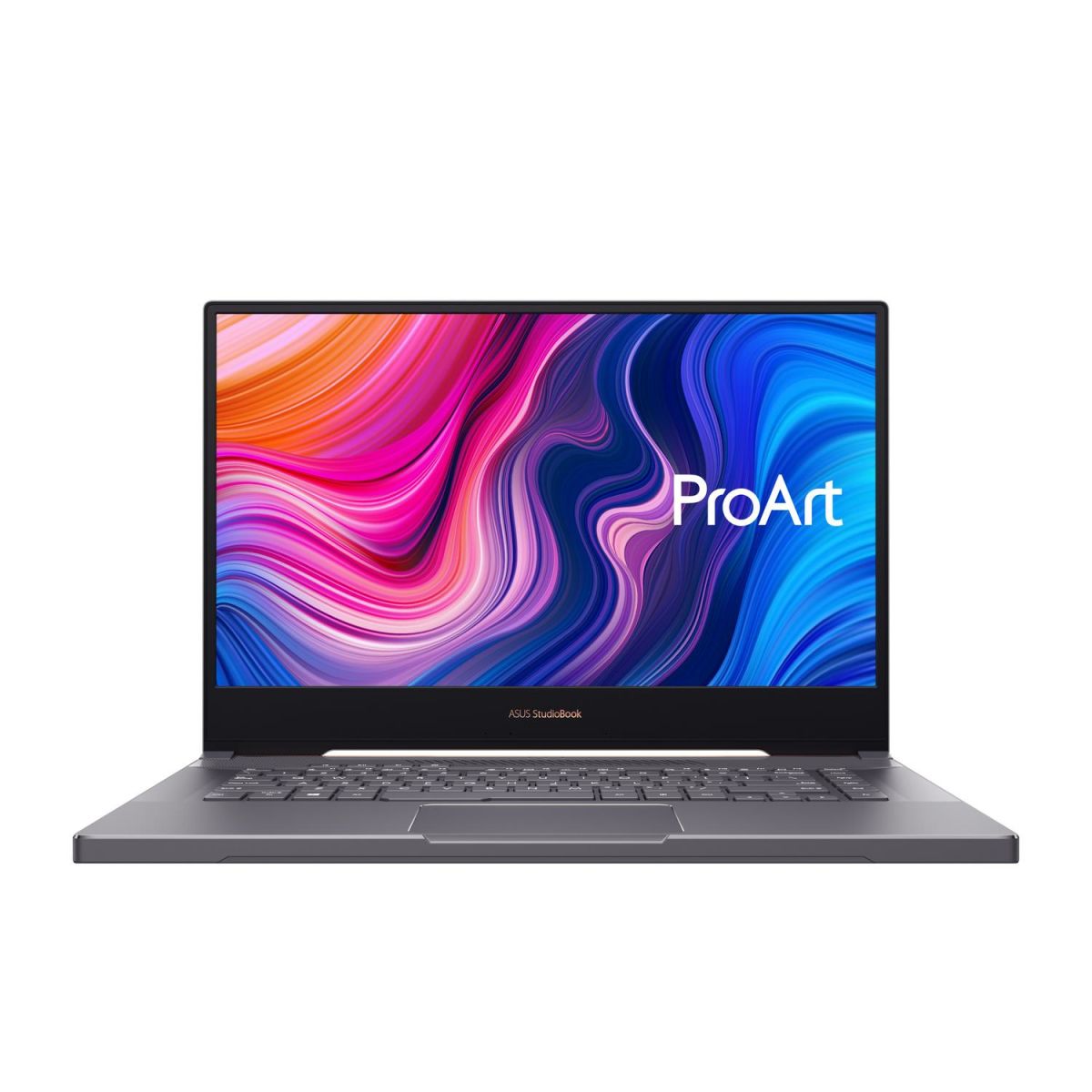

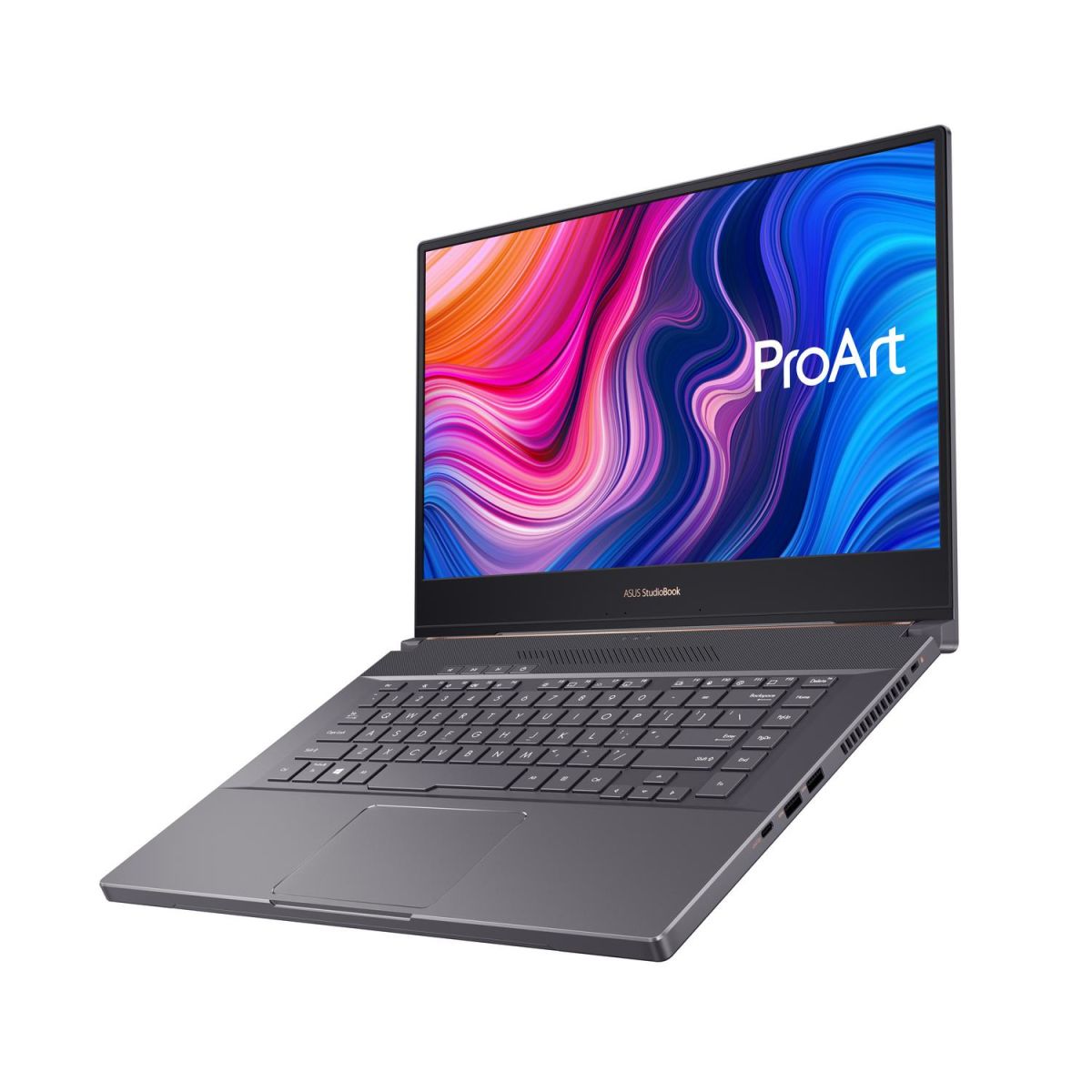

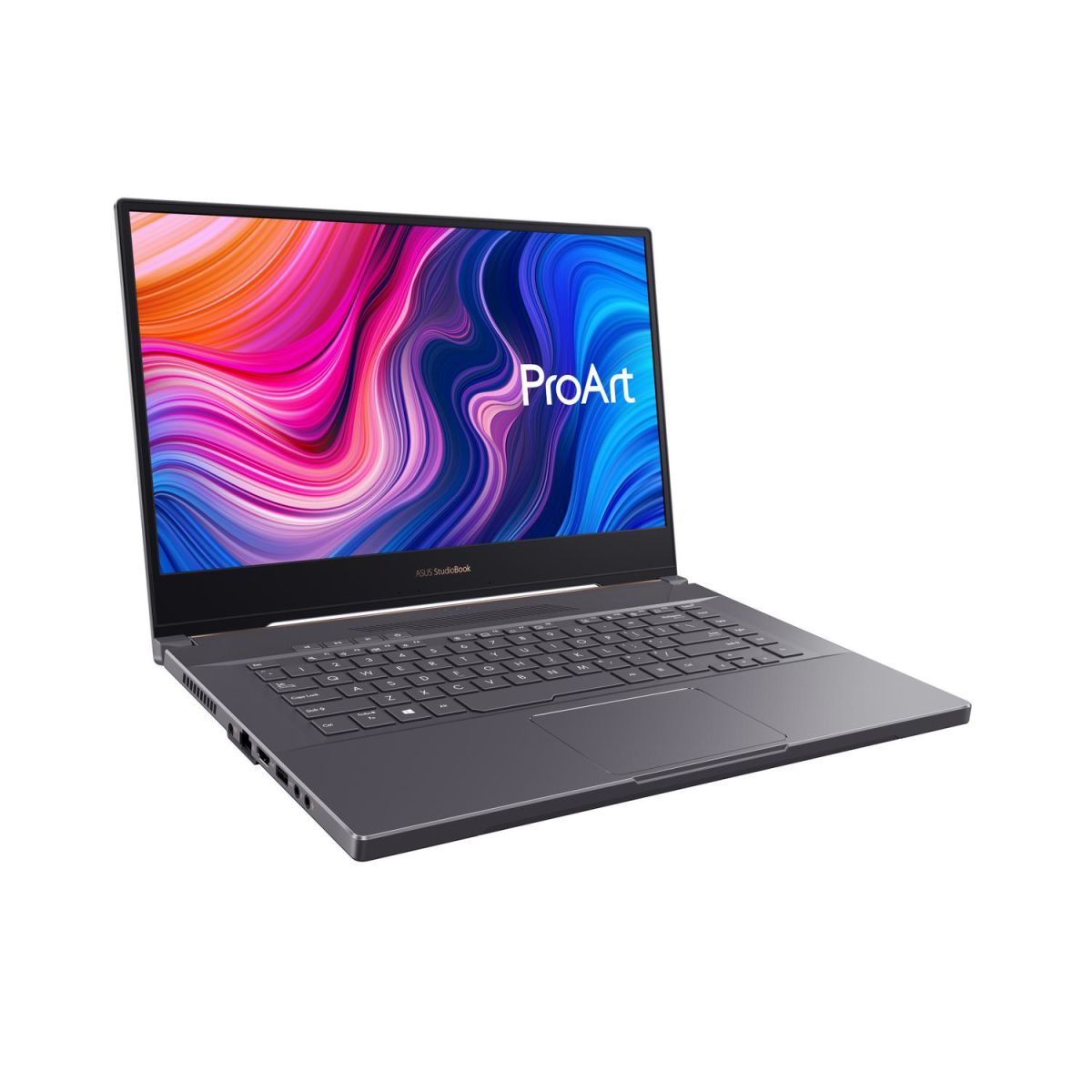

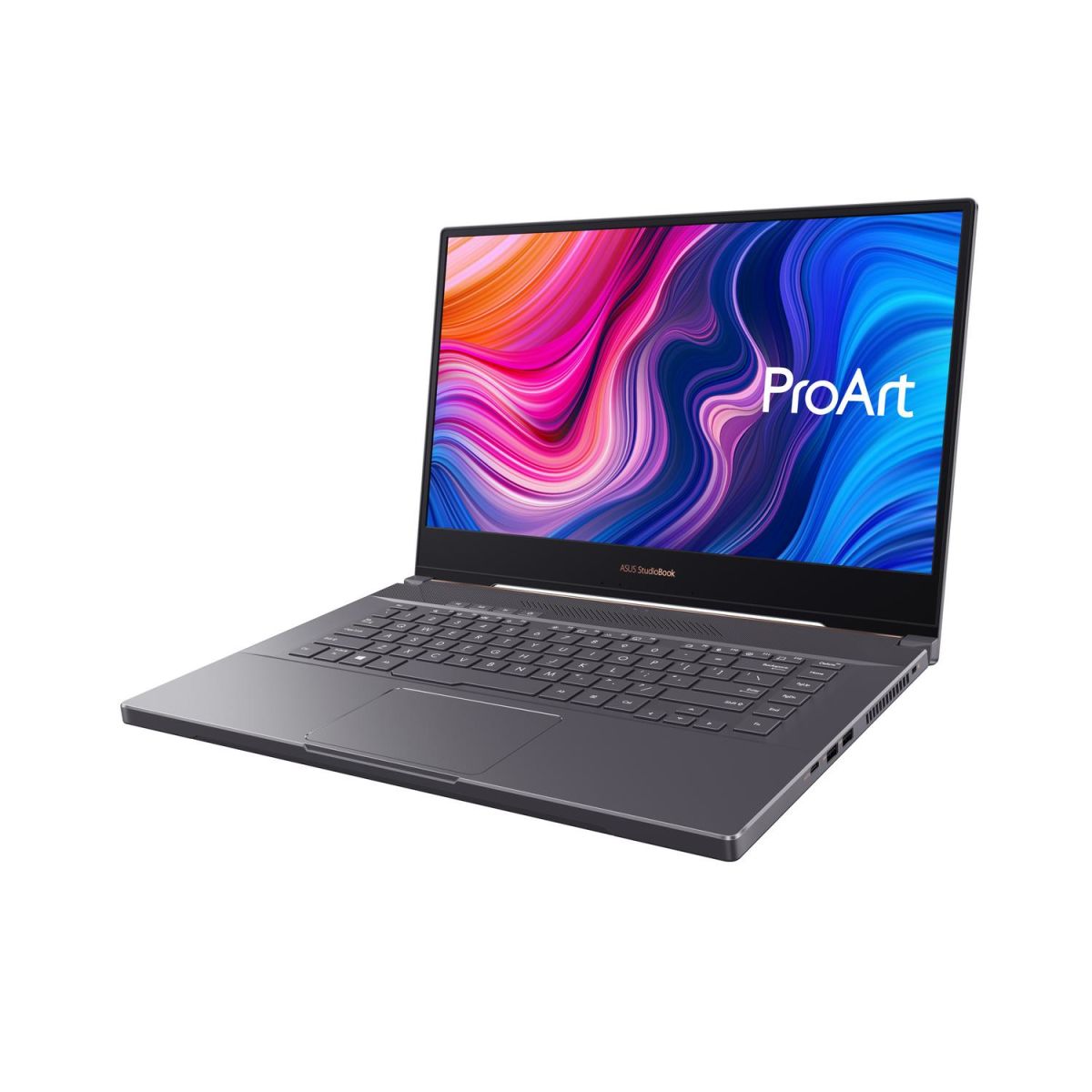

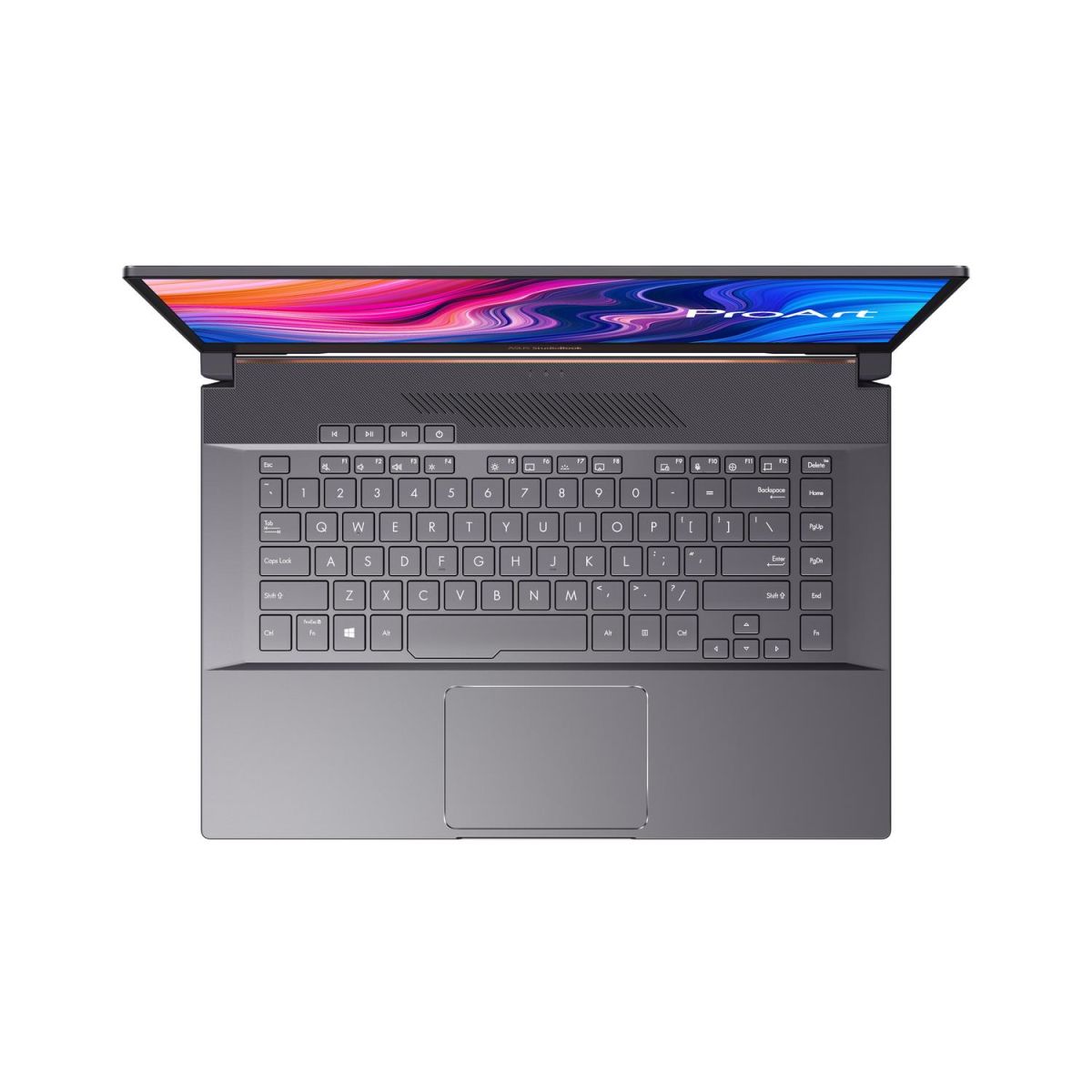

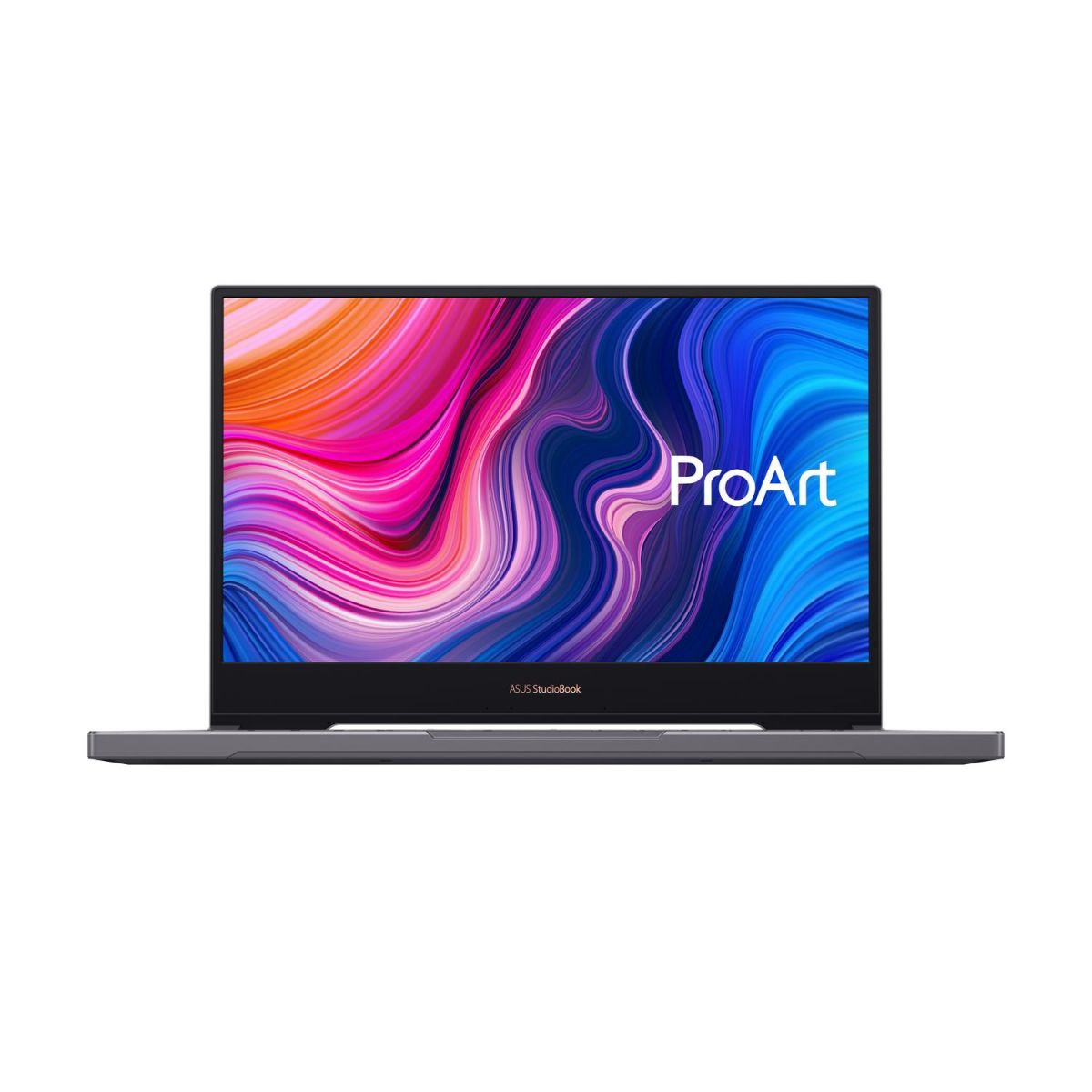

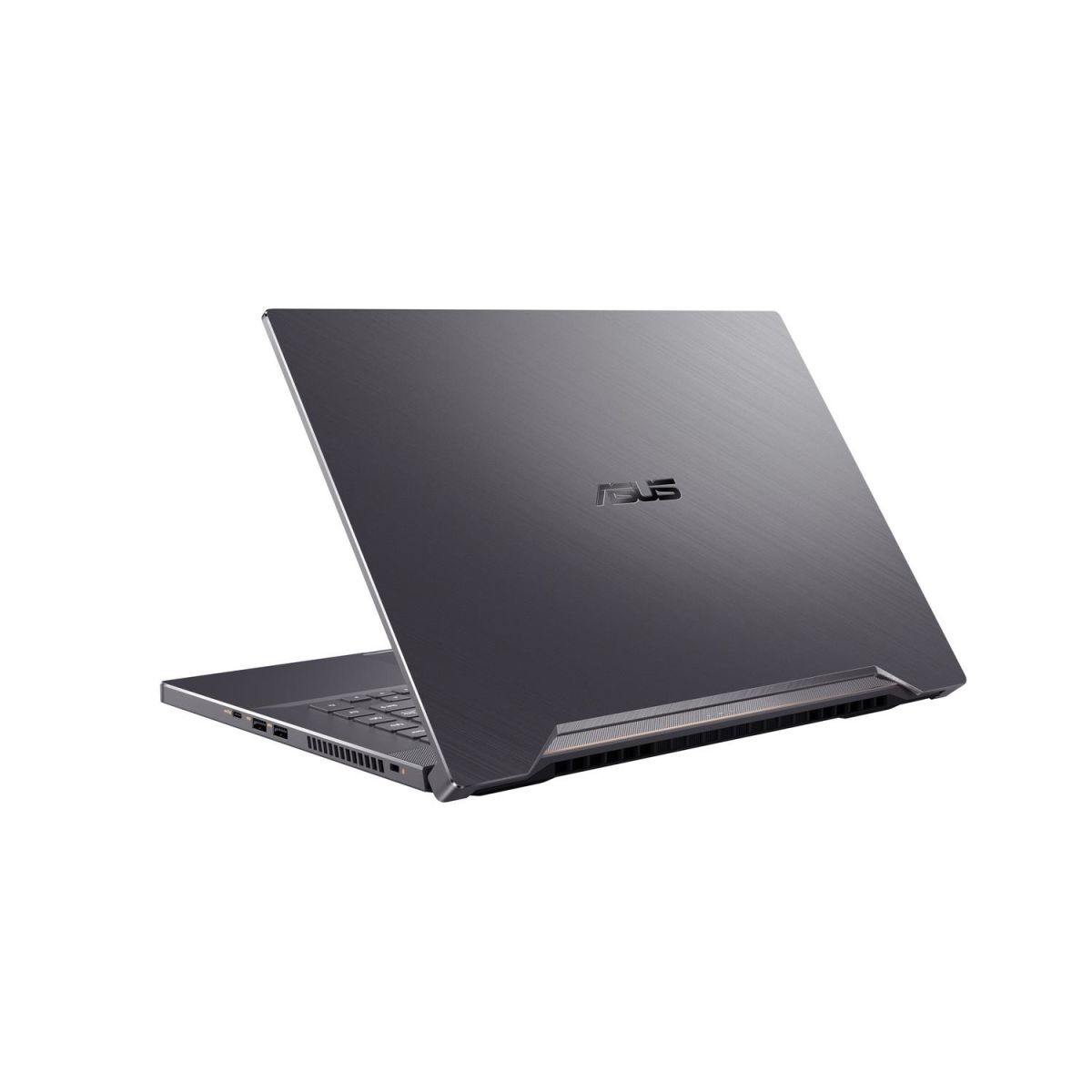

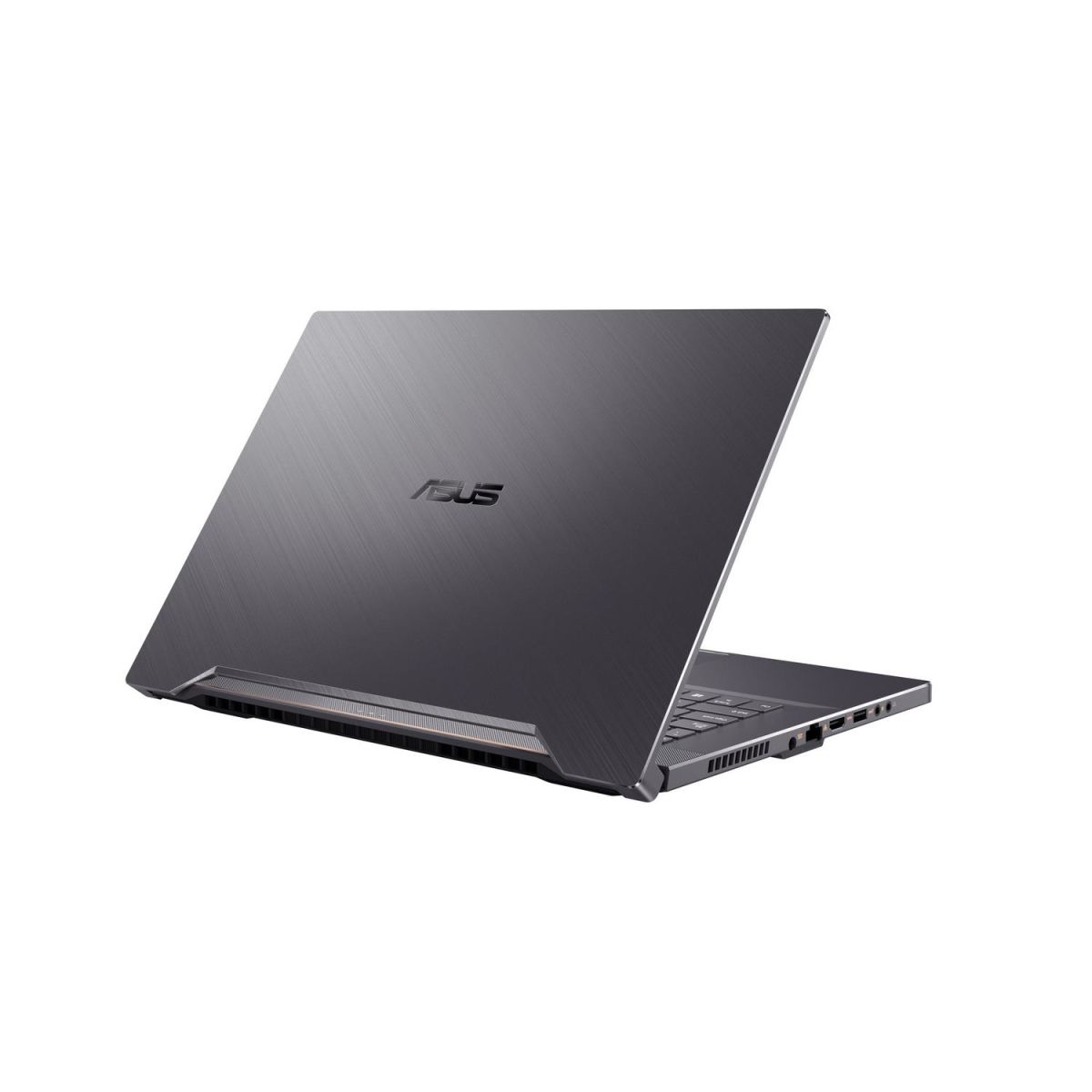

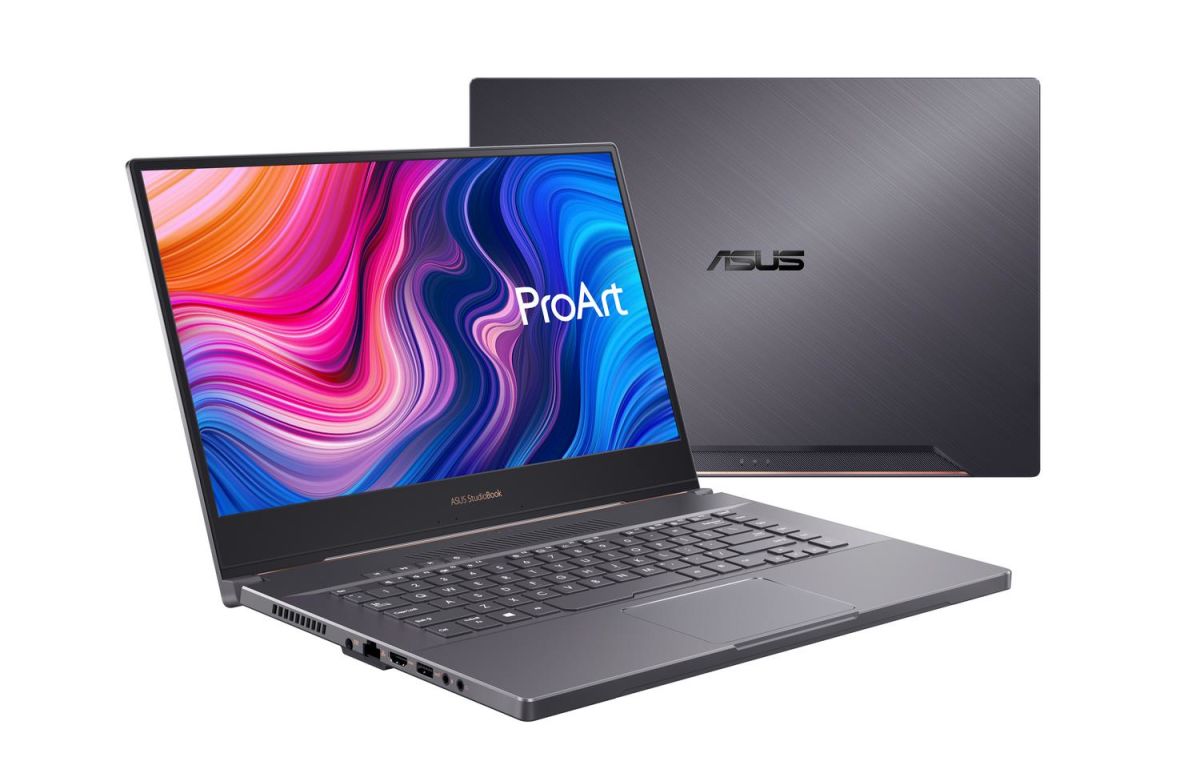

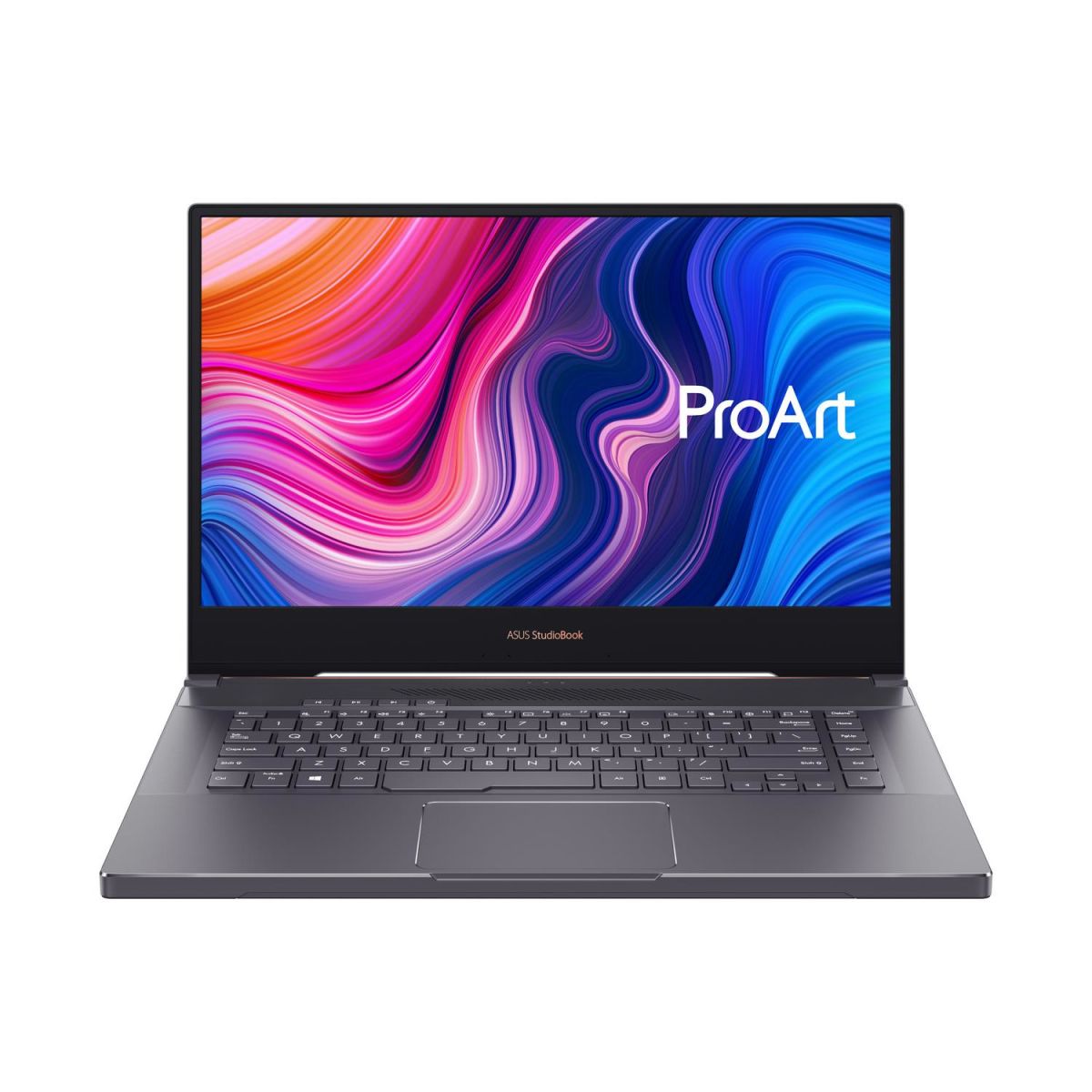

ASUS ProArt StudioBook Pro 15 W500G5T-HC004R - 90NB0PW1-M00580
ASUS ProArt StudioBook Pro 15 W500G5T-HC004R
Product code: 90NB0PW1-M00580
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-9750H
- đĢInternal memory: 32 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 630
- đŽDiscrete graphics adapter model: NVIDIA Quadro RTX 5000 Max-Q
- đŊTotal storage capacity: 1 TB
- âī¸Weight: 1.98 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| sRGB coverage (typical) | 100% |
| Maximum refresh rate | 60 Hz |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | 4K Ultra HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ProArt StudioBook |
| Series | Pro 15 |
| Model name | W500G5T-HC004R |
| Part Number | 90NB0PW1-M00580 |
| Release Date | 07 January 2020 |
| EAN/UPC code | 4718017756747 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Motherboard chipset | Intel HM370 |
| Processor boost frequency | 4.5 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-9750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| NVIDIA Max-Q | Yes |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro RTX 5000 Max-Q |
| Discrete graphics adapter memory | 16 GB |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro RTX 5000 Max-Q |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 16 GB |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Microphone in | Yes |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in microphone | Yes |
| Audio system | SonicMaster |
| Speaker power | 1 W |
| Keyboard | |
| Numeric keypad | No |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Keyboard layout | QWERTY |
| Keyboard backlit | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Keyboard language | Italian |
| Performance | |
| Virtual Reality (VR) ready | Y |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system language | English, Italian |
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office 365 |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 76 Wh |
| Number of battery cells | 4 |
| Battery capacity | 76 Wh |
| Weight & dimensions | |
| Weight | 1.98 kg |
| Height (rear) | 2.09 cm |
| Height (front) | 1.89 cm |
| Depth | 252 mm |
| Width | 360 mm |
| Power | |
| AC adapter power | 230 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 11.8 A |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Other features | |
| Harmonized System (HS) code | 84713000 |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
