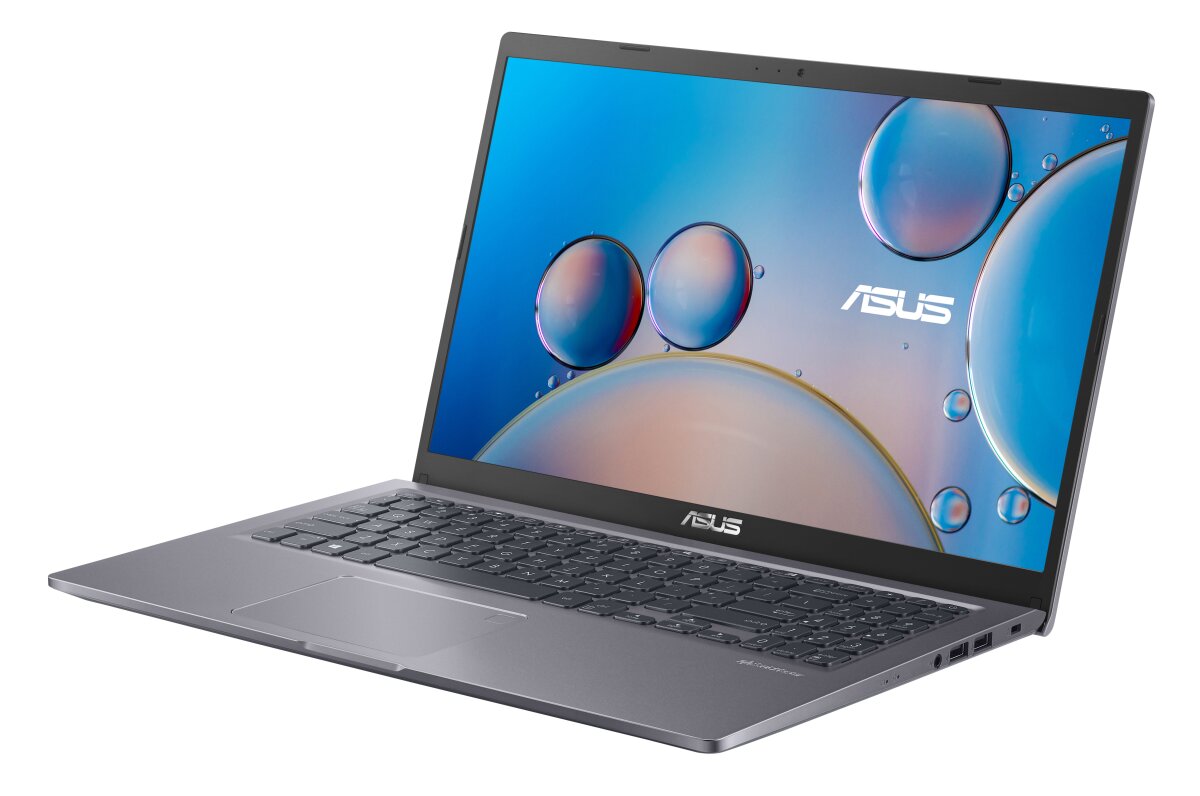

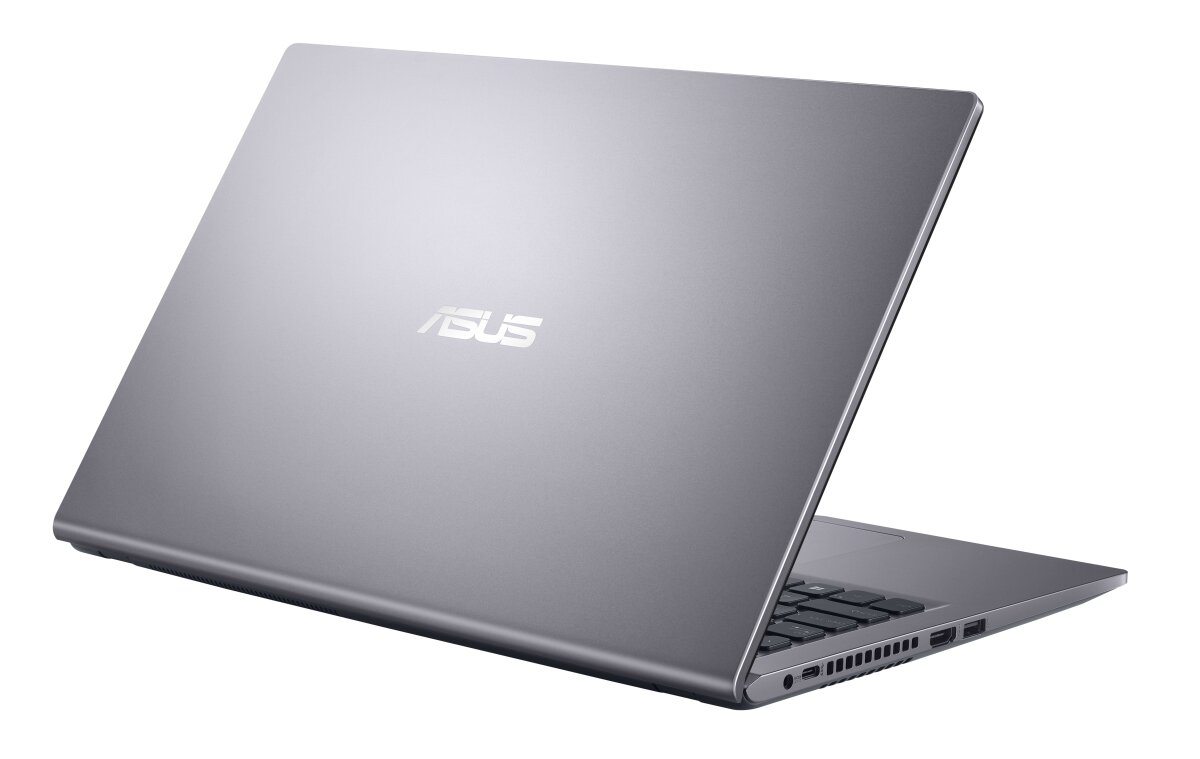

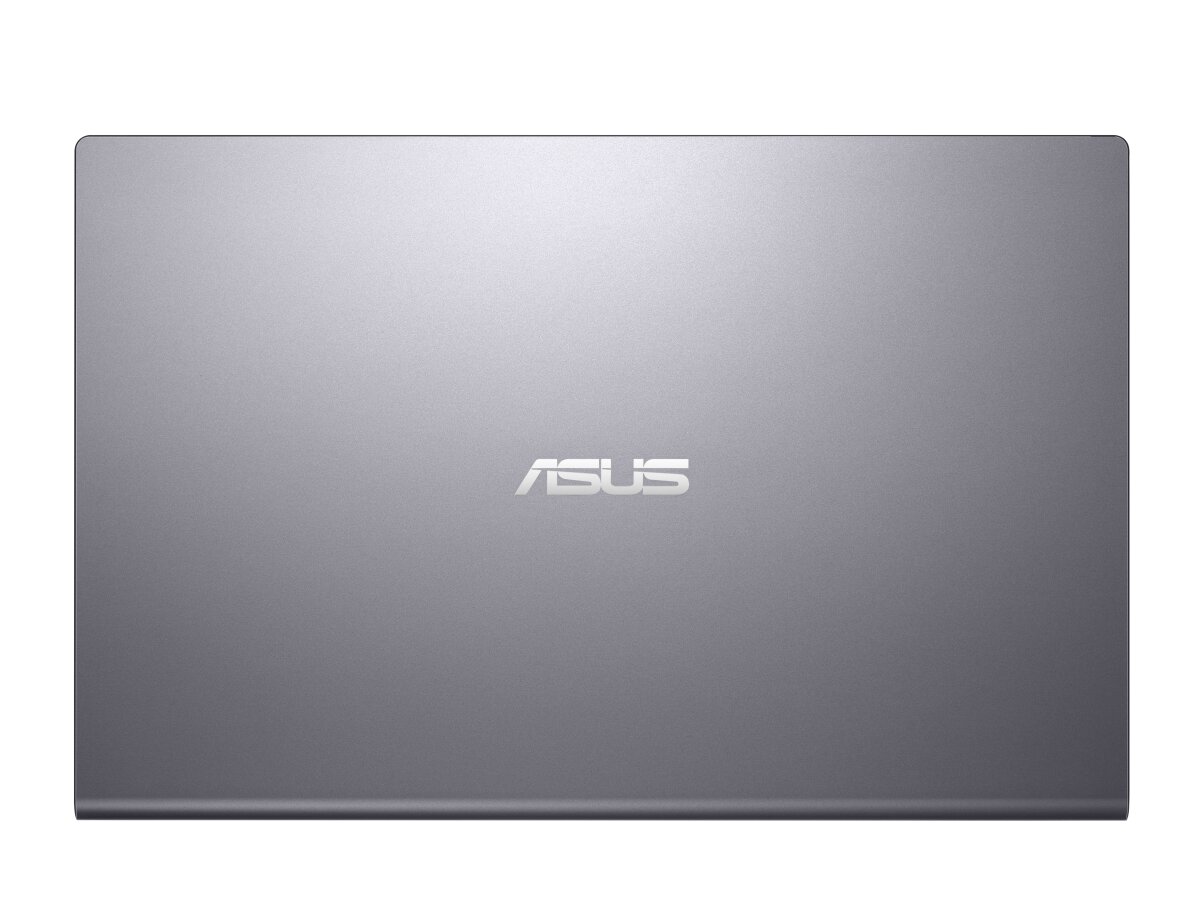

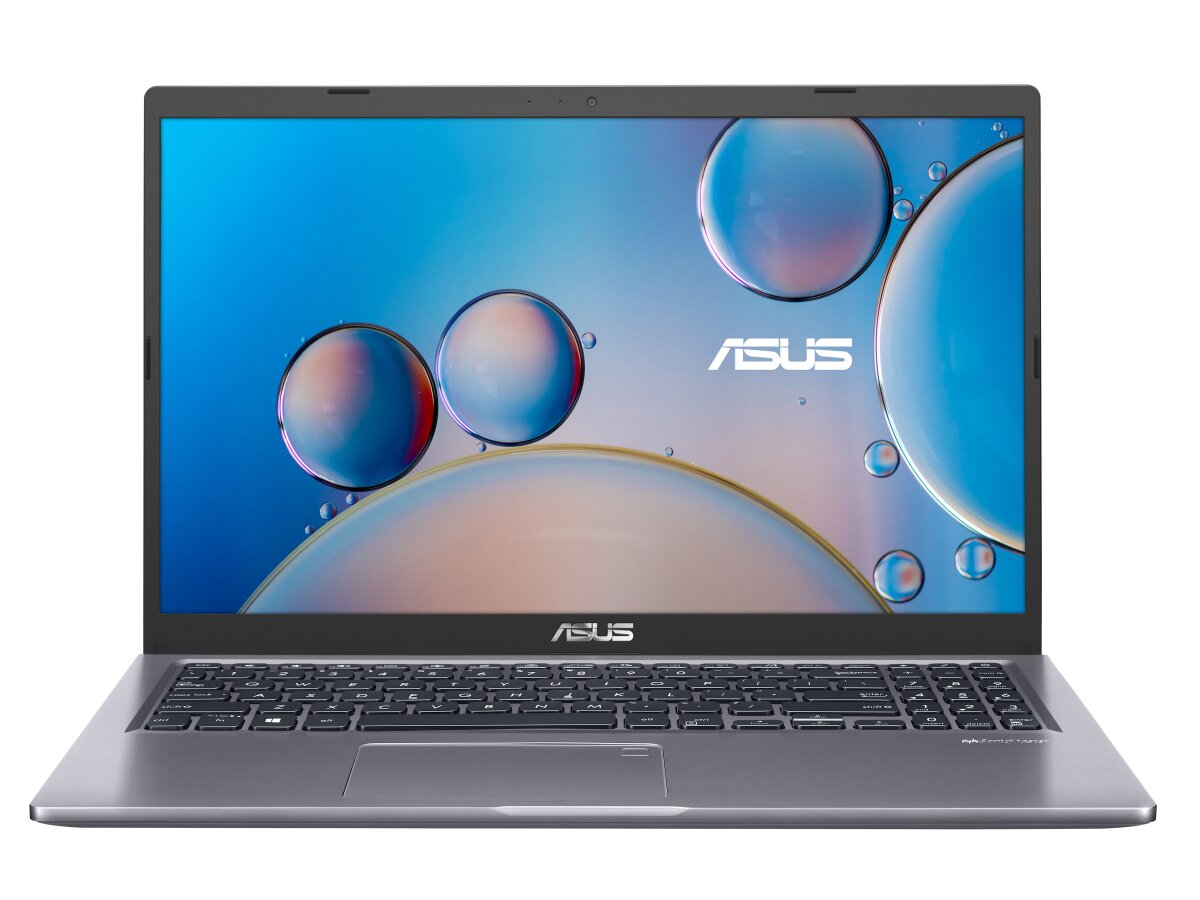

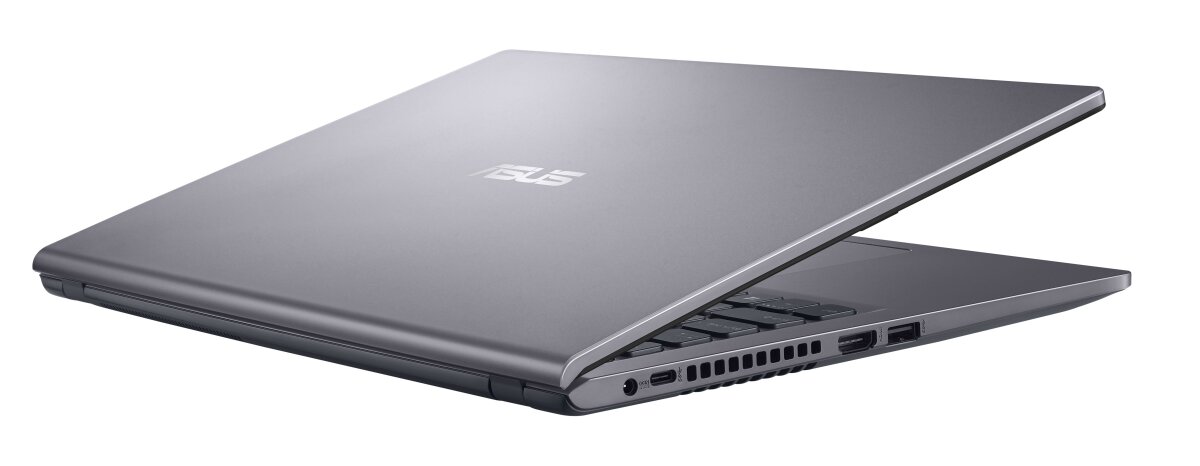

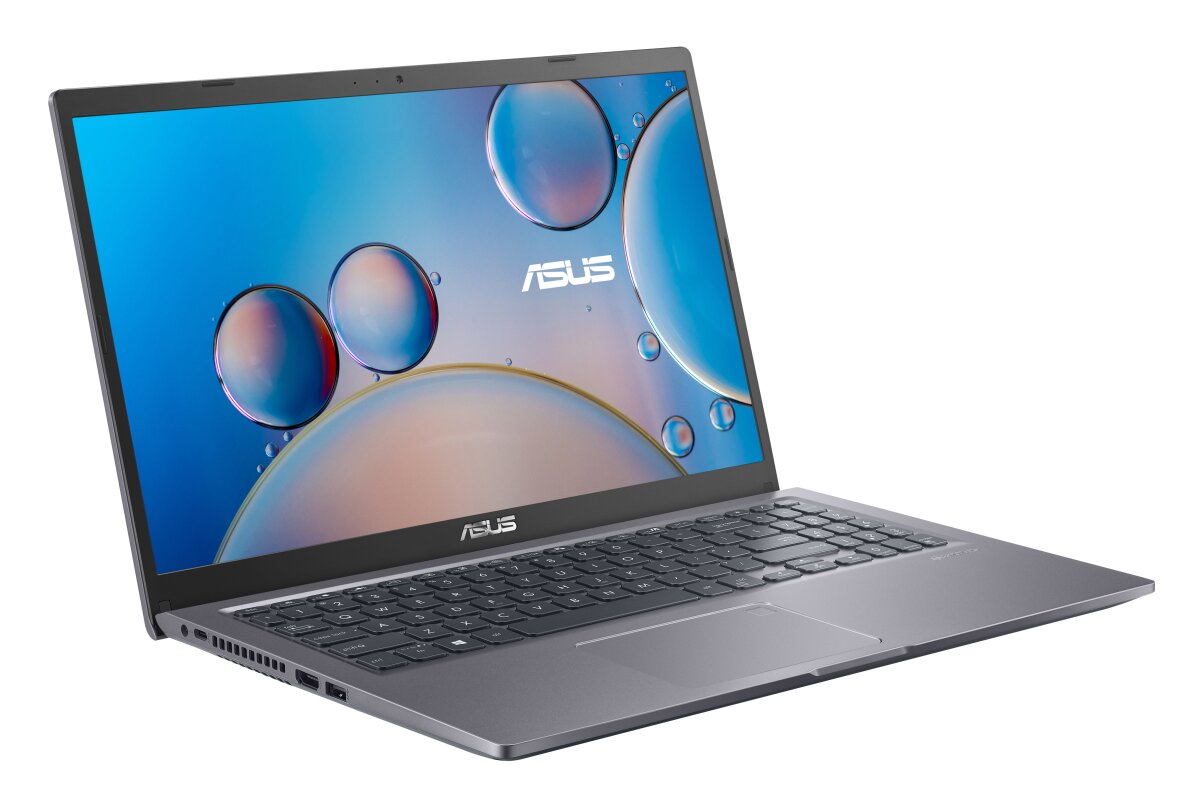

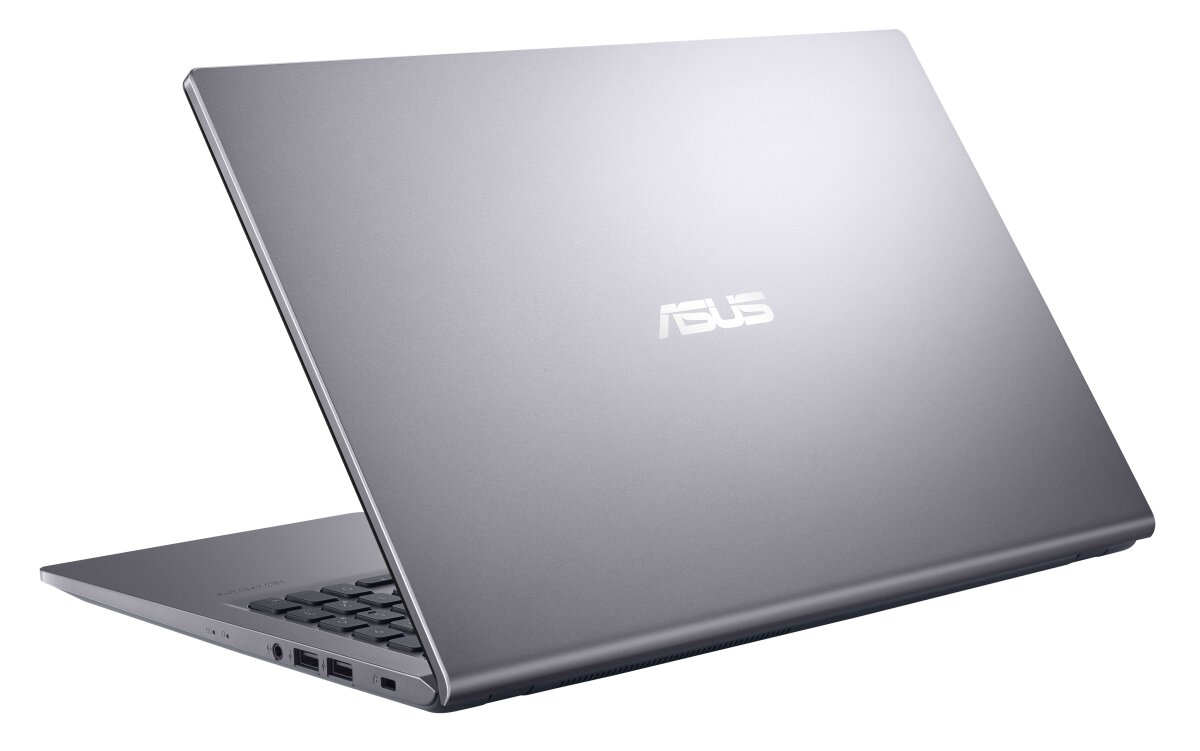

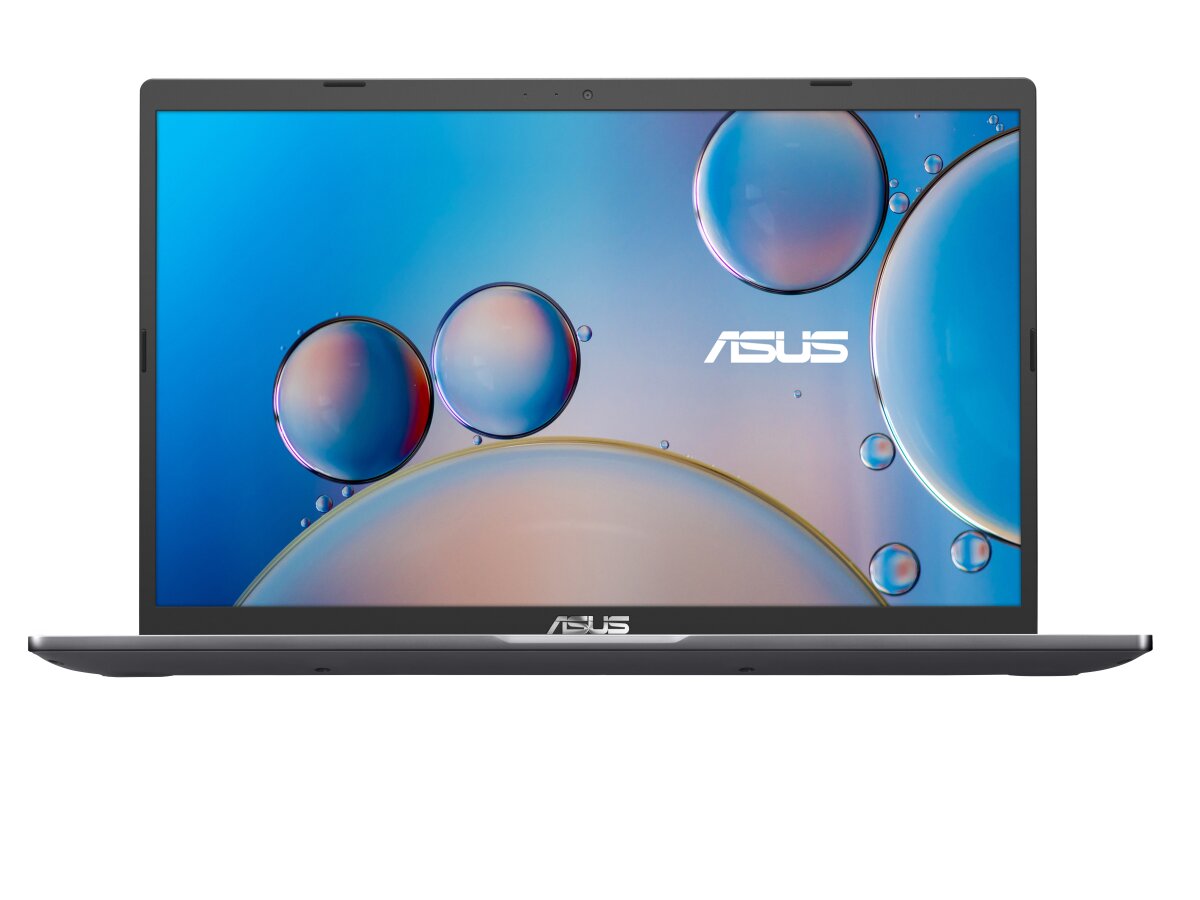

ASUS 515EA-DB75 - F515EA-DB75
ASUS 515EA-DB75
Product code: F515EA-DB75
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-1165G7
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.8 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Home |
| Display | |
| Display diagonal | 15.6 inch |
| Display brightness | 200 cd/m² |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Model name | 515EA-DB75 |
| Part Number | F515EA-DB75 |
| Release Date | 04 October 2021 |
| EAN/UPC code | 0195553271523, 195553271523 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor boost frequency | 4.7 GHz |
| Processor model | i7-1165G7 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 2.8 GHz |
| Configurable TDP-up | 28 W |
| Processor generation | 11th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |

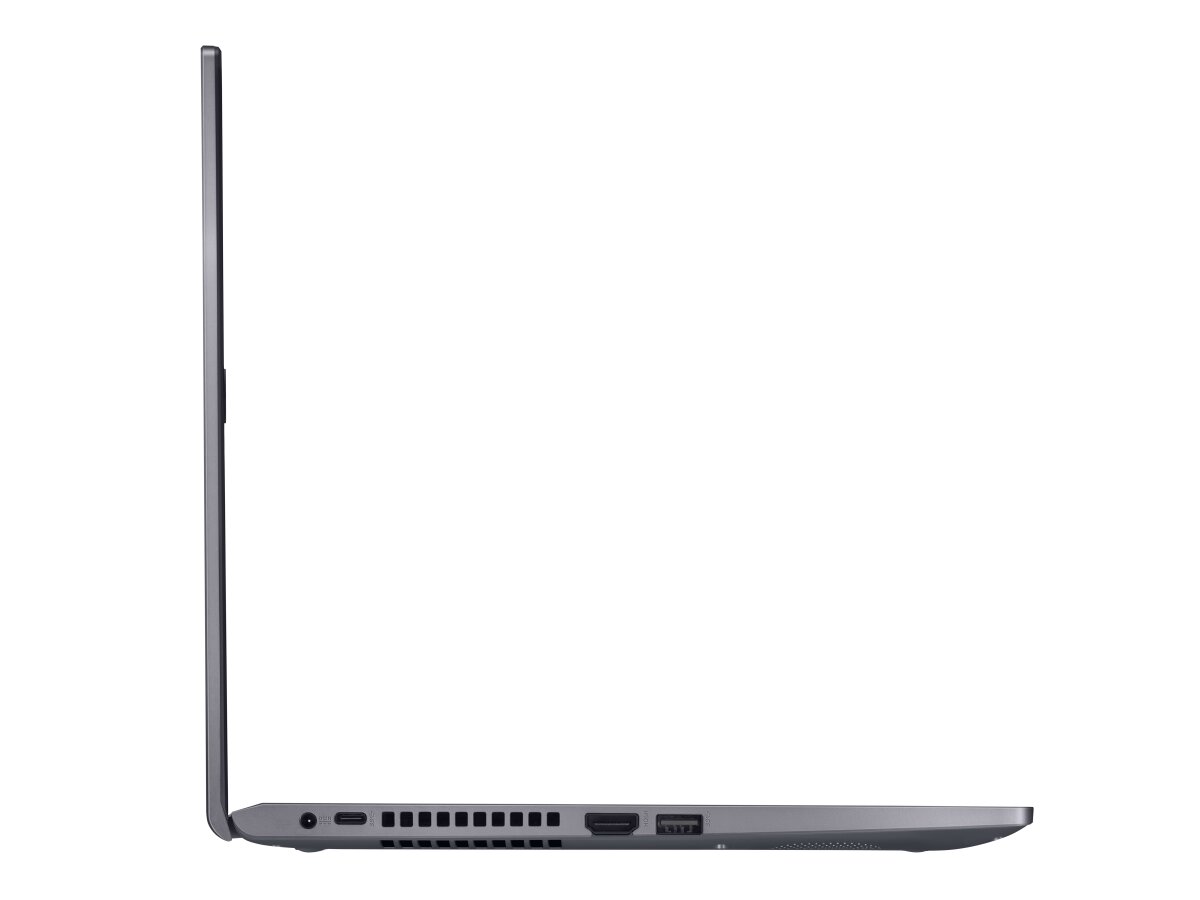

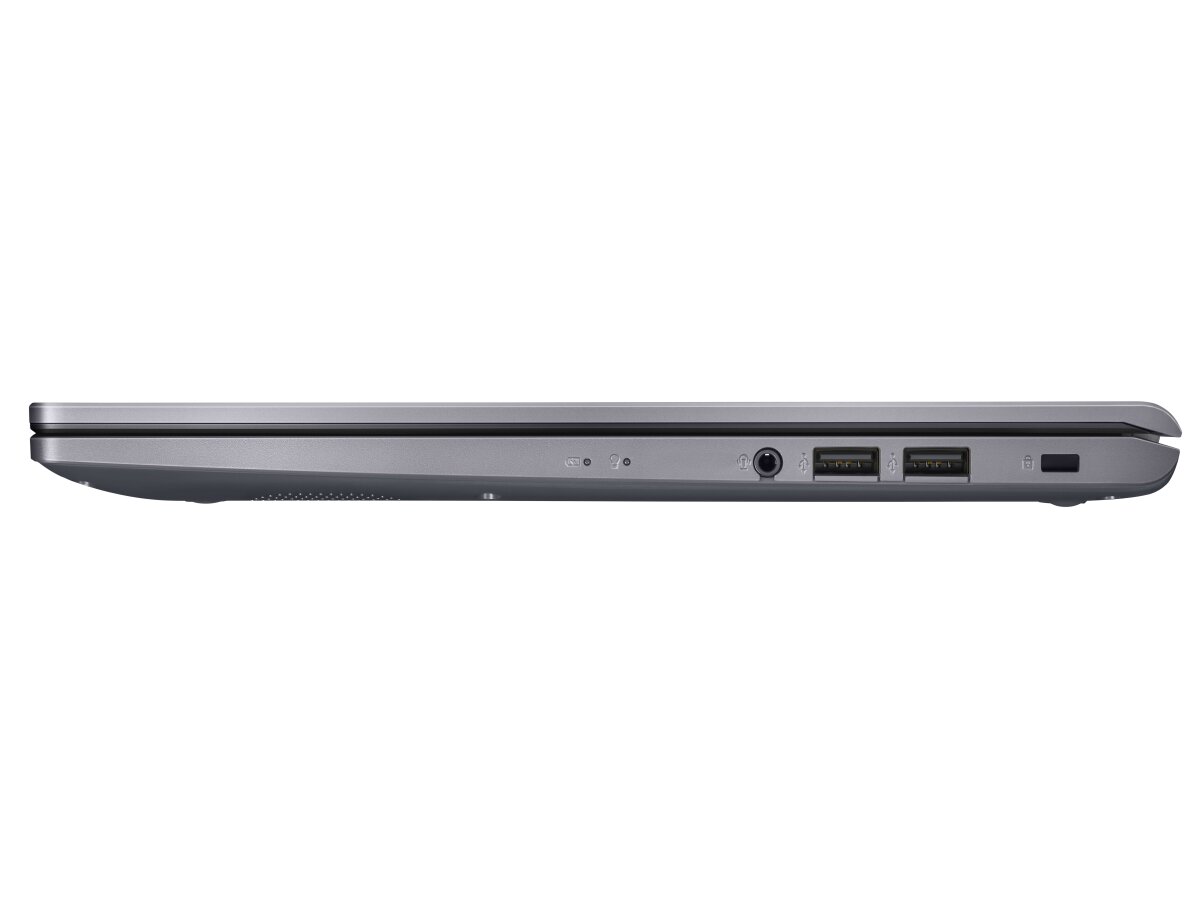

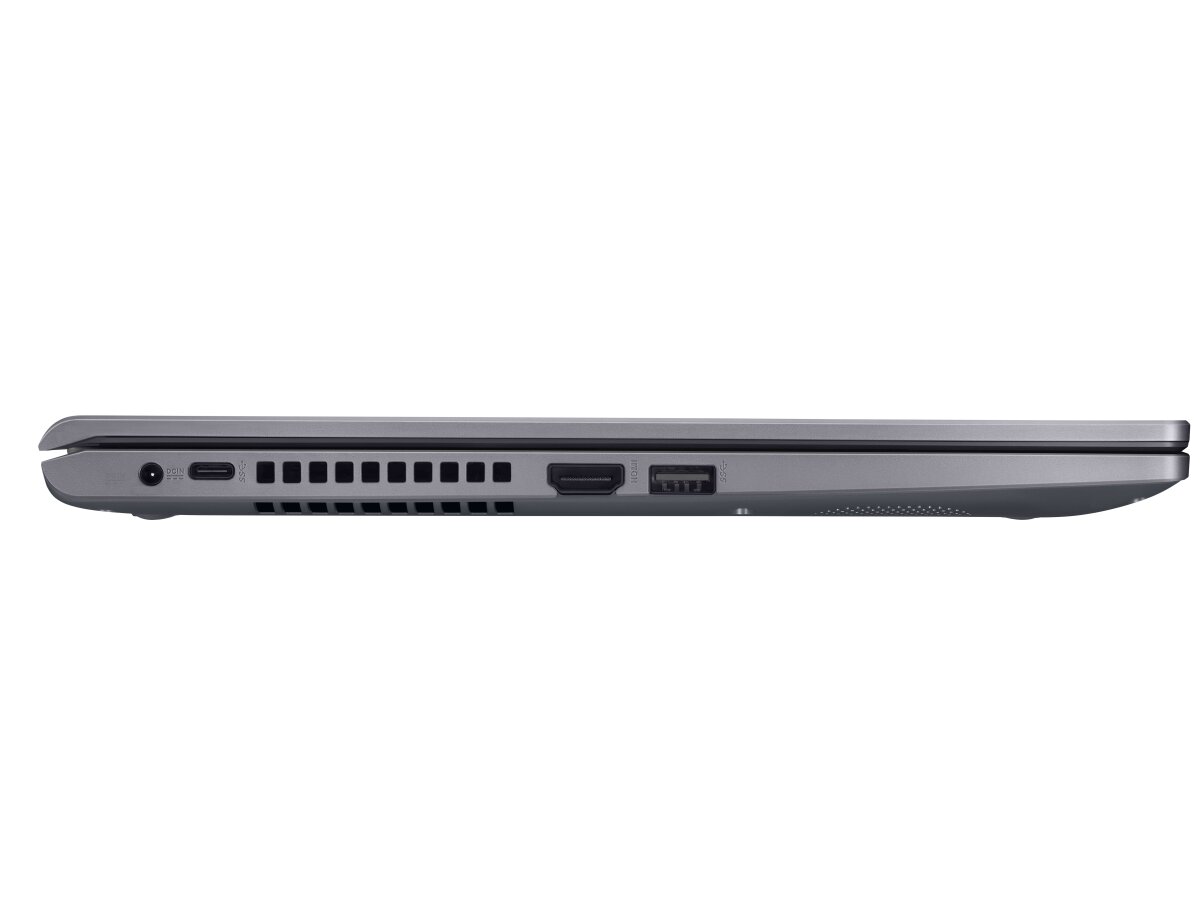

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Charging port type | DC-in jack |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Yes |
| Keyboard | |
| Numeric keypad | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 2 |
| Battery capacity | 37 Wh |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Height | 19.9 mm |
| Depth | 235 mm |
| Width | 360 mm |
| Power | |
| AC adapter power | 45 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.37 A |
| Security | |
| Cable lock slot | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
