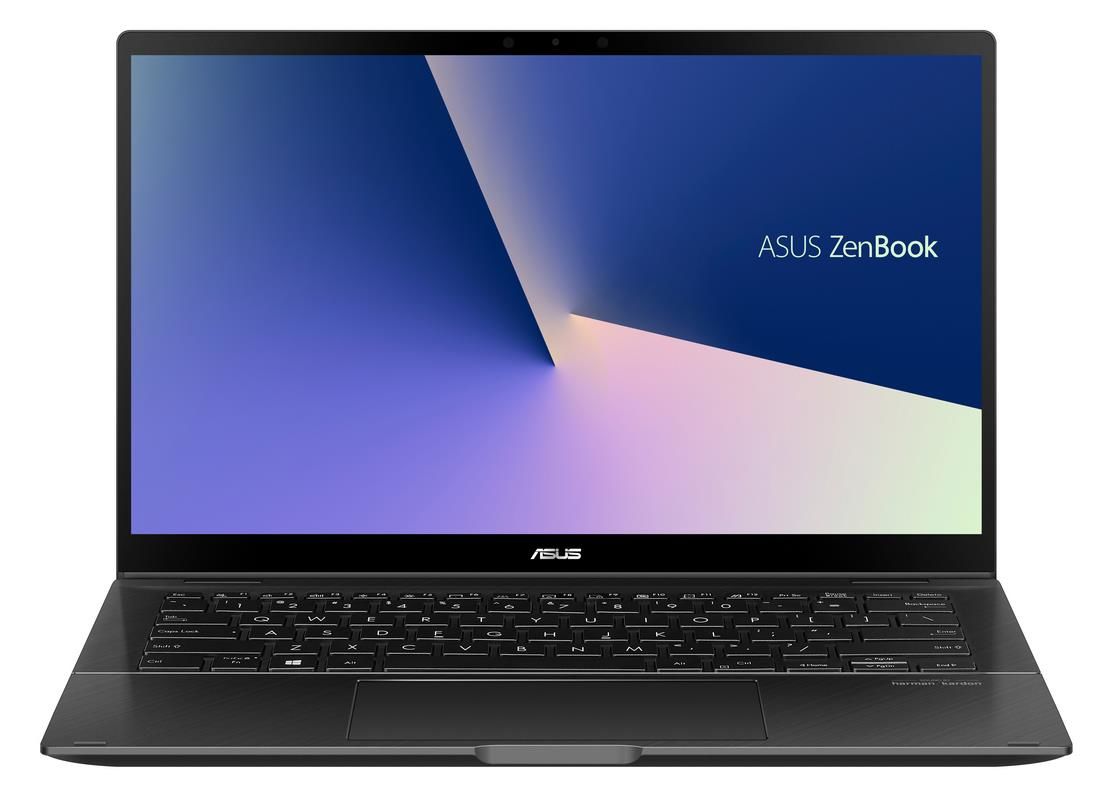

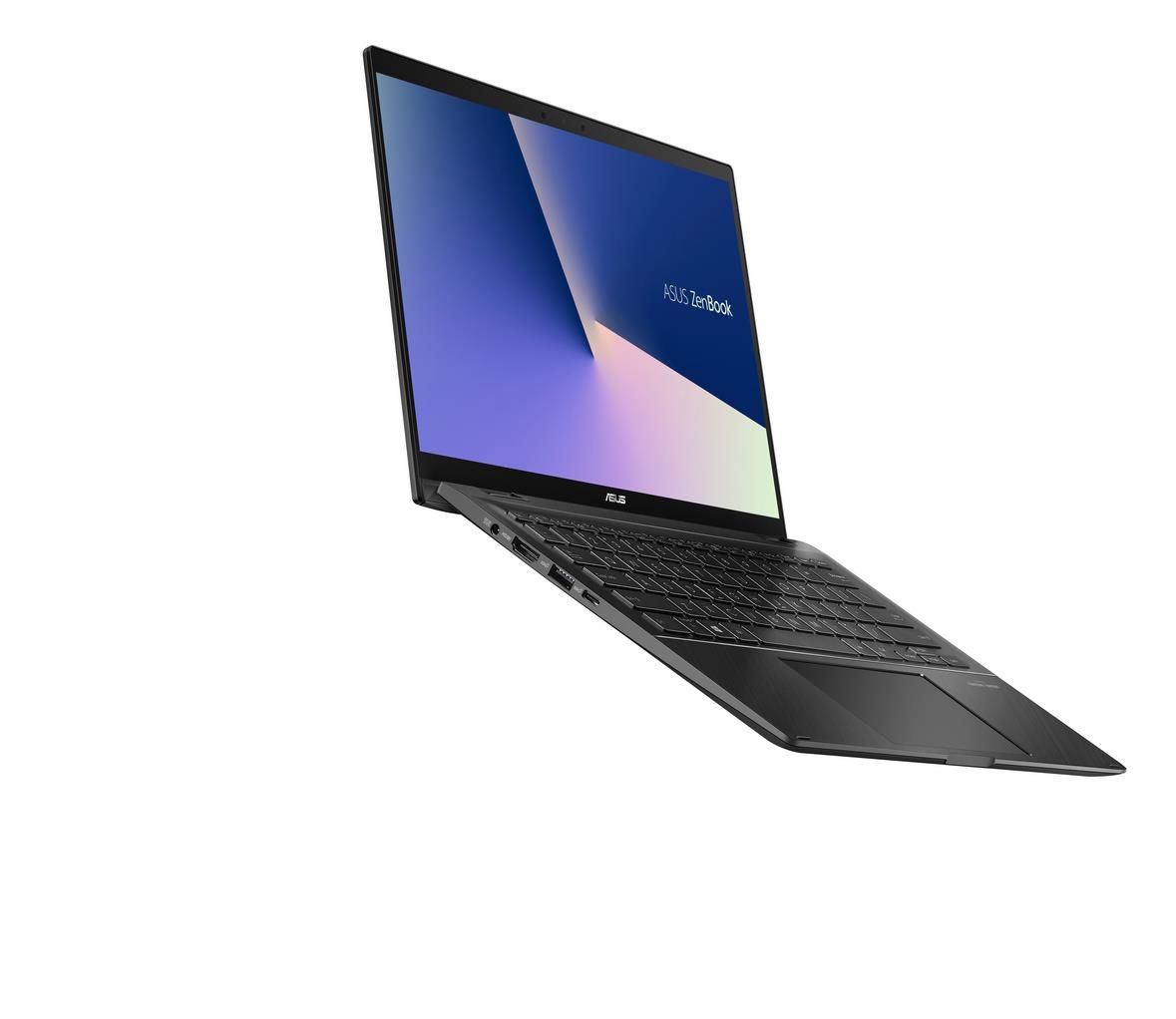

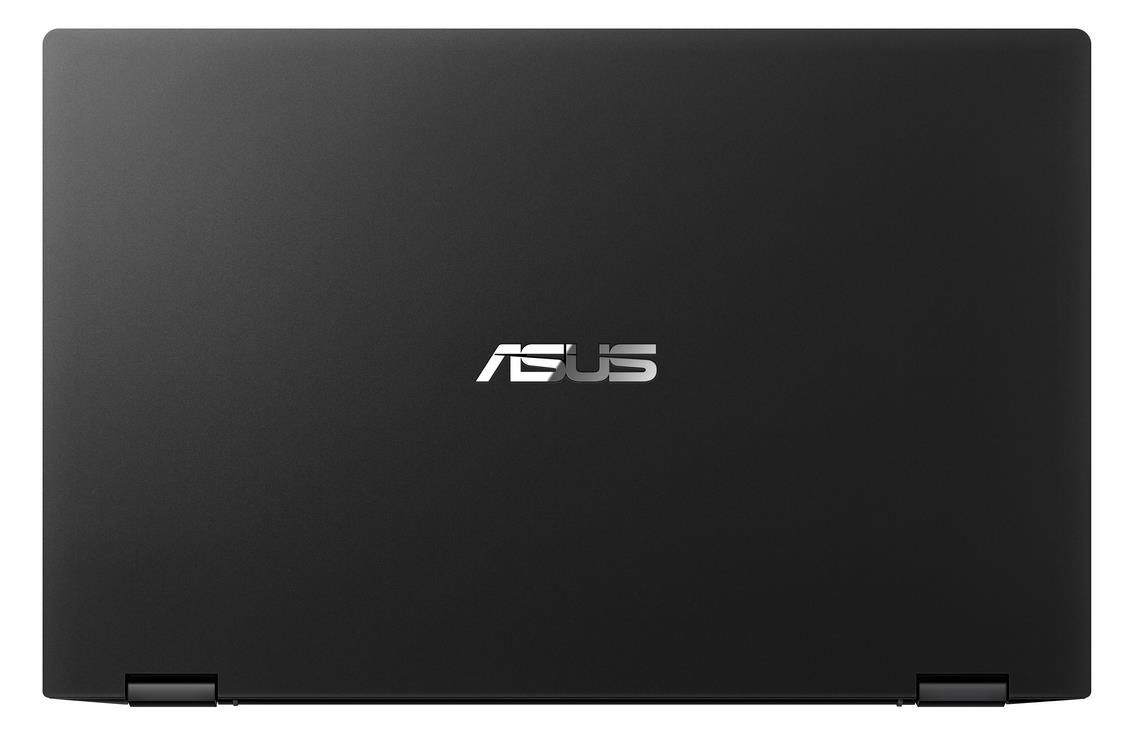

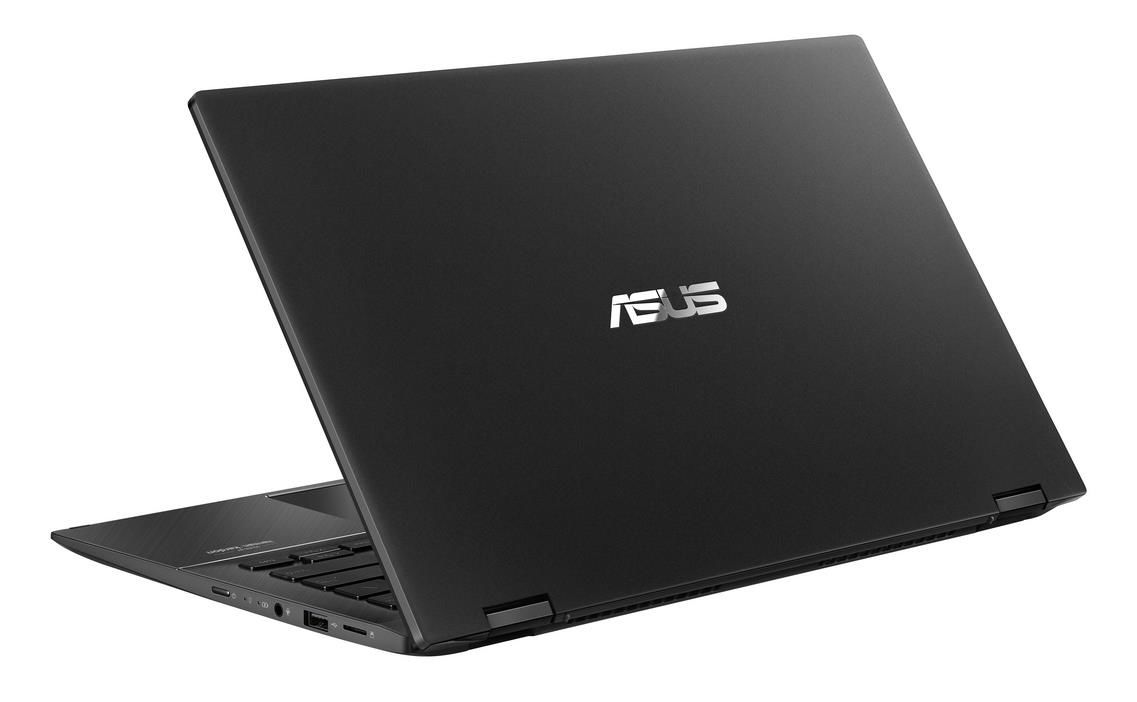

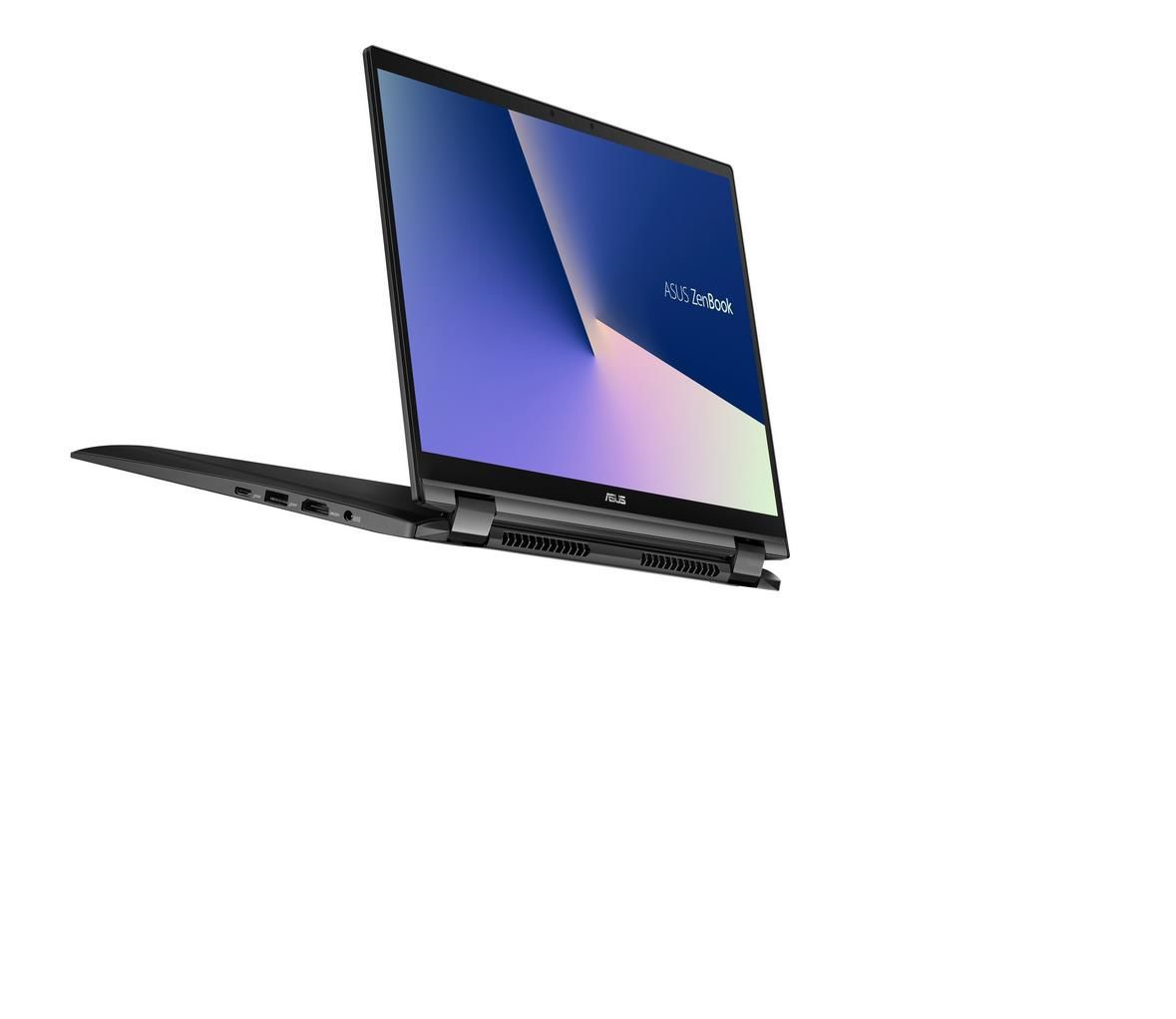

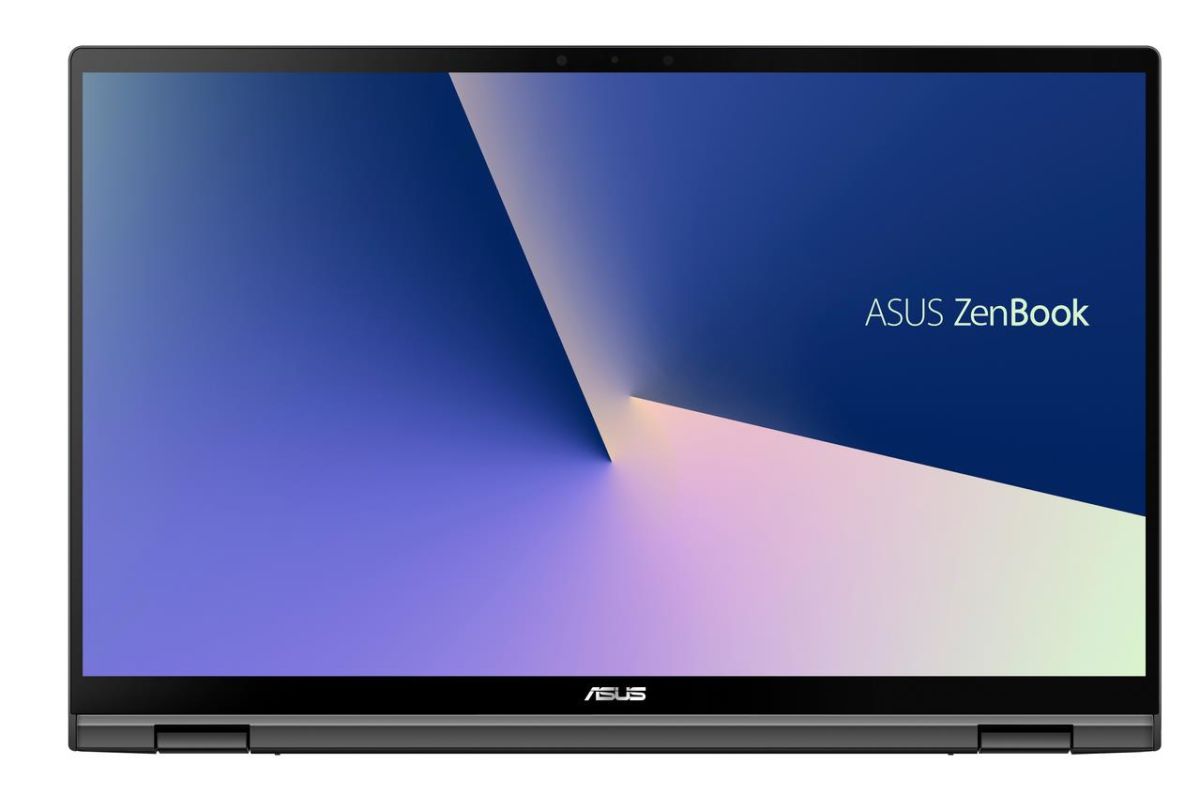

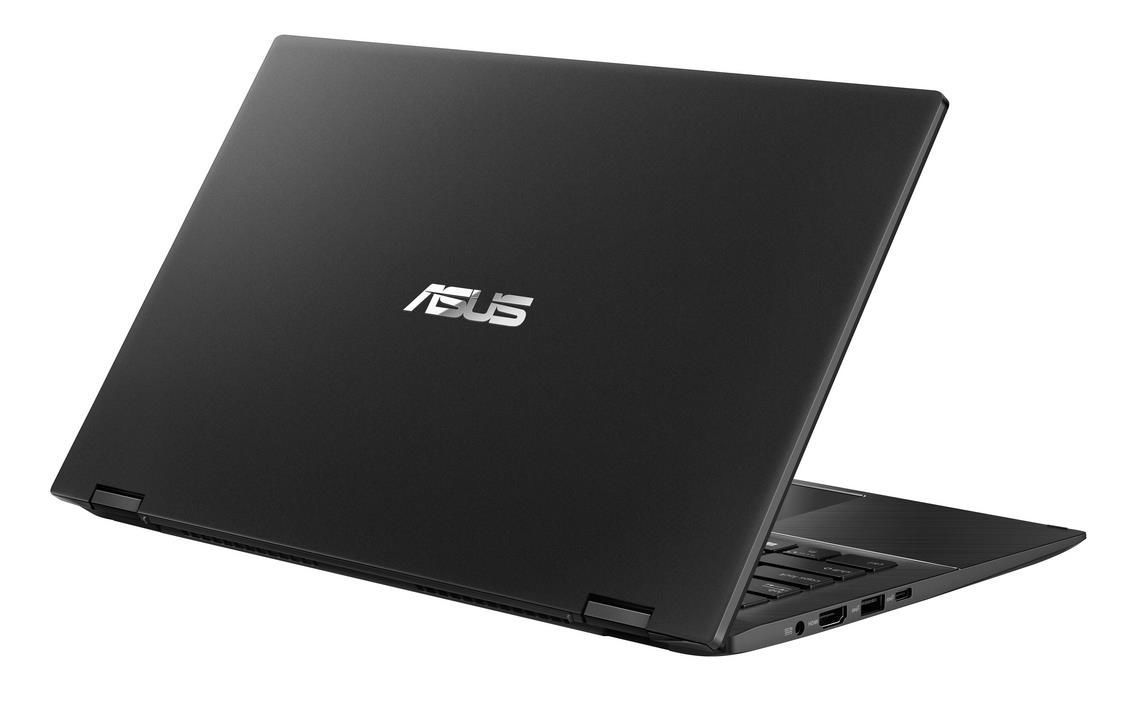

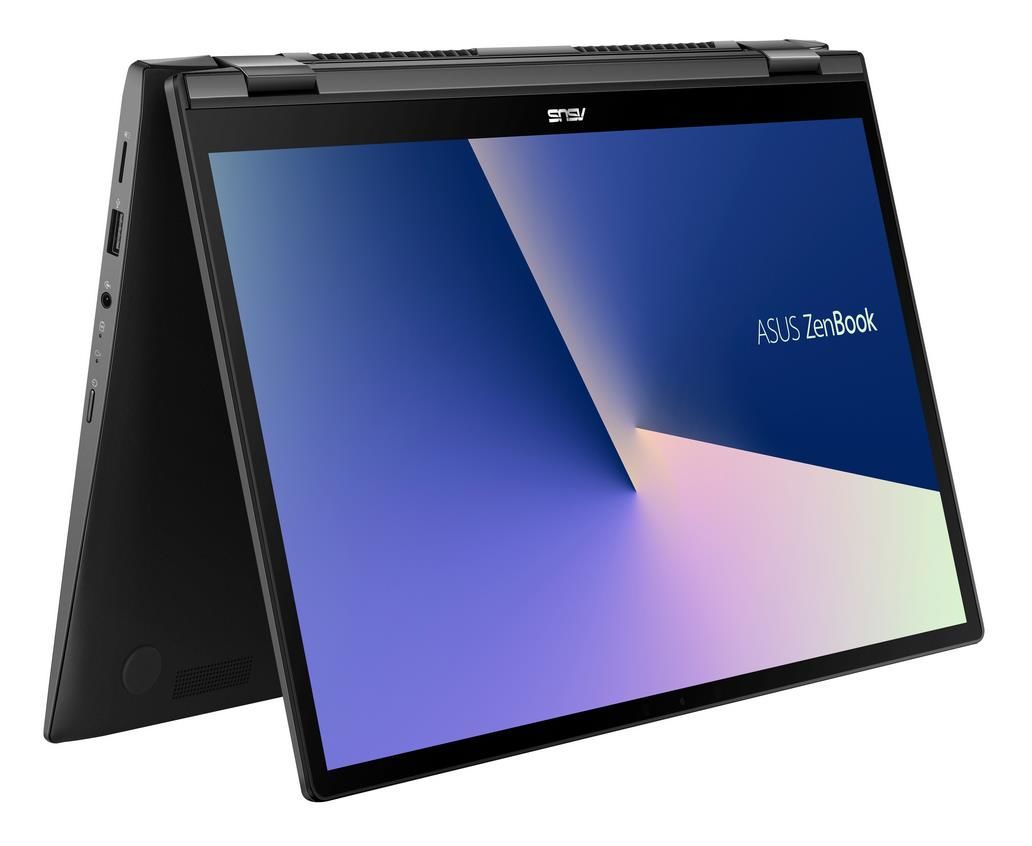

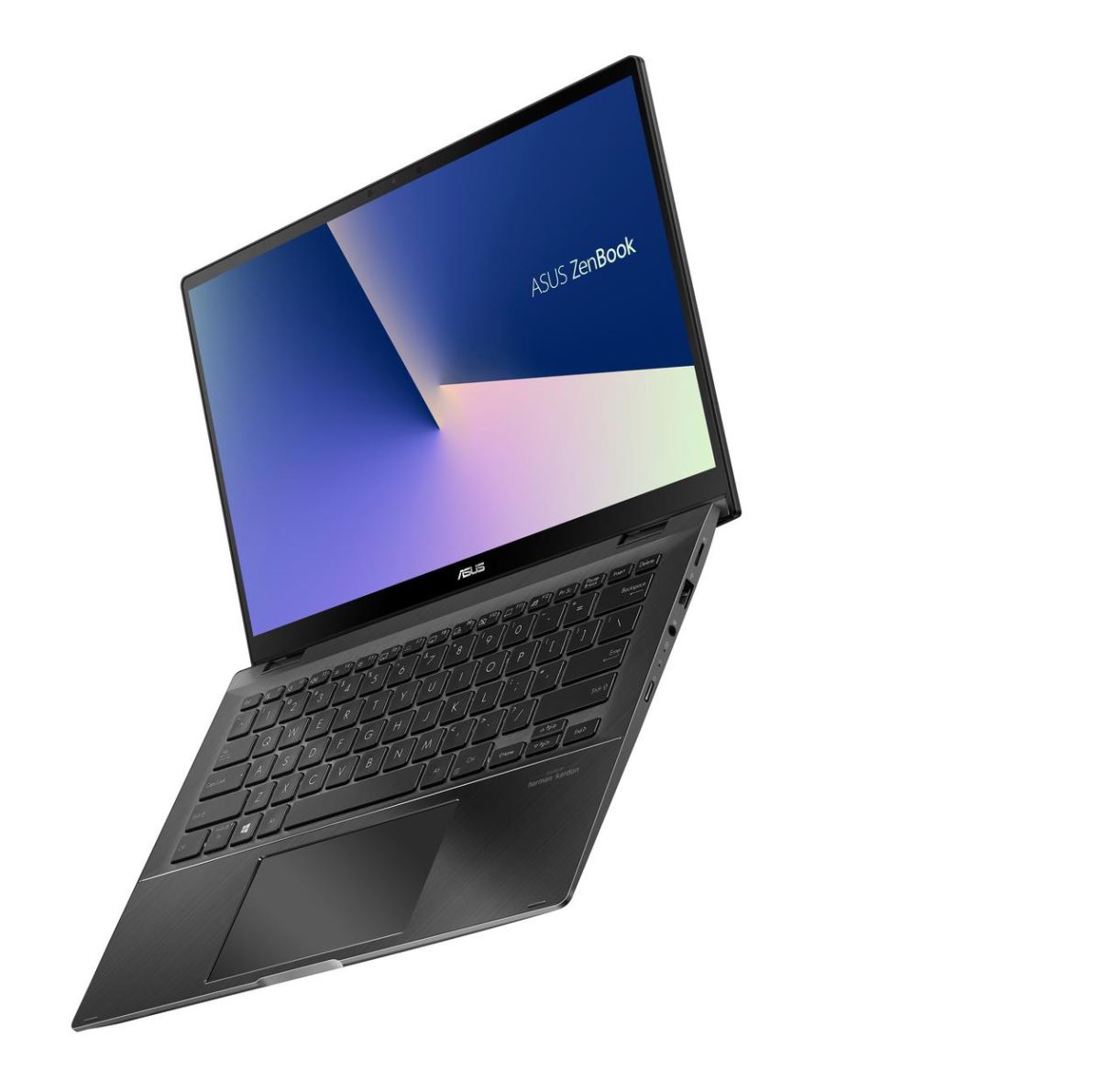

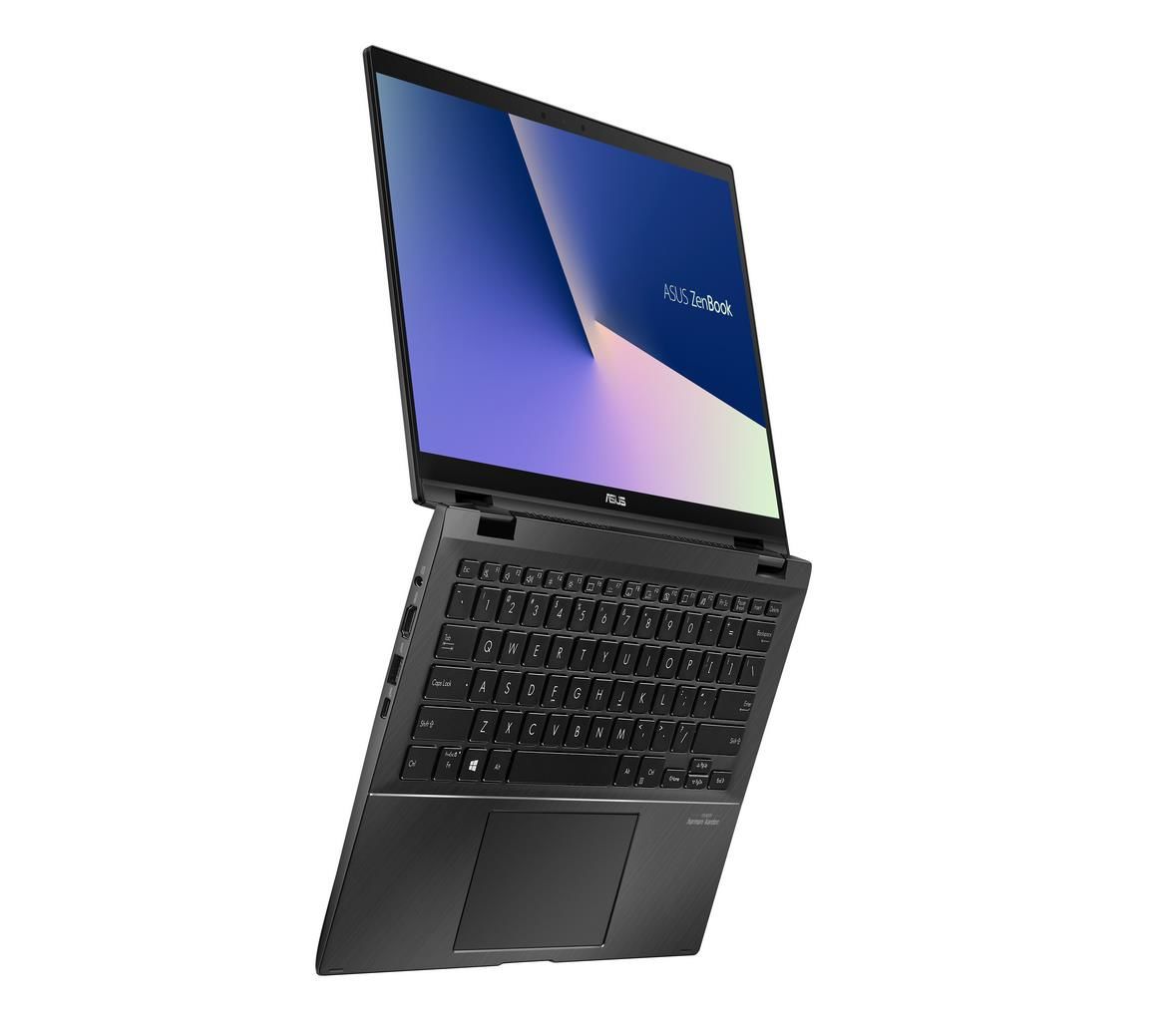

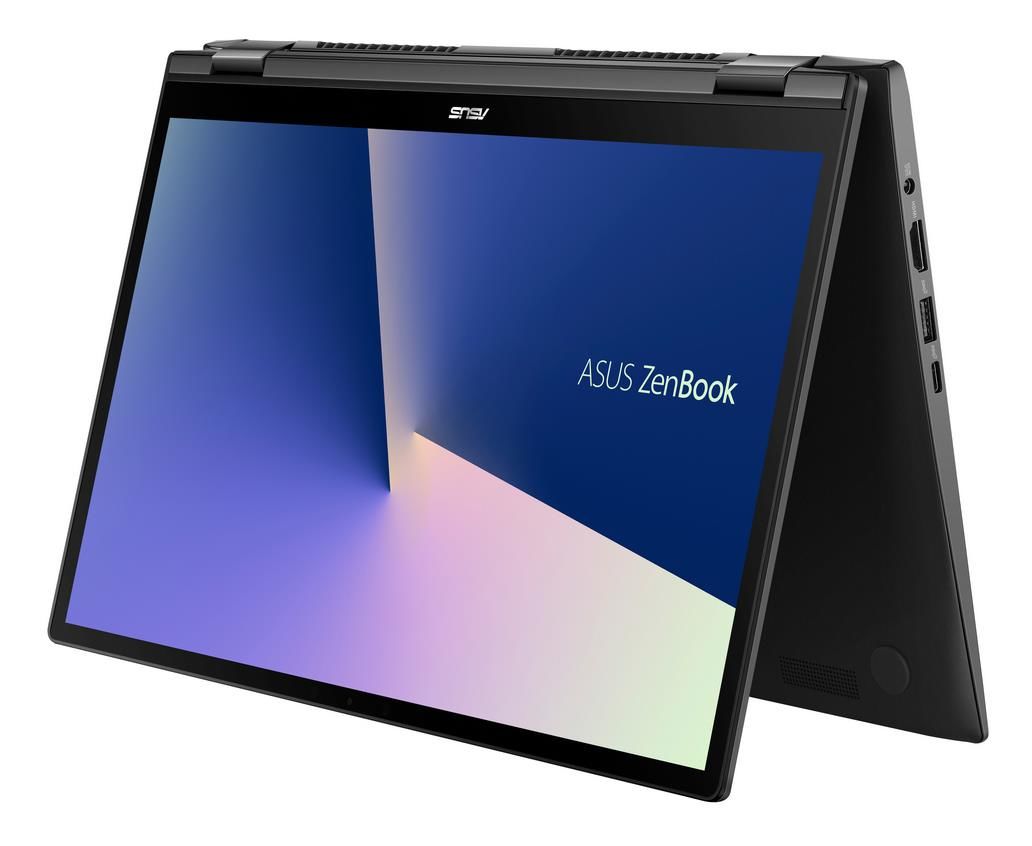

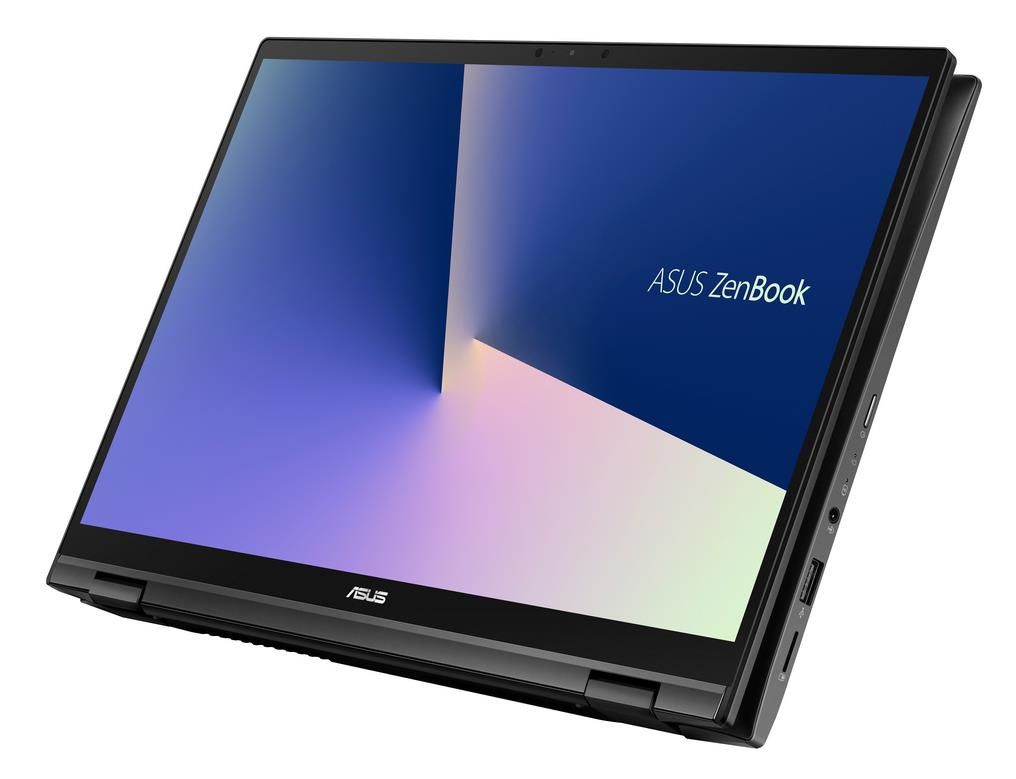

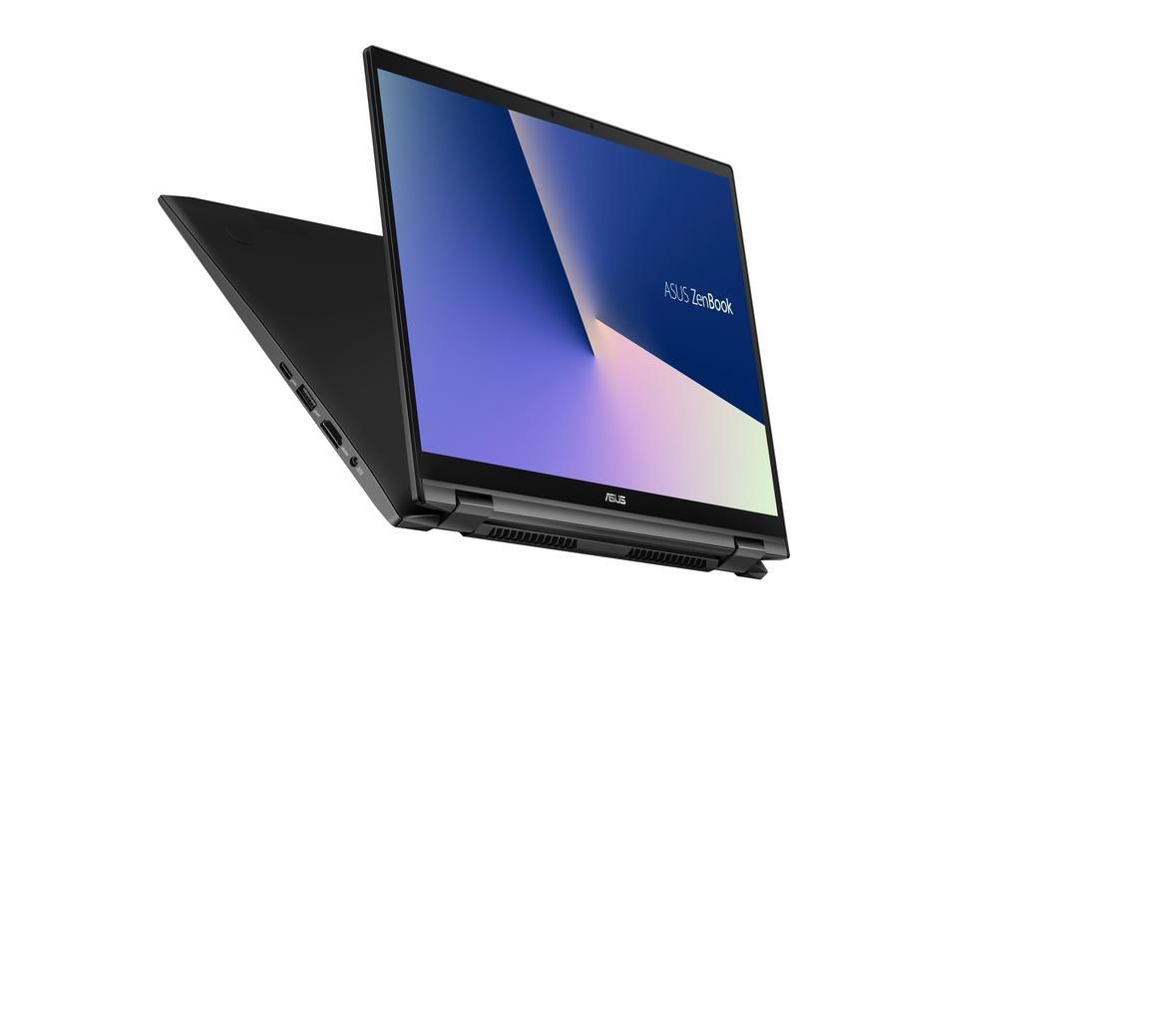

ASUS ZenBook Flip 14 UX463FA-AI014R - 90NB0NW1-M00420
ASUS ZenBook Flip 14 UX463FA-AI014R
Product code: 90NB0NW1-M00420
- đģDisplay diagonal: 14 inch
- đŗProcessor model: i7-10510U
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 1.4 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Display | |
| Display diagonal | 14 inch |
| Dual-screen | N |
| NTSC coverage (typical) | 72% |
| Maximum refresh rate | 60 Hz |
| Panel type | IPS |
| Display surface | Gloss |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ZenBook |
| Series | Flip 14 |
| Model name | UX463FA-AI014R |
| Part Number | 90NB0NW1-M00420 |
| Release Date | 07 August 2019 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 4.9 GHz |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-10510U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 2.3 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 10th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 2133 MHz |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Number of execution units | 24 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel UHD Graphics |
| Discrete graphics adapter model | Not available |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9B41 |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 1.4 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Audio system | SonicMaster Premium |
| Speaker power | 1 W |
| Camera | |
| Front camera | Y |
| Infrared (IR) camera | Y |
| Keyboard | |
| Numeric keypad | N |
| Windows keys | Y |
| Pointing device | NumberPad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3 |
| Battery capacity | 50 Wh |
| Battery capacity (Watt hours) | 50 Wh |
| Weight & dimensions | |
| Weight | 1.4 kg |
| Height | 17.9 mm |
| Depth | 206 mm |
| Width | 320 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
