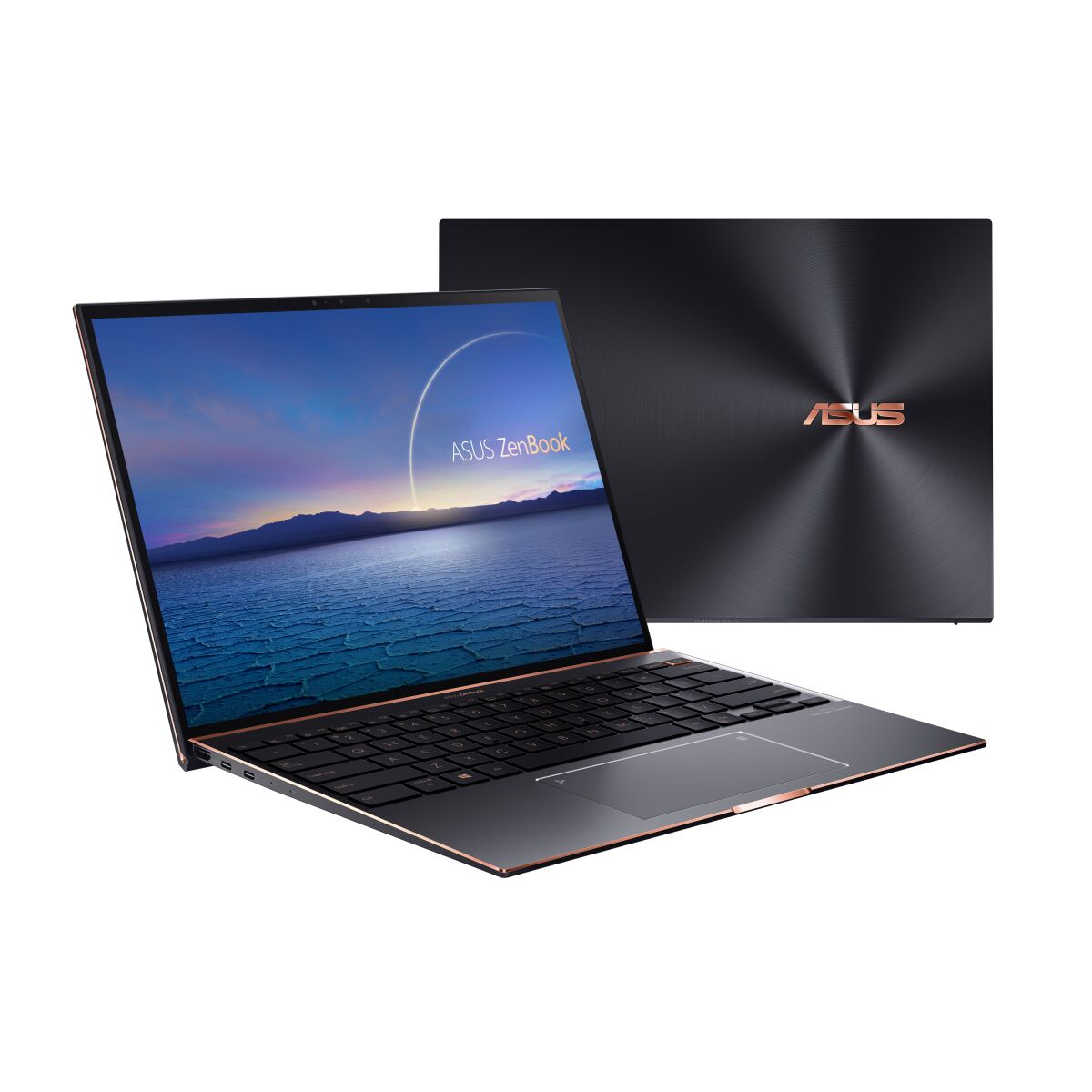

ASUS Zenbook S UX393EA-XB77T
ASUS Zenbook S UX393EA-XB77T
Product code: UX393EA-XB77T
- 💻Display diagonal: 13.9 inch
- 🔳Processor model: i7-1165G7
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel Iris Graphics
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 1.35 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 13.9 inch |
| Panel type | IPS |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 3300 x 2200 pixels |
| Native aspect ratio | 3:2 |
| Brand | ASUS |
| Family | Zenbook |
| Series | S |
| Model name | UX393EA-XB77T |
| Part Number | UX393EA-XB77T |
| Release Date | 19 September 2020 |
| EAN/UPC code | 0192876840115, 192876840115 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.2 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor model | i7-1165G7 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 2.8 GHz |
| Configurable TDP-up | 28 W |
| Processor generation | 11th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR4x-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel Iris Graphics |
| Discrete graphics adapter model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB4 Gen 3x2 ports quantity | 2 |
| Audio | |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 67 Wh |
| Number of battery cells | 4 |
| Battery capacity | 67 Wh |
| Weight & dimensions | |
| Weight | 1.35 kg |
| Height | 15.7 mm |
| Depth | 224 mm |
| Width | 306 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Security | |
| Trusted Platform Module (TPM) | Yes |
