ASUS Zenbook Duo UX8406MA-PZ203W - 90NB12U1-M008S0

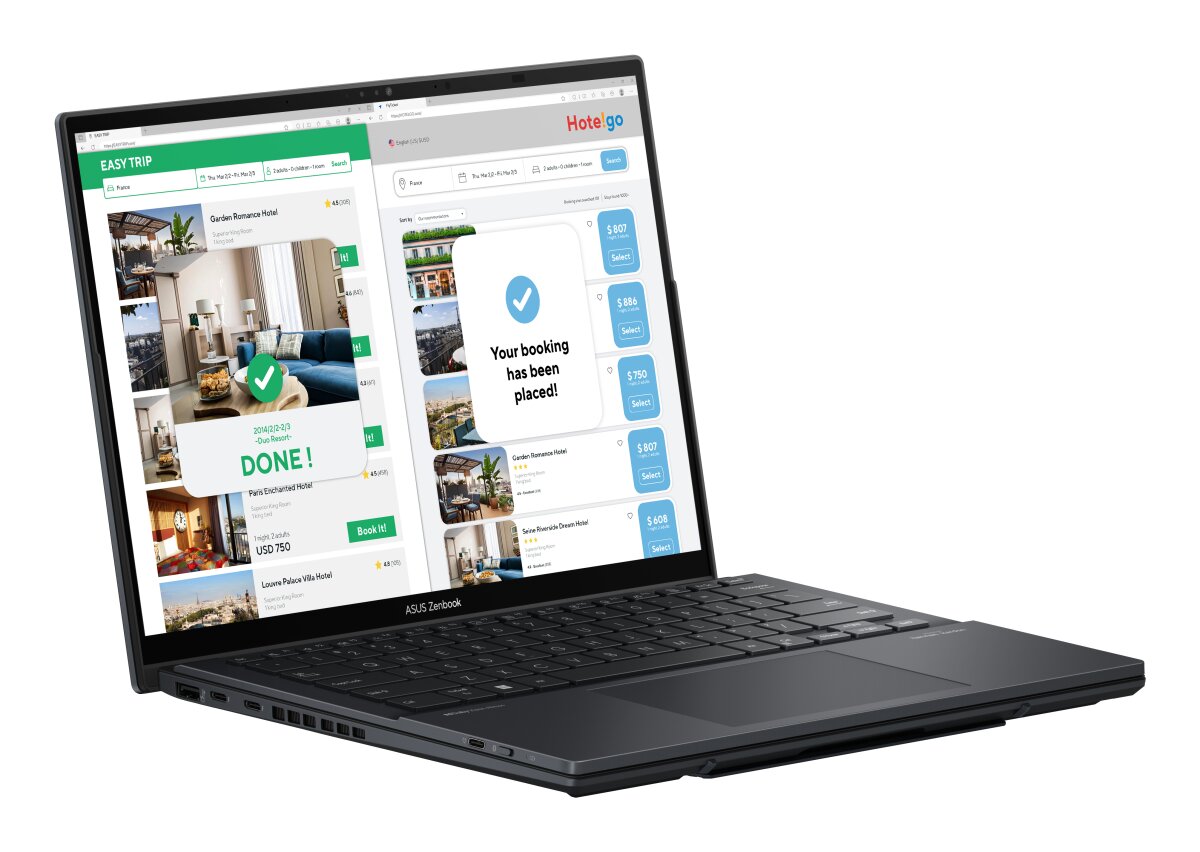

ASUS Zenbook Duo UX8406MA-PZ203W
Product code: 90NB12U1-M008S0
- 💻Display diagonal: 14 inch
- 🔳Processor model: 185H
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 2 TB
- ⚖️Weight: 1.65 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Detachable) |
| Market positioning | Home |
| Housing material | Aluminium, Magnesium |
| Introduction year | 2024 |
| Display | |
| Display diagonal | 14 inch |
| Maximum refresh rate | 120 Hz |
| Display response rise/fall | 0.2 ms |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 400 cd/m² |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | 3K |
| Touchscreen | Yes |
| Display resolution | 2880 x 1800 pixels |
| Display number of colours | 1.073 billion colours |
| High Dynamic Range (HDR) technology | HDR True Black 500 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum display brightness (HDR) | 500 cd/m² |
| Brand | ASUS |
| Family | Zenbook |
| Series | Duo |
| Model name | UX8406MA-PZ203W |
| Part Number | 90NB12U1-M008S0 |
| Release Date | 12 January 2024 |
| EAN/UPC code | 4711387386965, 0197105386969, 197105386969 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor boost frequency | 5.1 GHz |
| Processor model | 185H |
| Processor cores | 16 |
| Processor cache | 24 MB |
| Efficient cores | 8 |
| Performance cores | 6 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
| Performance-core base frequency | 2.3 GHz |
| Efficient-core boost frequency | 1.8 GHz |
| Memory | |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc Graphics |
| Storage | |
| Total storage capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| Total SSDs capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Charging port type | USB Type-C |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | Smart Amp |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 pixels |
| Keyboard | |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery life (max) | 8 h |
| Battery capacity | 75 Wh |
| Weight & dimensions | |
| Weight | 1.65 kg |
| Height (rear) | 1.99 cm |
| Height (front) | 1.46 cm |
| Depth | 217.9 mm |
| Width | 313.5 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 3.25 A |
| Security | |
| Face recognition | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
