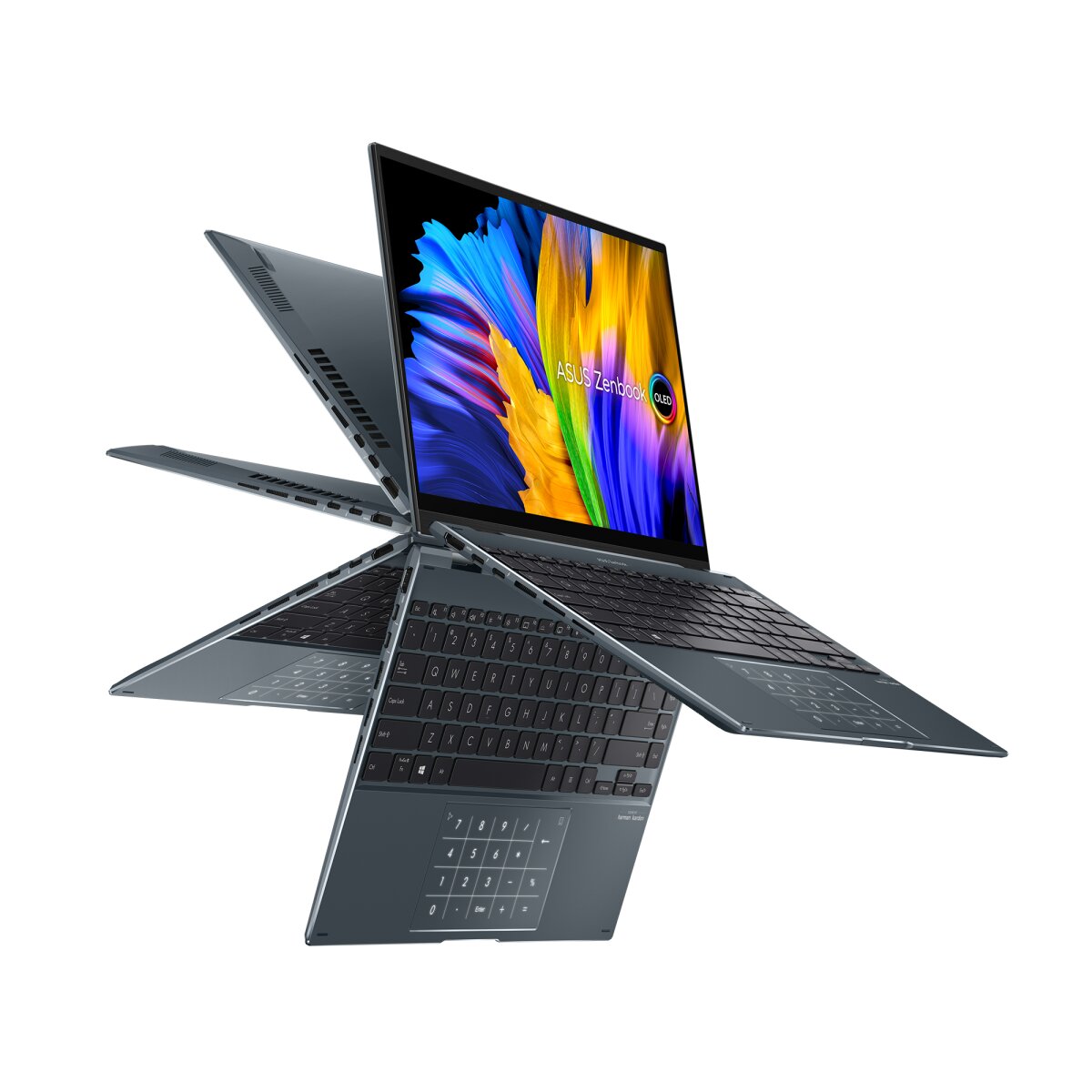

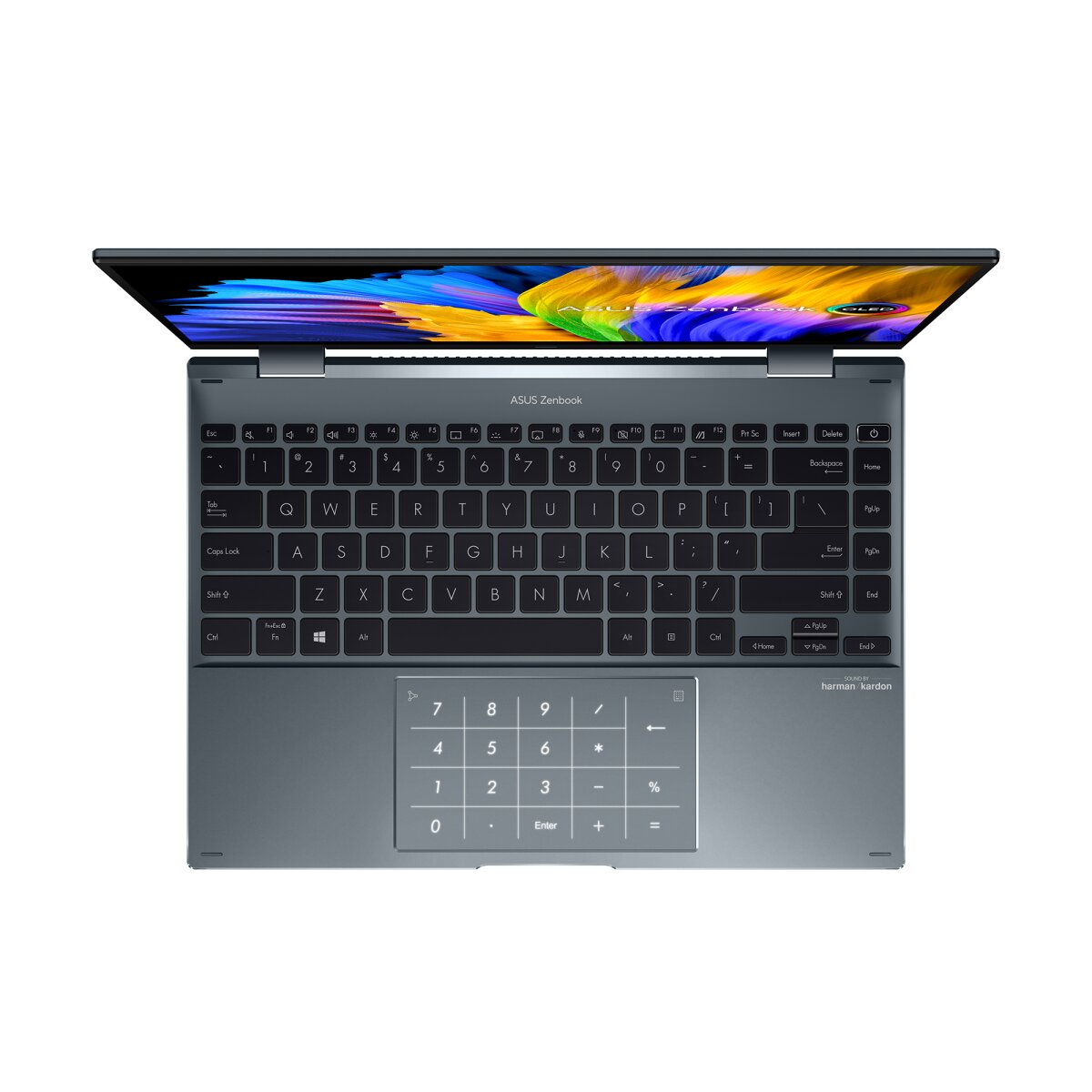

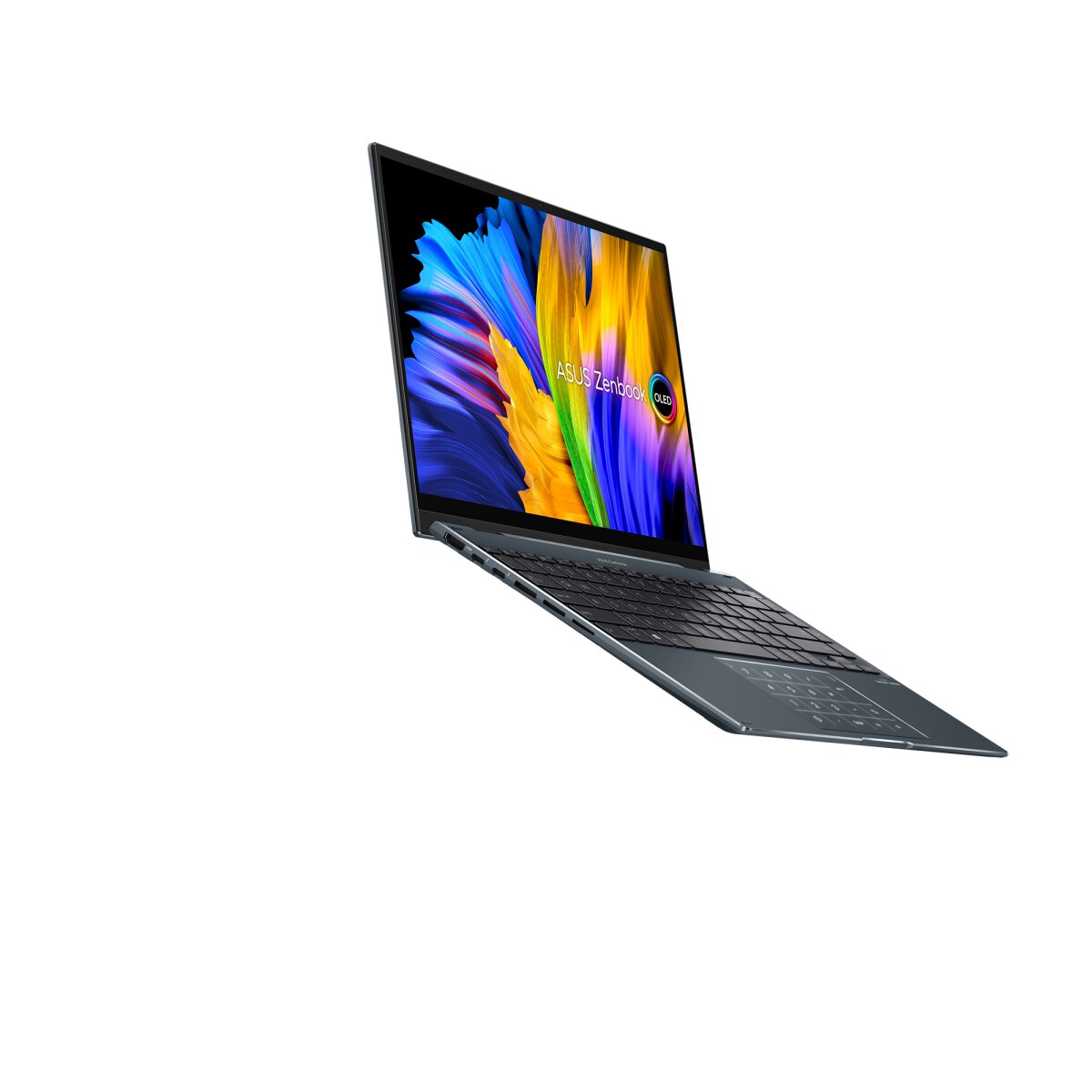

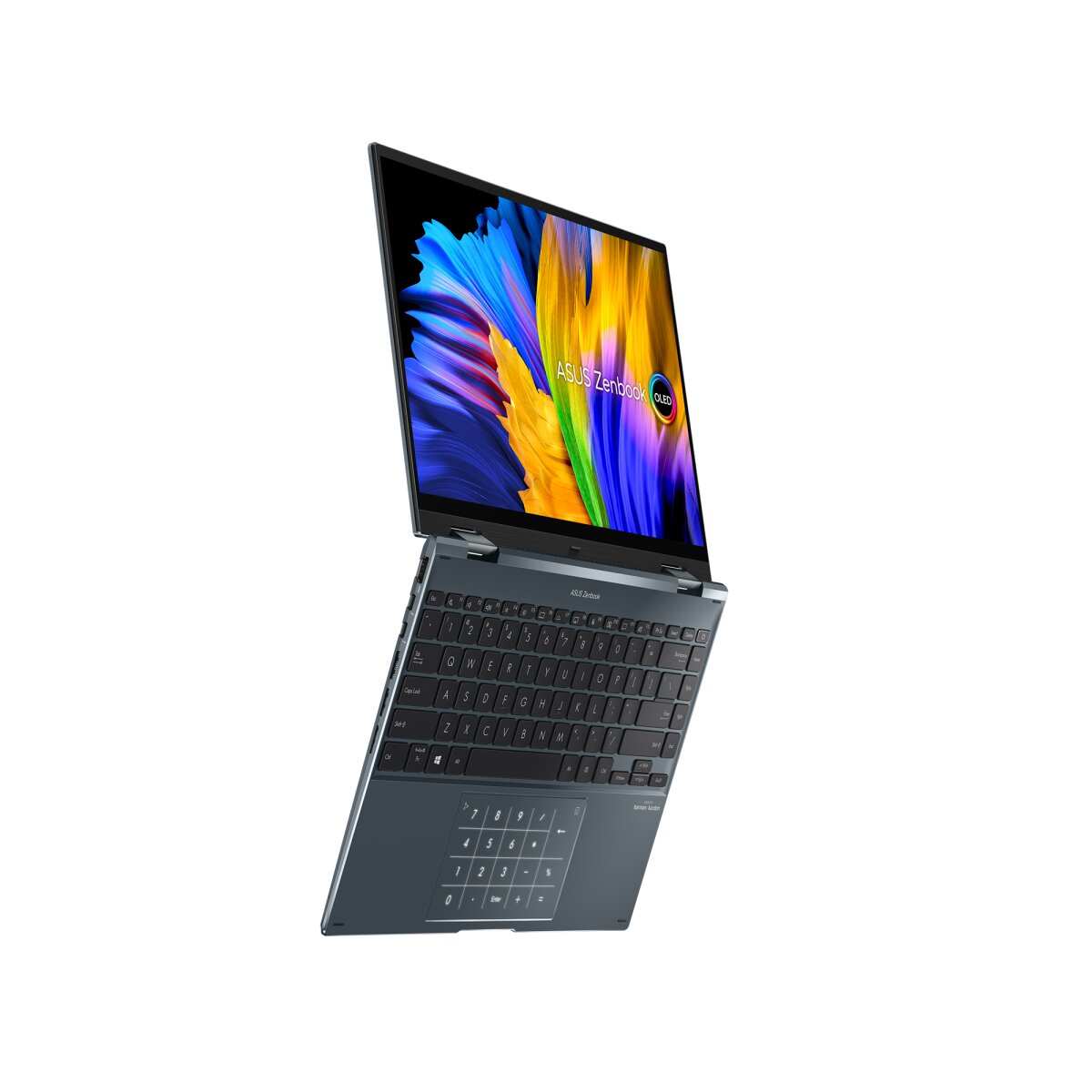

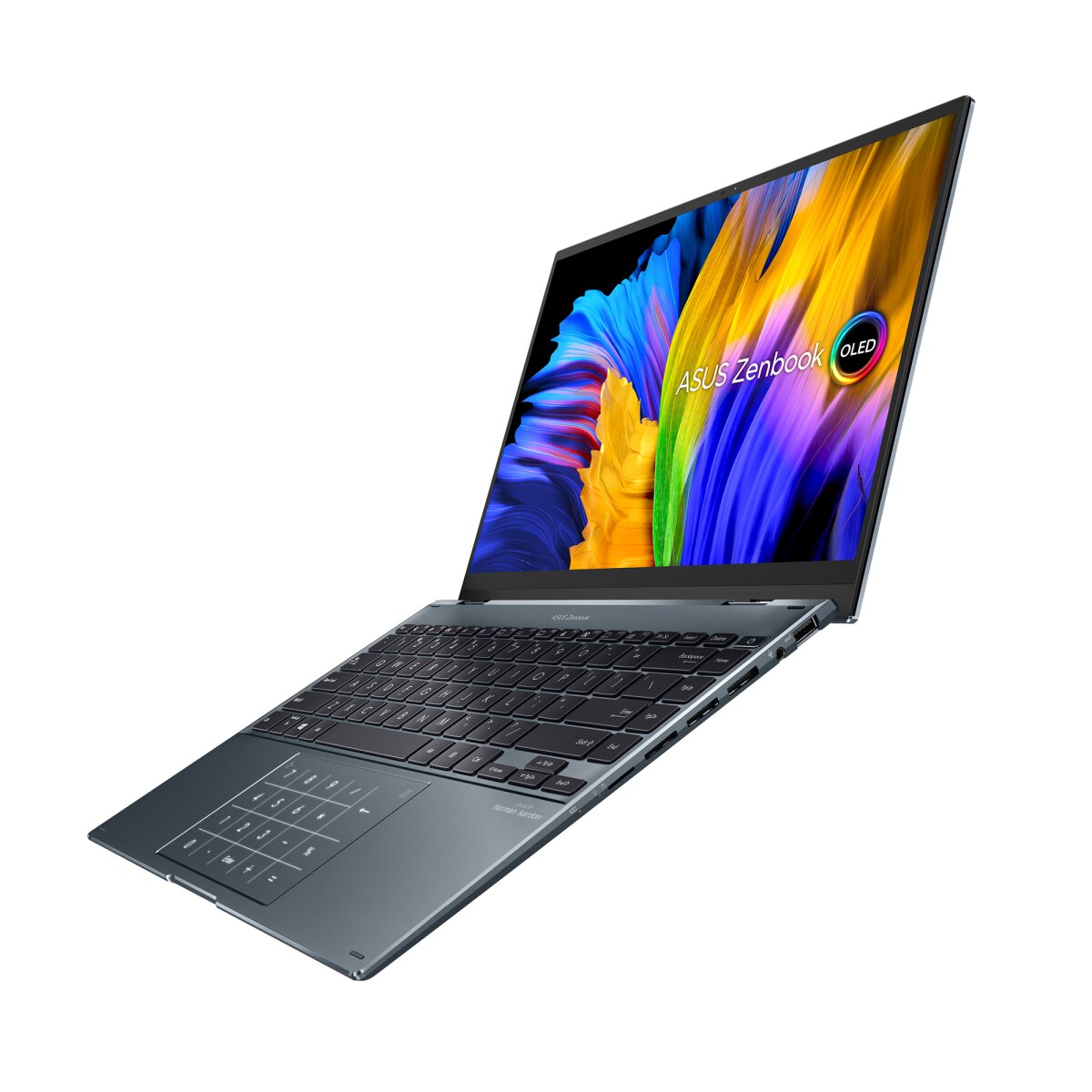

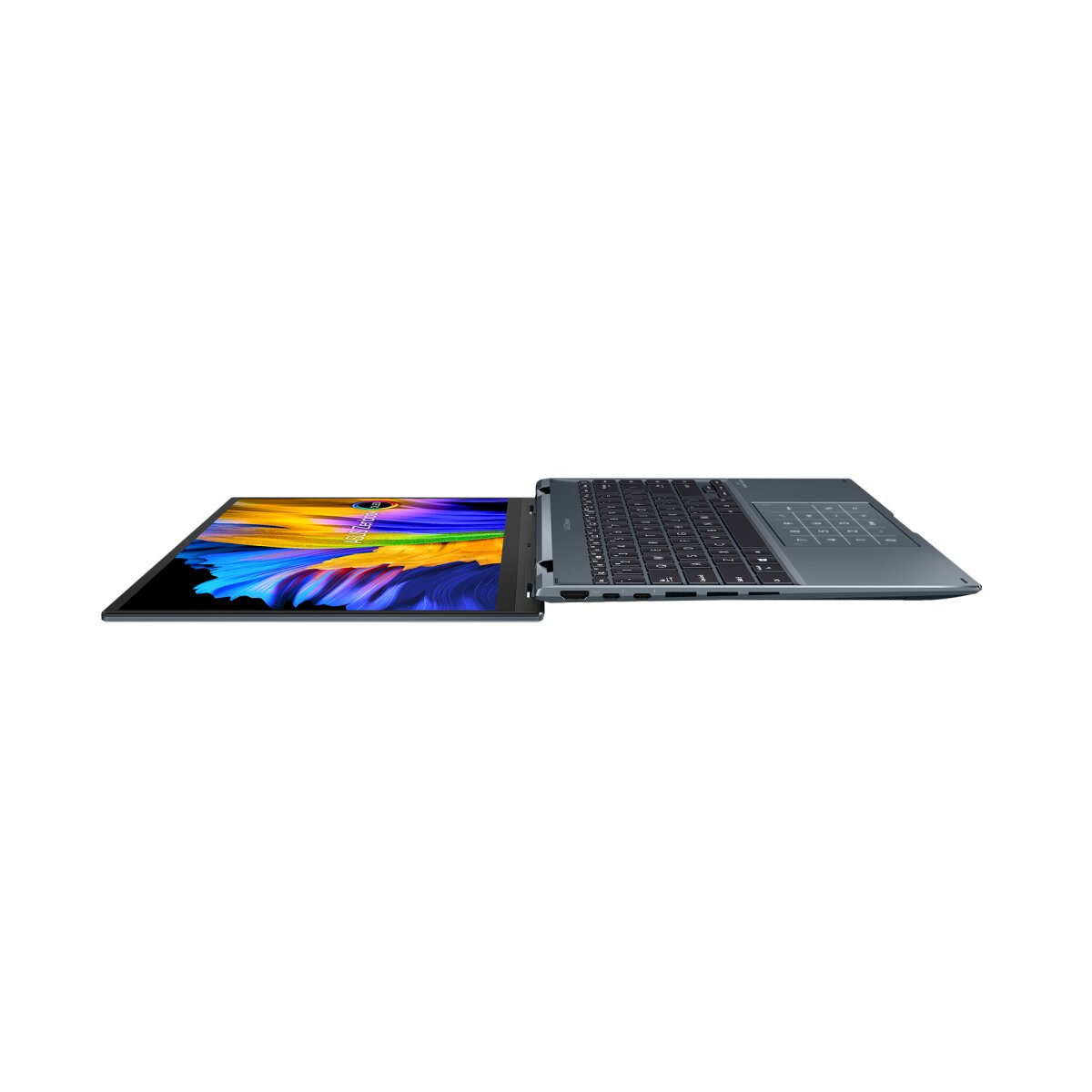

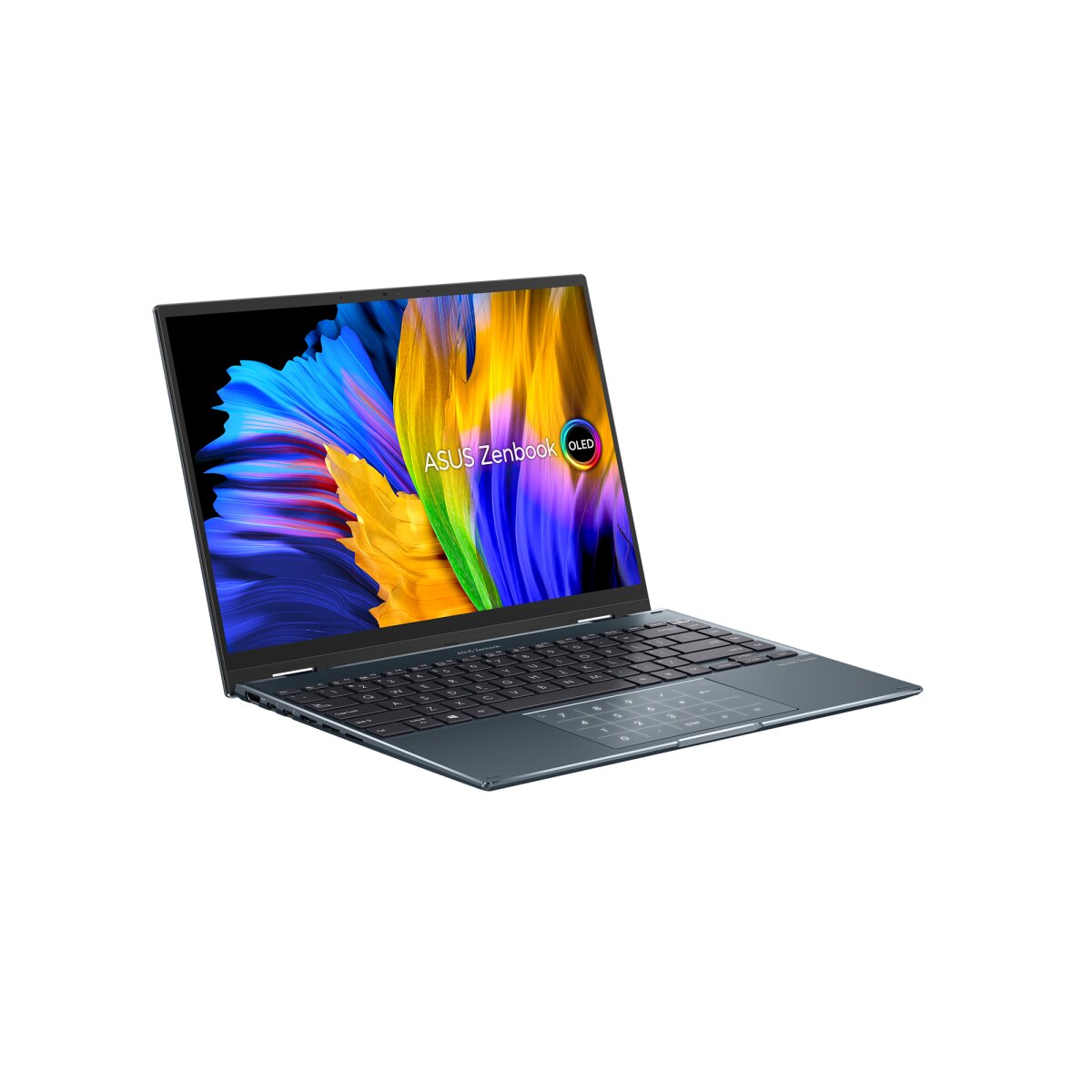

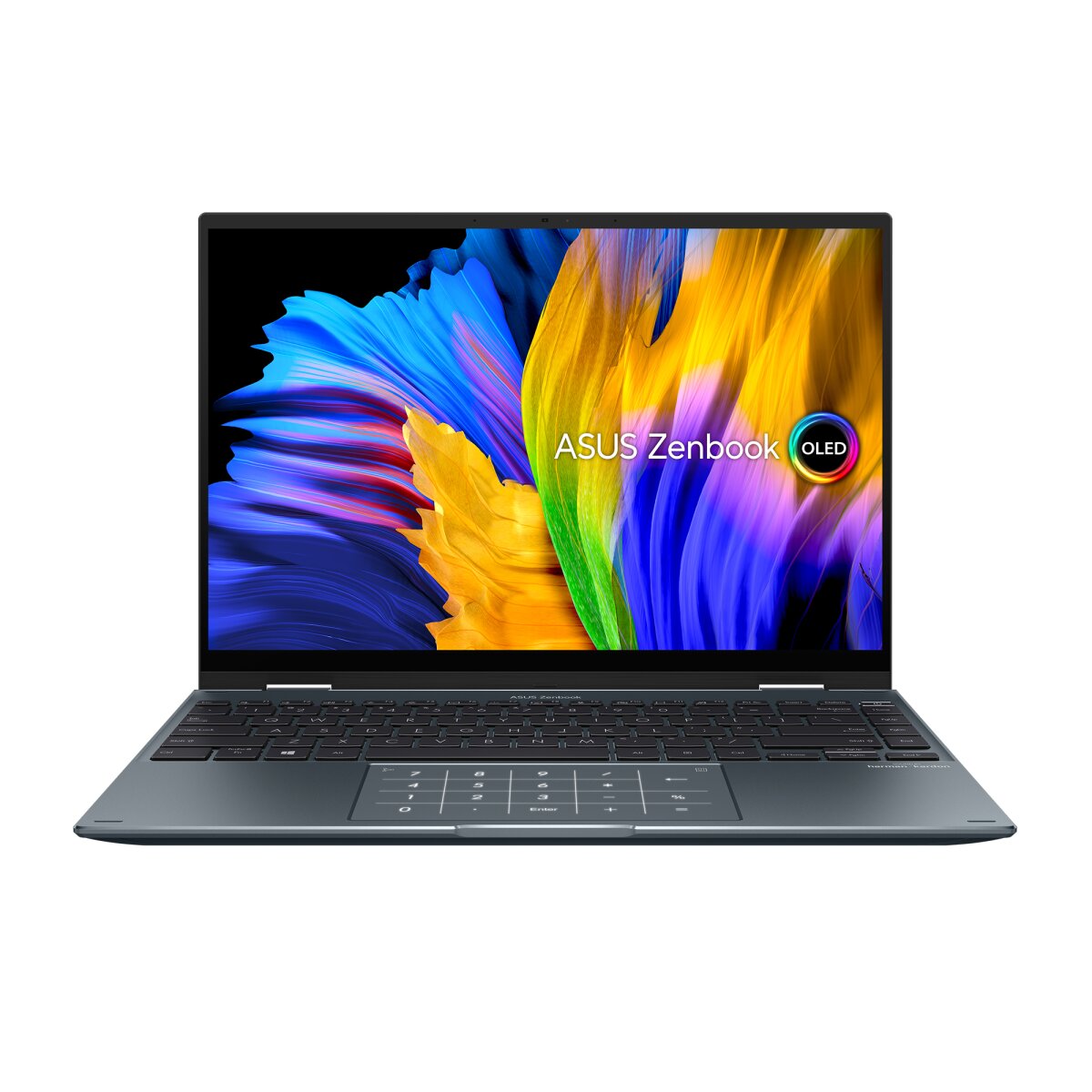

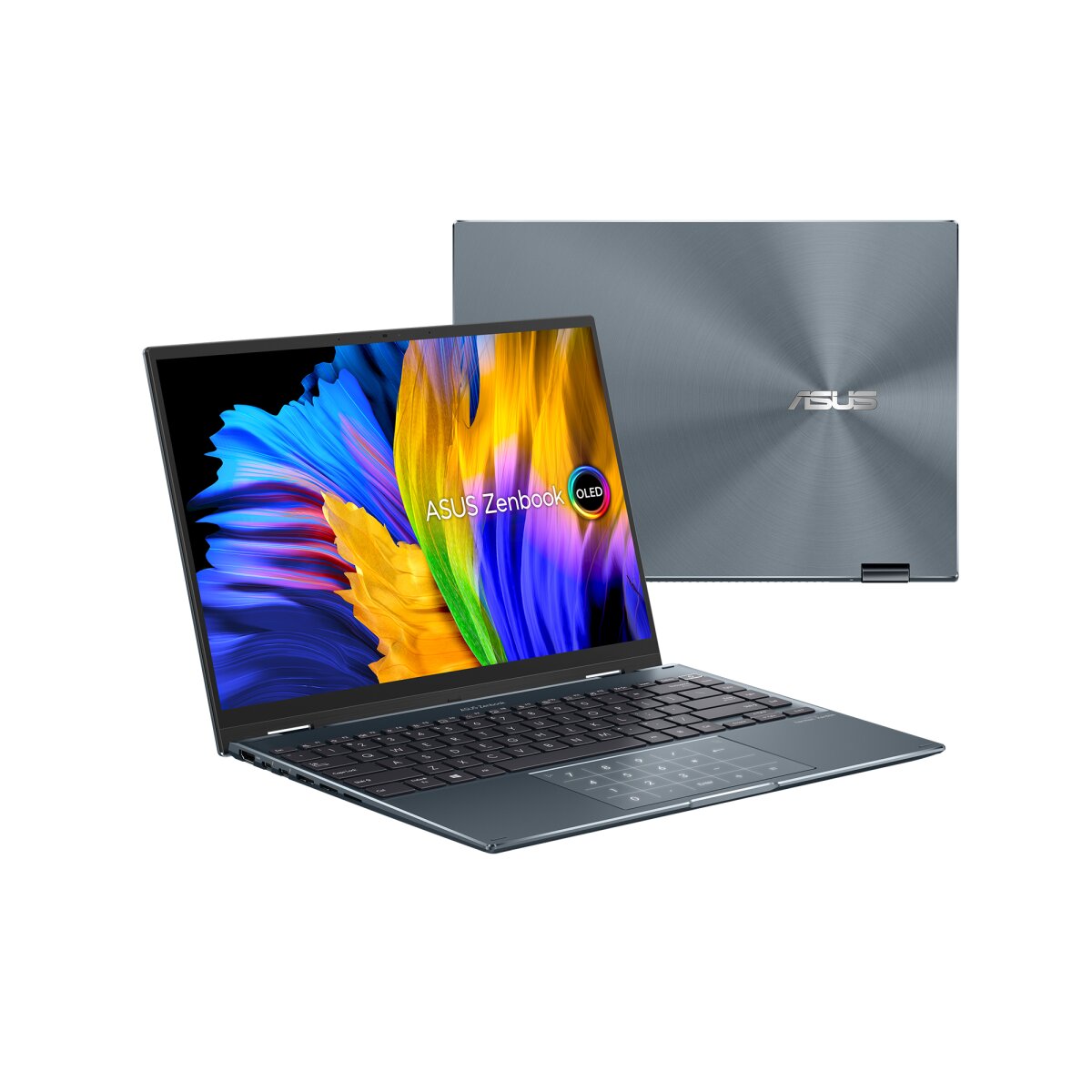

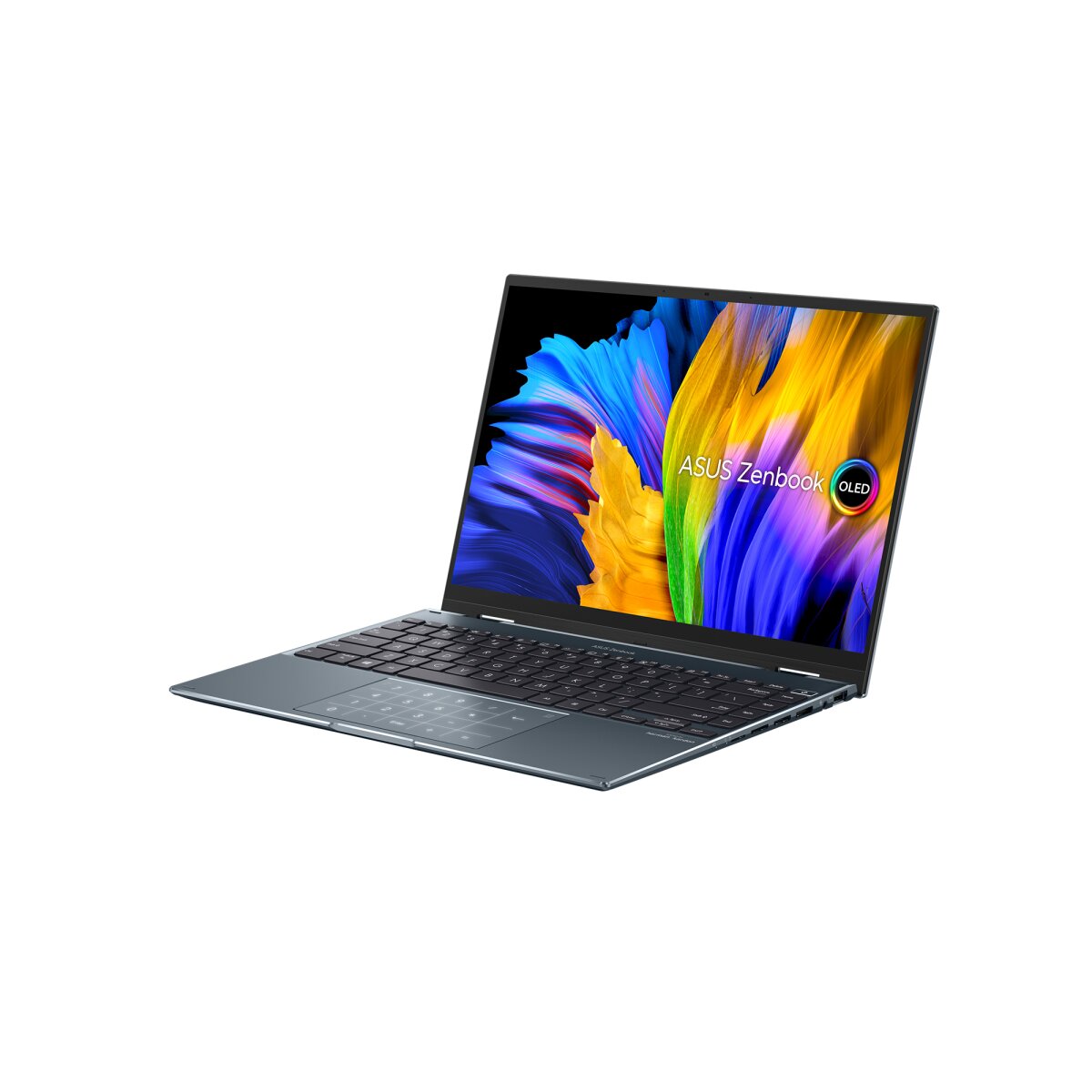

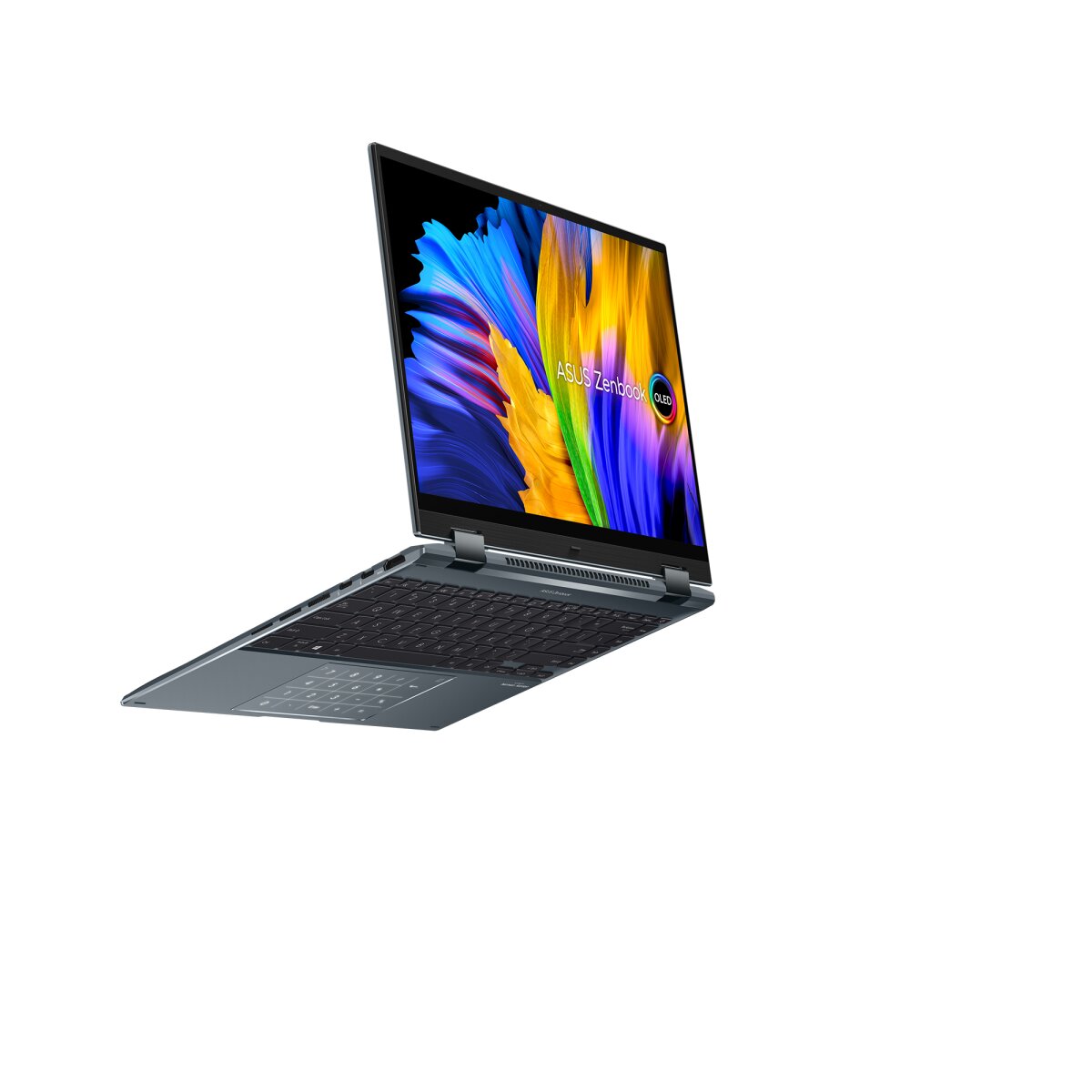

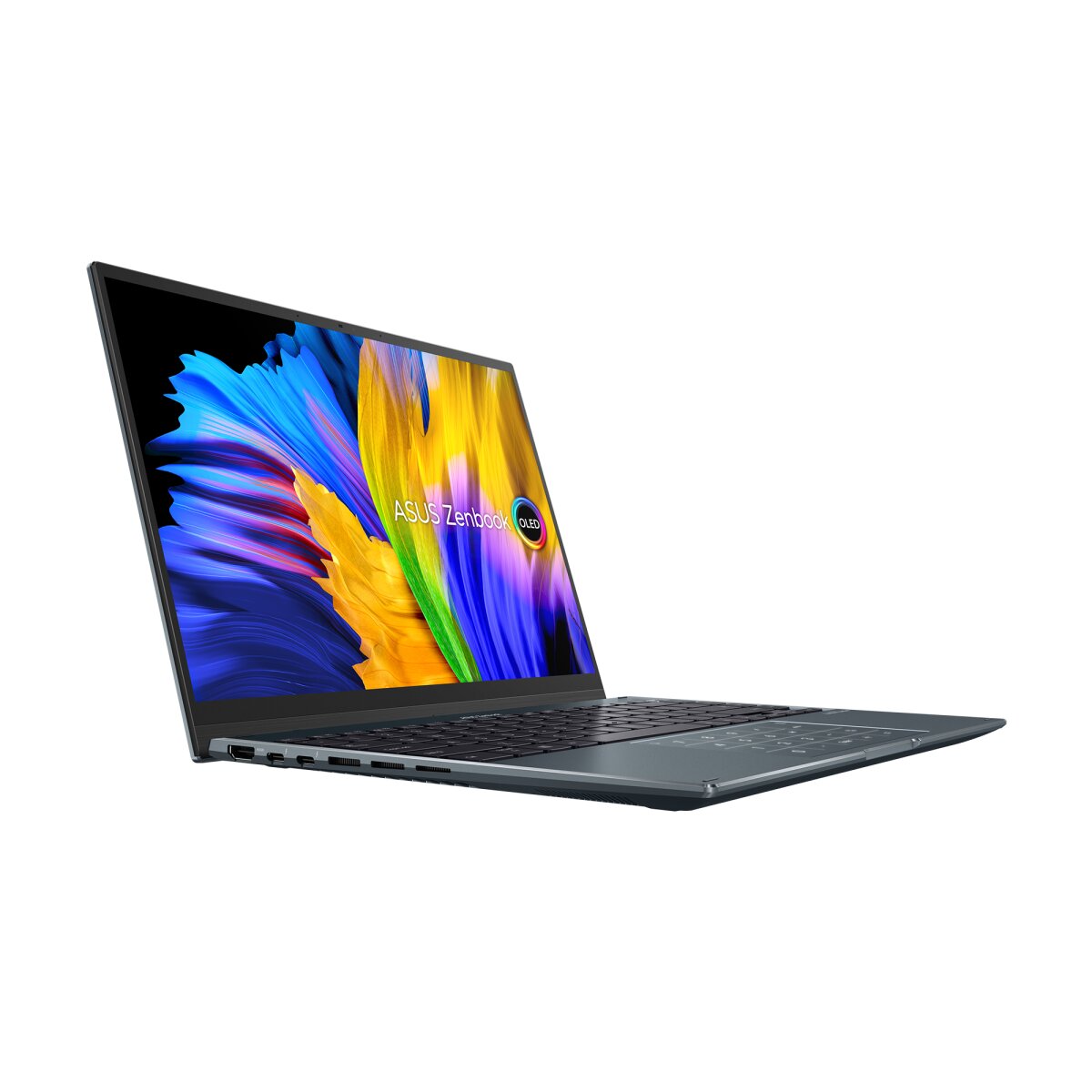

ASUS Zenbook 14 Flip OLED UP5401EA-DS59T-CA - 90NB0V41-M001F0
ASUS Zenbook 14 Flip OLED UP5401EA-DS59T-CA
Product code: 90NB0V41-M001F0
- 💻Display diagonal: 14 inch
- 🔳Processor model: i5-1135G7
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.4 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Market positioning | Home |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 14 inch |
| Maximum refresh rate | 90 Hz |
| Display response rise/fall | 0.2 ms |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 550 cd/m² |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | 2.8K |
| Touchscreen | Yes |
| Display resolution | 2880 x 1800 pixels |
| Display number of colours | 1.073 billion colours |
| High Dynamic Range (HDR) technology | HDR True Black 500 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Brand | ASUS |
| Family | Zenbook |
| Series | 14 Flip OLED |
| Model name | UP5401EA-DS59T-CA |
| Part Number | 90NB0V41-M001F0 |
| Release Date | 25 May 2022 |
| EAN/UPC code | 0195553638074, 195553638074 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 4.2 GHz |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Configurable TDP-up frequency | 2.4 GHz |
| Configurable TDP-up | 28 W |
| Processor generation | 11th gen Intel Core i5 |
| Memory | |
| Internal memory type | LPDDR4x-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Audio | |
| Built-in microphone | Yes |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | NumberPad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 63 Wh |
| Weight & dimensions | |
| Weight | 1.4 kg |
| Height | 15.9 mm |
| Depth | 223 mm |
| Width | 311 mm |
| Power | |
| AC adapter power | 100 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 5 A |
| Security | |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
