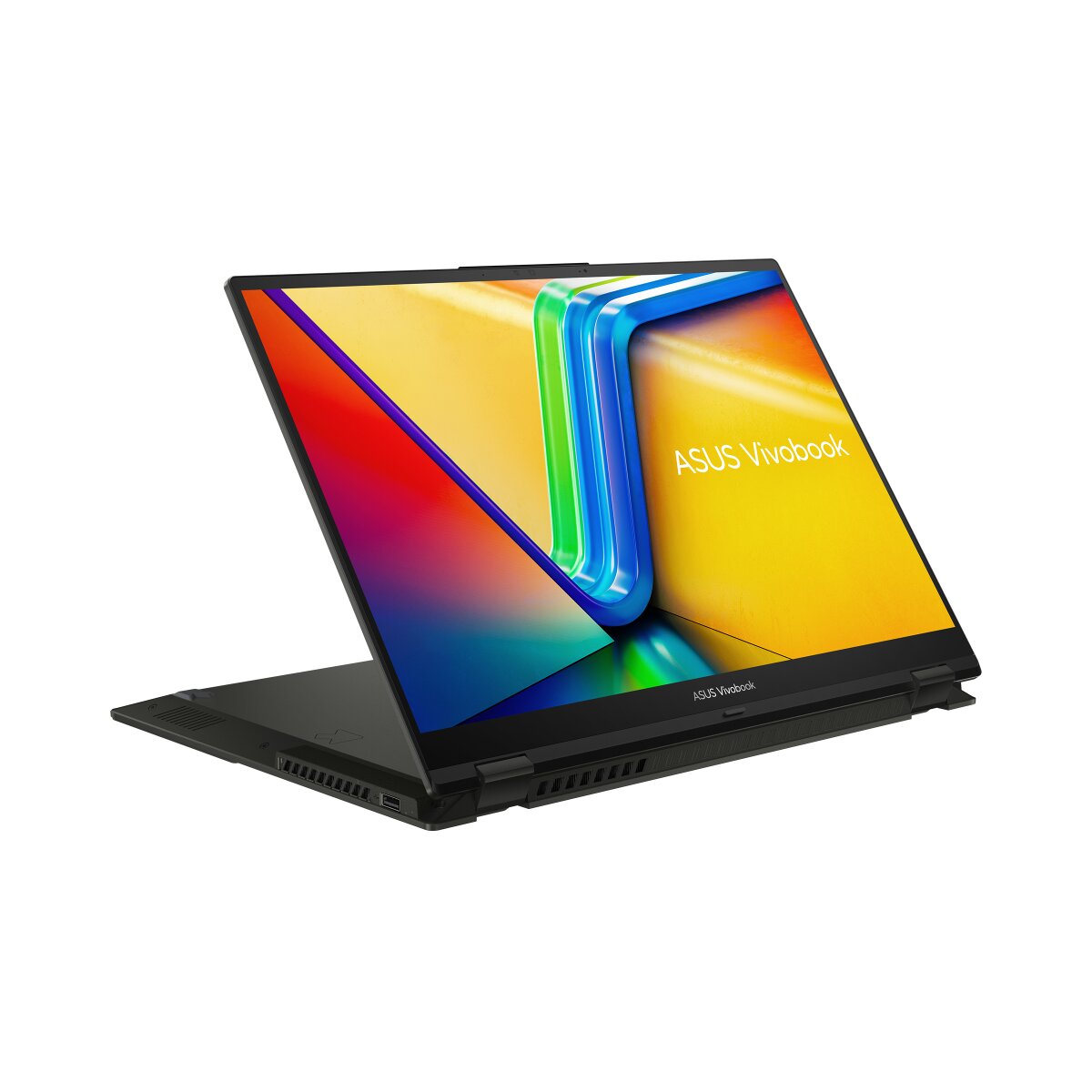

ASUS Vivobook S 16 Flip TP3604VA-DS74T - 90NB1051-M00770
ASUS Vivobook S 16 Flip TP3604VA-DS74T
Product code: 90NB1051-M00770
- 💻Display diagonal: 16 inch
- 🔳Processor model: i7-13700H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.9 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Market positioning | Home |
| Introduction year | 2023 |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 60 Hz |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Display surface | Gloss |
| HD type | WUXGA |
| LED backlight | Yes |
| Touchscreen | Yes |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:10 |
| Brand | ASUS |
| Family | Vivobook |
| Series | S 16 Flip |
| Model name | TP3604VA-DS74T |
| Part Number | 90NB1051-M00770 |
| EAN/UPC code | 0197105388611, 197105388611 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor cache | 24 MB |
| Processor generation | 13th gen Intel Core i7 |
| Efficient cores | 8 |
| Performance cores | 6 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power adapter barrel connector | 4.5 mm |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | Smart Amp |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 pixels |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 50 Wh |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height (rear) | 1.97 cm |
| Height (front) | 1.96 cm |
| Depth | 252.4 mm |
| Width | 355.2 mm |
| Power | |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| Security | |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
