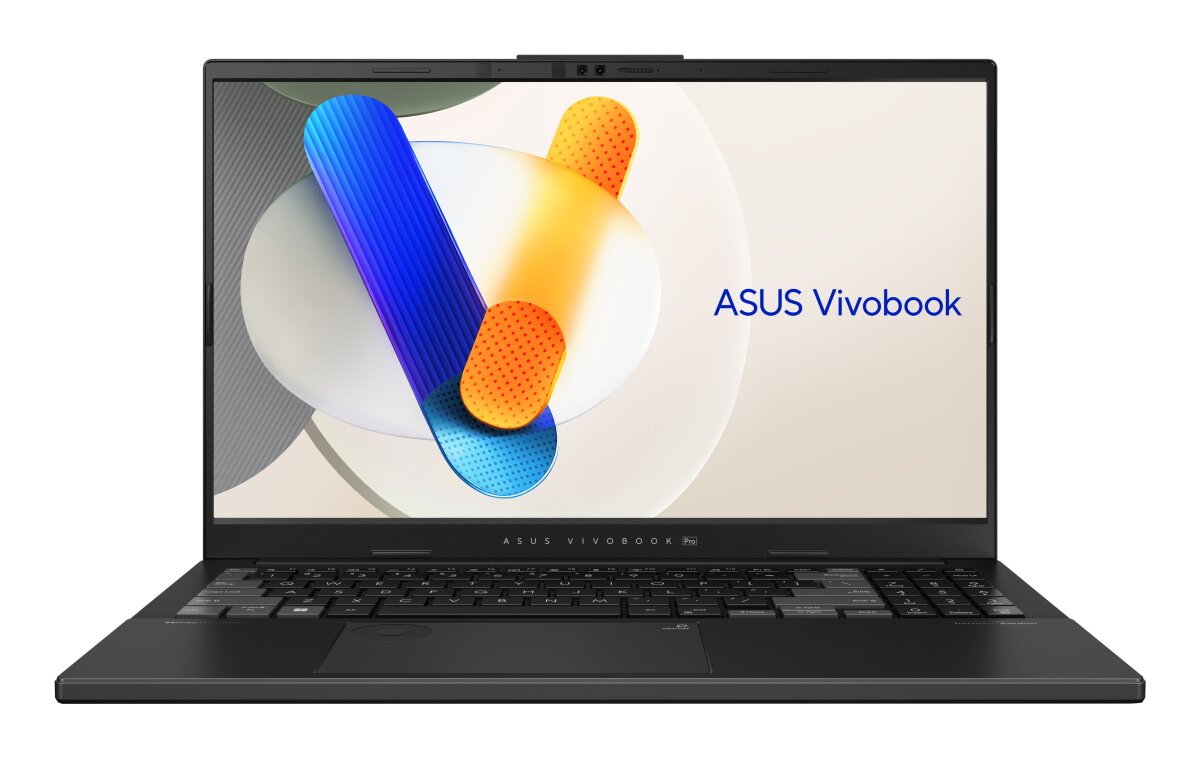

ASUS Vivobook Pro 15 OLED N6506CU-MA014W - 90NB15E3-M001B0
ASUS Vivobook Pro 15 OLED N6506CU-MA014W
Product code: 90NB15E3-M001B0
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: 285H
- 🎫Internal memory: 24 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 2 TB
- ⚖️Weight: 1.8 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Home |
| Housing material | Aluminium, Plastic |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 400 cd/m² |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | 3K |
| Touchscreen | No |
| Display resolution | 2880 x 1620 pixels |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 600 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum display brightness (HDR) | 500 cd/m² |
| Brand | ASUS |
| Family | Vivobook |
| Series | Pro 15 OLED |
| Model name | N6506CU-MA014W |
| Part Number | 90NB15E3-M001B0 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor boost frequency | 5.4 GHz |
| Processor model | 285H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor cache | 24 MB |
| Processor generation | Intel Core Ultra (Series 2) |
| Efficient-core base frequency | 2.7 GHz |
| Efficient cores | 8 |
| Performance cores | 6 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.5 GHz |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
| Performance-core base frequency | 2.9 GHz |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-core Base Frequency | 1000 MHz |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 24 GB |
| Maximum internal memory | 24 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4050 |
| On-board graphics card model | Intel Arc 140T |
| On-board graphics card family | Intel Arc Graphics |
| Discrete graphics card memory | 6 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| Total SSDs capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | Smart Amp |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera resolution (numeric) | 5 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Pointing device | Touchpad + DialPad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 75 Wh |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Height | 19.9 mm |
| Depth | 235.3 mm |
| Width | 355.7 mm |
| Power | |
| AC adapter power | 200 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 10 A |
| USB Type-C charging port | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 99 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 77 TOPs |
