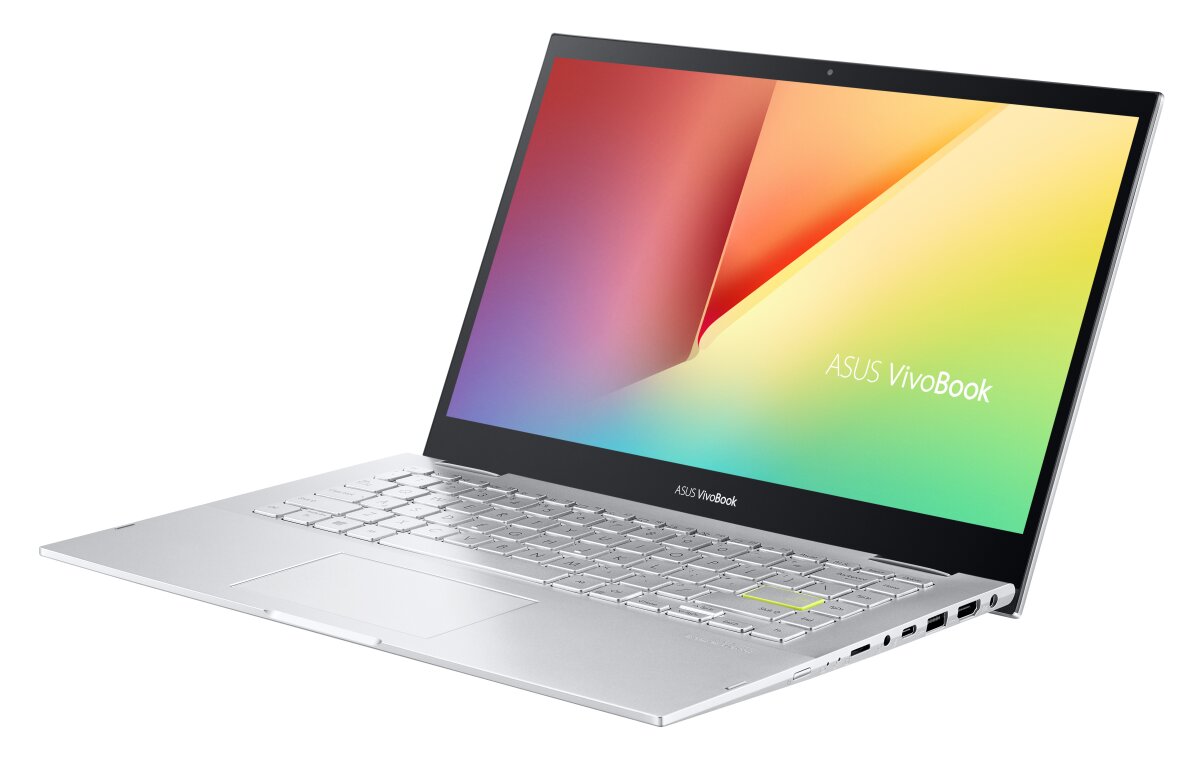

ASUS VivoBook Flip 14 TP470EA-EC545W - 90NB0S02-M00M00
ASUS VivoBook Flip 14 TP470EA-EC545W
Product code: 90NB0S02-M00M00
- 💻Display diagonal: 14 inch
- 🔳Processor model: i3-1115G4
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.5 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Market positioning | Home |
| Introduction year | 2022 |
| Display | |
| Display diagonal | 14 inch |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Display surface | Gloss |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | VivoBook |
| Series | Flip 14 |
| Model name | TP470EA-EC545W |
| Part Number | 90NB0S02-M00M00 |
| Release Date | 01 July 2022 |
| EAN/UPC code | 4711081877660, 0195553877664, 195553877664 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i3 |
| Processor boost frequency | 4.1 GHz |
| Processor model | i3-1115G4 |
| Processor cores | 2 |
| Processor cache | 6 MB |
| Configurable TDP-up frequency | 3 GHz |
| Configurable TDP-up | 28 W |
| Processor generation | 11th gen Intel Core i3 |
| Memory | |
| Internal memory type | LPDDR4x-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | On-board |
| Maximum internal memory | 8 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Power Delivery | Yes |
| Charging port type | DC-in jack |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Power adapter barrel connector | 4.0 mm |
| Audio | |
| Built-in microphone | Yes |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home in S mode |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 42 Wh |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Height | 18.7 mm |
| Depth | 220 mm |
| Width | 324 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Security | |
| Cable lock slot | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
