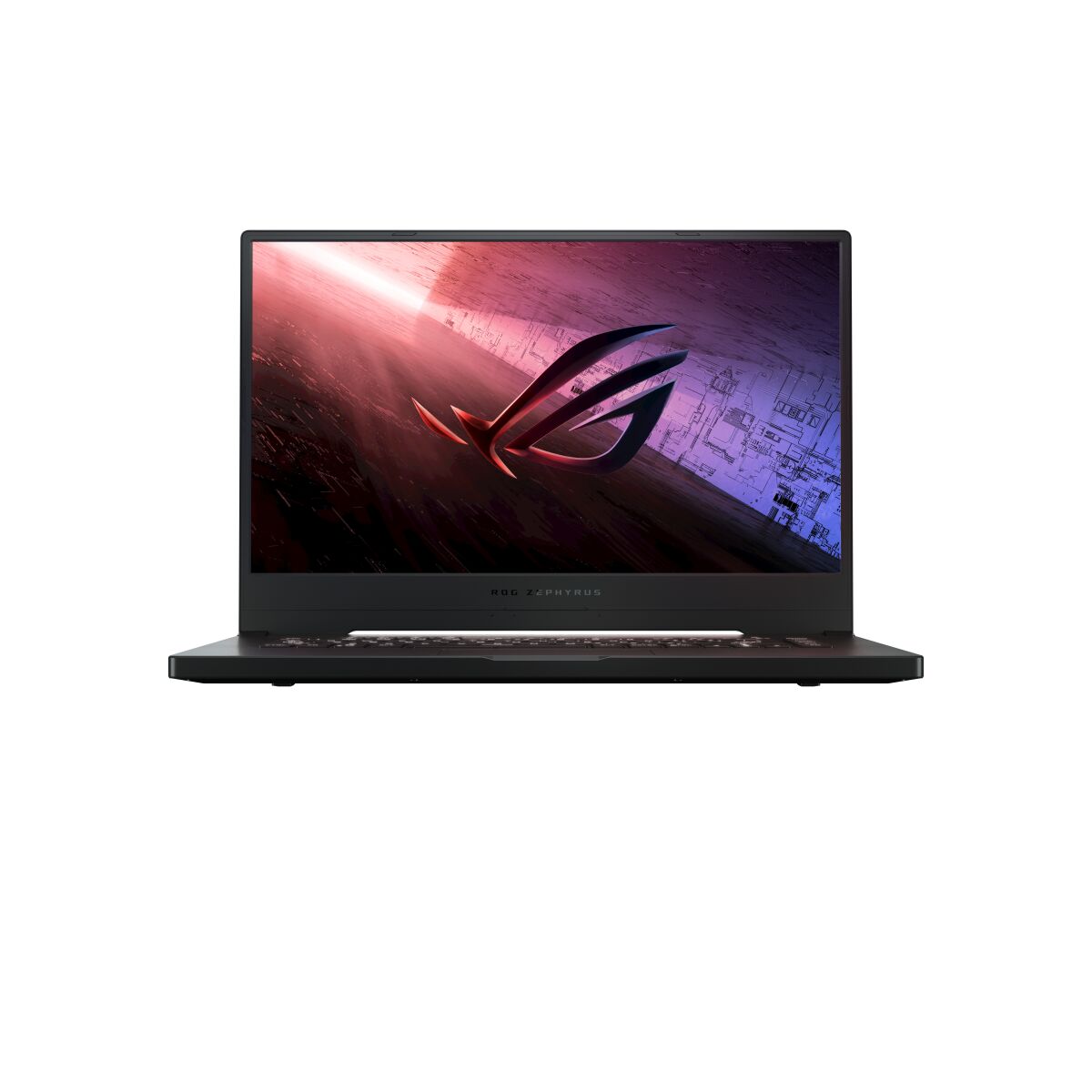

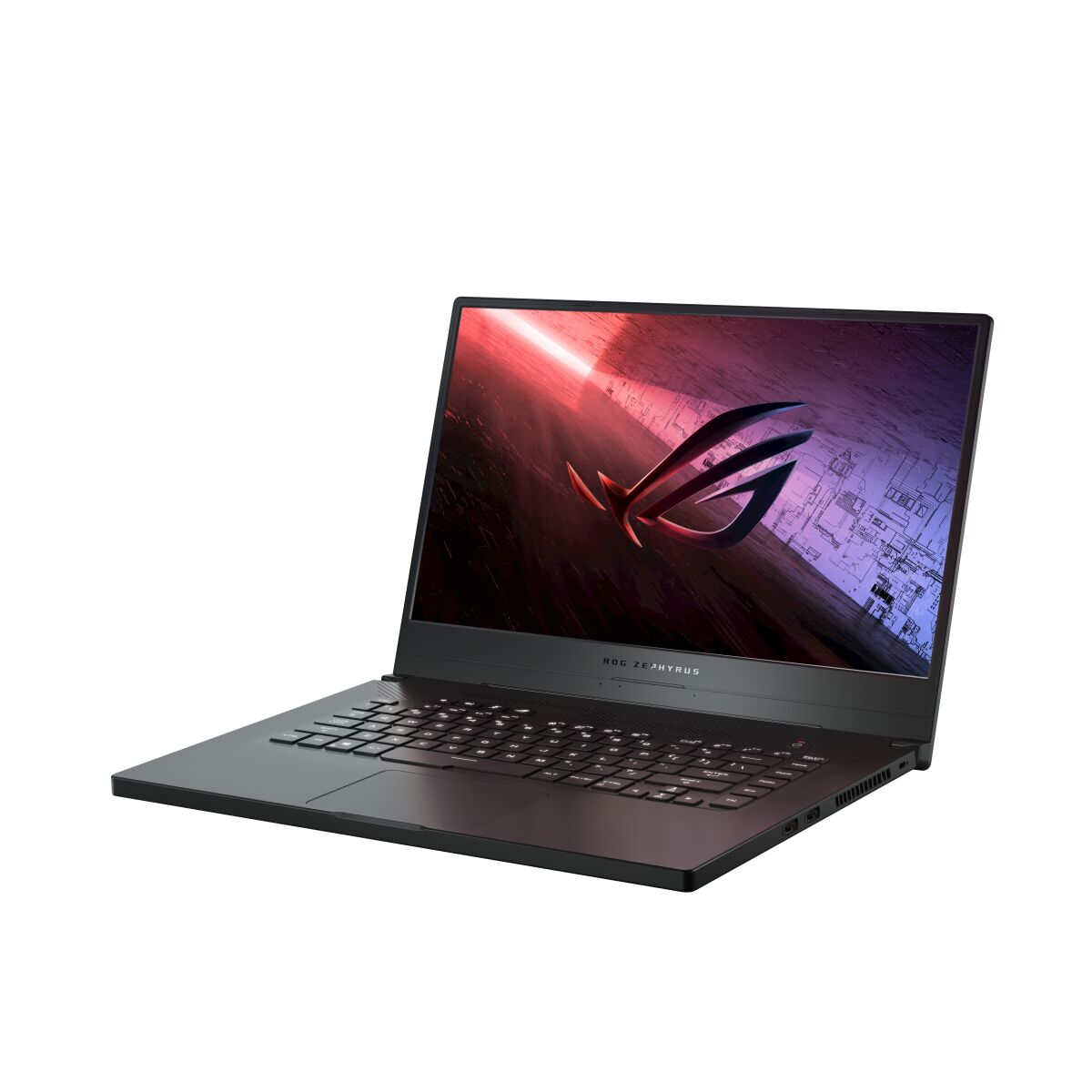

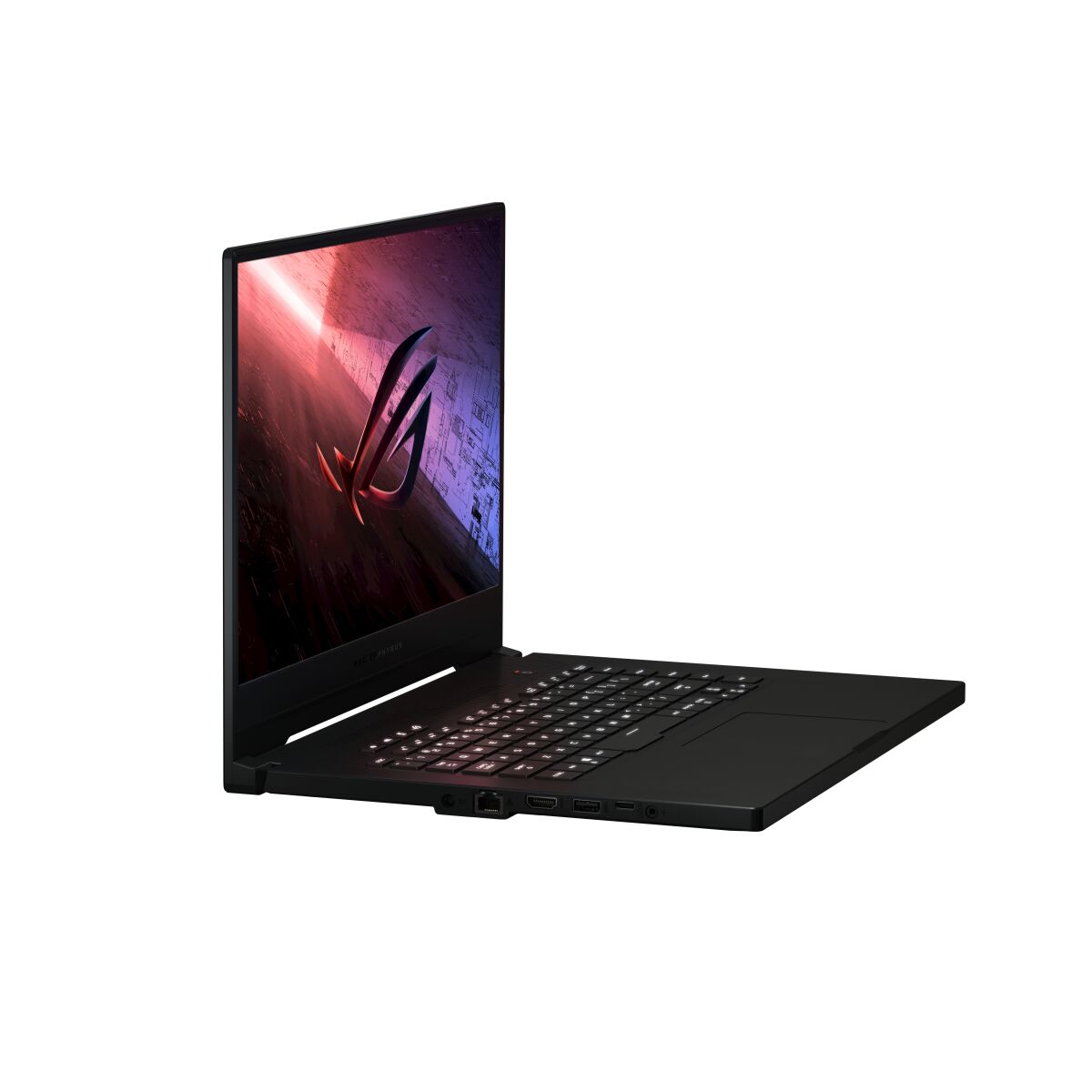

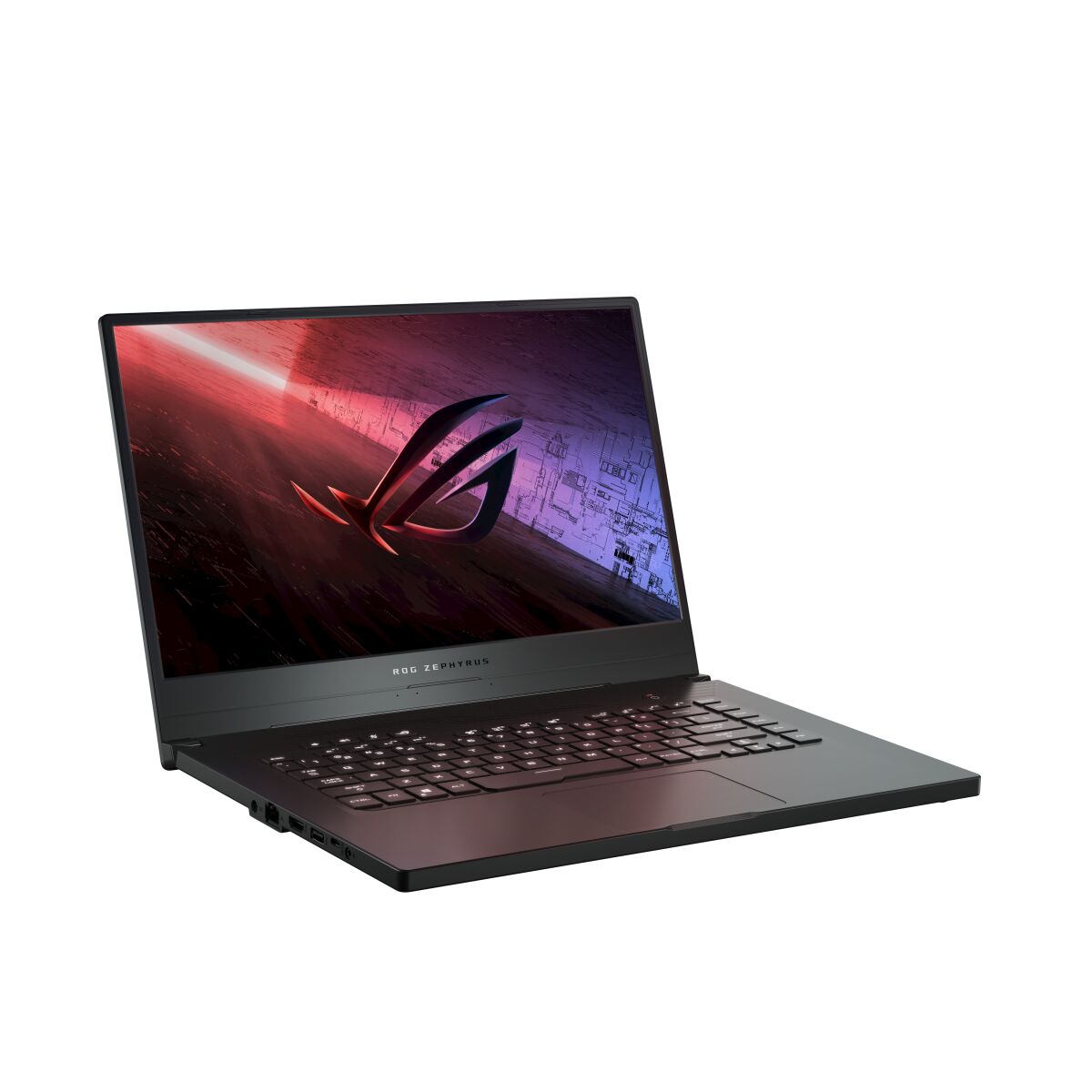

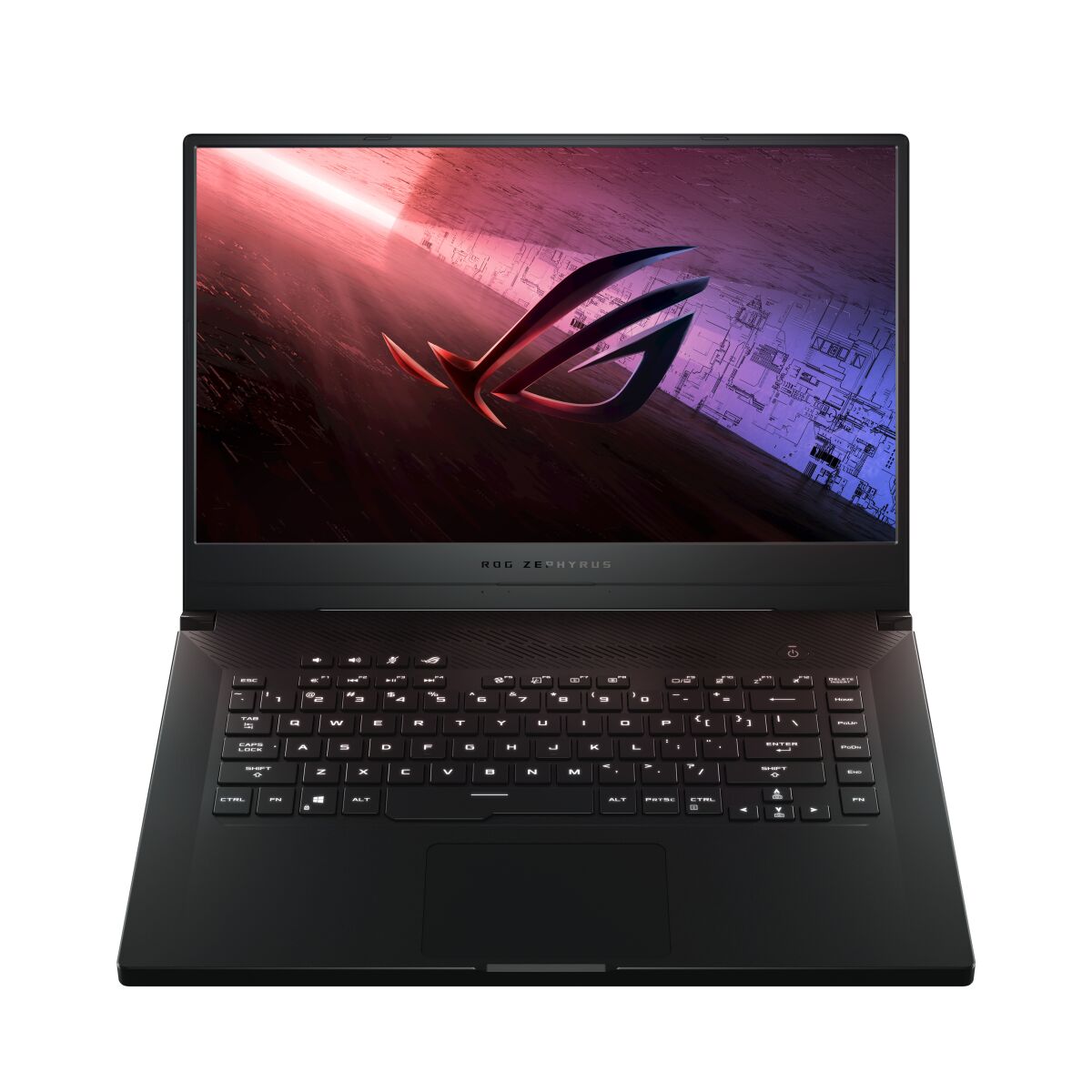

ASUS ROG Zephyrus G GA502IV-PH96
ASUS ROG Zephyrus G GA502IV-PH96
Product code: GA502IV-PH96
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: 4900HS
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: AMD Radeon Graphics
- đŽDiscrete graphics adapter model: NVIDIA GeForce RTX 2060 Max-Q
- đŊTotal storage capacity: 1 TB
- âī¸Weight: 2.1 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 240 Hz |
| Display response rise/fall | 3 ms |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ROG |
| Series | Zephyrus G |
| Model name | GA502IV-PH96 |
| Part Number | GA502IV-PH96 |
| Release Date | 10 February 2021 |
| EAN/UPC code | 0192876862209, 192876862209 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 9 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor model | 4900HS |
| Processor cores | 8 |
| Processor cache | 8 MB |
| Processor generation | AMD Ryzen 4000 Series |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 24 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| NVIDIA Max-Q | Yes |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | AMD Radeon Graphics |
| Discrete graphics adapter model | NVIDIA GeForce RTX 2060 Max-Q |
| Discrete graphics adapter memory | 6 GB |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 2060 Max-Q |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card memory | 6 GB |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery | Y |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 1 W |
| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 76 Wh |
| Number of battery cells | 4 |
| Battery capacity | 76 Wh |
| Weight & dimensions | |
| Weight | 2.1 kg |
| Height | 19.9 mm |
| Depth | 252 mm |
| Width | 360 mm |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 9 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
