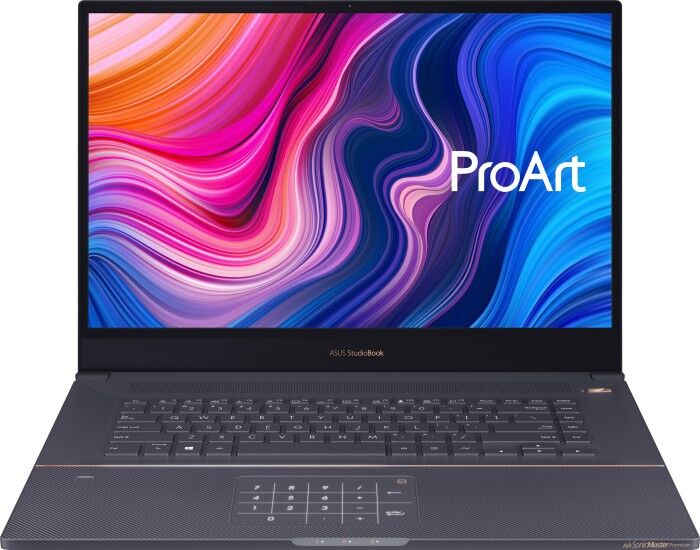

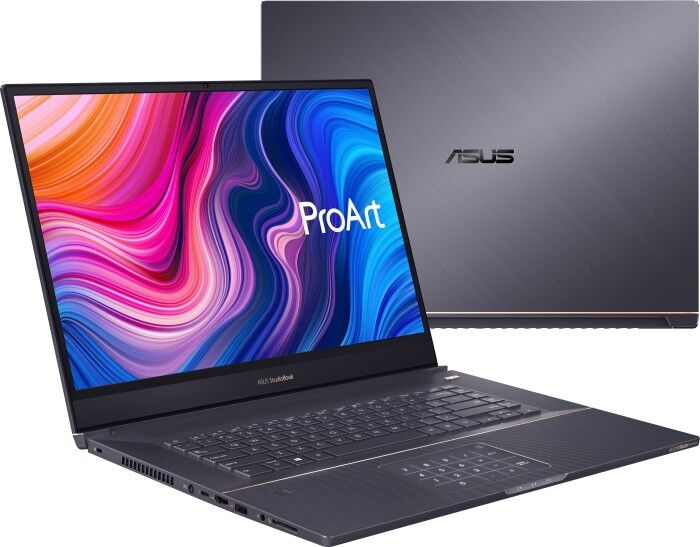

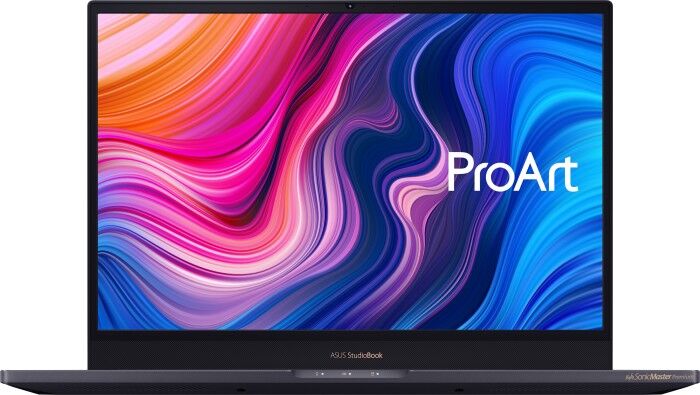

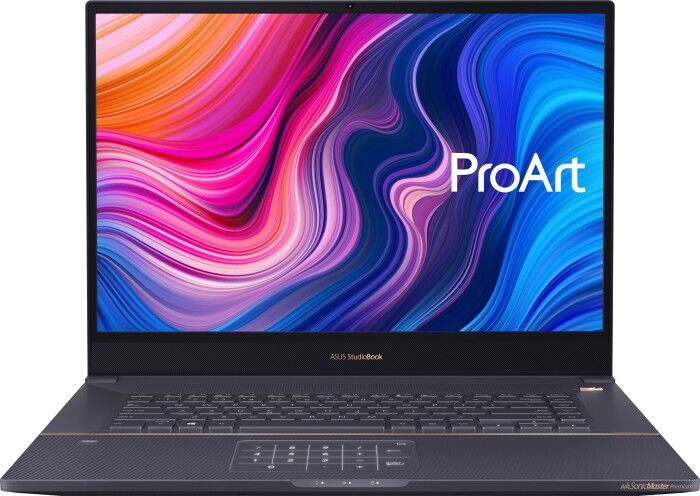

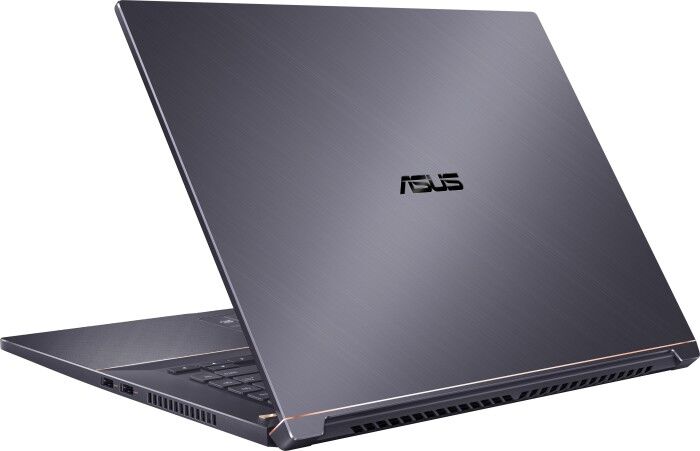

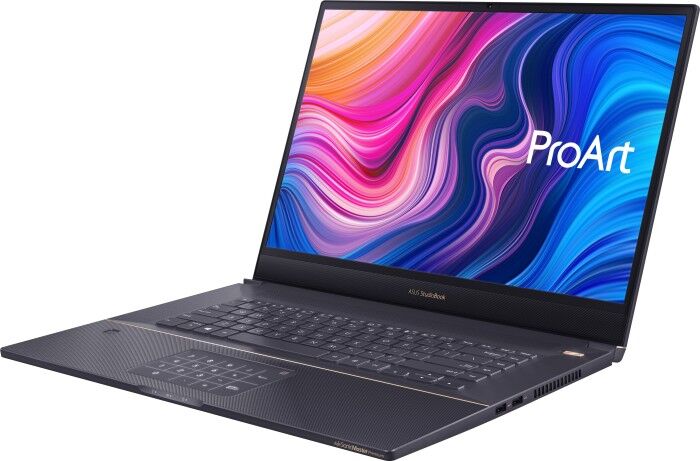

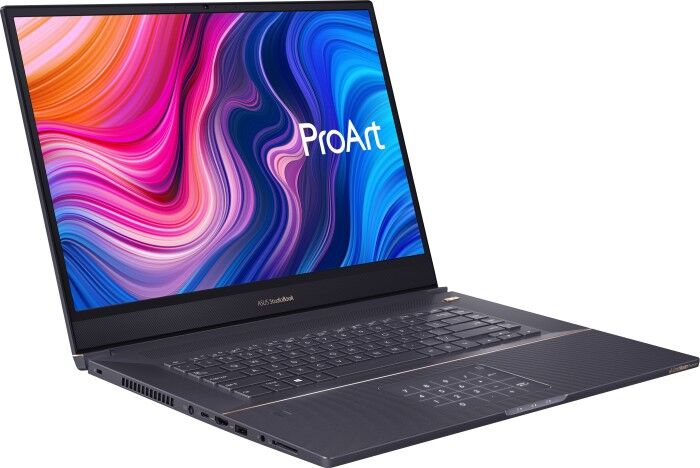

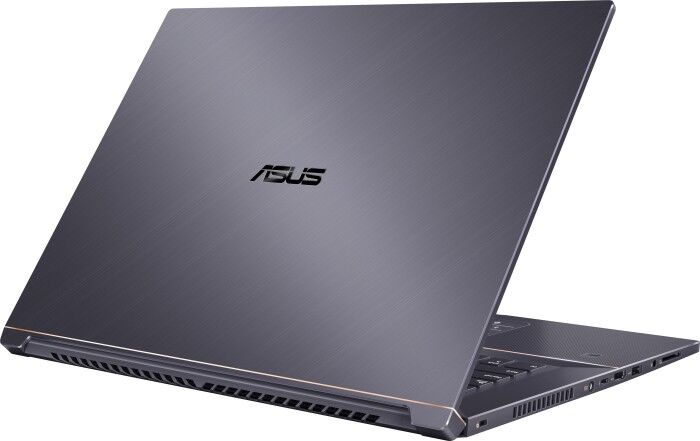

ASUS ProArt StudioBook Pro 17 W700G1T-AV046R - 90NB0NX2-M01850
ASUS ProArt StudioBook Pro 17 W700G1T-AV046R
Product code: 90NB0NX2-M01850
- 💻Display diagonal: 17 inch
- 🔳Processor model: i7-9750H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 630
- 🎮Discrete graphics adapter model: NVIDIA Quadro T1000
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 2.39 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 17 inch |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Display surface | Matt |
| HD type | WUXGA |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Brand | ASUS |
| Family | ProArt StudioBook |
| Series | Pro 17 |
| Model name | W700G1T-AV046R |
| Part Number | 90NB0NX2-M01850 |
| Release Date | 19 June 2020 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.5 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-9750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro T1000 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 4 GB |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro T1000 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | NVMe 3.0, PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Audio system | SonicMaster Premium |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | No |
| Full-size keyboard | Yes |
| Keyboard layout | QWERTY |
| Keyboard backlit | Yes |
| Pointing device | NumberPad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 57 Wh |
| Number of battery cells | 3 |
| Battery capacity | 57 Wh |
| Weight & dimensions | |
| Weight | 2.39 kg |
| Height (rear) | 1.99 cm |
| Height (front) | 1.84 cm |
| Height | 18.4 mm |
| Depth | 286 mm |
| Width | 382 mm |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 9 A |
| Security | |
| Cable lock slot | Yes |
| Fingerprint reader | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
