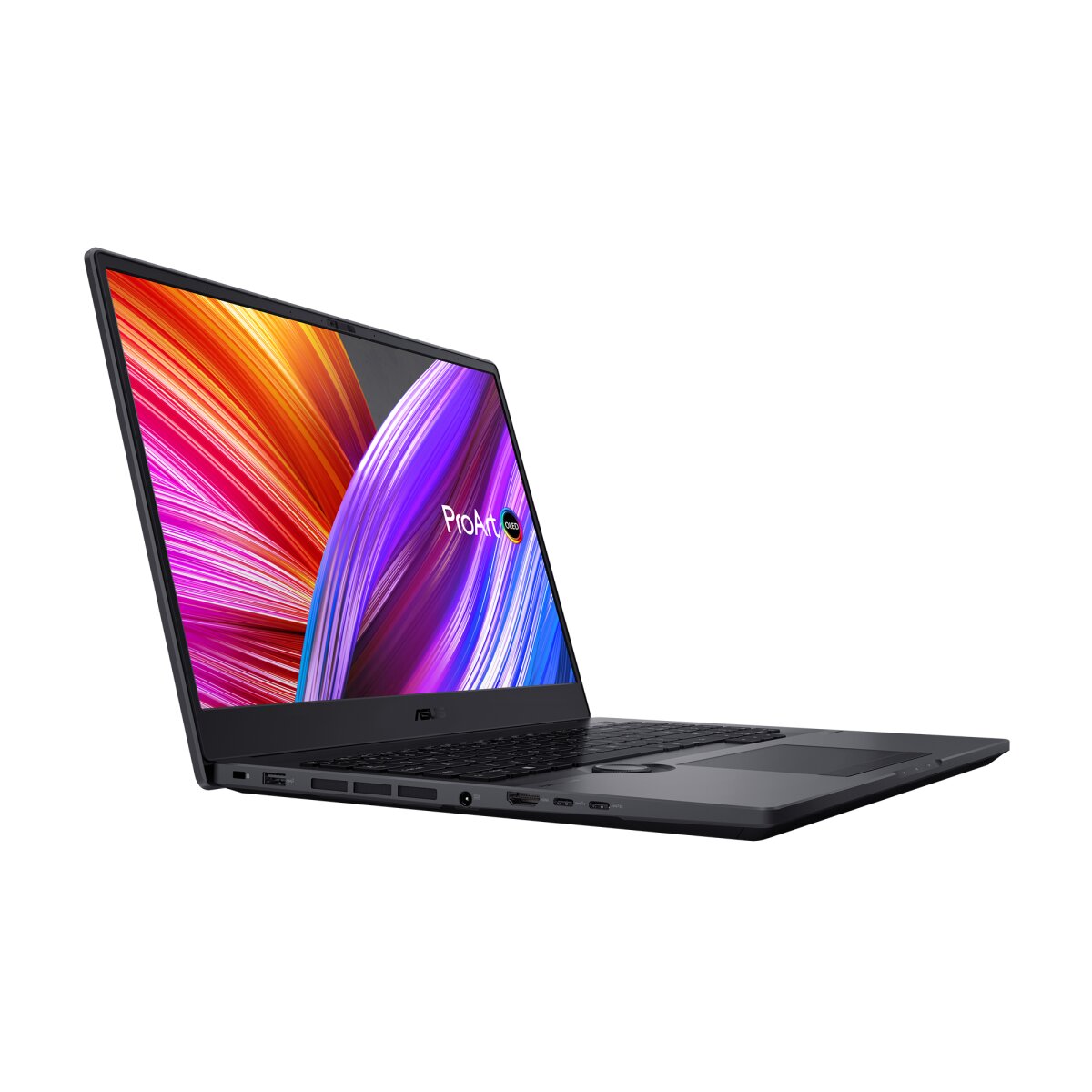

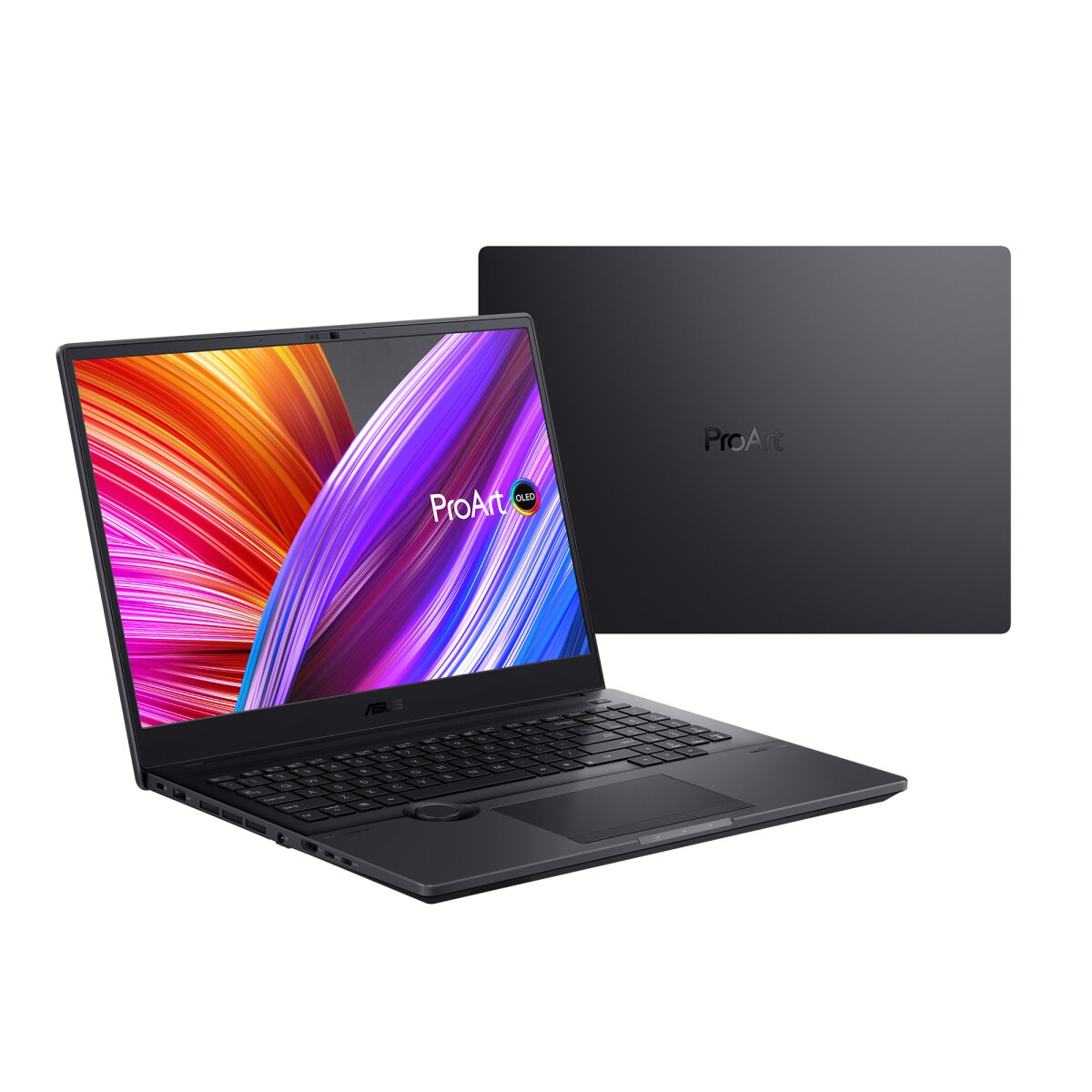

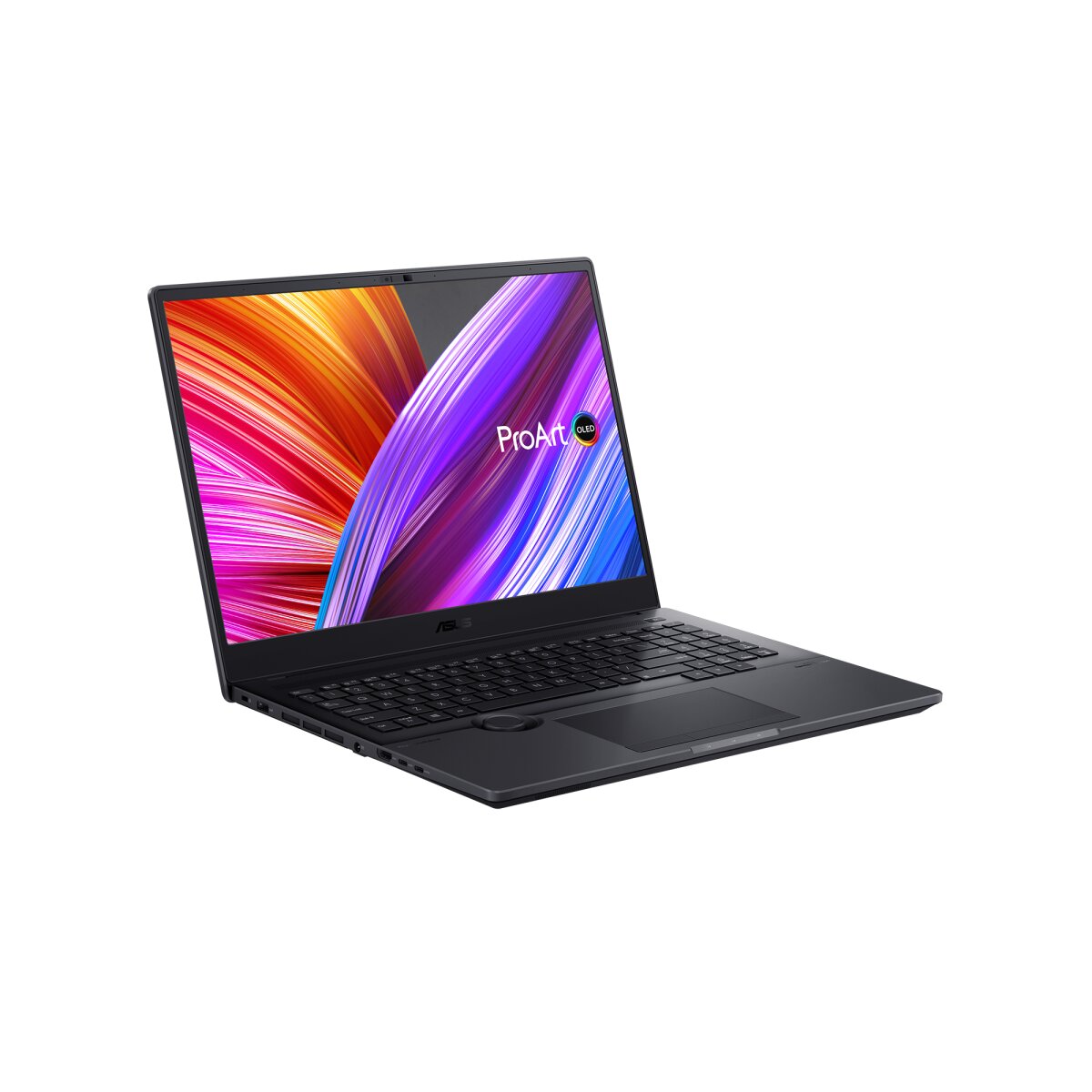

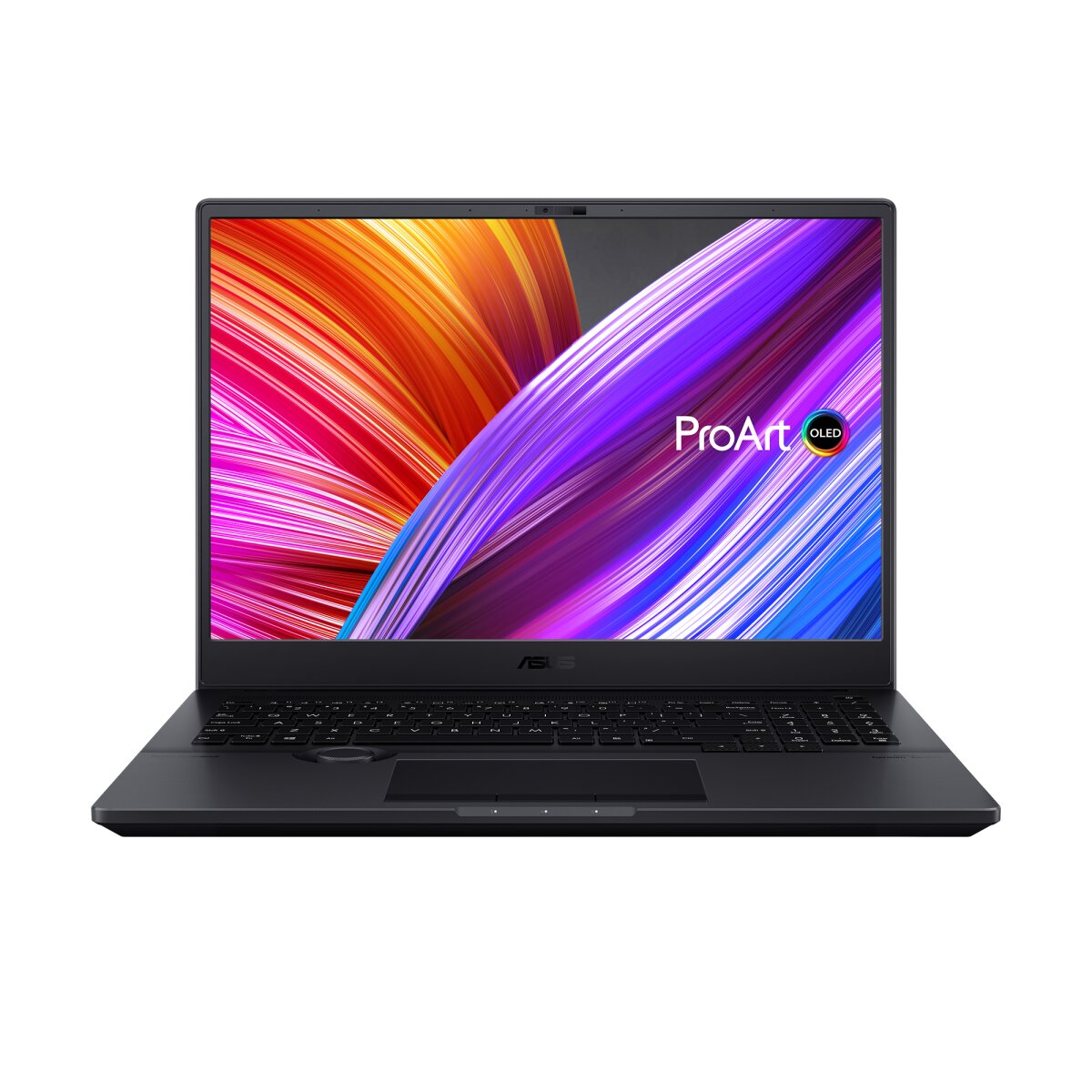

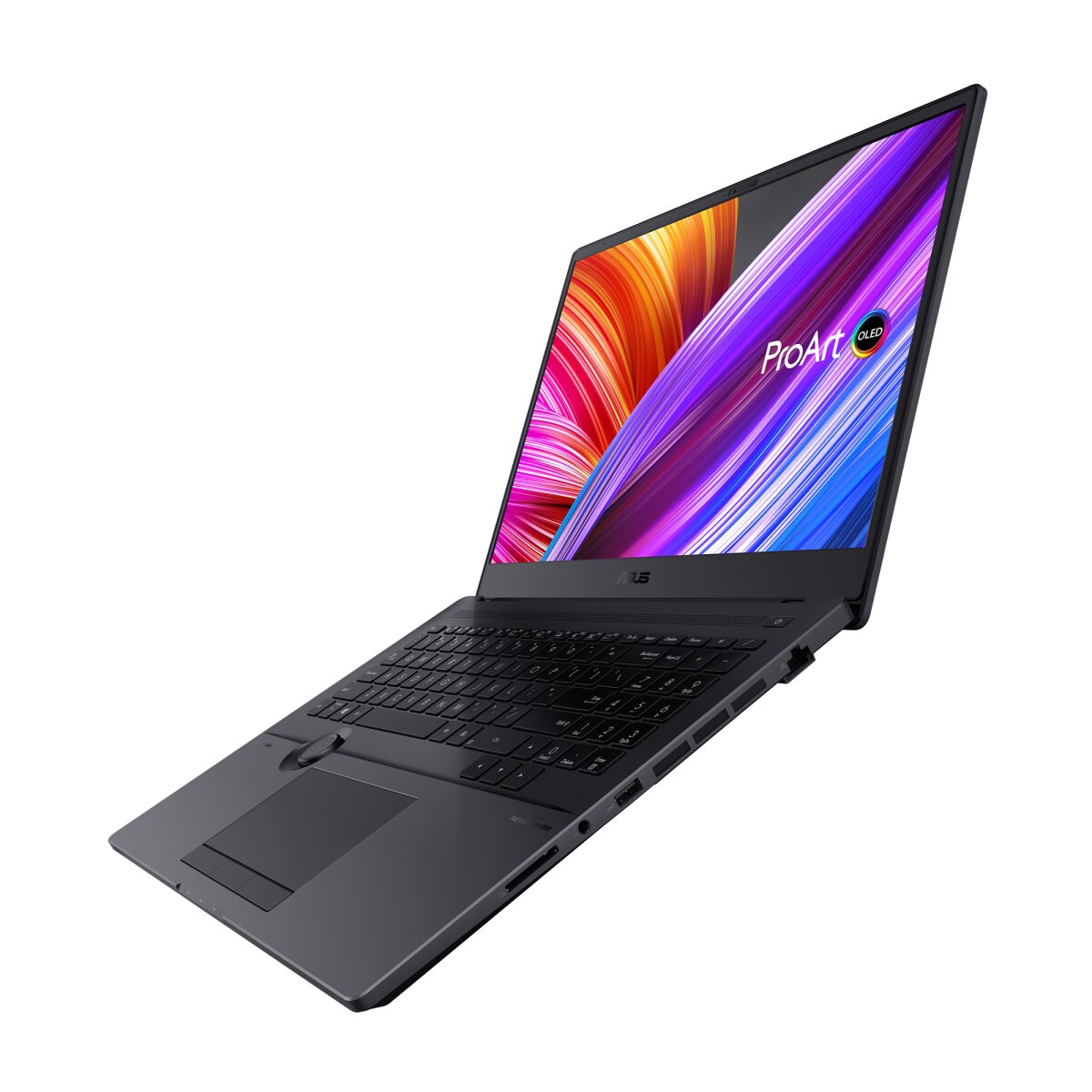

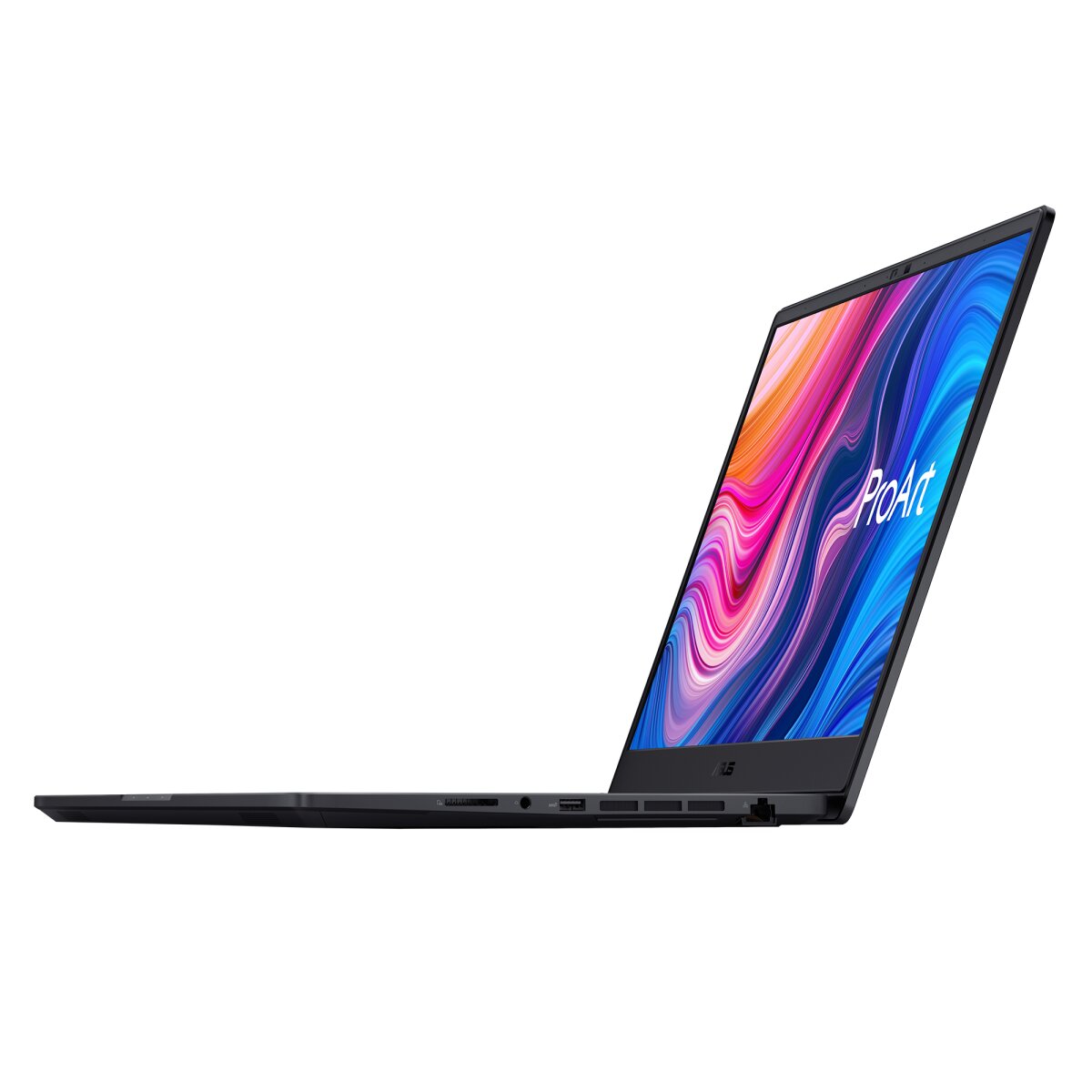

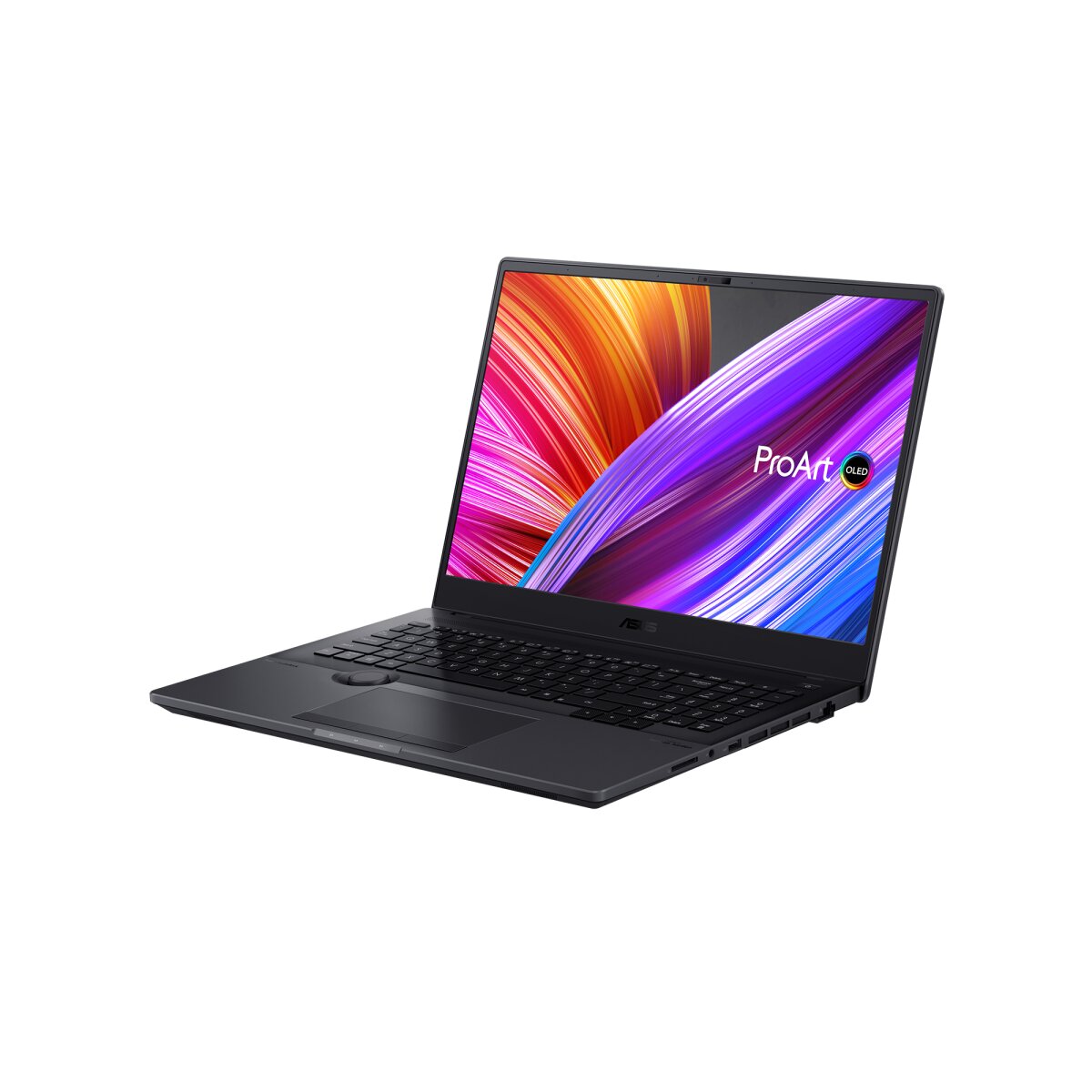

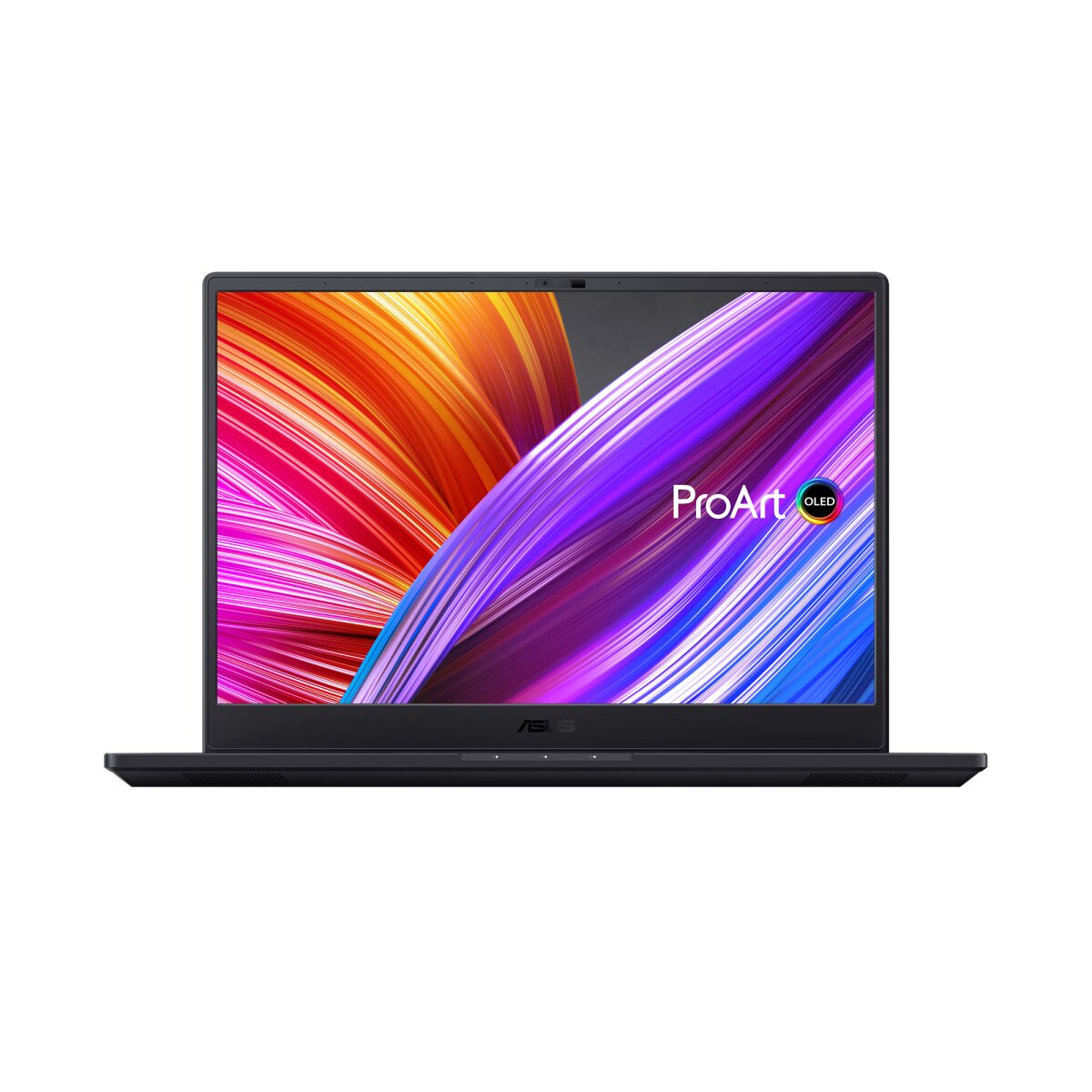

ASUS ProArt StudioBook 16 H5600QM-KV284X
ASUS ProArt StudioBook 16 H5600QM-KV284X
Product code: H5600QM-KV284X
- 💻Display diagonal: 16 inch
- 🔳Processor model: 5900HX
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 2.4 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Performance |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 120 Hz |
| Display brightness | 500 cd/m² |
| Panel type | IPS |
| Display surface | Matt |
| HD type | WQXGA |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Brand | ASUS |
| Family | ProArt StudioBook |
| Series | 16 |
| Model name | H5600QM-KV284X |
| Part Number | H5600QM-KV284X |
| Release Date | 01 September 2022 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 9 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor model | 5900HX |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card memory | 6 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| Intel® Optane™ Memory module installed | No |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| Charging port type | DC-in jack |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power adapter barrel connector | 6.0 mm |
| Audio | |
| Built-in microphone | Yes |
| Audio system | SonicMaster |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |

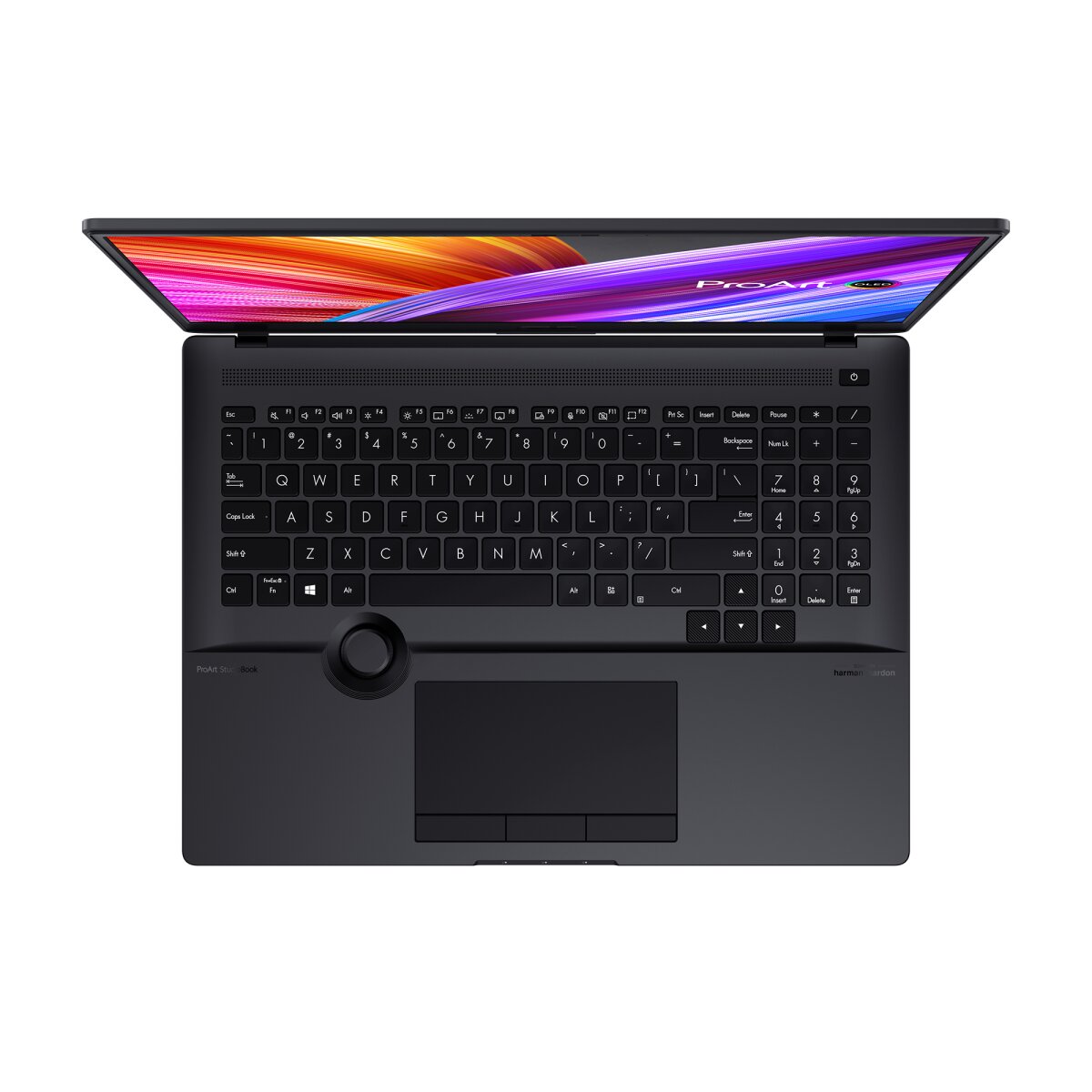

| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Weight & dimensions | |
| Weight | 2.4 kg |
| Height (rear) | 2.14 cm |
| Height (front) | 1.99 cm |
| Depth | 264 mm |
| Width | 362 mm |
| Power | |
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 12 A |
| Security | |
| Fingerprint reader | Yes |
| Password protection | Yes |
| Password protection type | BIOS, HDD, User |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
