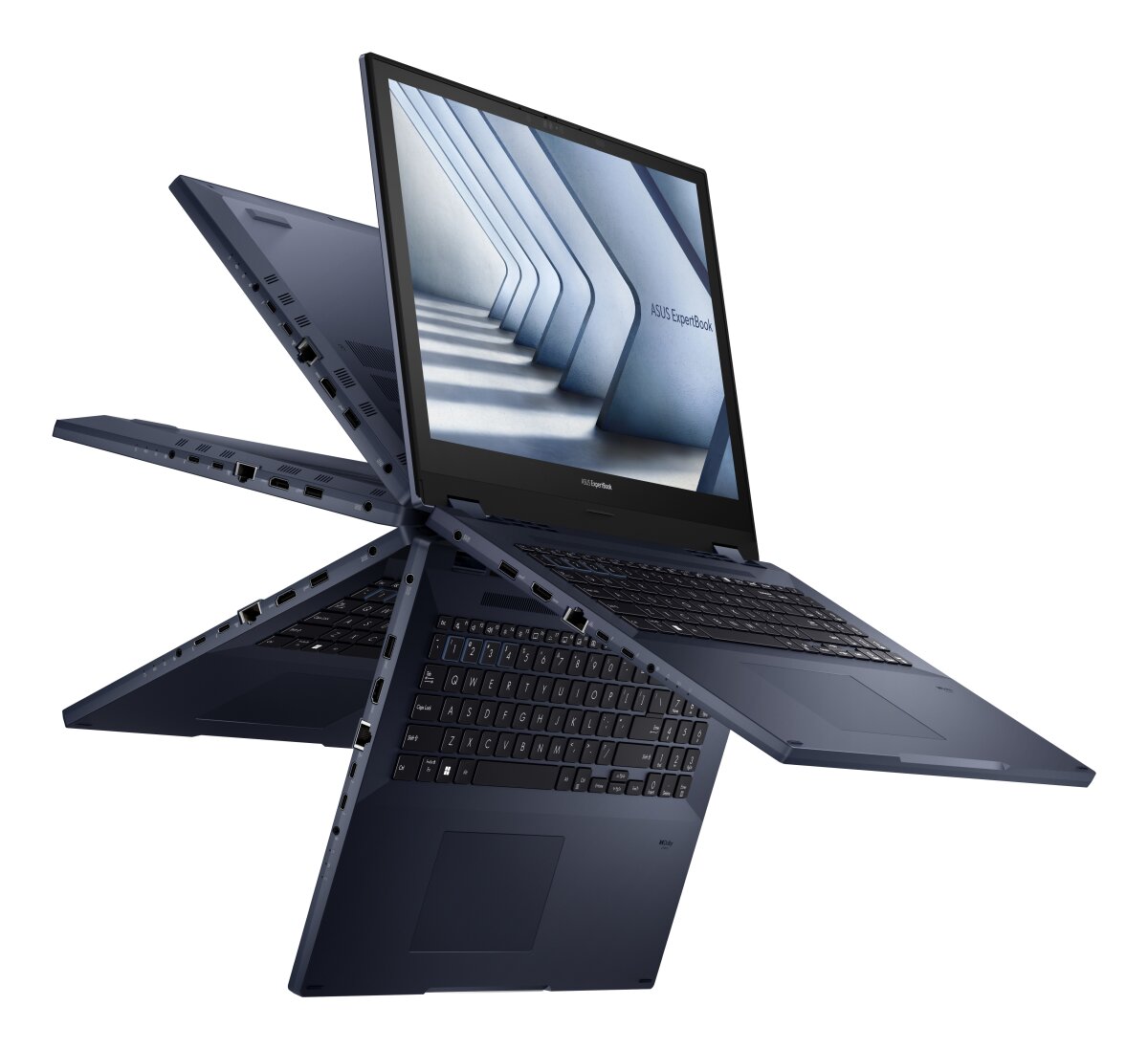

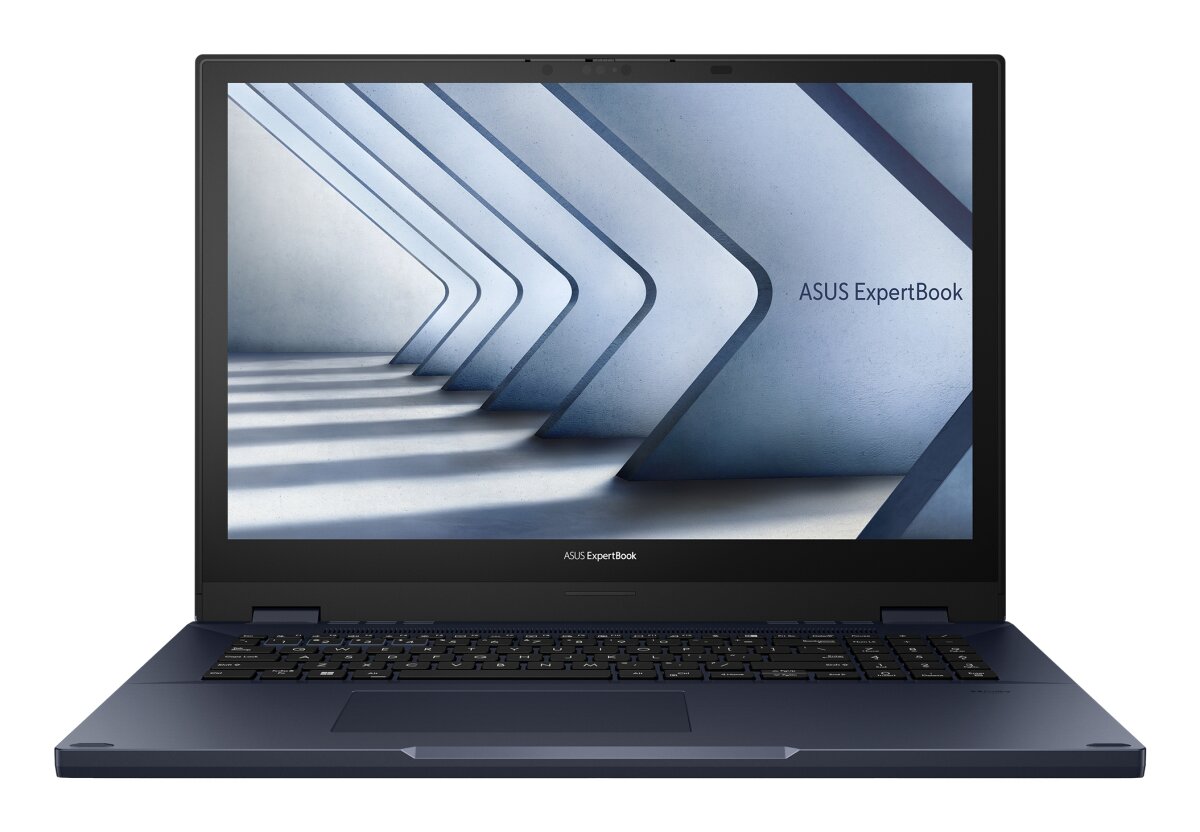

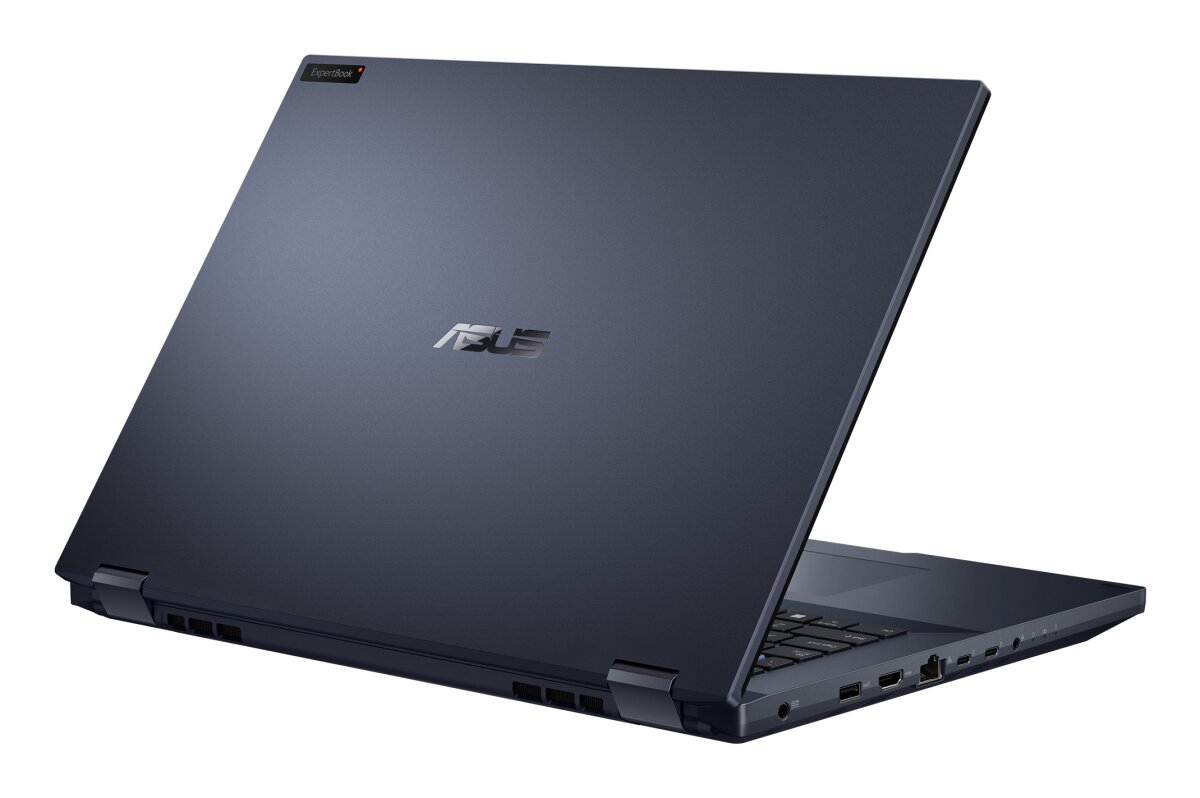

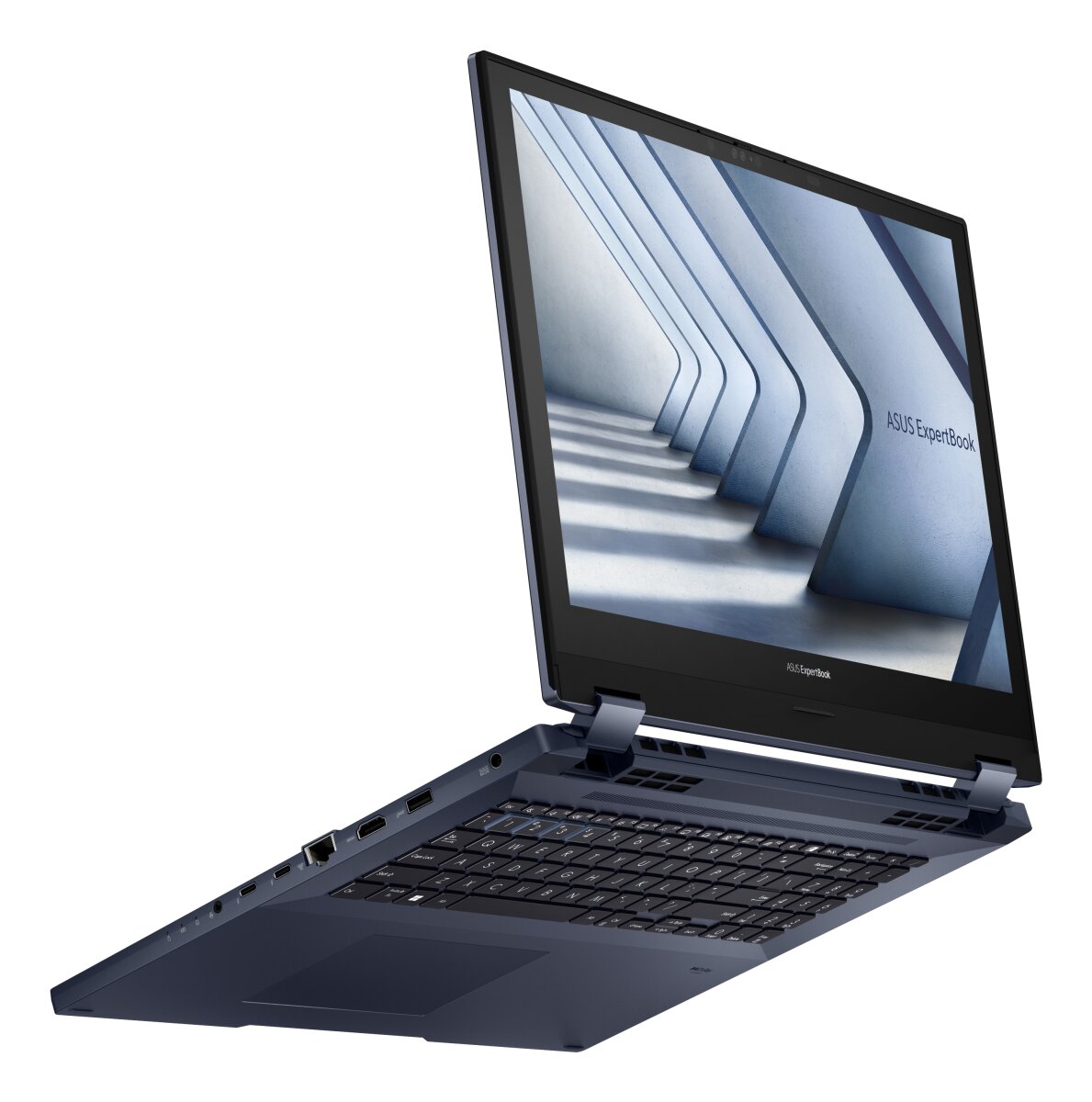

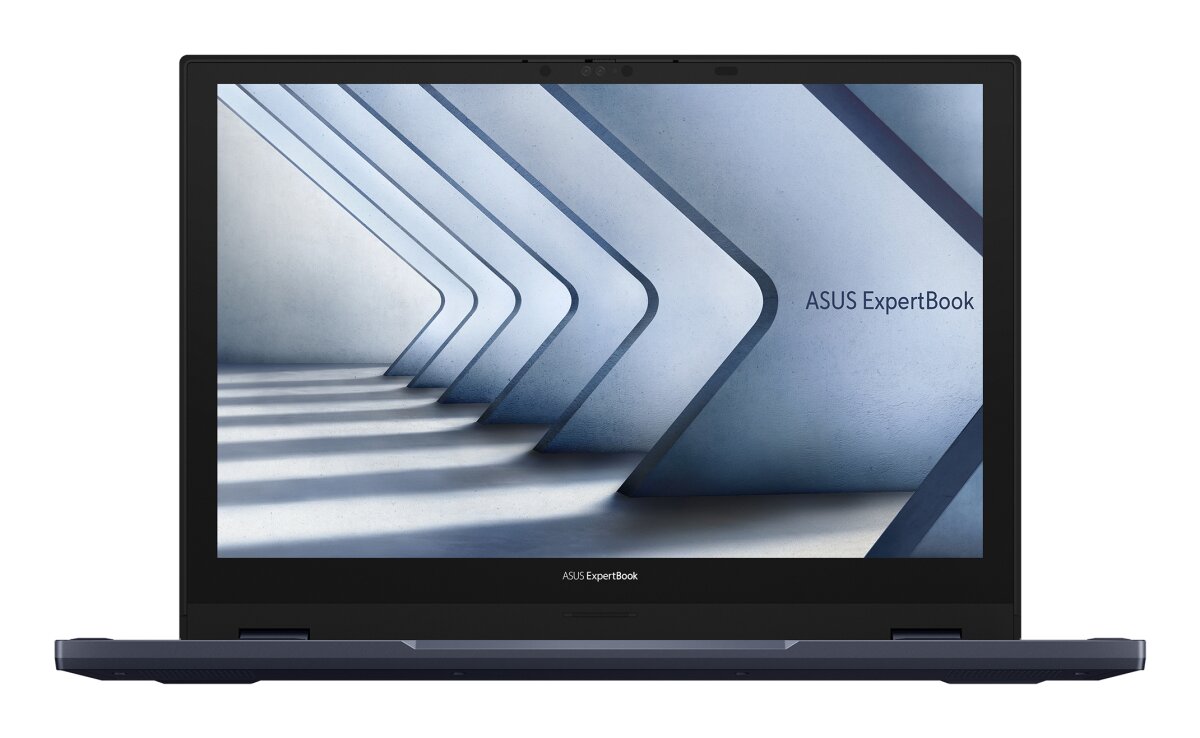

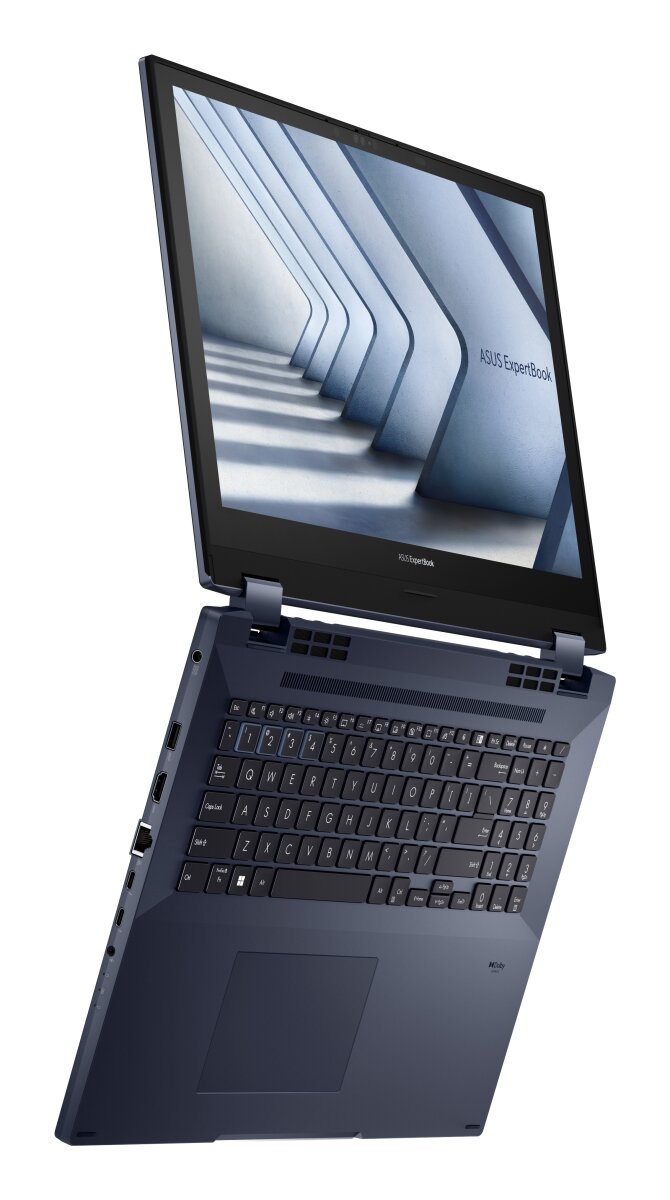

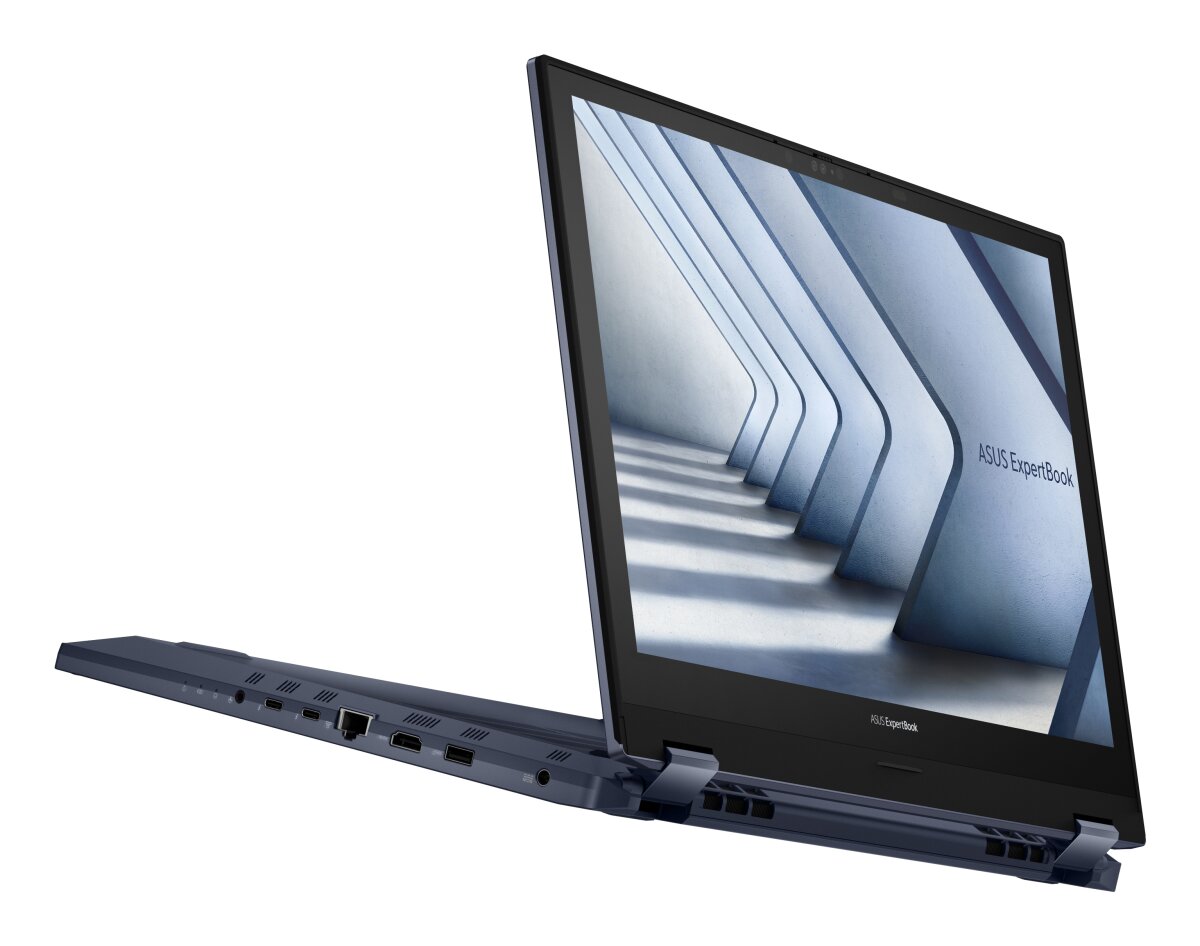

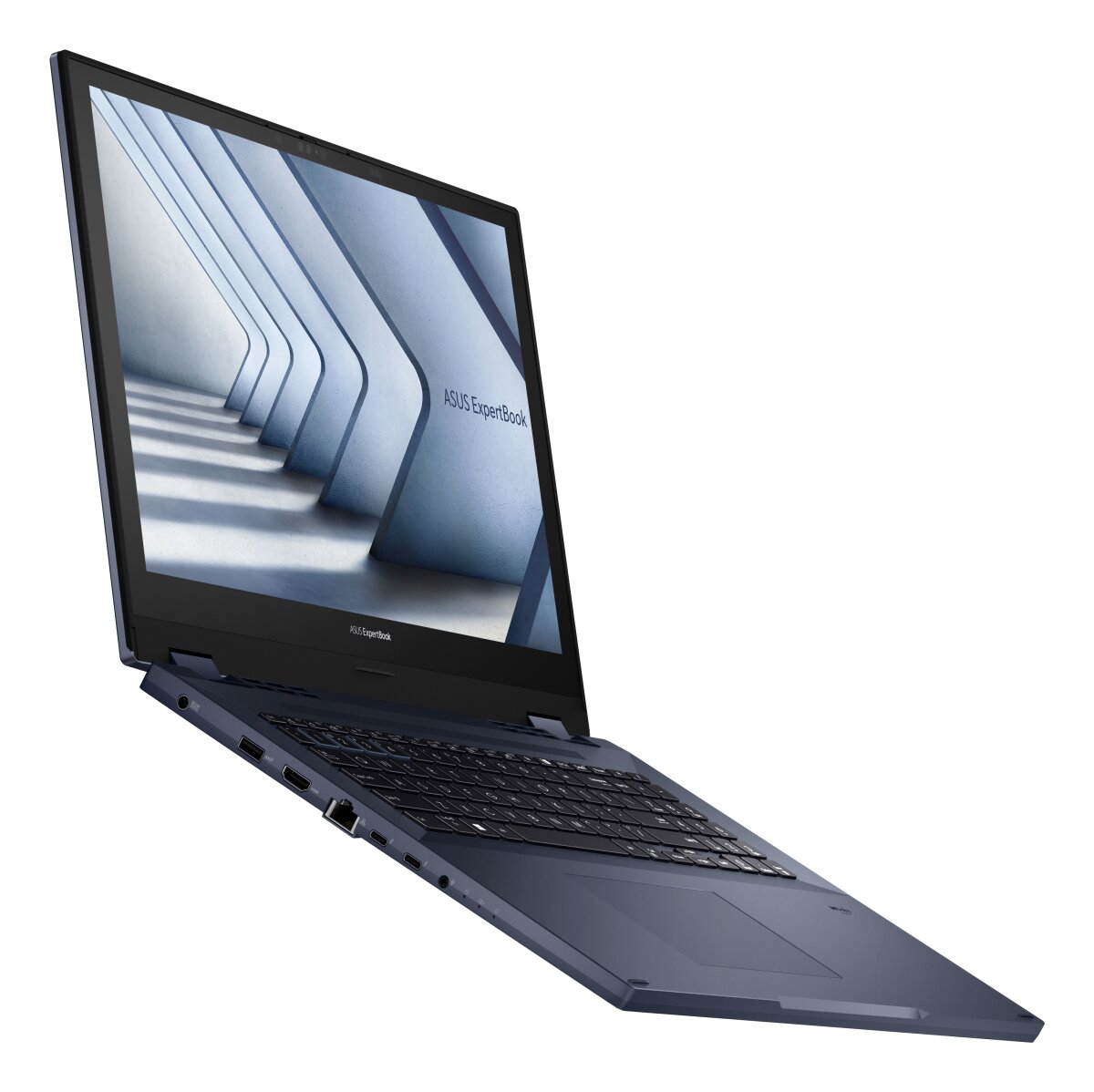

ASUS ExpertBook B6602FC2-MH0111X - 90NX04U1-M003P0

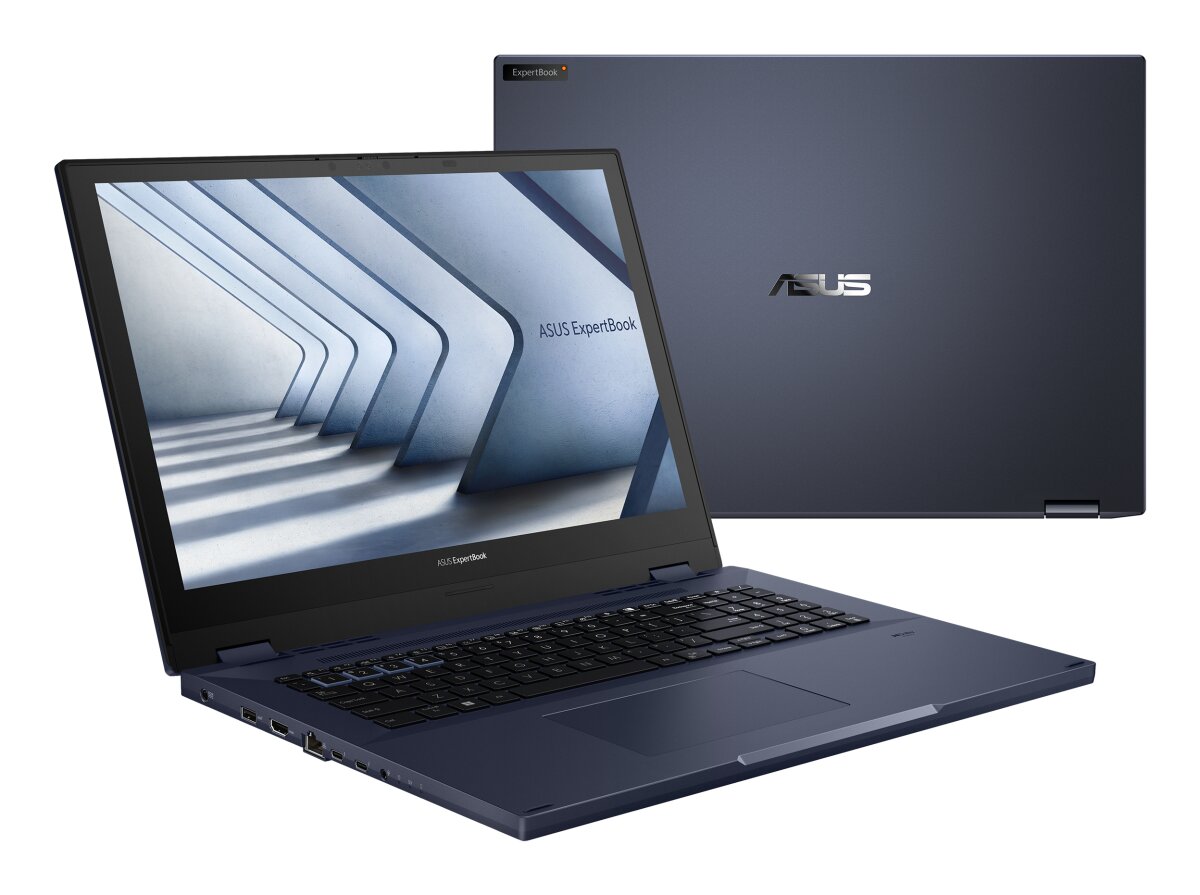

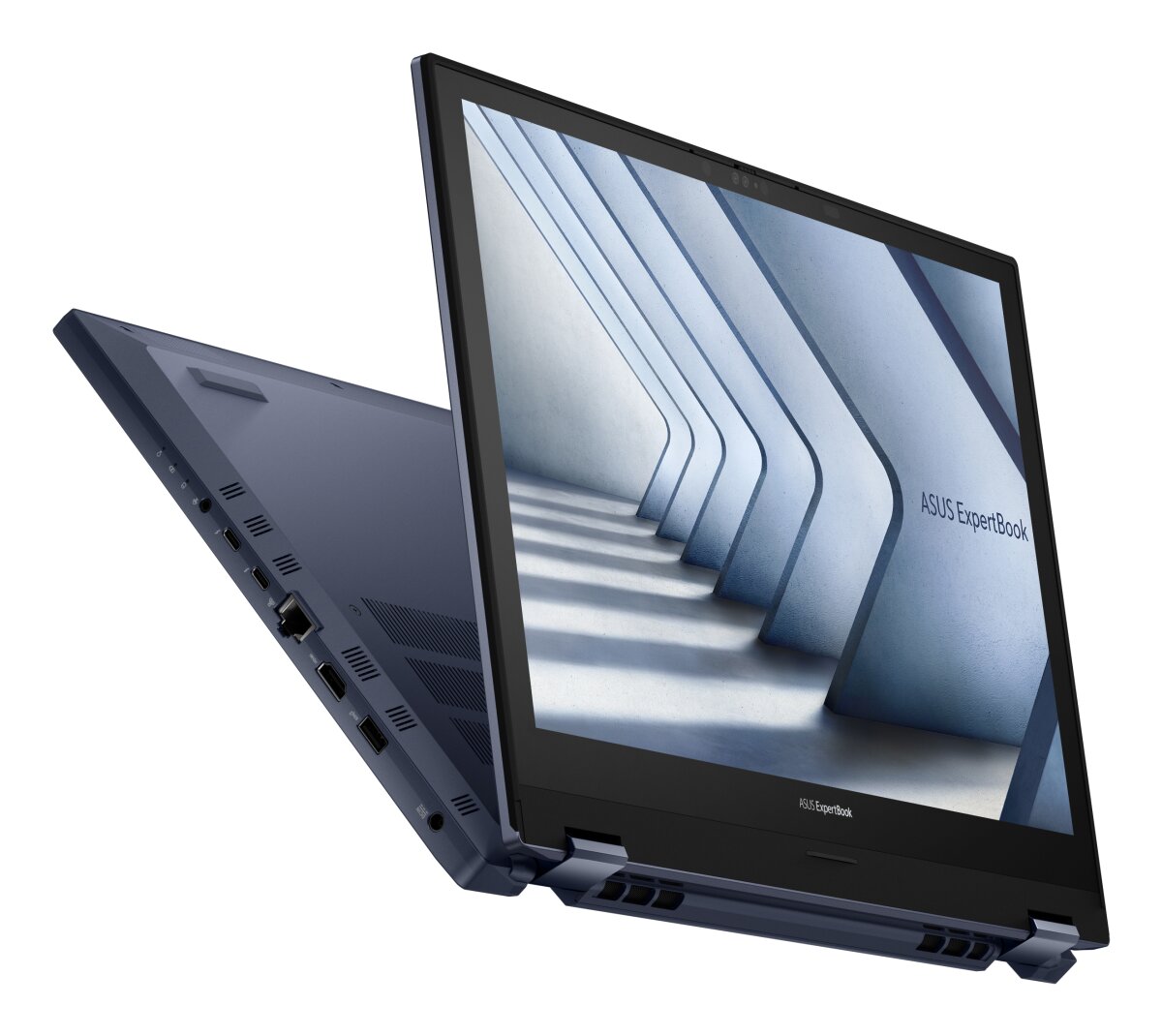

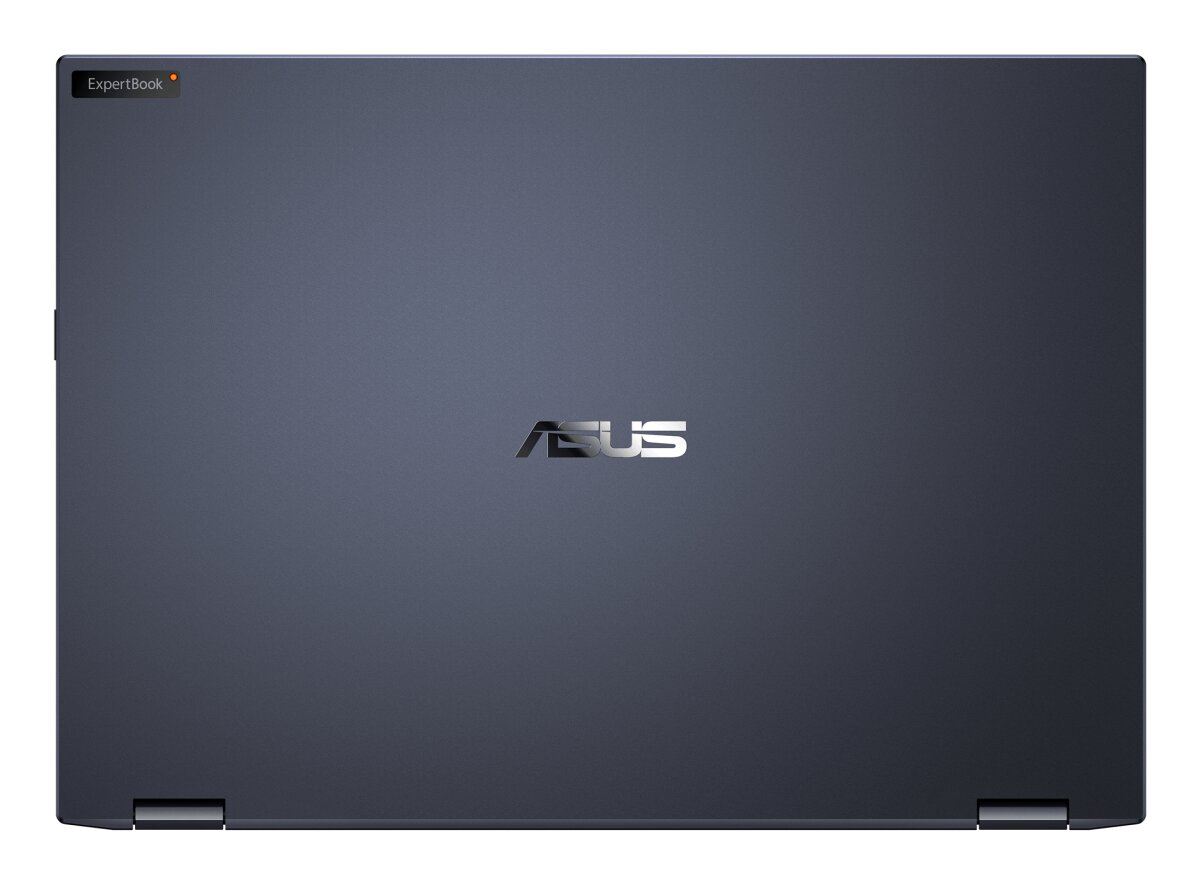

ASUS ExpertBook B6602FC2-MH0111X
Product code: 90NX04U1-M003P0
- 💻Display diagonal: 16 inch
- 🔳Processor model: i9-12950HX
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 2.7 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Market positioning | Work |
| Housing material | Aluminium, Plastic |
| Introduction year | 2023 |
| Introduction month | January |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 120 Hz |
| Touchscreen type | Capacitive |
| Display brightness | 500 cd/m² |
| Panel type | IPS |
| HD type | WQXGA |
| LED backlight | Yes |
| Touchscreen | Yes |
| Display resolution | 2560 x 1600 pixels |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Brand | ASUS |
| Family | ExpertBook |
| Series | B6 Flip |
| Model name | B6602FC2-MH0111X |
| Part Number | 90NX04U1-M003P0 |
| Release Date | 16 September 2022 |
| EAN/UPC code | 4711081917465 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i9 |
| Motherboard chipset | Intel WM690 |
| Processor boost frequency | 5 GHz |
| Processor model | i9-12950HX |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor cache | 30 MB |
| Processor generation | 12th gen Intel Core i9 |
| Efficient cores | 8 |
| Performance cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Maximum turbo power | 157 W |
| Processor base power | 55 W |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX A2000 |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| Discrete graphics card memory | 8 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB Power Delivery | Yes |
| HDMI version | 2.0b |
| SmartCard slot | Yes |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Power adapter barrel connector | 6.0 mm |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Number of microphones | 1 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |
| Privacy type | Privacy shutter |
| Keyboard | |
| Numeric keypad | Yes |
| Island-style keyboard | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | Microsoft 365 30-day, McAfee LiveSafe 30-day |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 200 g |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Weight & dimensions | |
| Weight | 2.7 kg |
| Height | 27 mm |
| Depth | 272 mm |
| Width | 383 mm |
| Power | |
| AC adapter power | 240 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 12 A |
| Security | |
| Cable lock slot | Yes |
| Smart card reader | Yes |
| Cable lock slot type | Kensington |
| Face recognition | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, HDD, User |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
